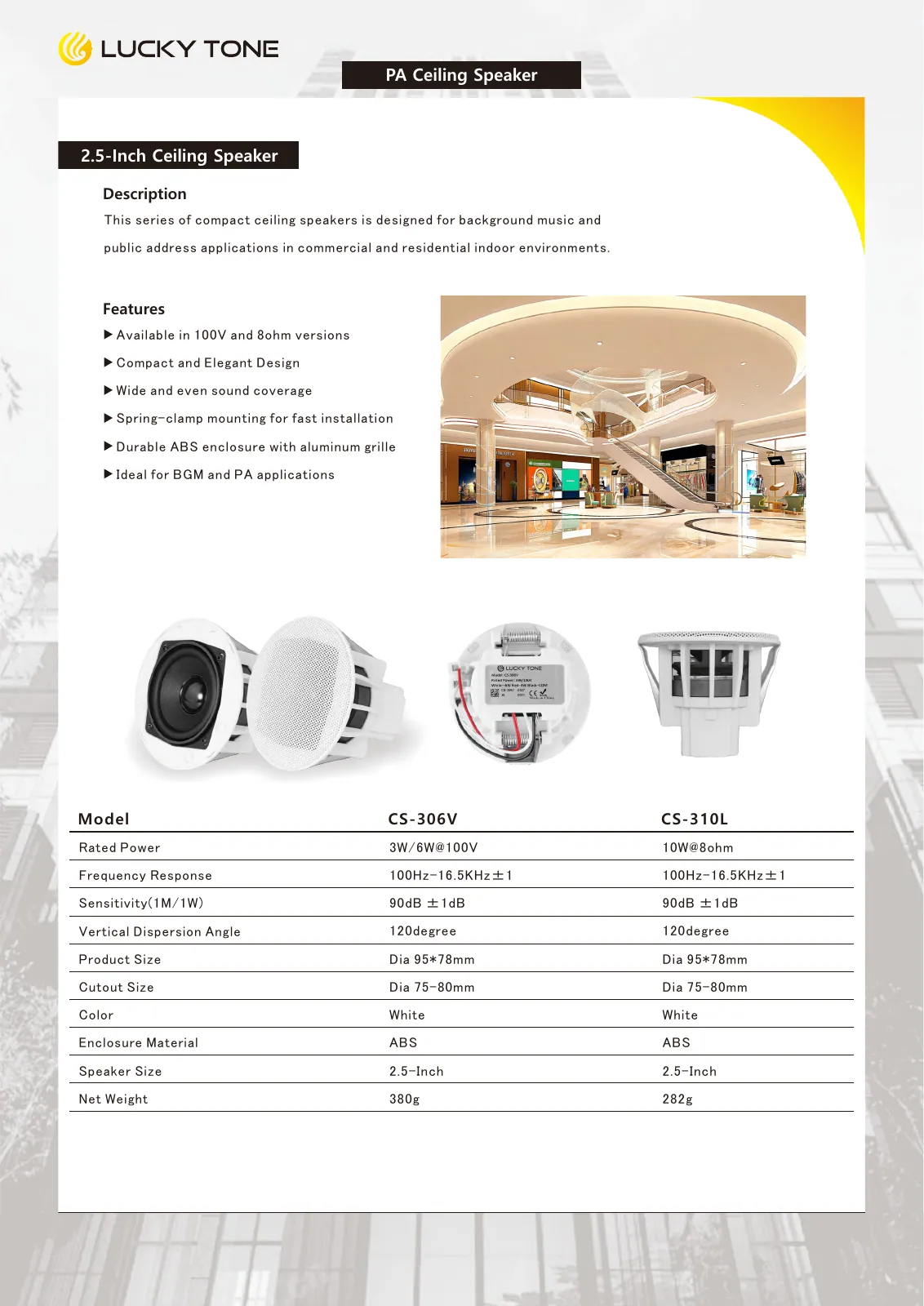

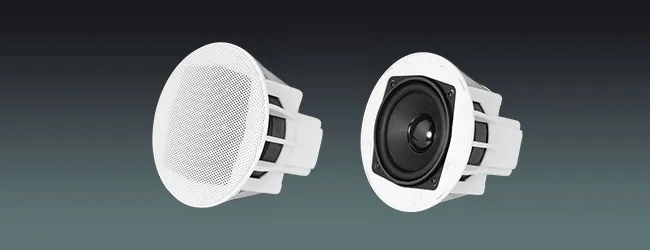

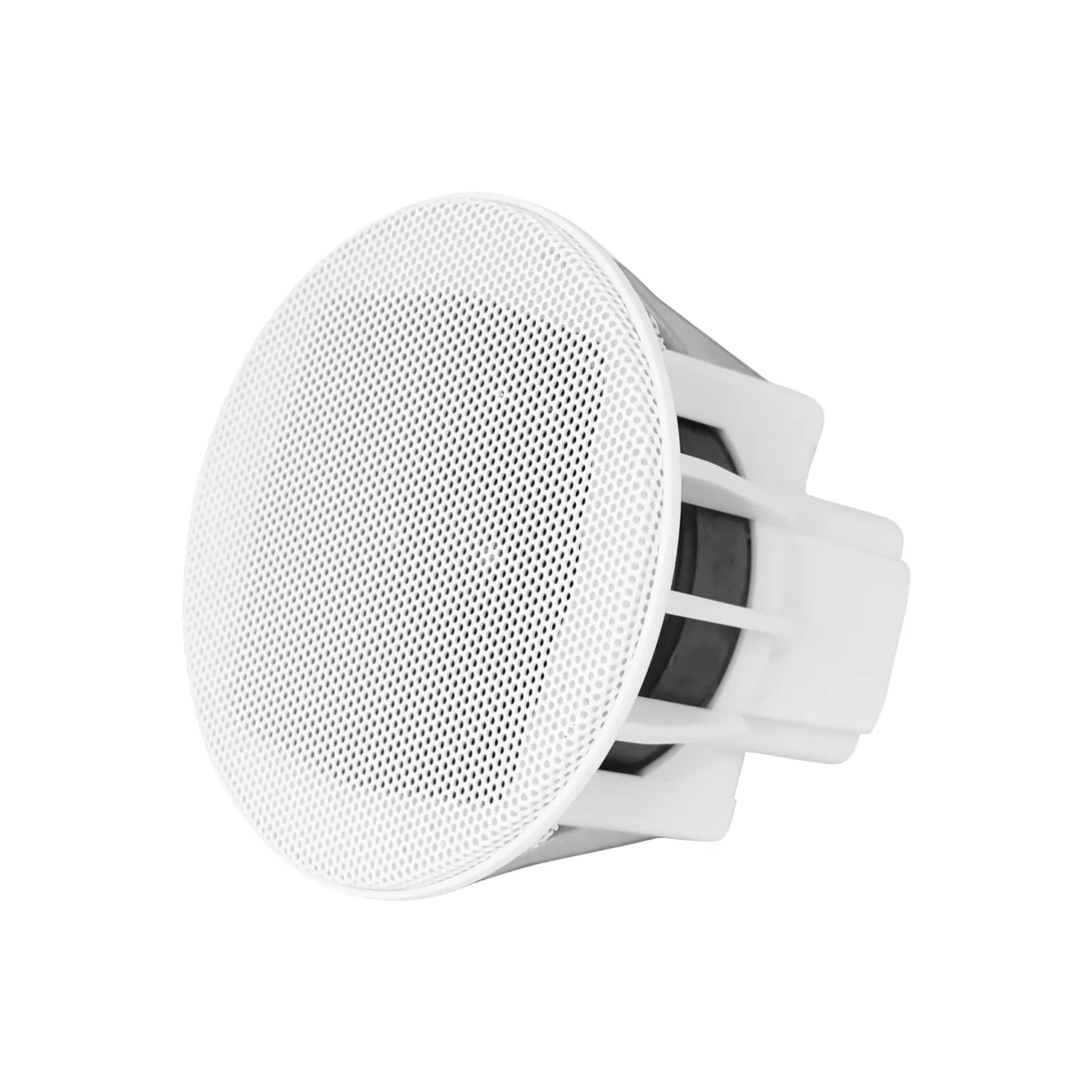

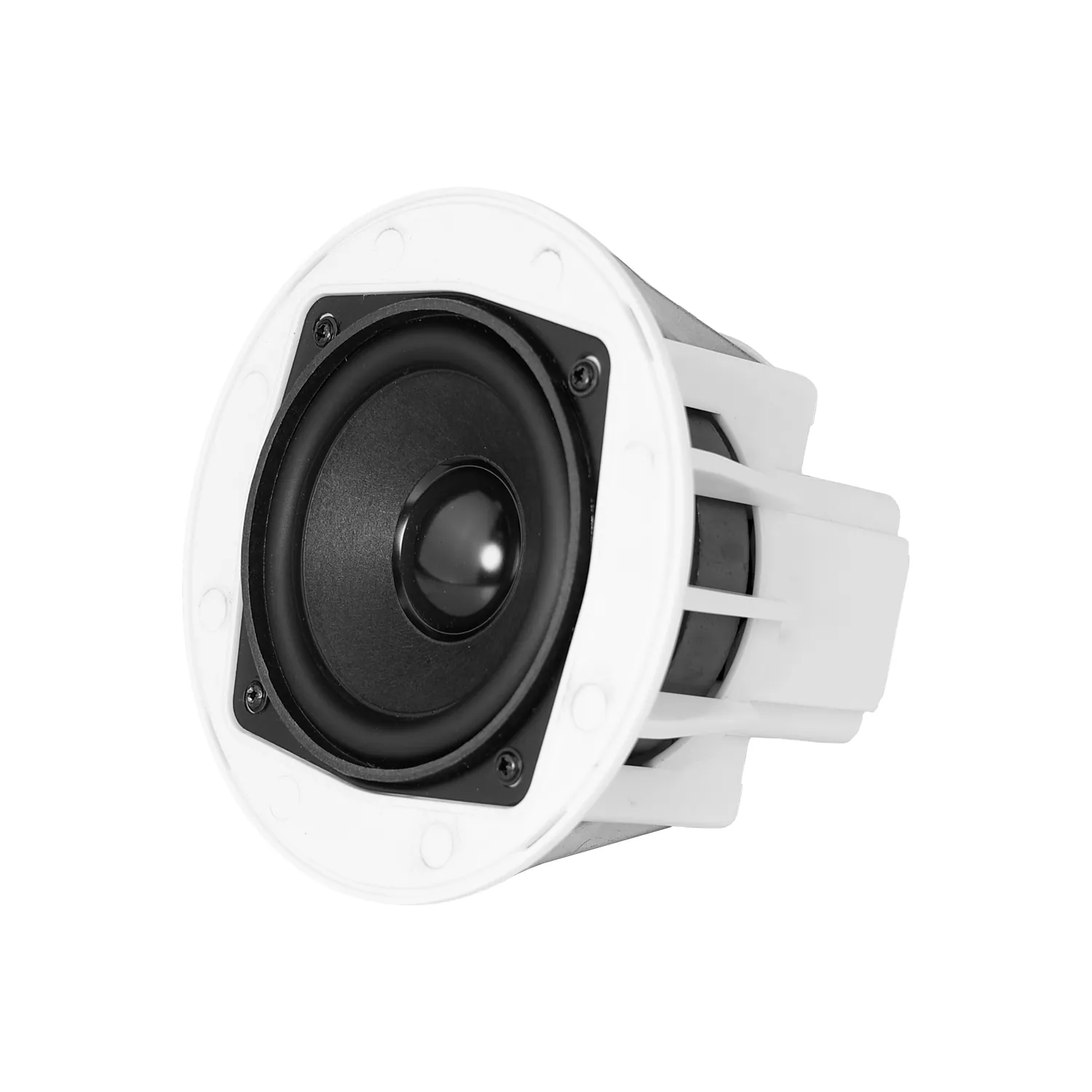

2.5-Inch Ceiling Speaker
ModelCS-306V / CS-310L
This series of compact ceiling speakers is designed for background music and public address applications in commercial and residential indoor environments.
- Output power
- CS-306V: 3W/6W@100V; CS-310L: 10W@8ohm
- Frequency response
- 100Hz-16.5KHz±1
- Weight
- CS-306V: 380g; CS-310L: 282g
Models compared.
| Model | CS-306V | CS-310L |
|---|---|---|
| Rated Power | 3W/6W@100V | 10W@8ohm |
| Frequency Response | 100Hz-16.5KHz±1 | 100Hz-16.5KHz±1 |
| Sensitivity(1M/1W) | 90dB ±1dB | 90dB ±1dB |
| Vertical Dispersion Angle | 120degree | 120degree |
| Product Size | Dia 95*78mm | Dia 95*78mm |
| Cutout Size | Dia 75-80mm | Dia 75-80mm |
| Color | White | White |
| Enclosure Material | ABS | ABS |
| Speaker Size | 2.5-Inch | 2.5-Inch |
| Net Weight | 380g | 282g |
What it is.
Description
Features

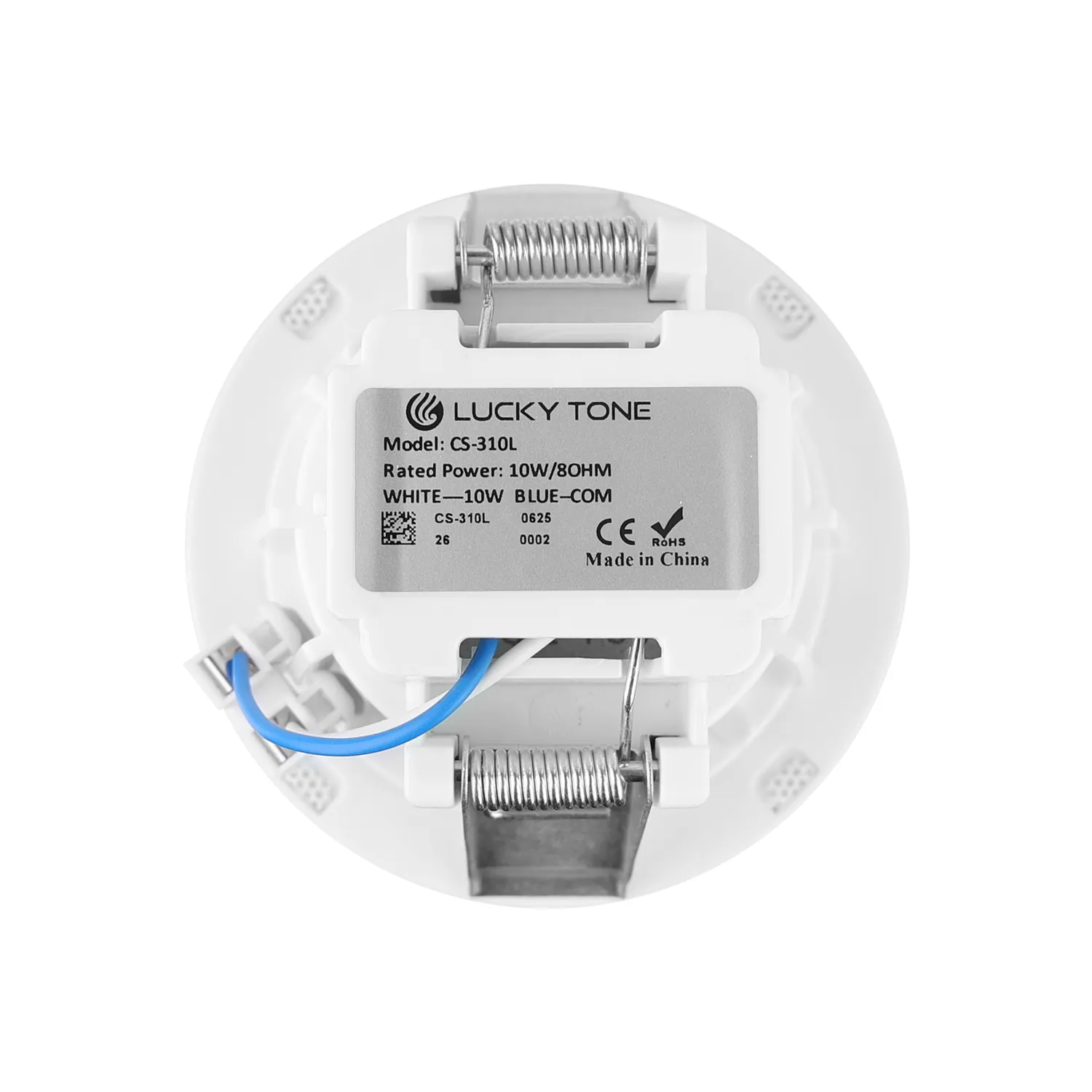

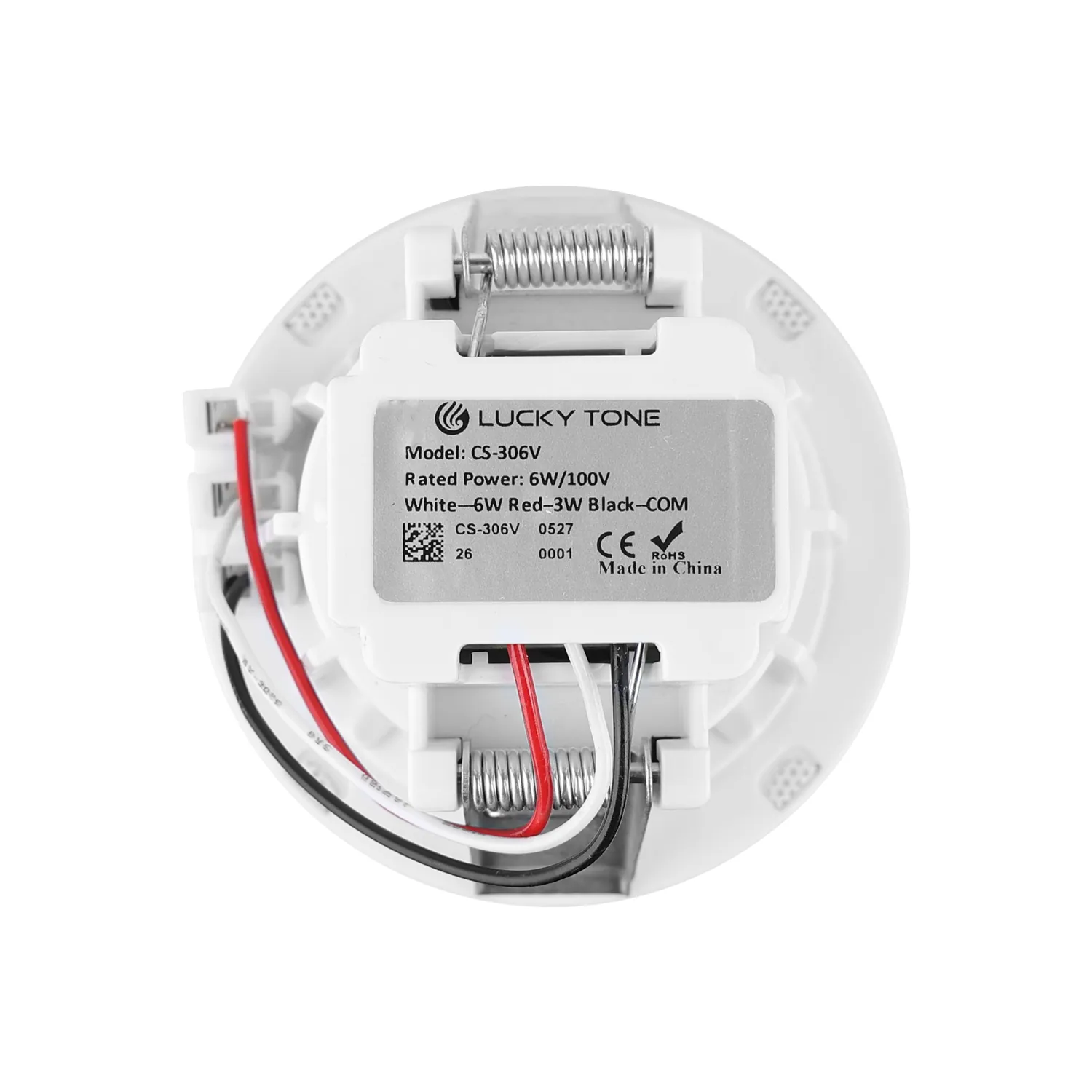

- Available in 100V and 8ohmversions
- Compact and Elegant Design
- Wide and even sound coverage

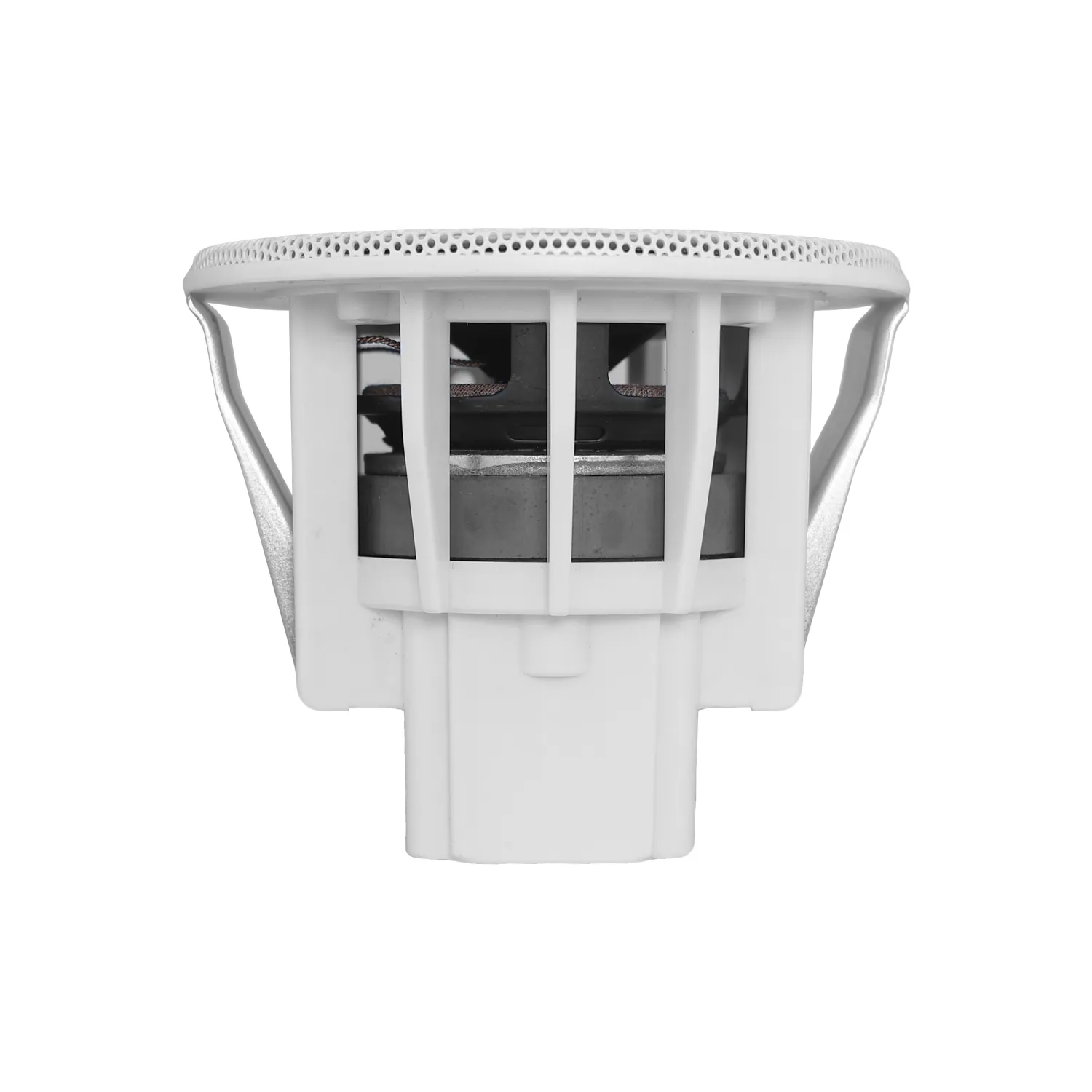

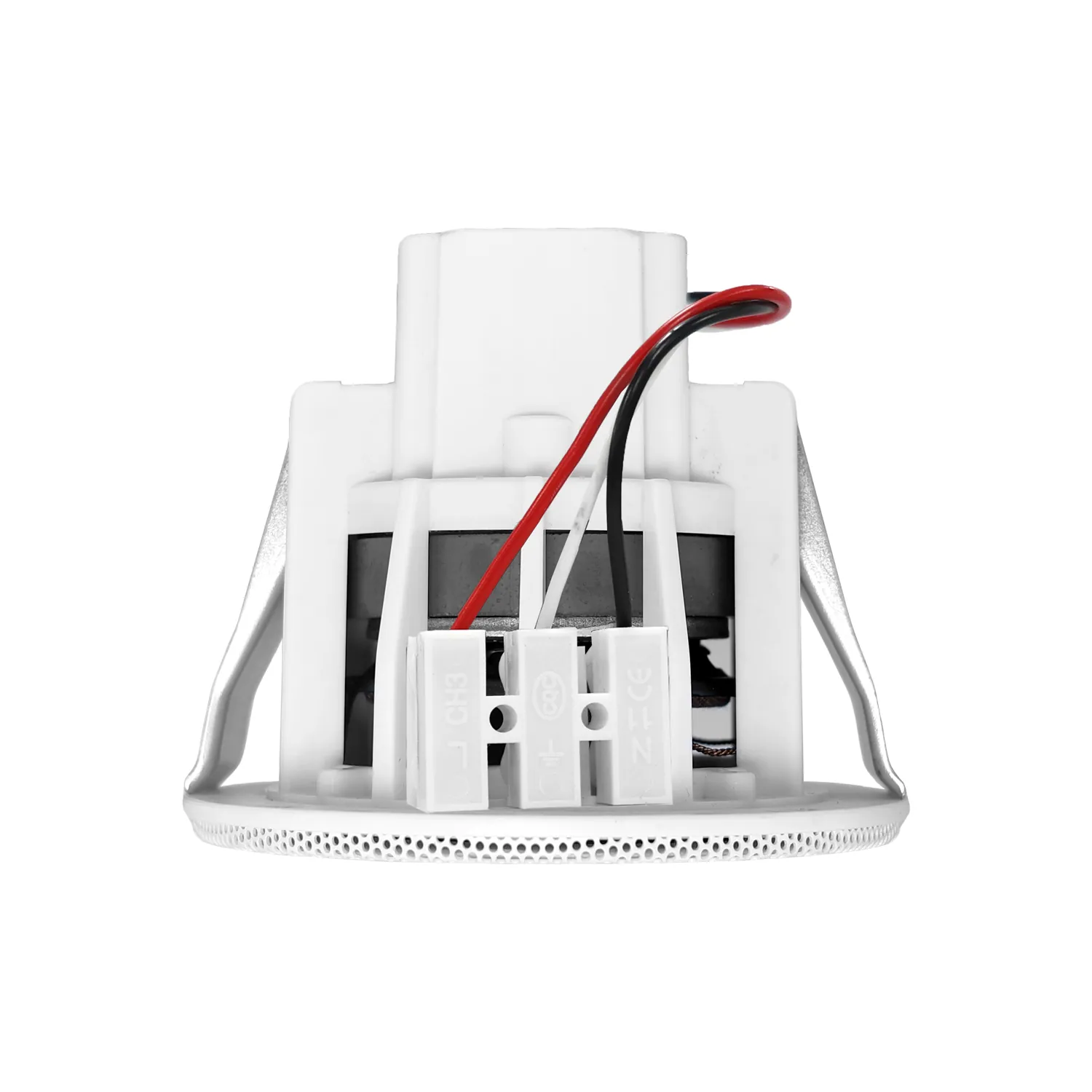

- Spring-clamp mounting for fast installation

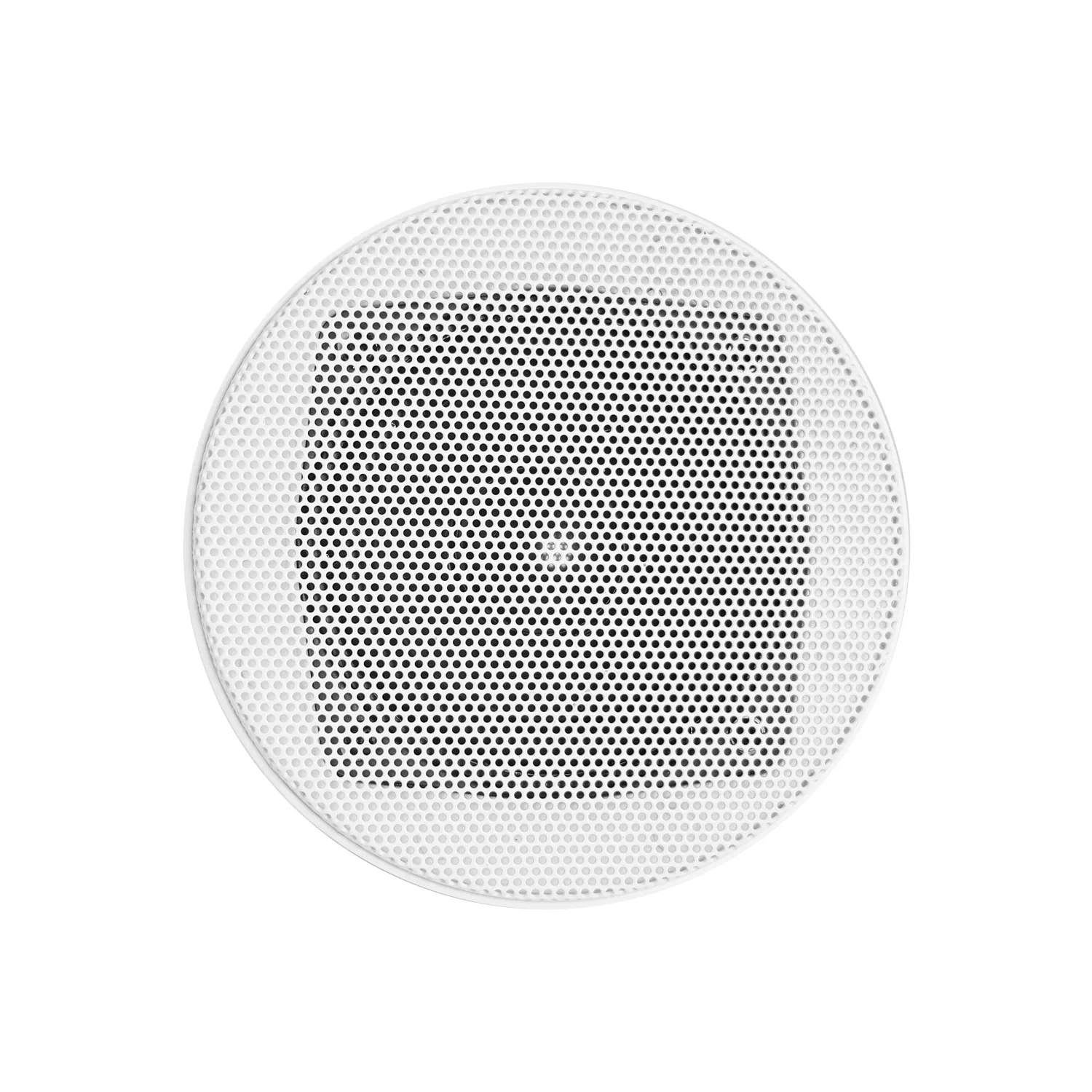

- Durable ABS enclosure with aluminum grille
- Ideal for BGM and PA applications
