Sheet 05.297
Lucky Tone · Dante

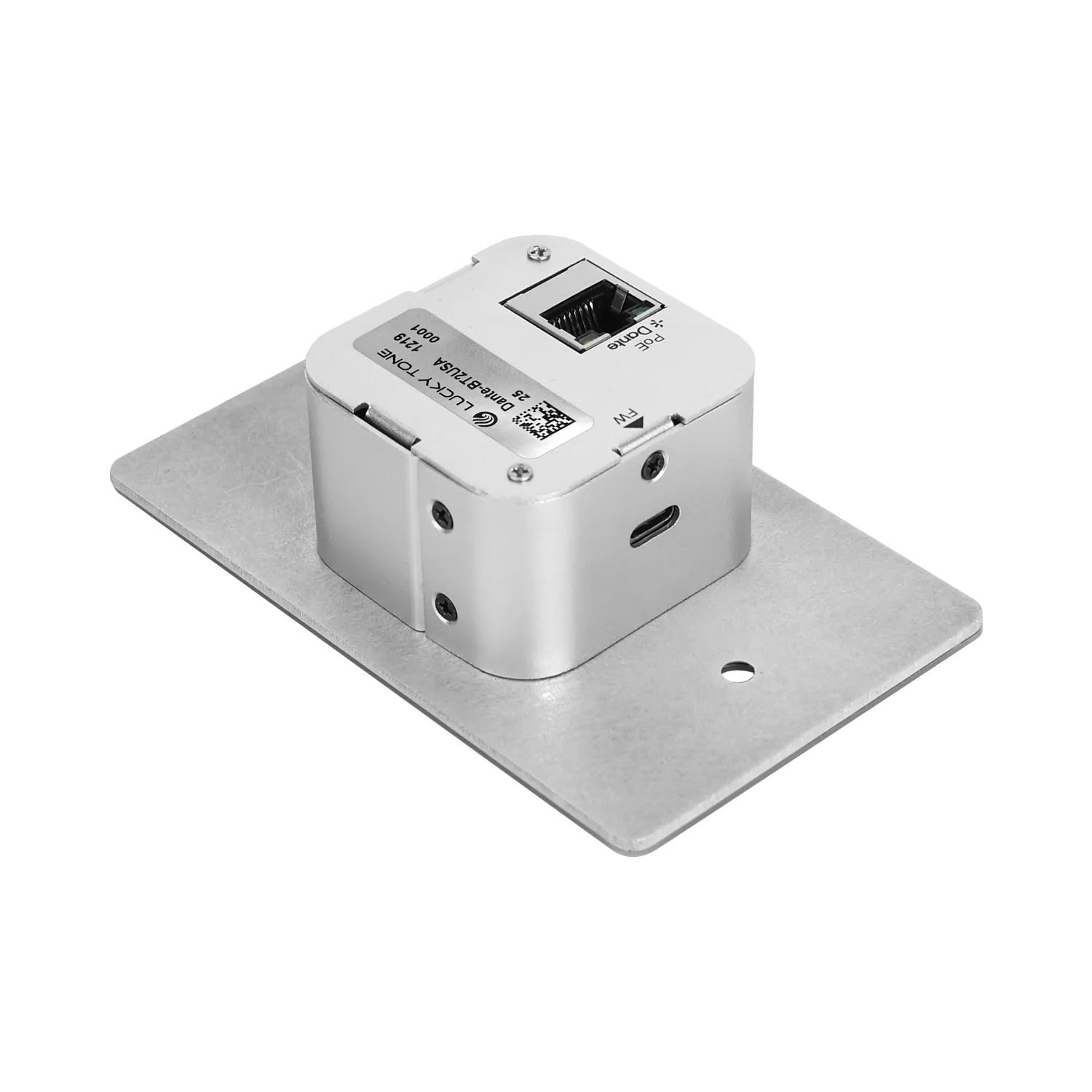

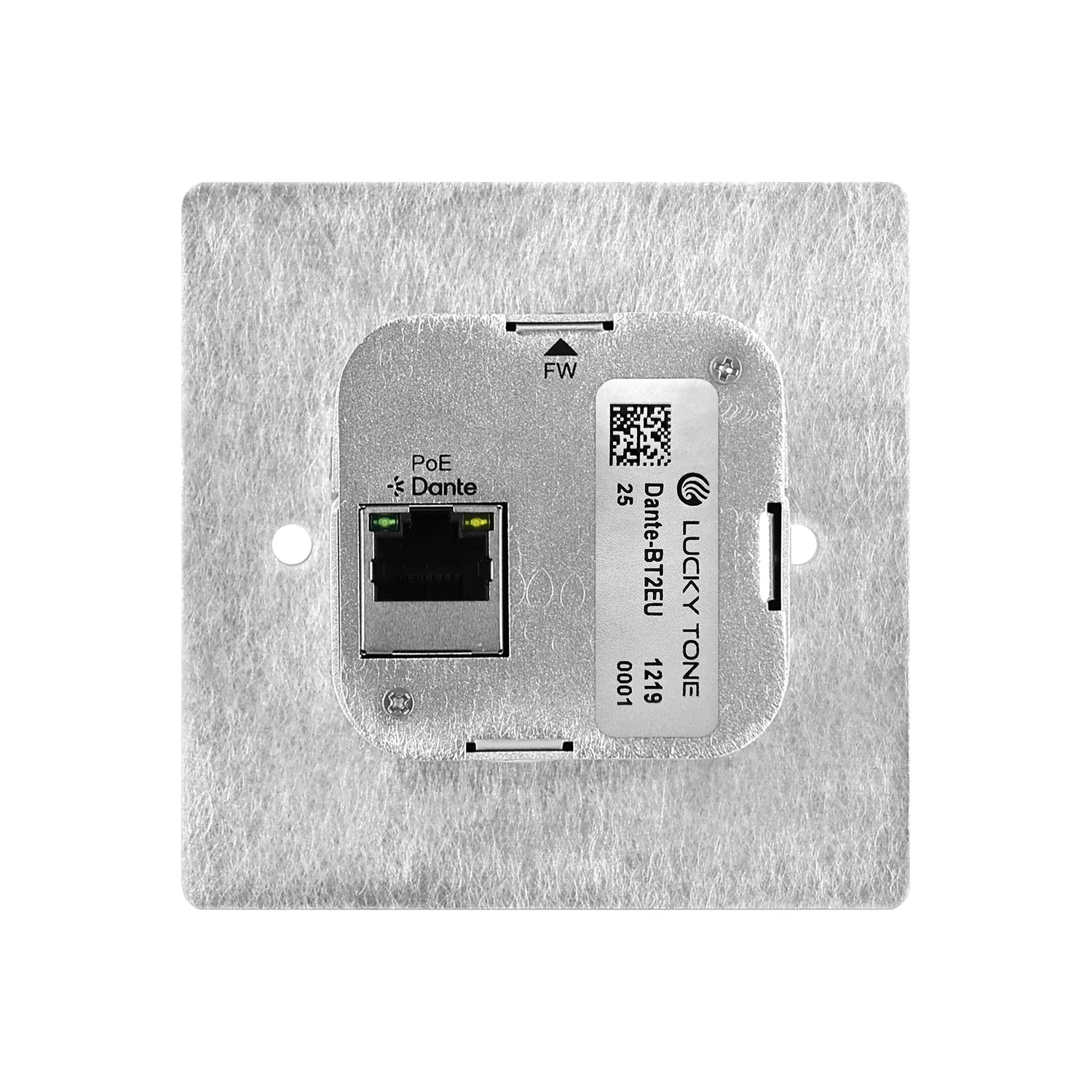

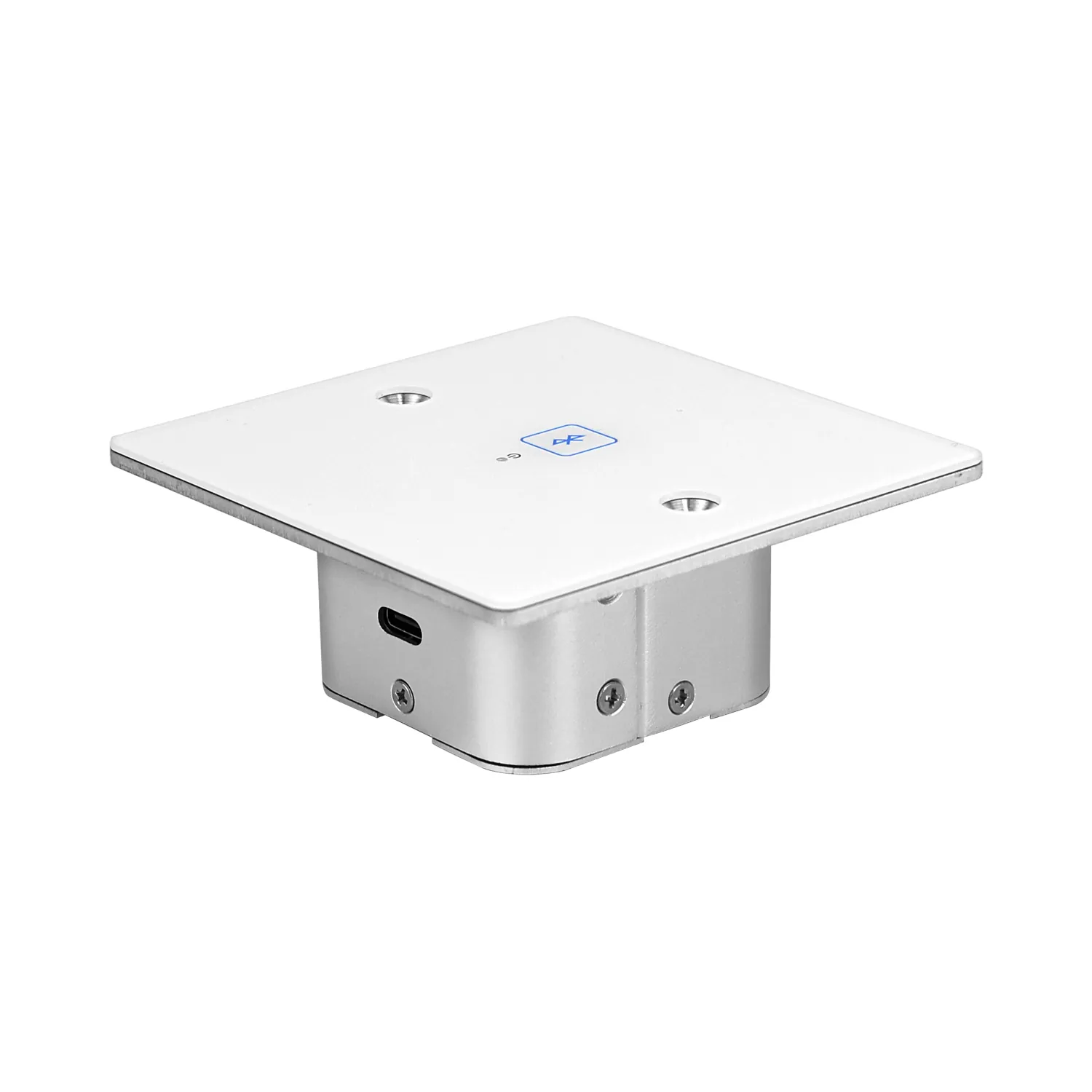

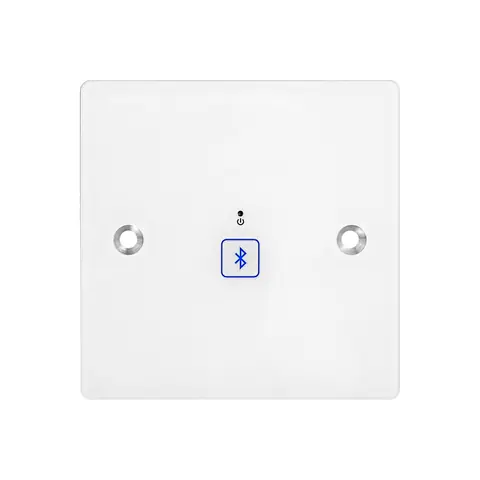

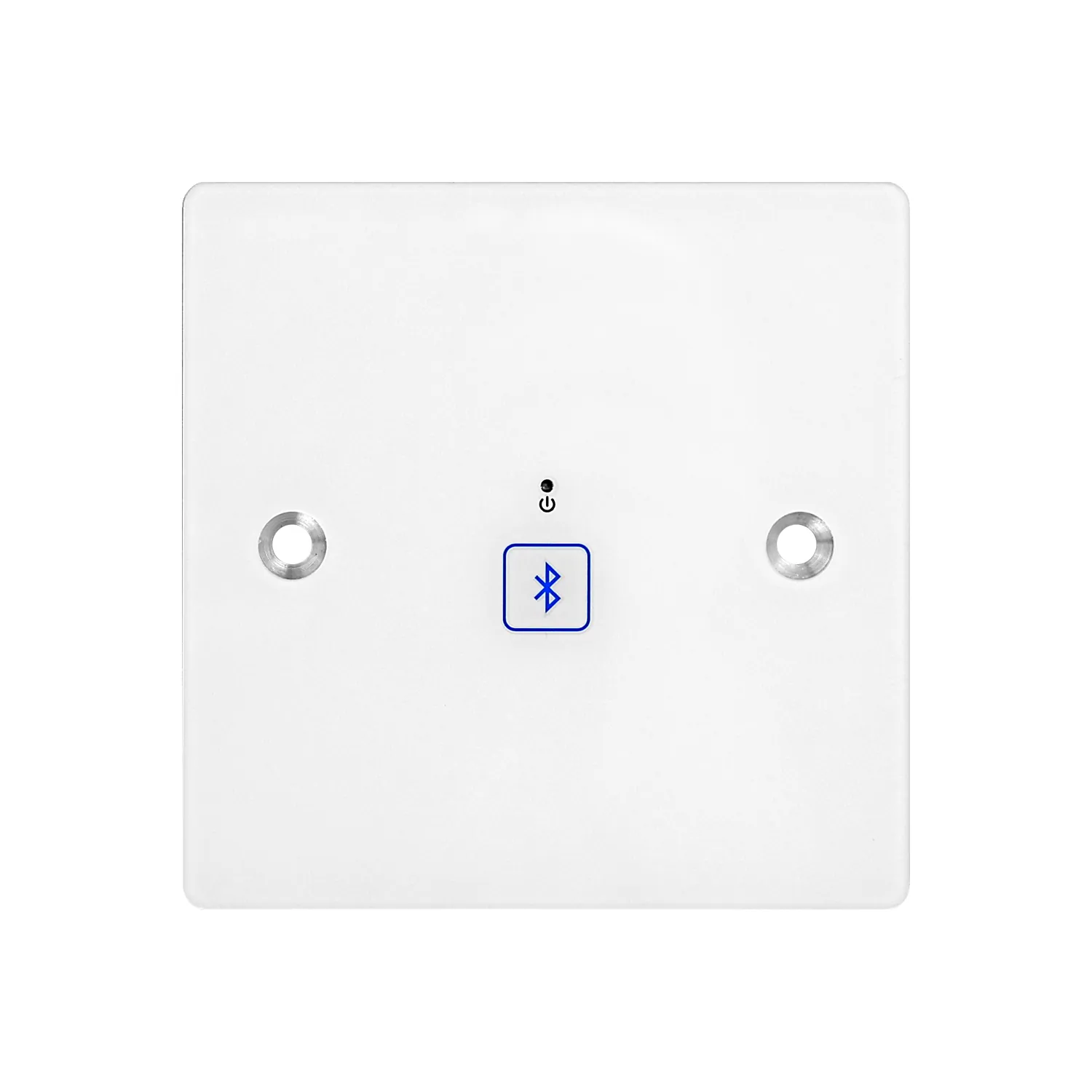

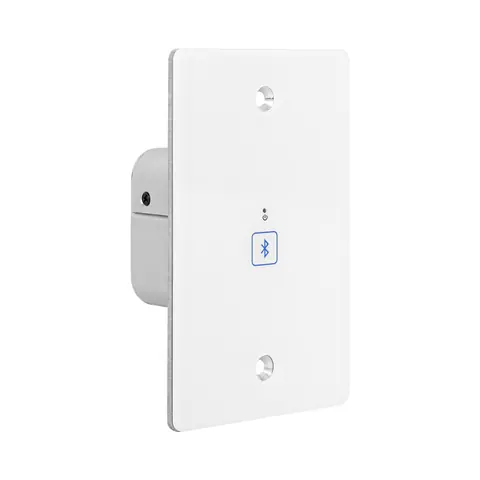

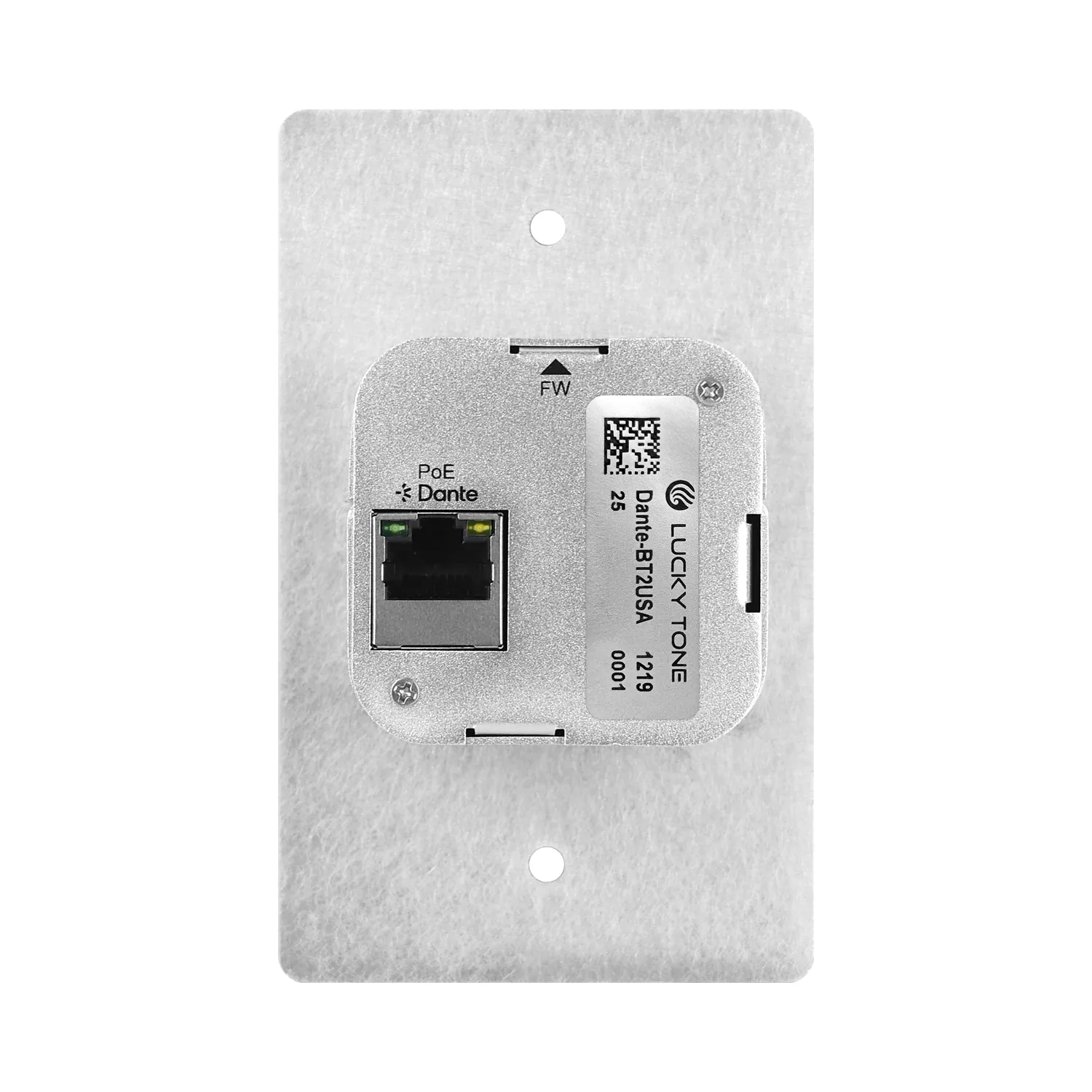

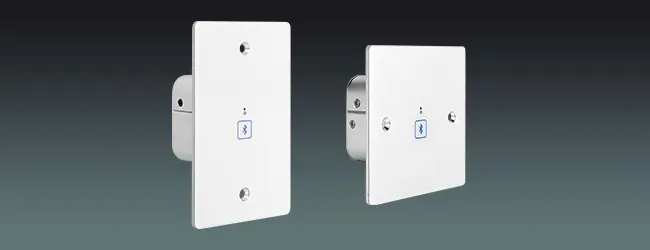

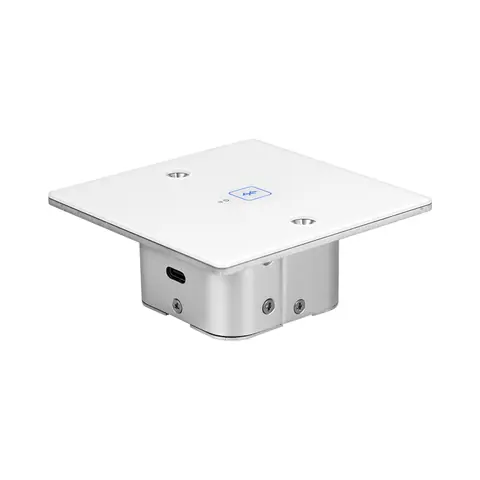

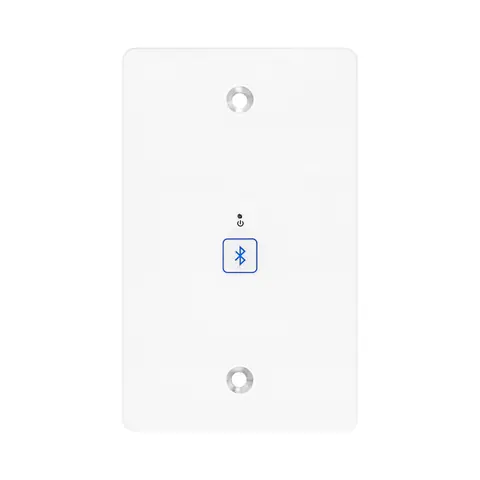

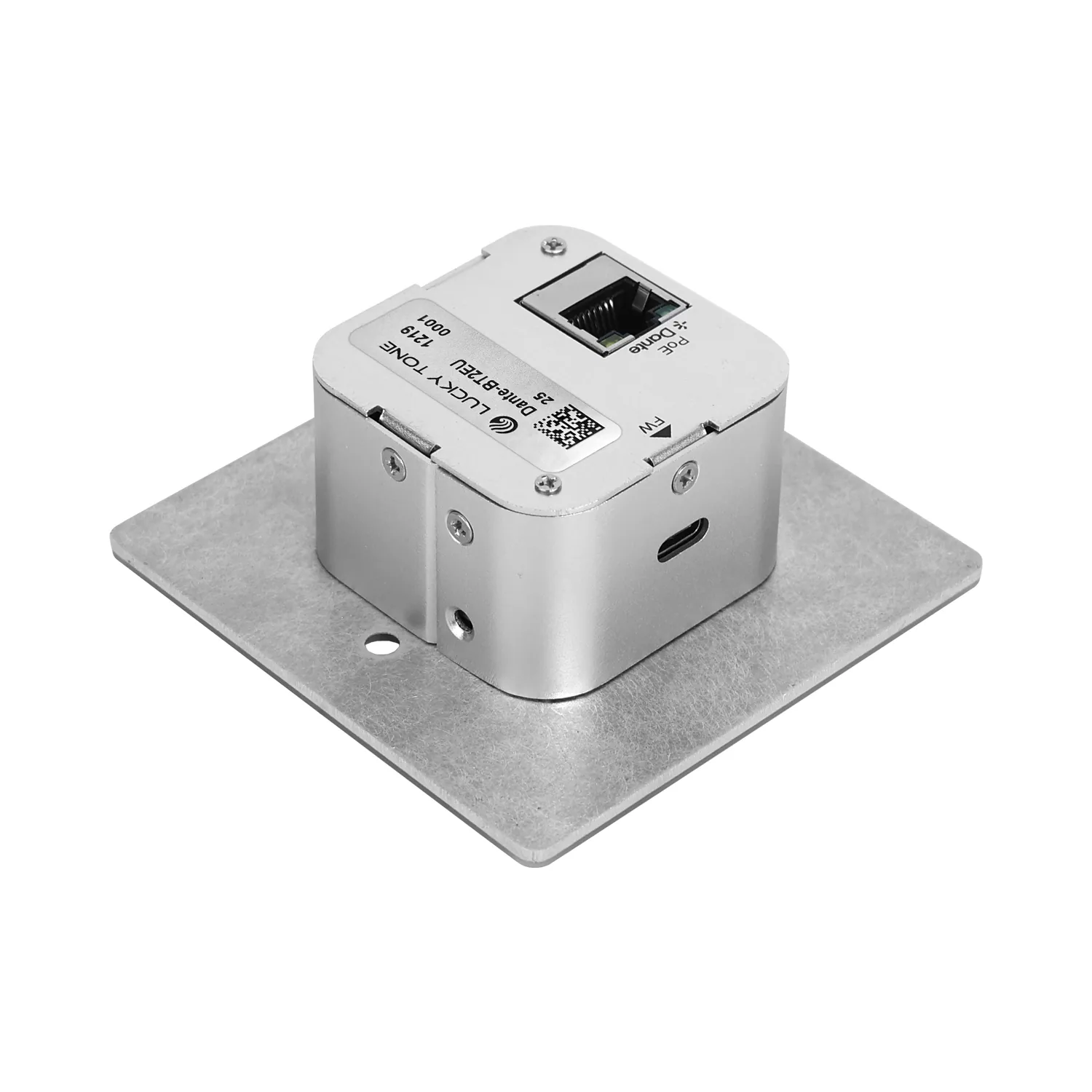

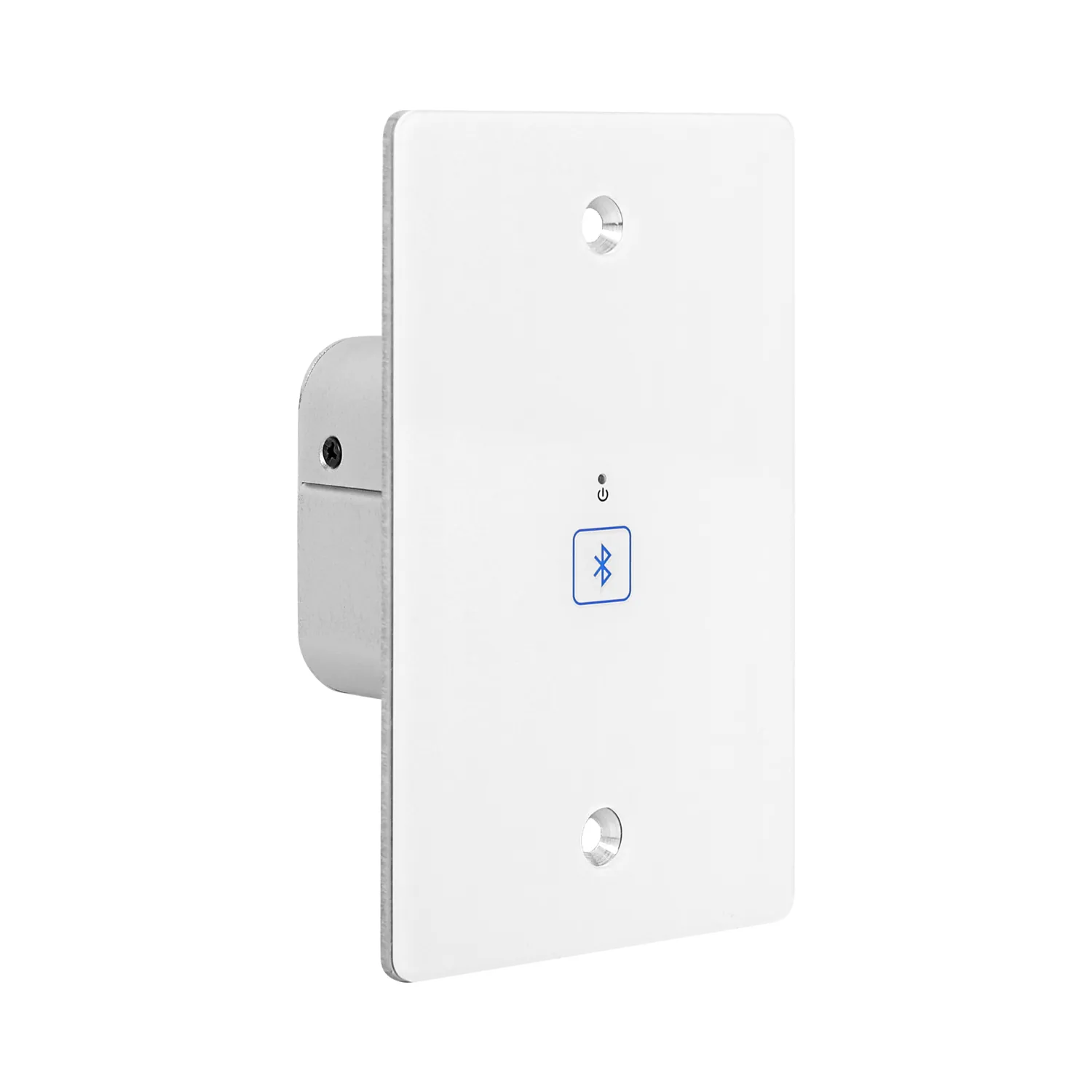

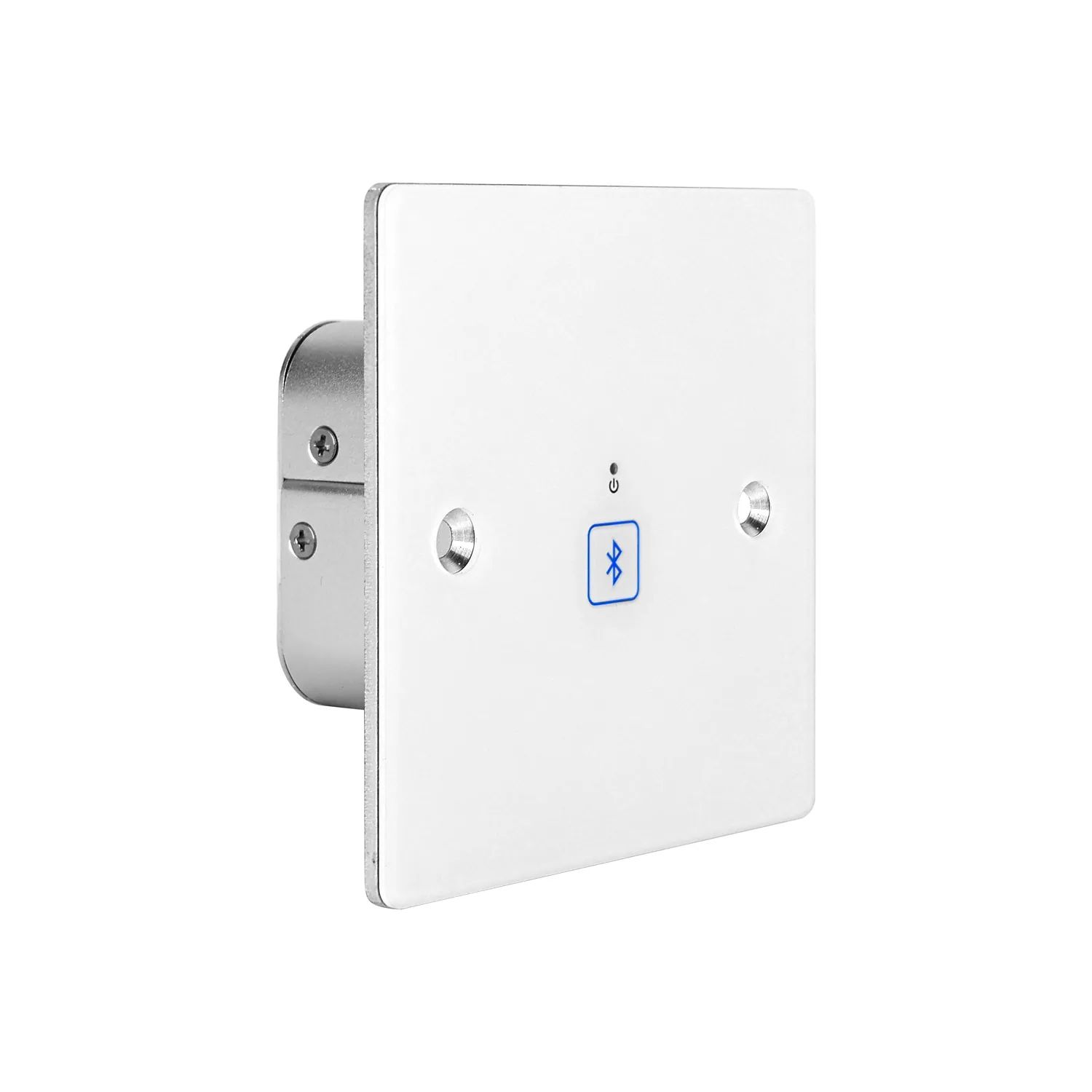

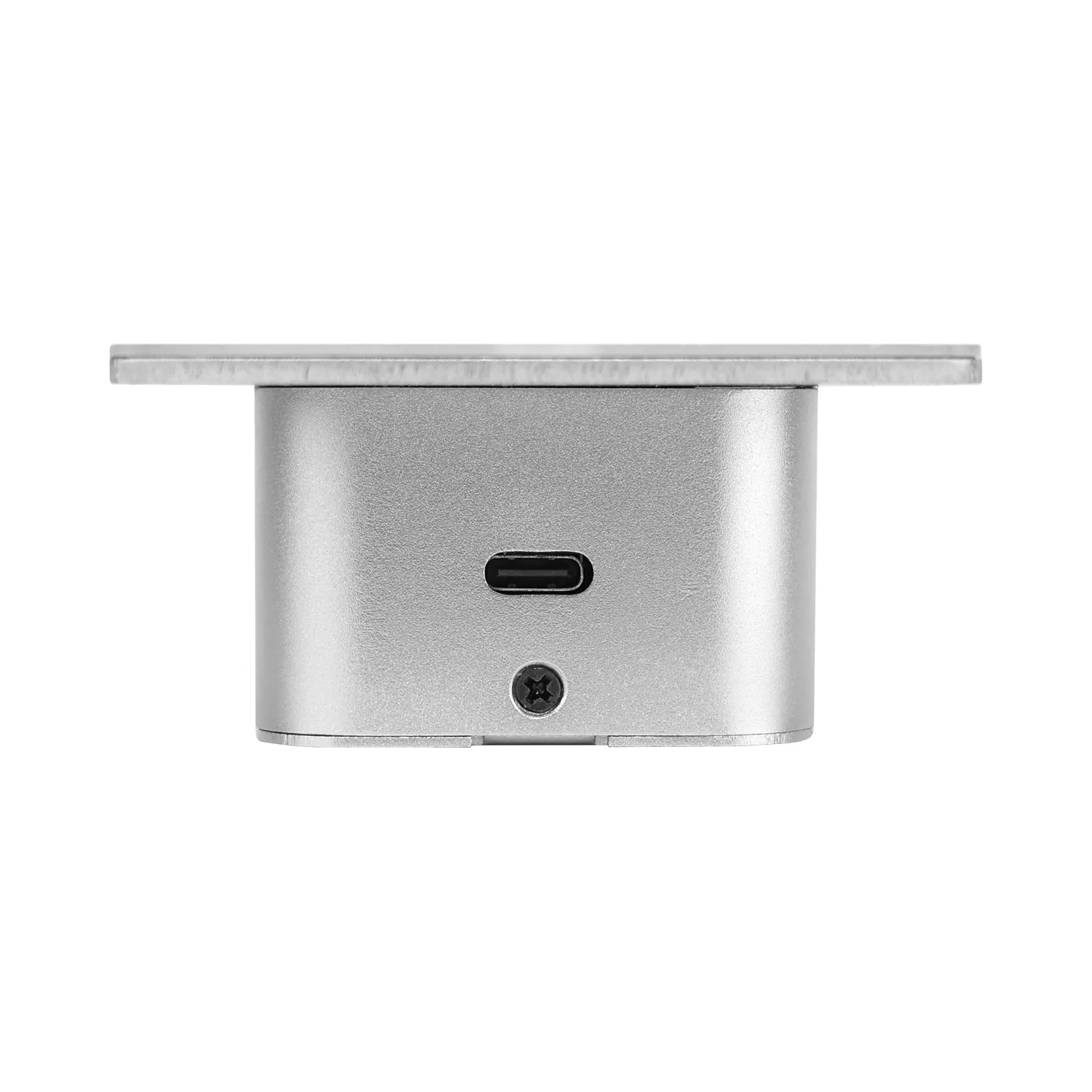

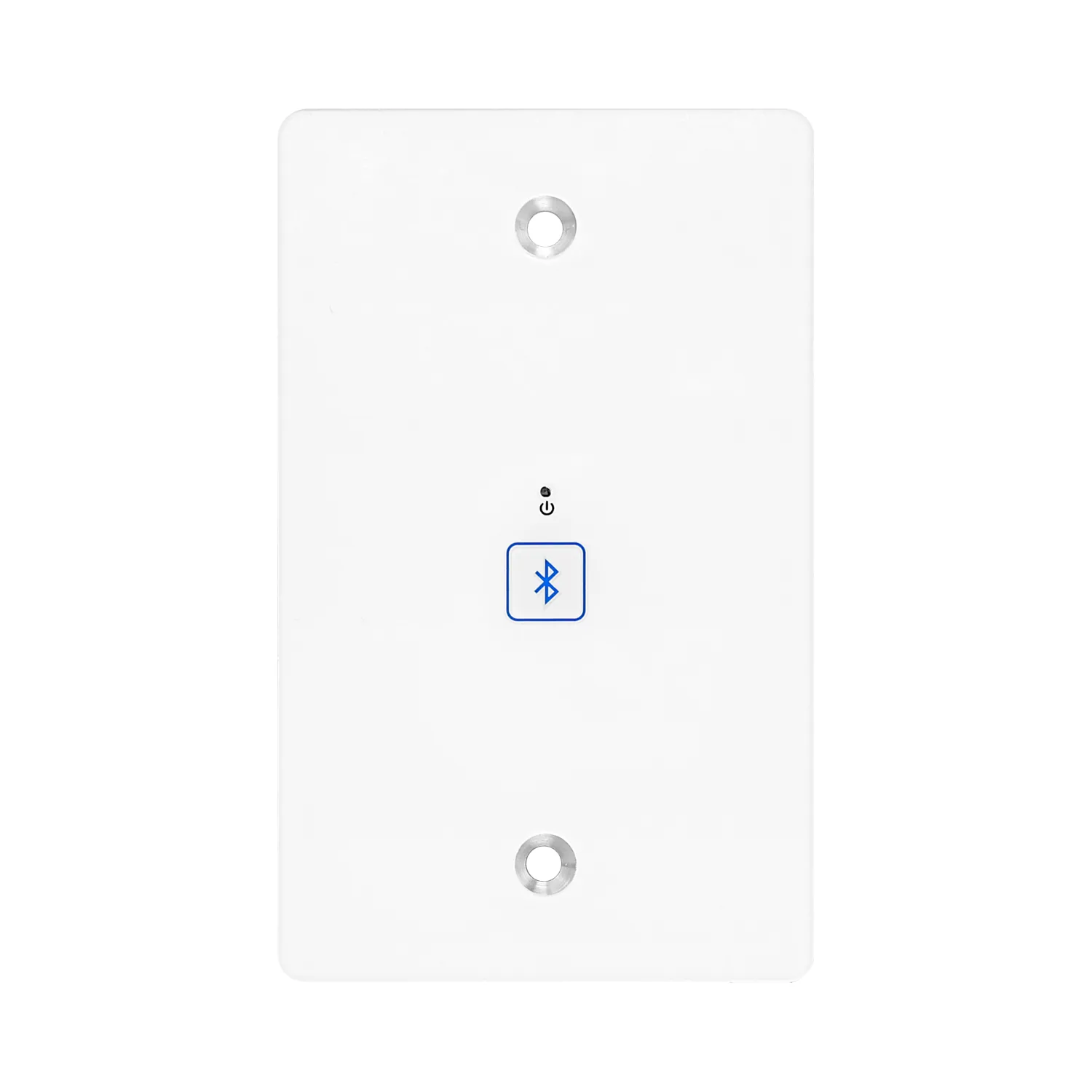

Dante Bluetooth Wall Panel
ModelDante-BT2USA / Dante-BT2EU
Bluetooth audio converted directly to Dante network output.
- Frequency response
- 20Hz-20kHz ±3dB
- Power supply
- PoE
- Dimensions
- Dante-BT2USA: 69.85×114.3×34.5mm; Dante-BT2EU: 86x86x34.5mm
- Weight
- Dante-BT2USA: 120g; Dante-BT2EU: 115g
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Dante Bluetooth Wall PanelPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| Model | Dante-BT2USA | Dante-BT2EU |
|---|---|---|
| Panel Standard | USA Standard | EU Standard |
| Input | Bluetooth | Bluetooth |
| Output | Dante | Dante |
| Frequency Response | 20Hz-20kHz ±3dB | 20Hz-20kHz ±3dB |
| THD+N | <0.05% @1kHz | <0.05% @1kHz |
| SNR | >105dB | >105dB |
| Sample Rate | 44.1/48kHz | 44.1/48kHz |
| Bit Depth | 24bit | 24bit |
| Protocol | A2DP/HFP/AES67 | A2DP/HFP/AES67 |
| Power Supply | PoE | PoE |
| Dimension (W*H*D) | 69.85×114.3×34.5mm | 86x86x34.5mm |
| Net Weight | 120g | 115g |
02DescriptionManufacturer's description
What it is.
Features
- Single-cable PoE power, no local power supply required.
- Quick and easy one-touch bluetooth pairing.
- Remote configuration and control via Dante Controller.
- Available in US and EU wall-mount standards.
03Documents1 file · 12 MB
Documents and files.

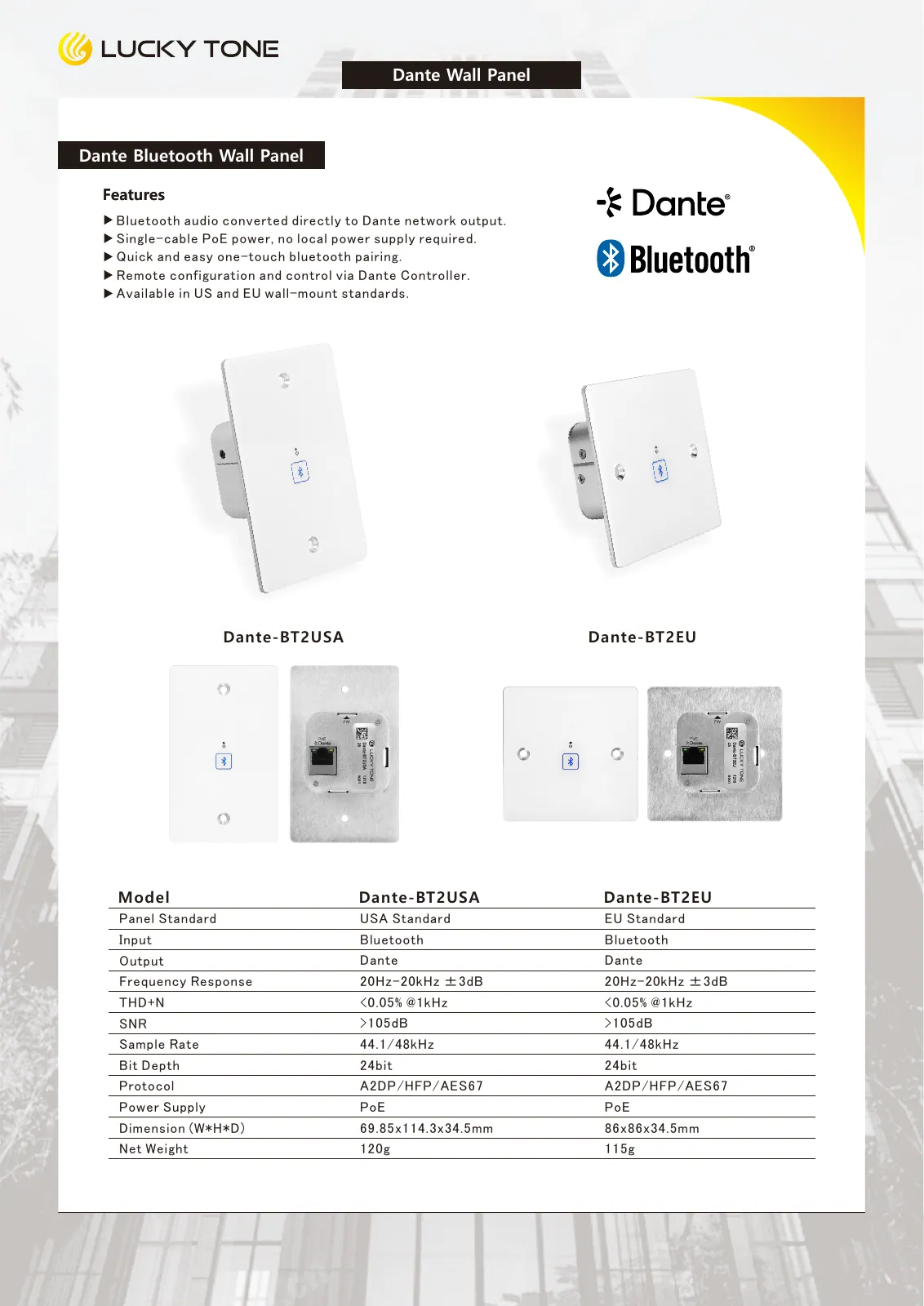

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
