Sheet 05.299
Lucky Tone · Dante

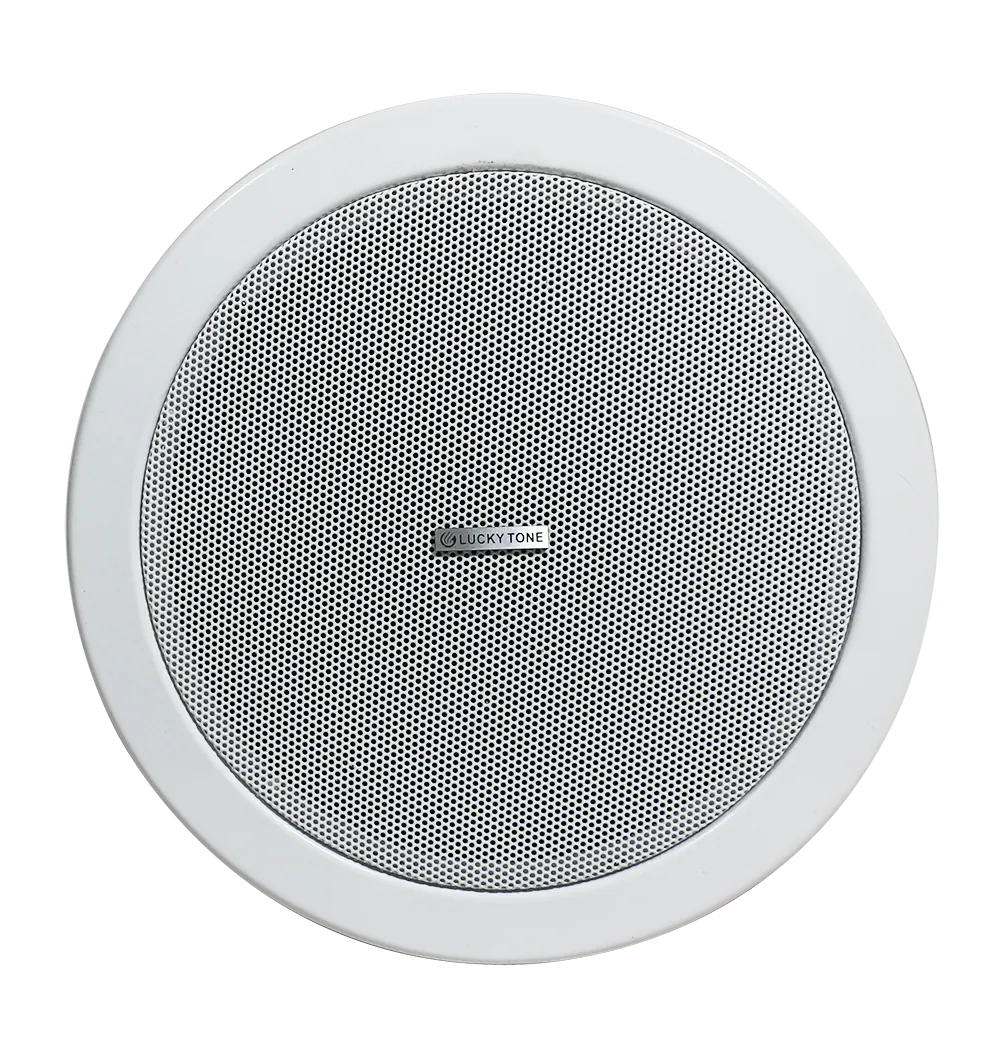

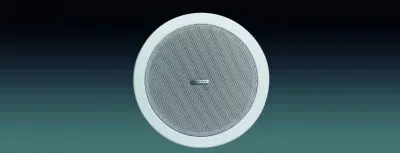

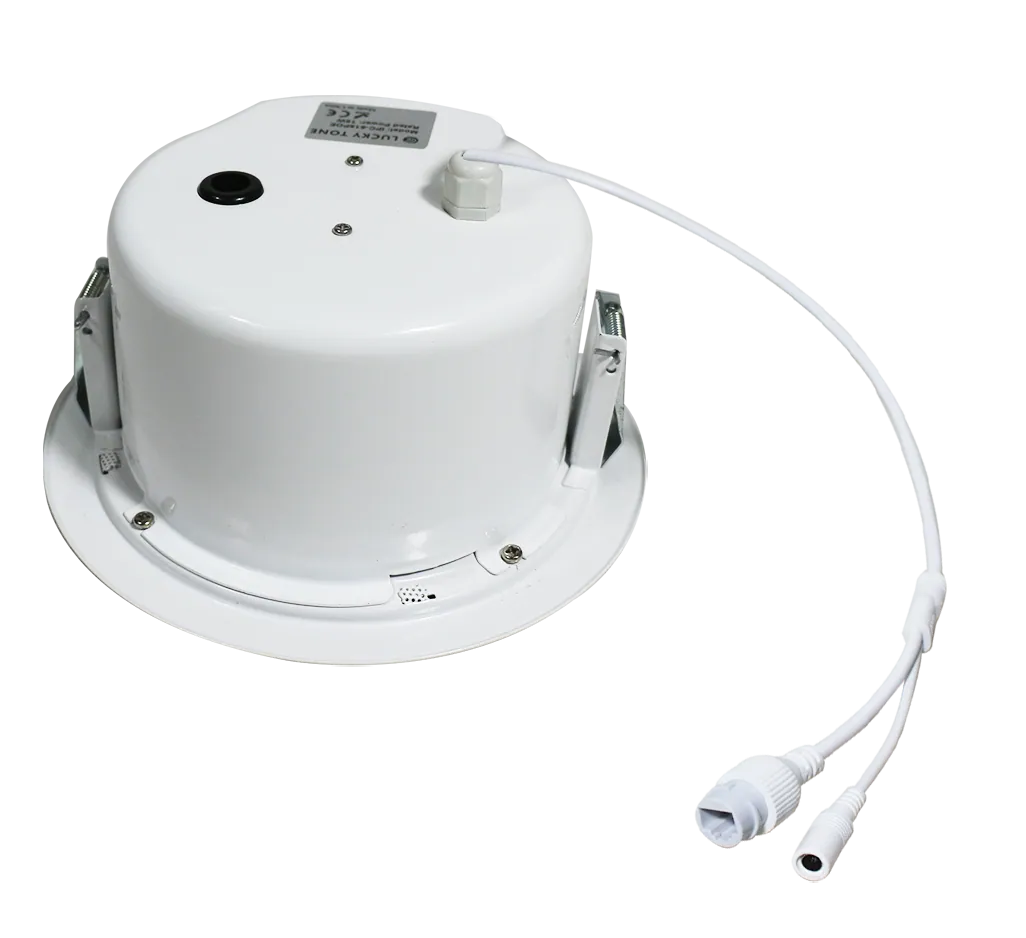

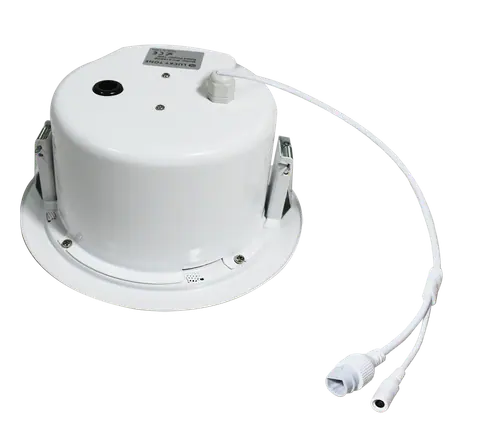

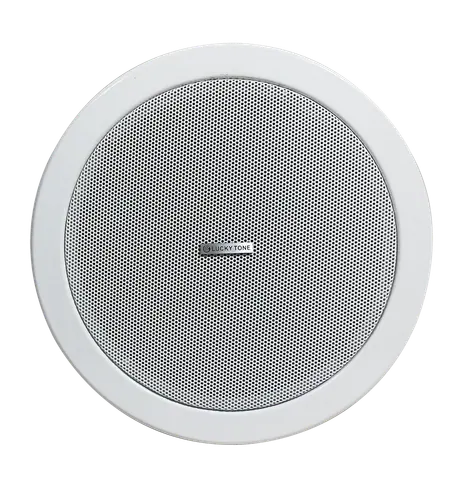

Dante Ceiling Speaker
ModelDante DP 615POE / DANTE DP 830R POE with DSP
Dante DP PoE Speaker can realize its multifunction the POE power supply or 2 4VDC, audio transmission and signal control via a RJ45 Ethernet port. It can obtain power supply from any Ethernet switch of 802.3 or above standard.
- Output power
- Dante DP 615POE: 15W; DANTE DP 830R POE with DSP: 30W
- Frequency response
- Dante DP 615POE: 100Hz ~ 18kHz; DANTE DP 830R POE with DSP: 65Hz ~ 20kHz
- Dimensions
- Dante DP 615POE: Dia 200 x 130mm; DANTE DP 830R POE with DSP: Dia 280x180mm
- Weight
- Dante DP 615POE: 0.95kg; DANTE DP 830R POE with DSP: 2.5kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Dante Ceiling SpeakerPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| Model | Dante DP 615POE | DANTE DP 830R POE with DSP |
|---|---|---|
| Input Interface | RJ-45 | RJ-45 |
| Audio Input Signal | Dante™ Balanced amplified signal | Dante™ Balanced amplified signal |
| Cable | Cat-5 or above | Cat-5 or above |
| Output Power | 15W | 30W |
| Transmission Rate | 100M/1000M bps | 100M/1000M bps |
| Frequency Range | 100Hz ~ 18kHz | 65Hz ~ 20kHz |
| Sensitivity | 91dB 1w/1m | 89dB |
| Sound Pressure Level | 106dB (peak) | 104dB (peak) |
| Total Harmonic Distortion | <0.30% | <0.30% |
| Signal to Noise Ratio | >100dB | >100dB |
| Noise Floor | <1mV | <200uV |
| System Efficiency | >80% | >70% |
| Enclosure | Metal | Metal |
| Operation Temperature | -10 to 50 Degree | -10 to 50 Degree |
| Color | White | White |
| Dimension | Dia 200 x 130mm | Dia 280x180mm |
| Net Weight | 0.95kg | 2.5kg |
02DescriptionManufacturer's description
What it is.
Description

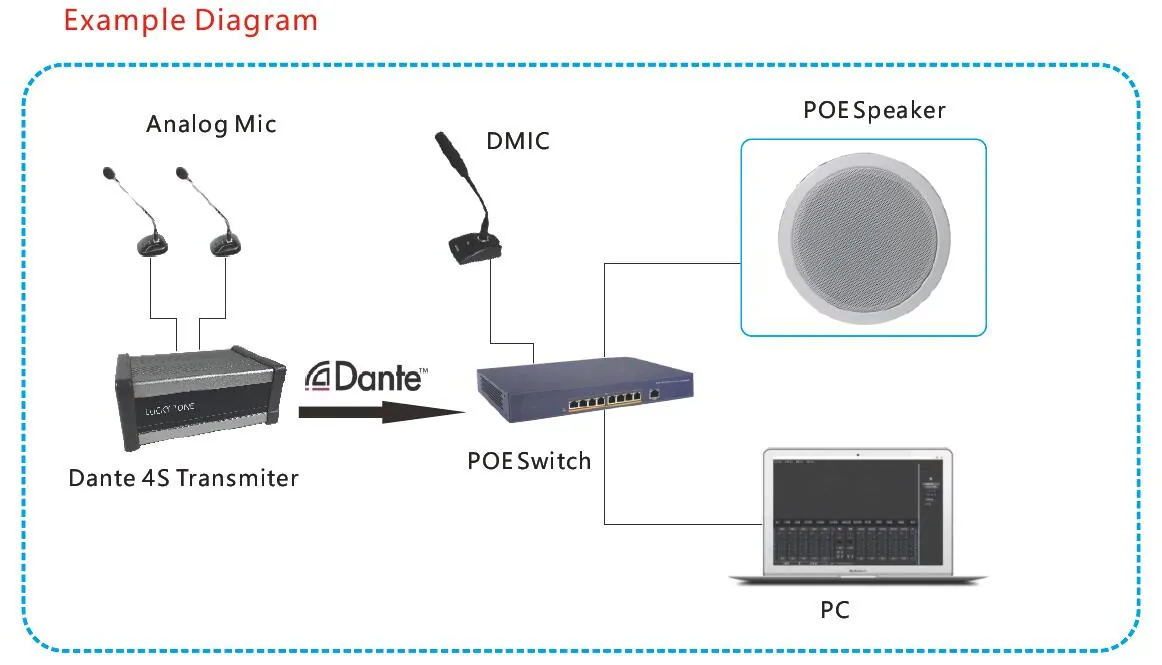

Dante DP PoE Speaker can realize its multifunction the POE power supply or 2 4VDC, audio transmission and signal control via a RJ45 Ethernet port. It can obtain power supply from any Ethernet switch of 802.3 or above standard. Over Dante™ Ethernet that transmits 24-bit audio (44.1K/48KHz) and its control signal can be routed through the Dante™ Controller. Allthese functions can perform remotely on the PC or Mac by Dante Controller Software.
Ordering Code
Dante DP 615
15W Dante 6-inch Metal Ceiling Speaker with External 24V DC power supply
Dante DP 615 POE
15W Dante 6-inch Metal Ceiling Speaker with POE power supply

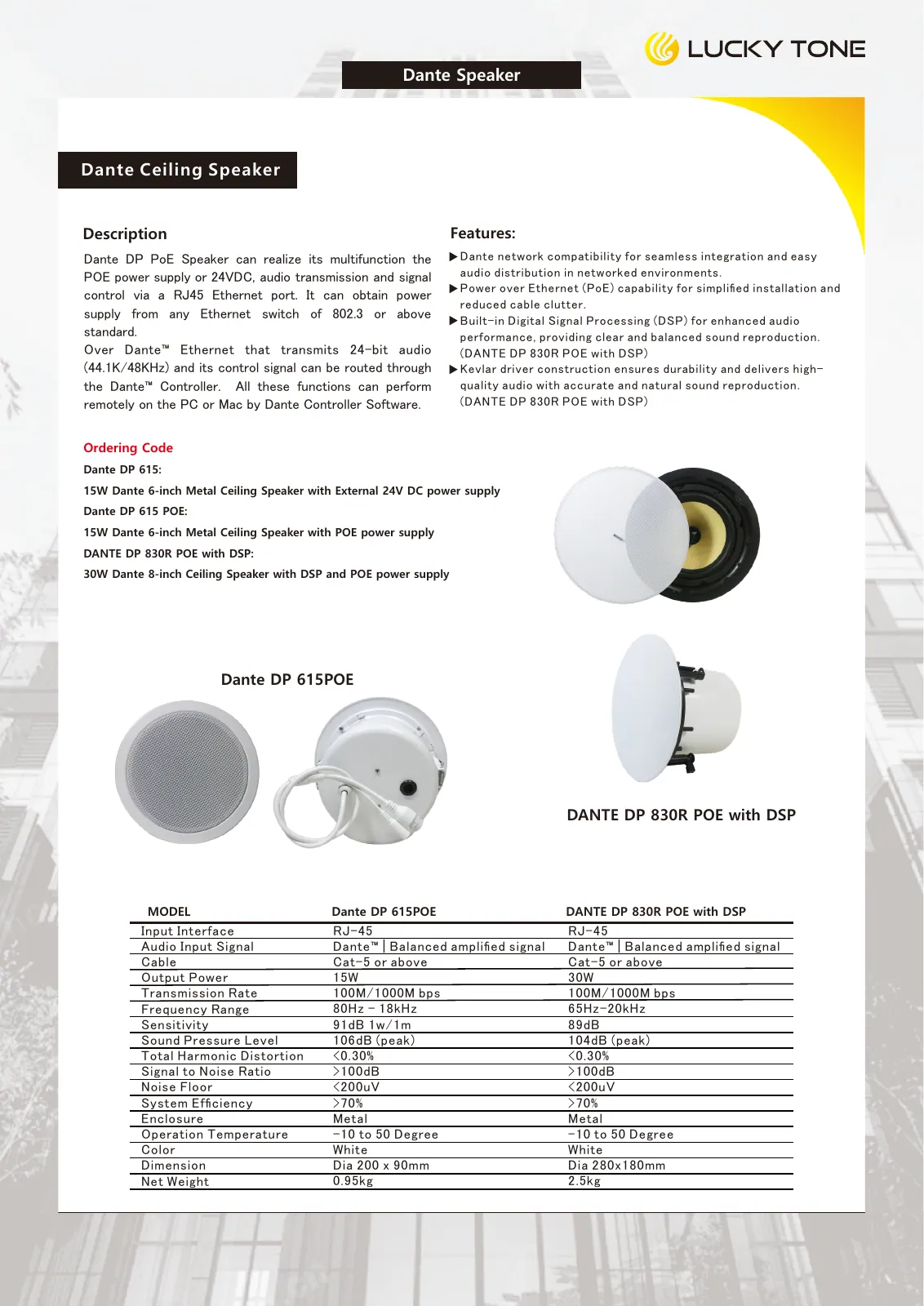

03Documents1 file · 2.1 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
