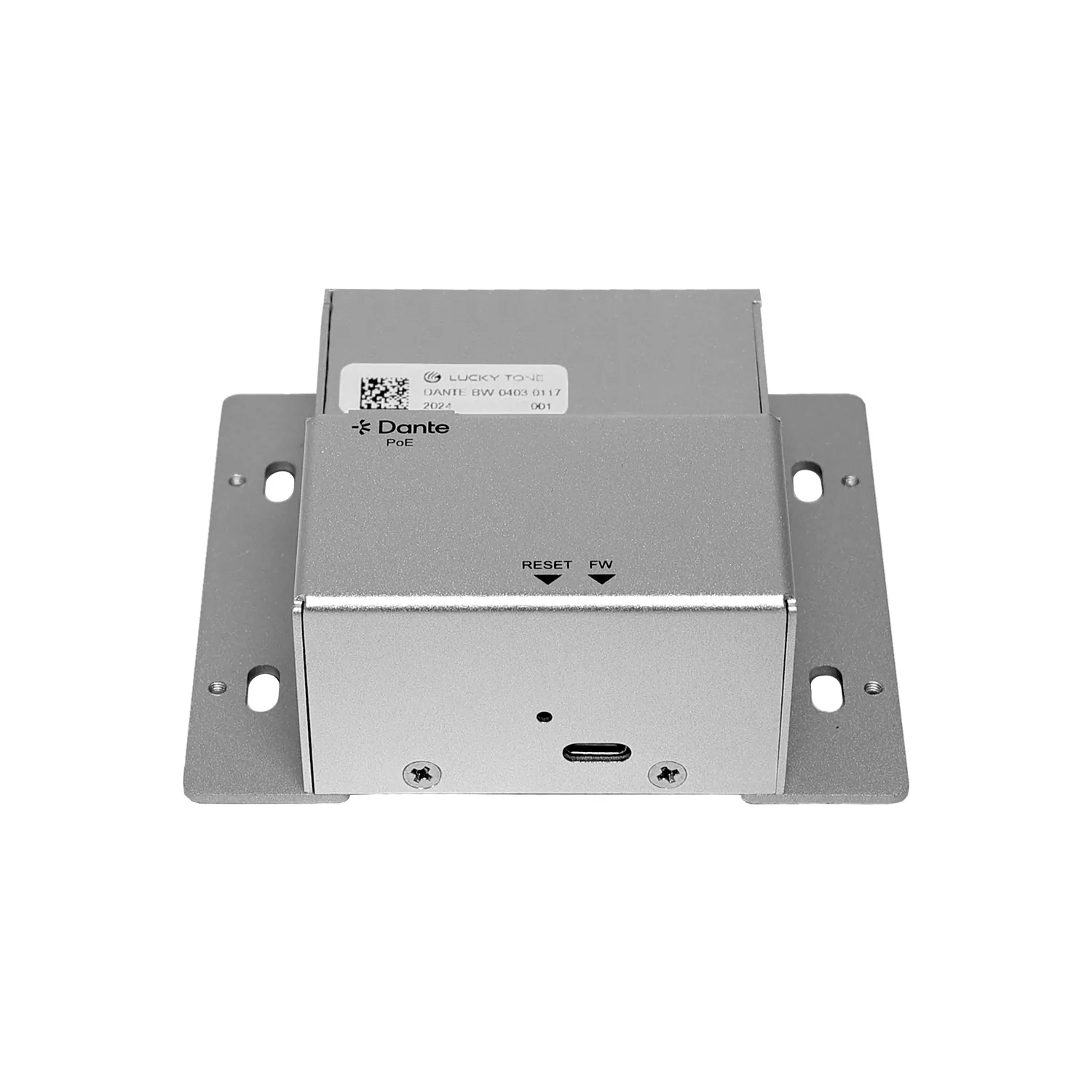

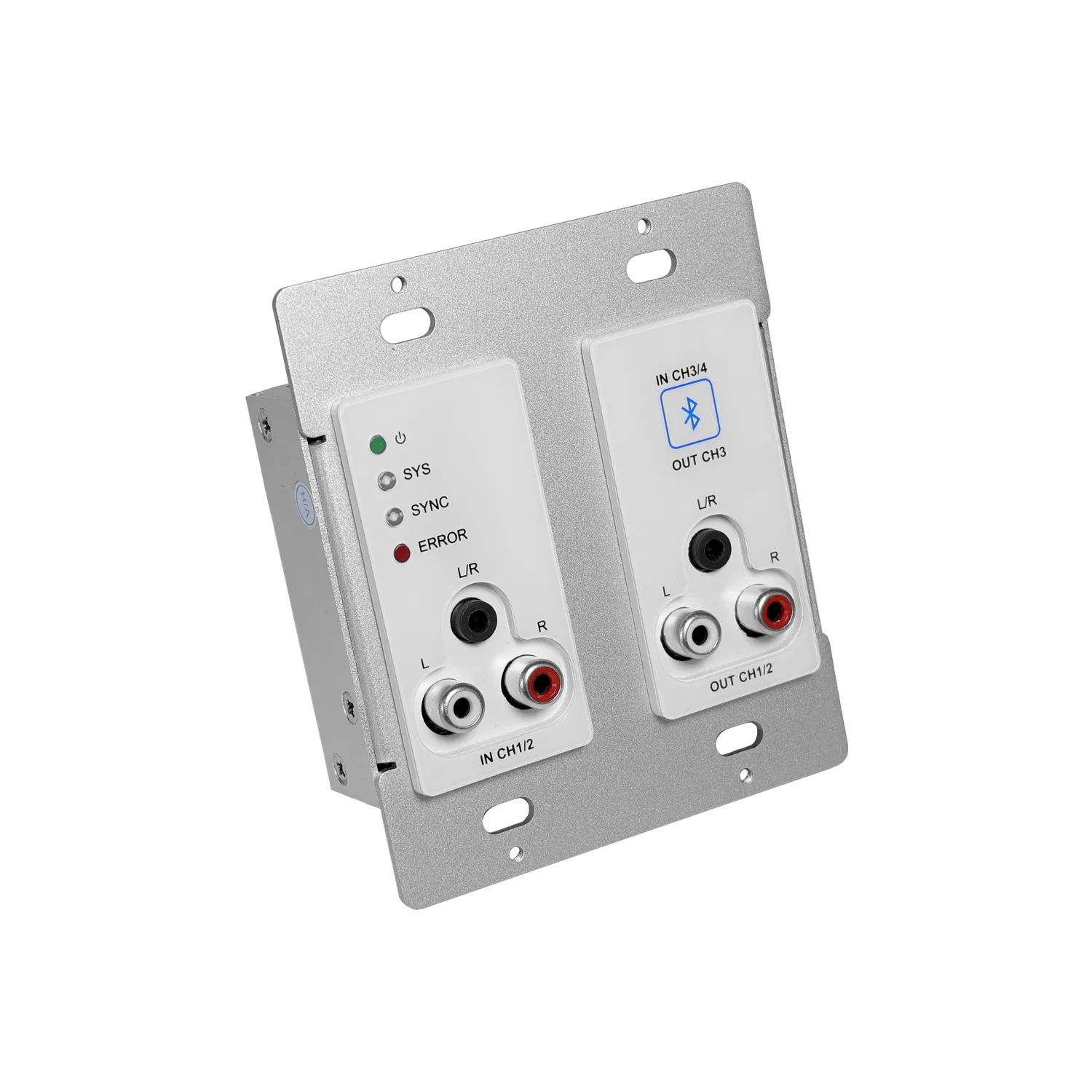

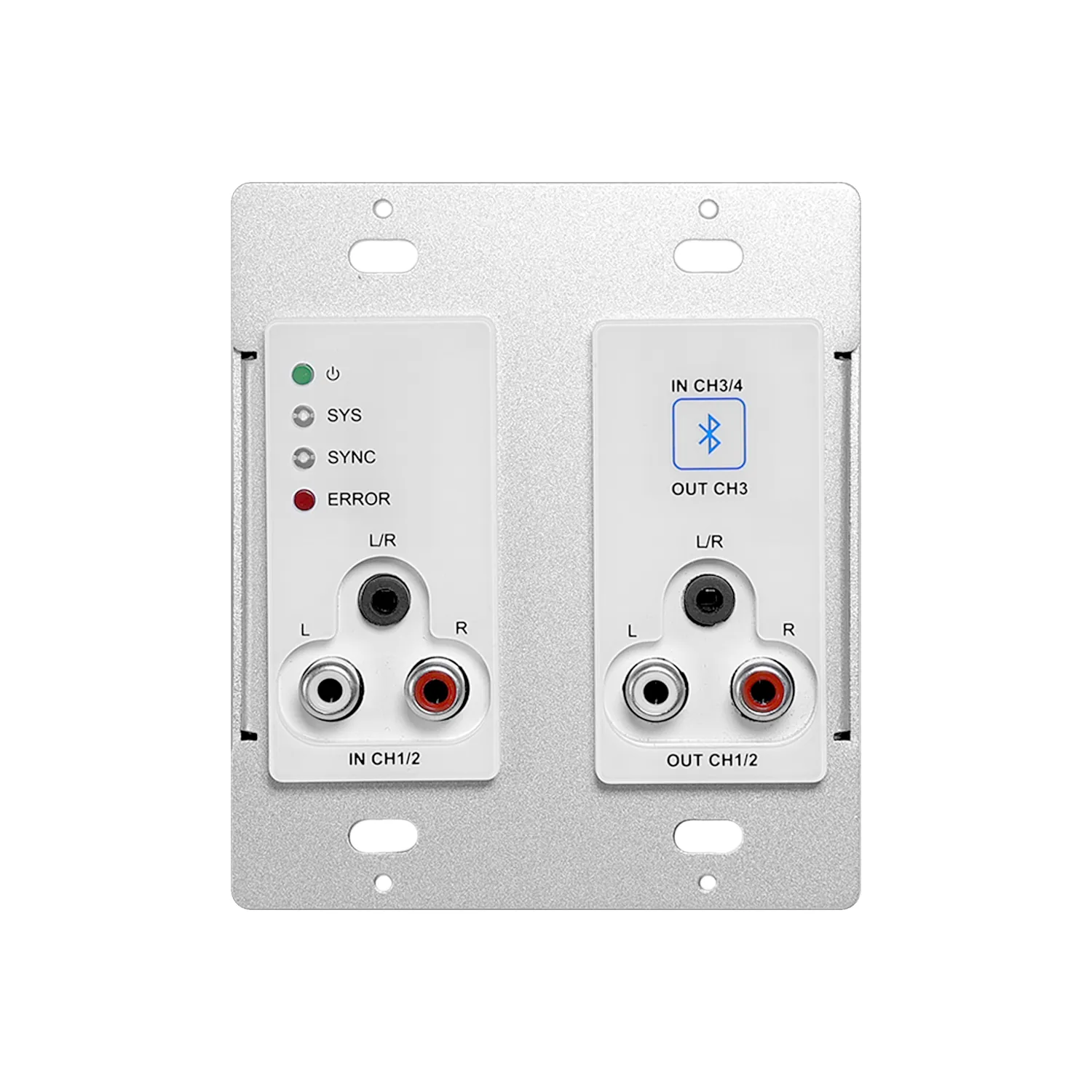

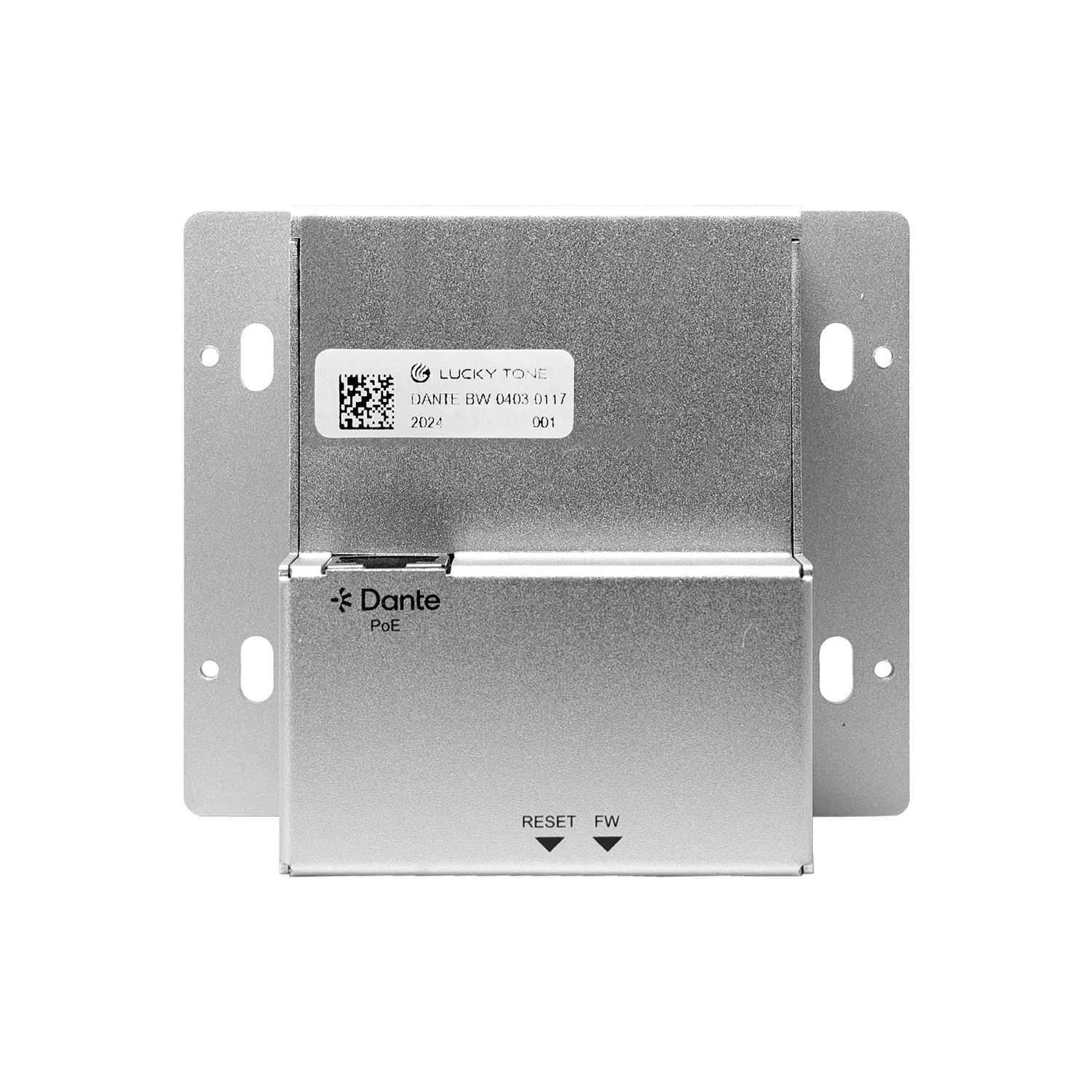

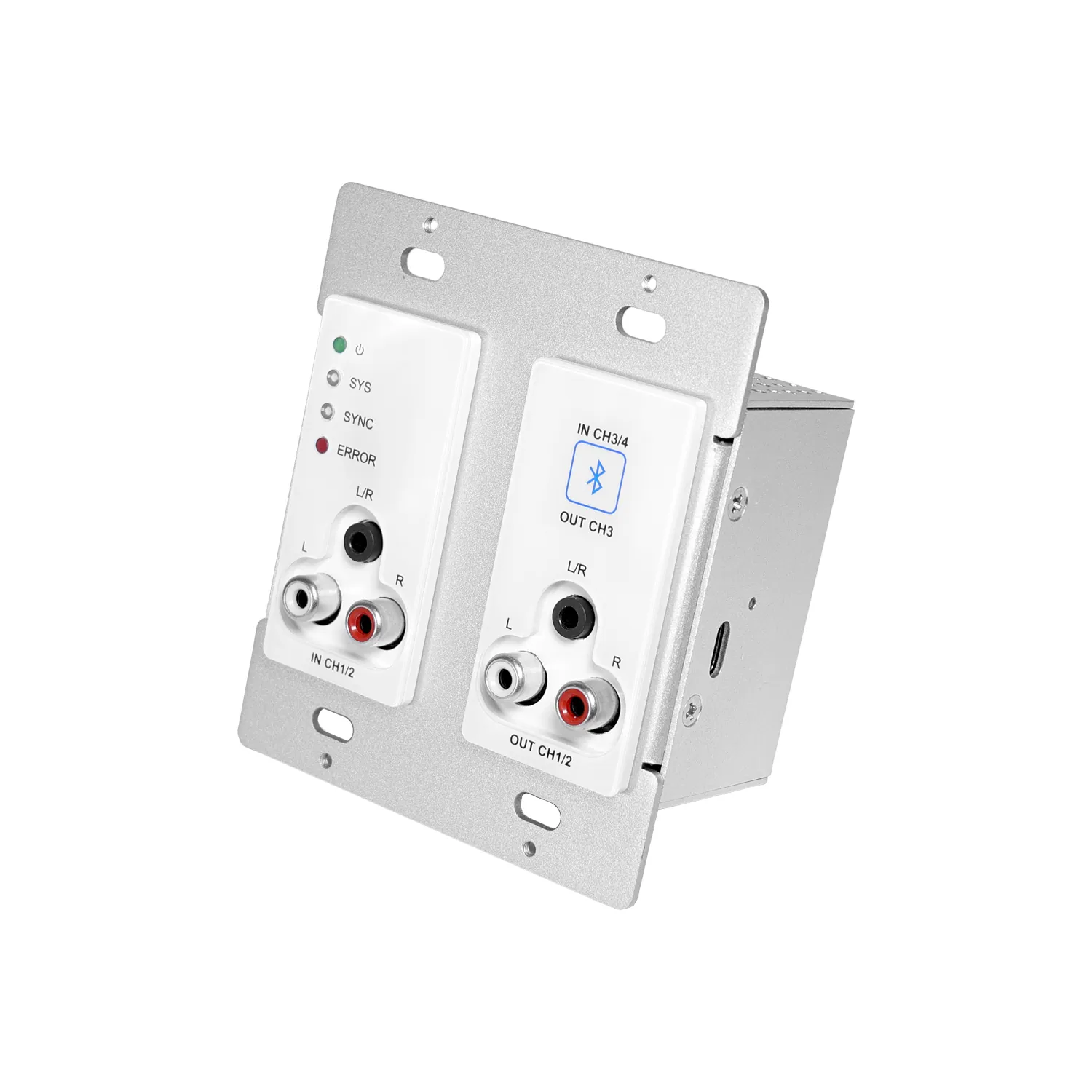

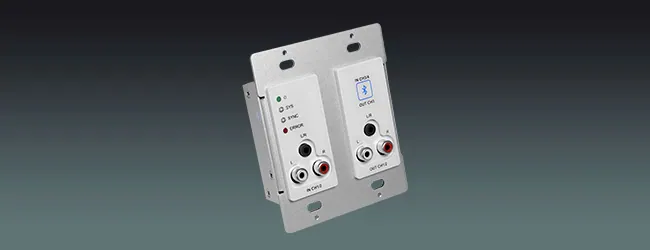

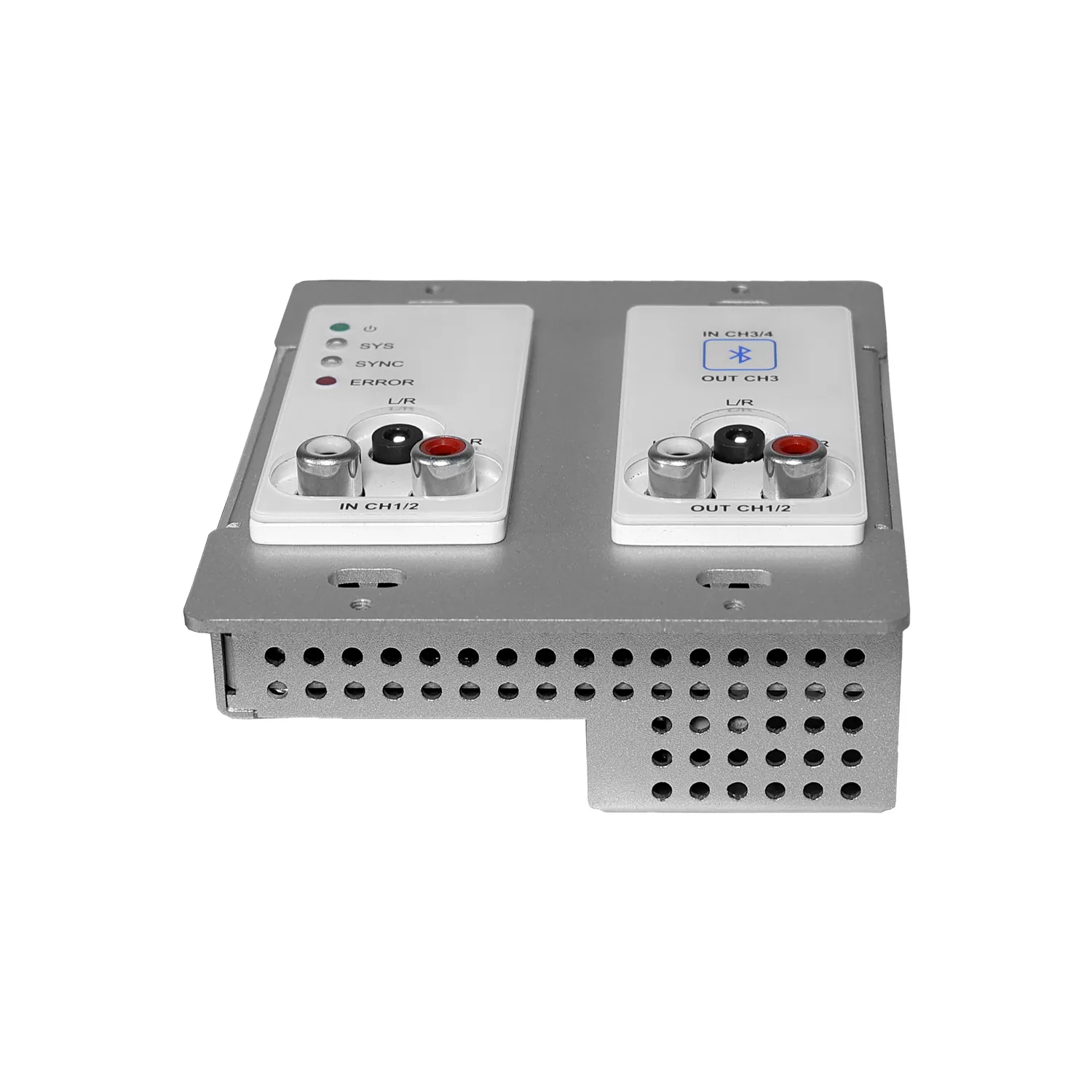

Lucky Tone Dante Bluetooth & Aux Wall Panel DANTE BW 0403

ModelDANTE BW 0403

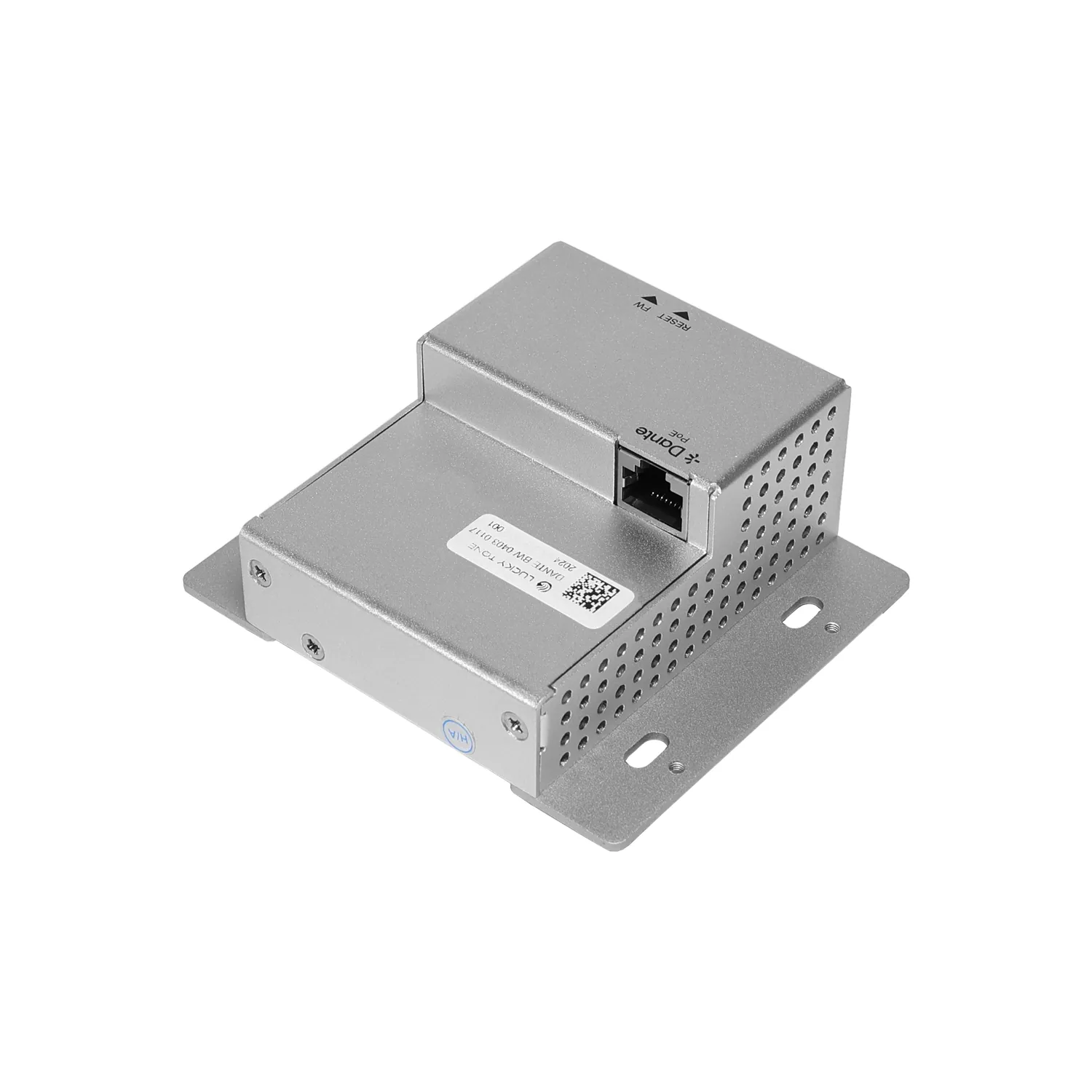

CAT5/6 connector to link with Dante network and controlled by Web-UI, Dante Controller or Dante Director software;

Power supply: POE
Weight: 265g

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 12 values

What this product is, in numbers.

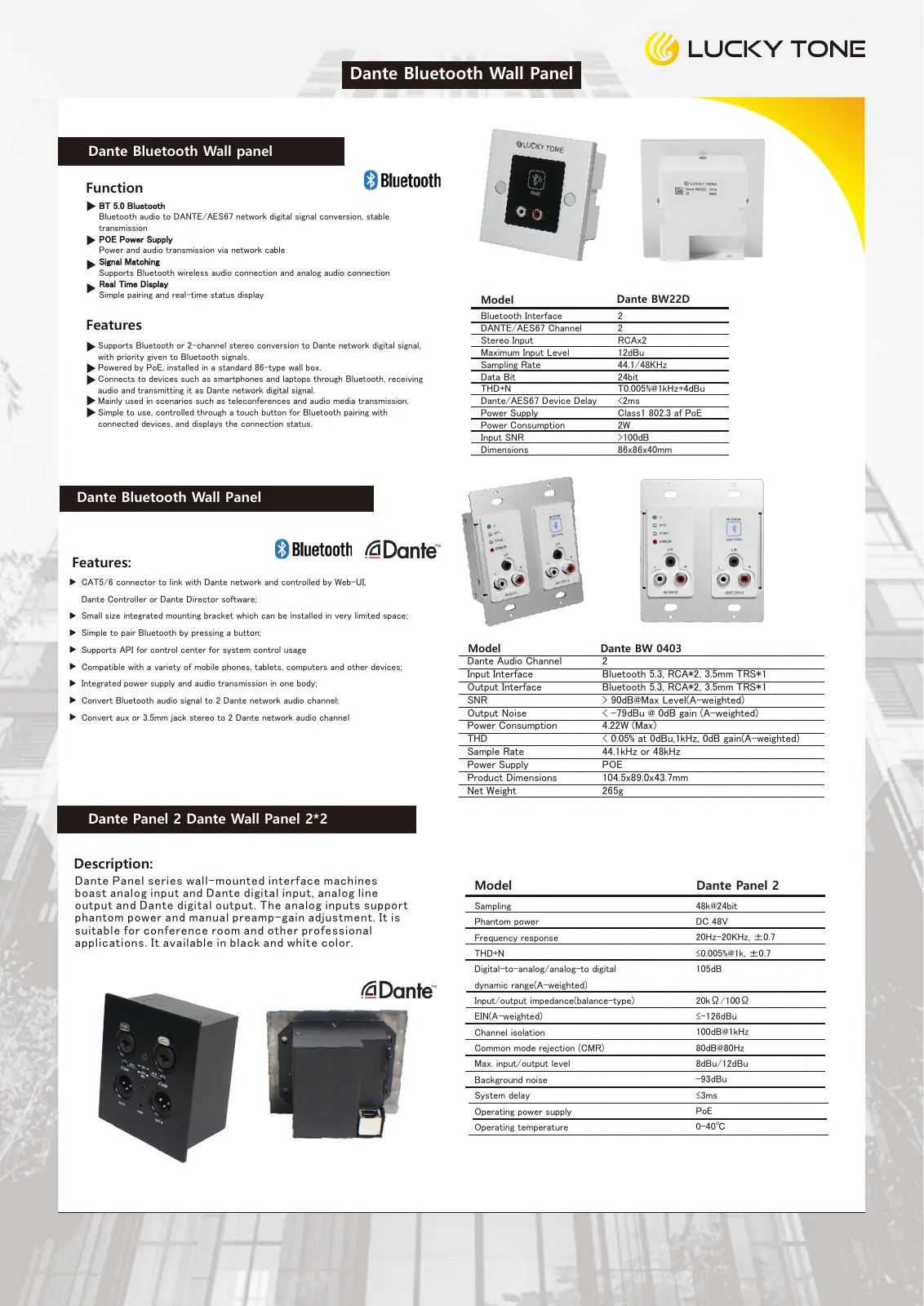

PDFSpecifications2.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications12

Model: DANTE BW 0403
Dante Audio Channel: 2
Input Interface: Bluetooth 5.3, RCA*2, 3.5mm TRS*1
Output Interface: Bluetooth 5.3, RCA*2, 3.5mm TRS*1
SNR: > 90dB@Max Level(A-weighted)
Output Noise: < -79dBu @ 0dB gain (A-weighted)
Power Consumption: 4.22W (Max)
THD: < 0.05% at 0dBu,1kHz, 0dB gain(A-weighted)
Sample Rate: 44.1kHz or 48kHz
Power Supply: POE
Product Dimensions: 104.5×89.0×43.7mm
Net Weight: 265g

02DescriptionManufacturer's description

What it is.

Small size integrated mounting bracket which can be installed in very limited space;
Simple to pair Bluetooth by pressing a button;
Supports API for control center for system control usage
Compatible with a variety of mobile phones, tablets, computers and other devices;
Integrated power supply and audio transmission in one body;
Convert Bluetoothaudio signal to 2 Dante network audio channel;
Convert aux or 3.5mmjack stereo to 2 Dante network audio channel
