Sheet 05.292
Lucky Tone · Dante

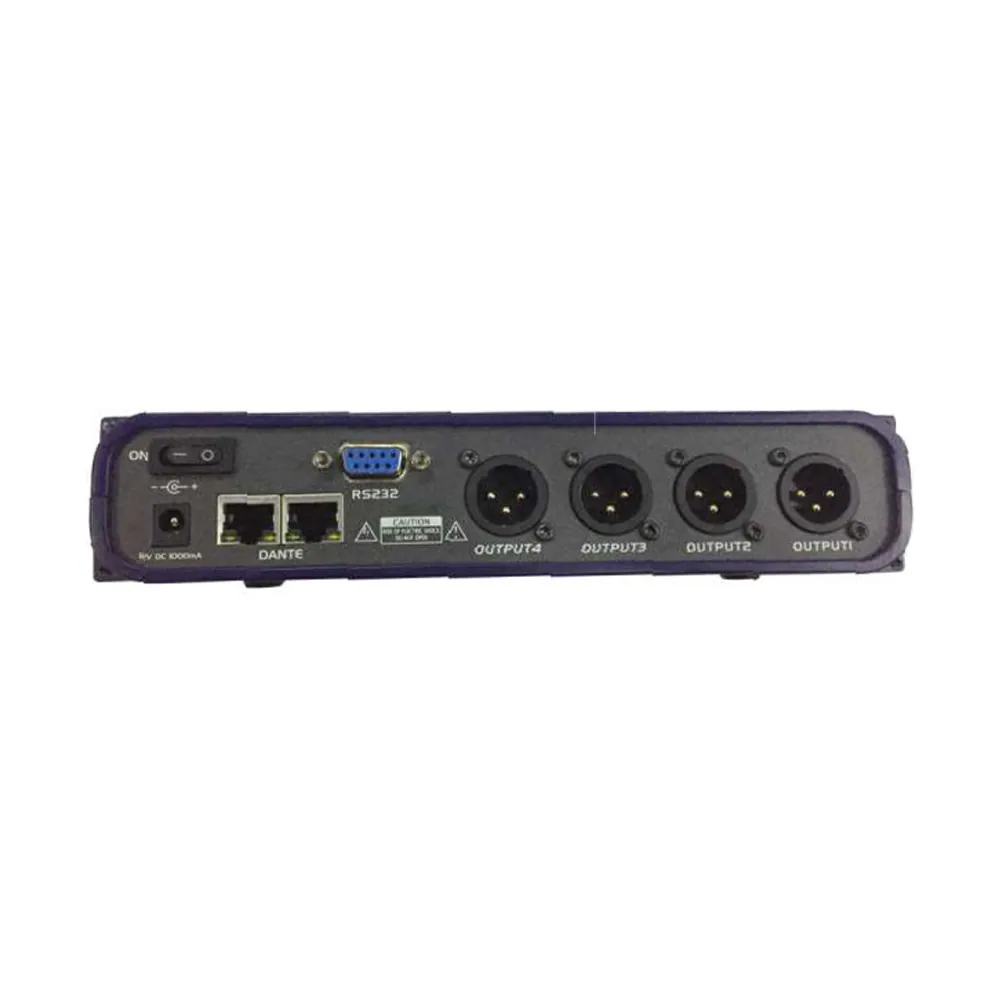

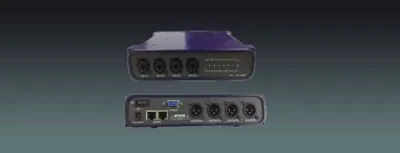

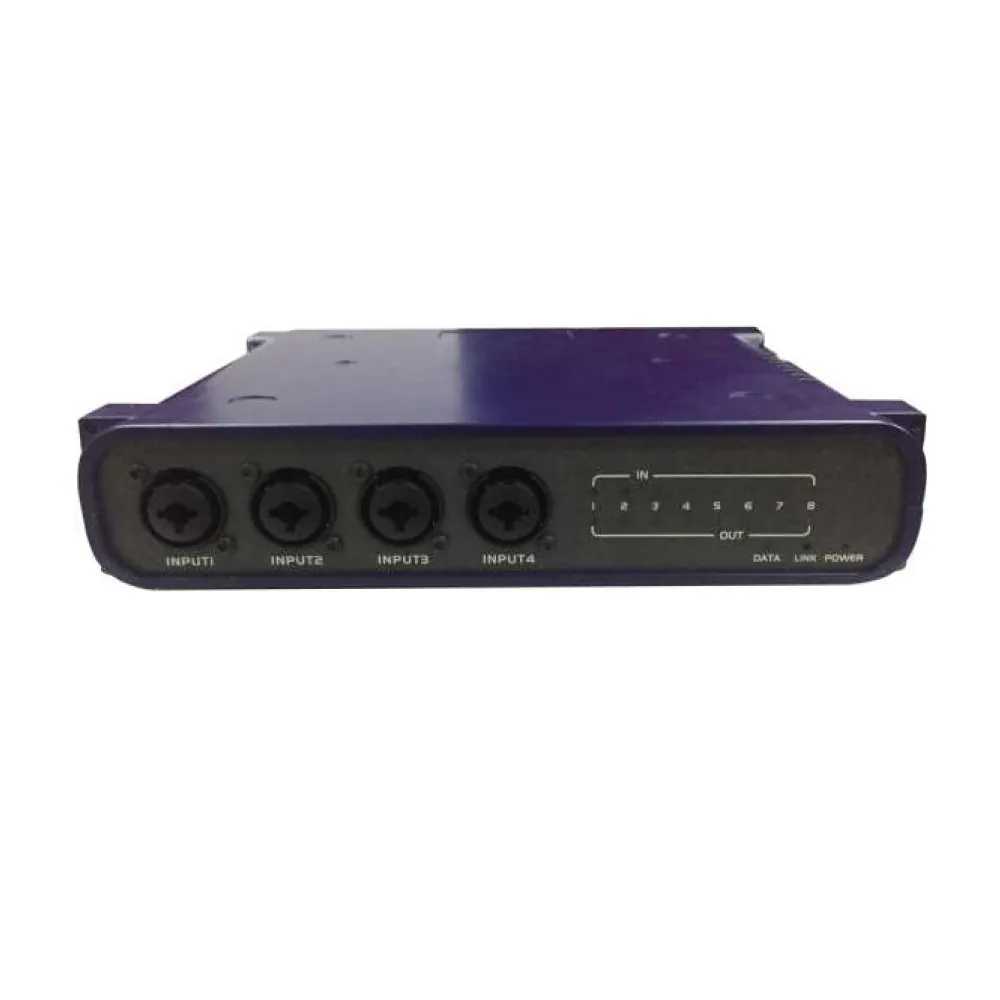

Dante 8-in 8-out Transmitter Dante 448
ModelDante 448
Built-in DSP enables signal routing, EQ, limiting,
- Dimensions
- 44(H) x 178(W) x 220(D) mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Dante 8-in 8-out Transmitter Dante 448Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.

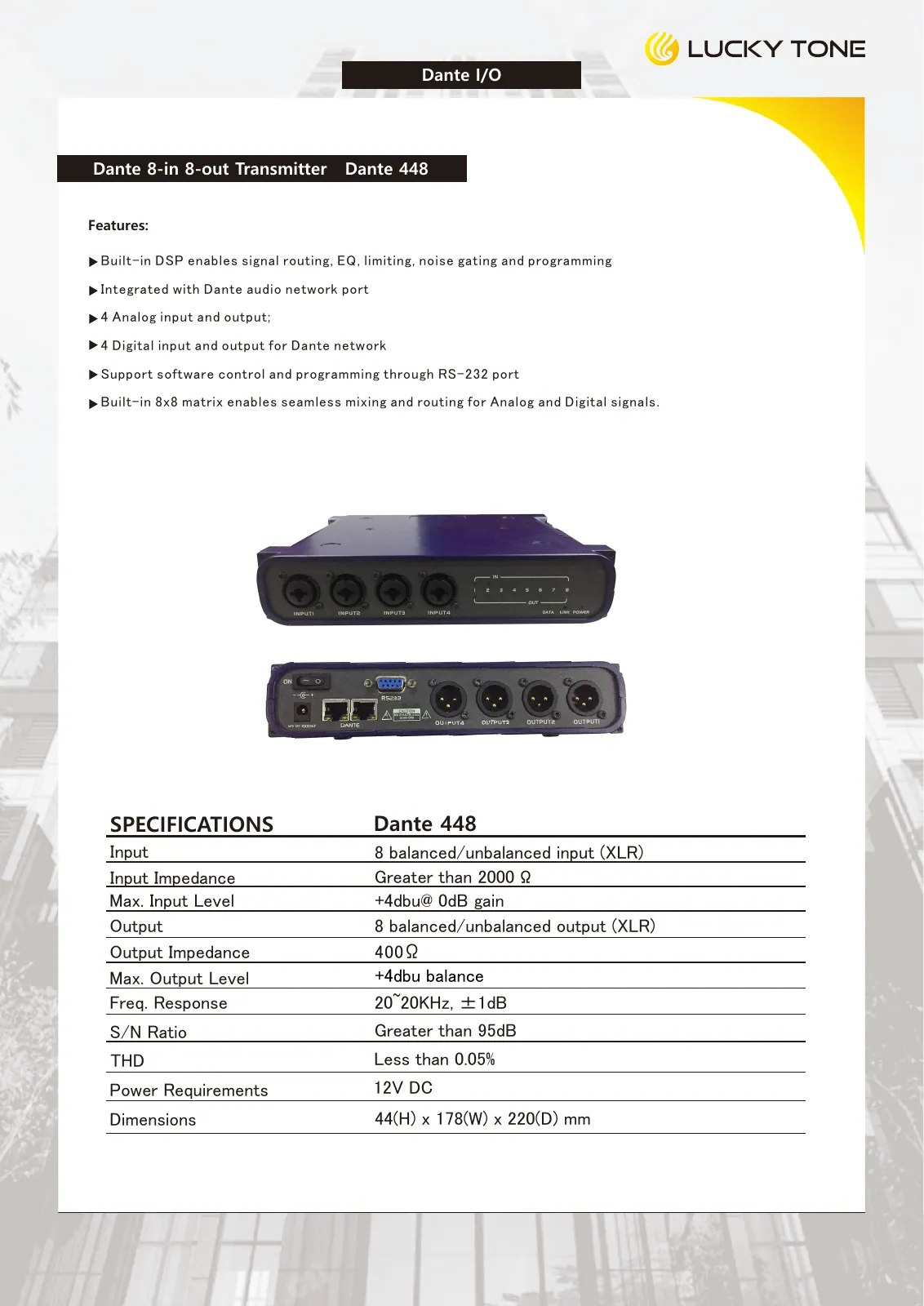

PDFSpecifications1.6 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- MODEL
- Dante 448
- Input
- 8 balanced/unbalanced input (XLR)
- Input Impedance
- Greater than 2000 Ω
- Max. Input Level
- +4dbu@ 0dB gain
- Output
- 8 balanced/unbalanced output (XLR)
- Output Impedance
- 400Ω
- Max. Output Level
- +4dbu balance
- Freq. Response
- 20~20KHz, ±1dB
- S/N Ratio
- Greater than 95dB
- THD
- Less than 0.05%
- Power Requirements
- 12V DC
- Dimensions
- 44(H) x 178(W) x 220(D) mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
- noise gating and programming
- Integrated with Dante audio network port
- 4 Analog input and output;
- 4 Digital input and output for Dante network
- Support software control and programming through
RS-232 port
Built-in 8×8 matrix enables seamless mixing and
routing for Analog and Digital signals.
