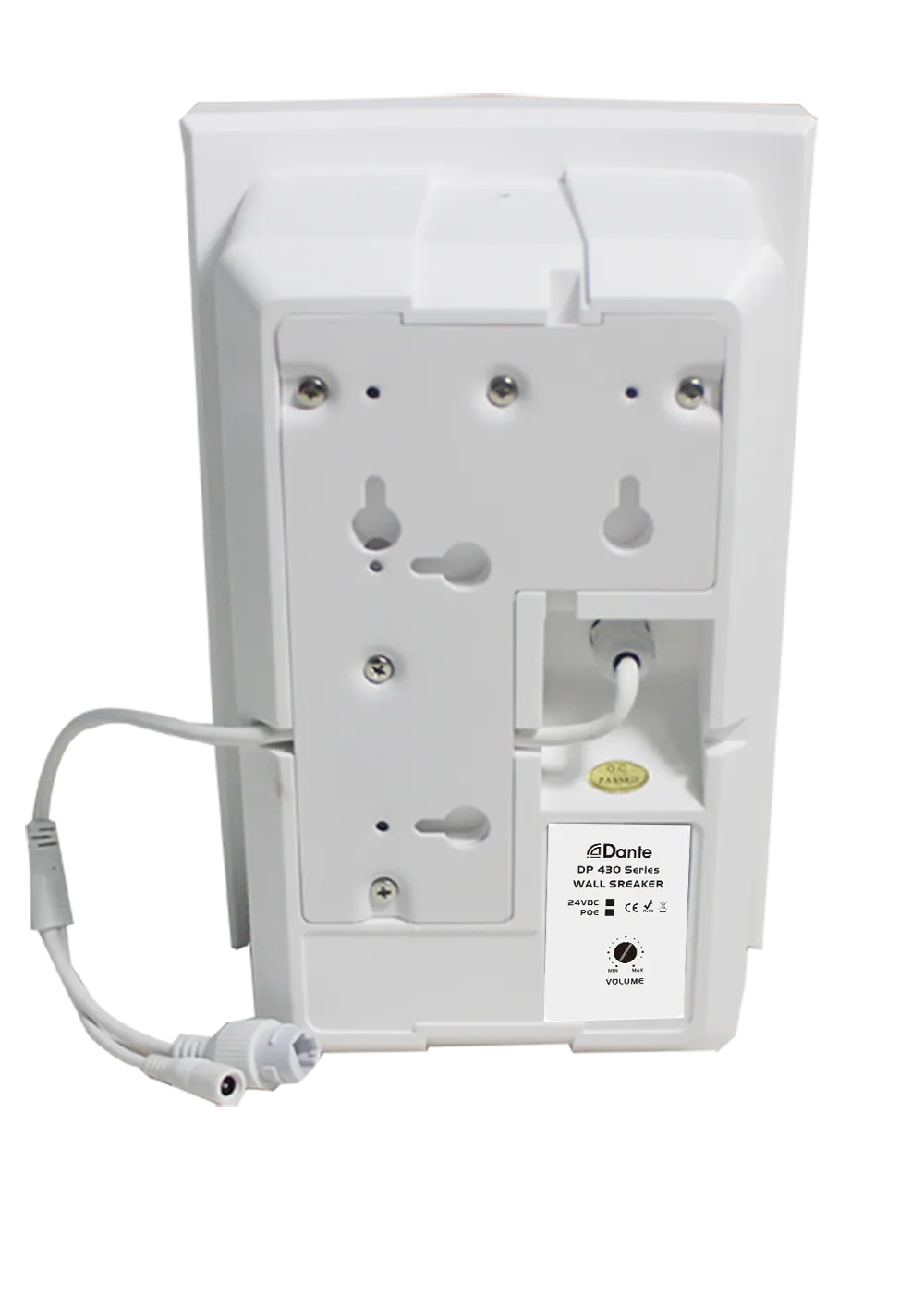

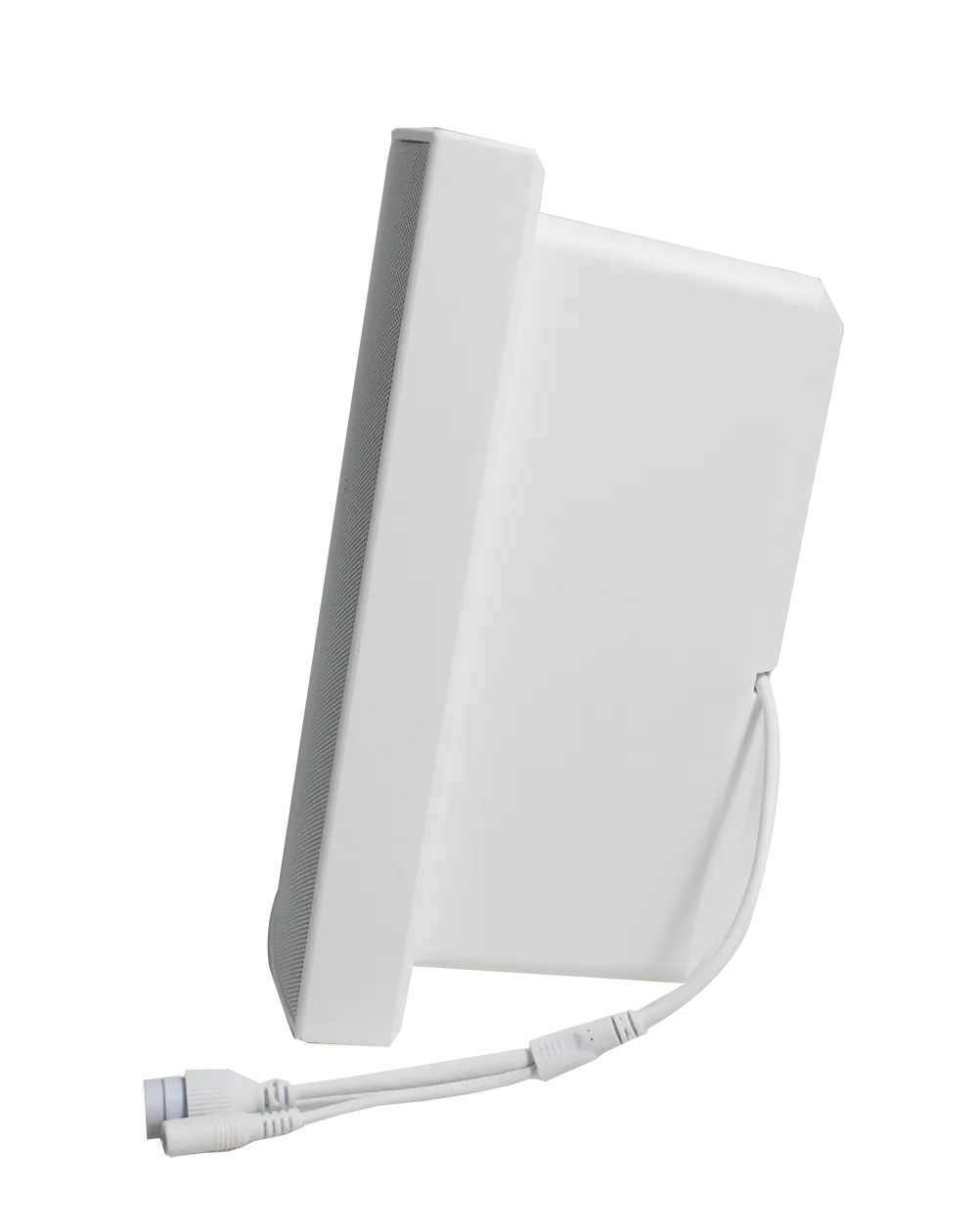

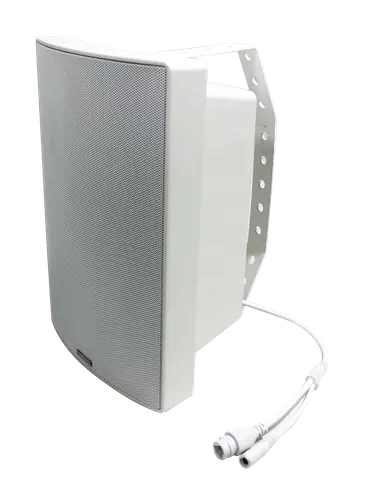

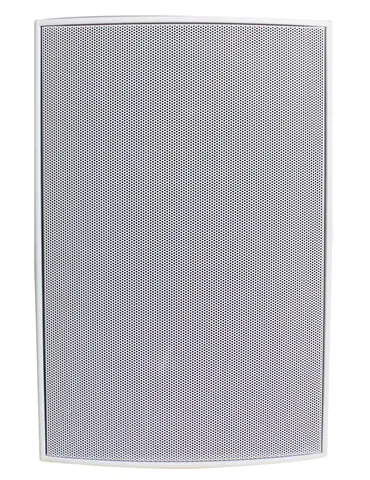

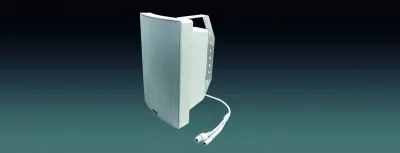

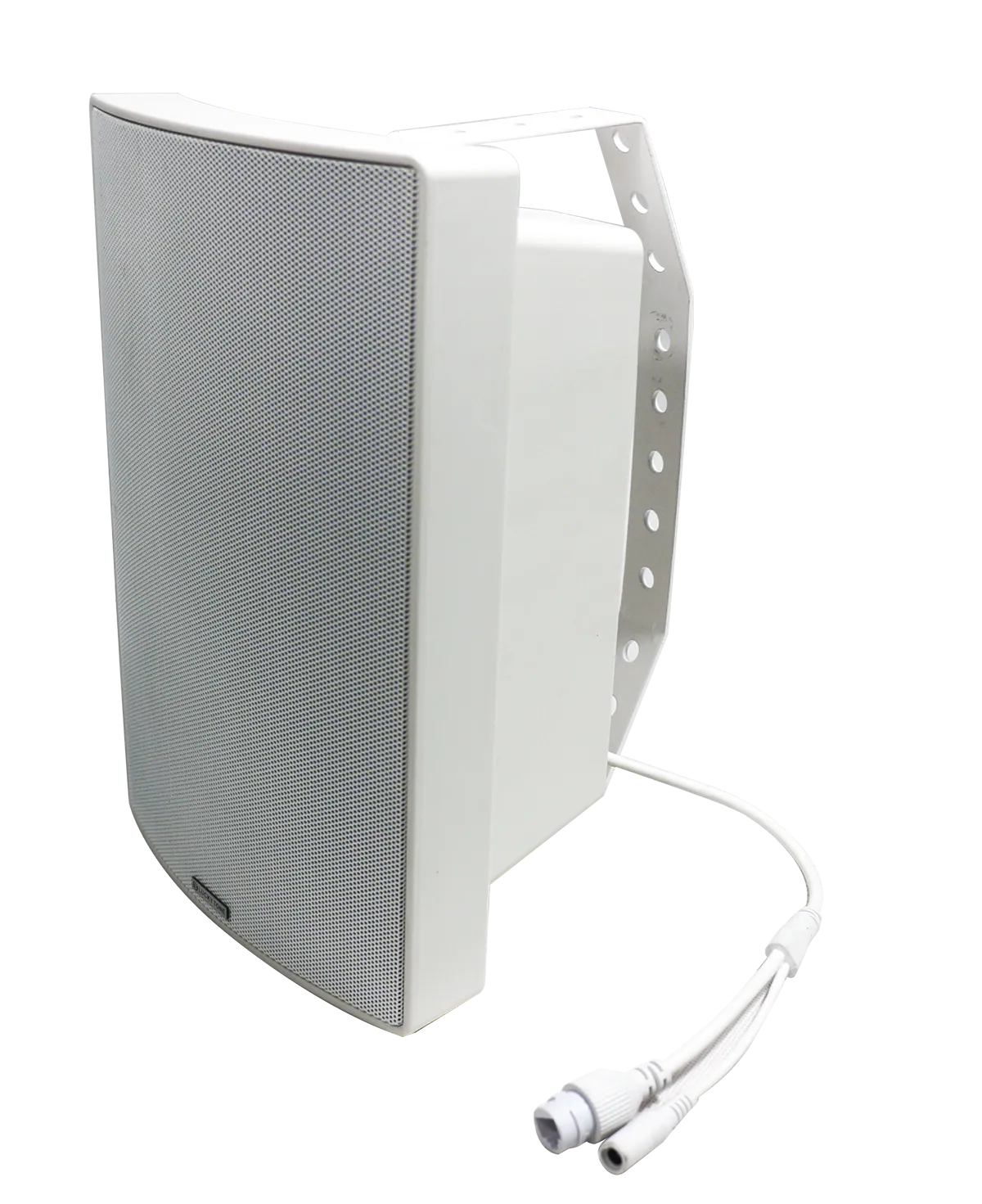

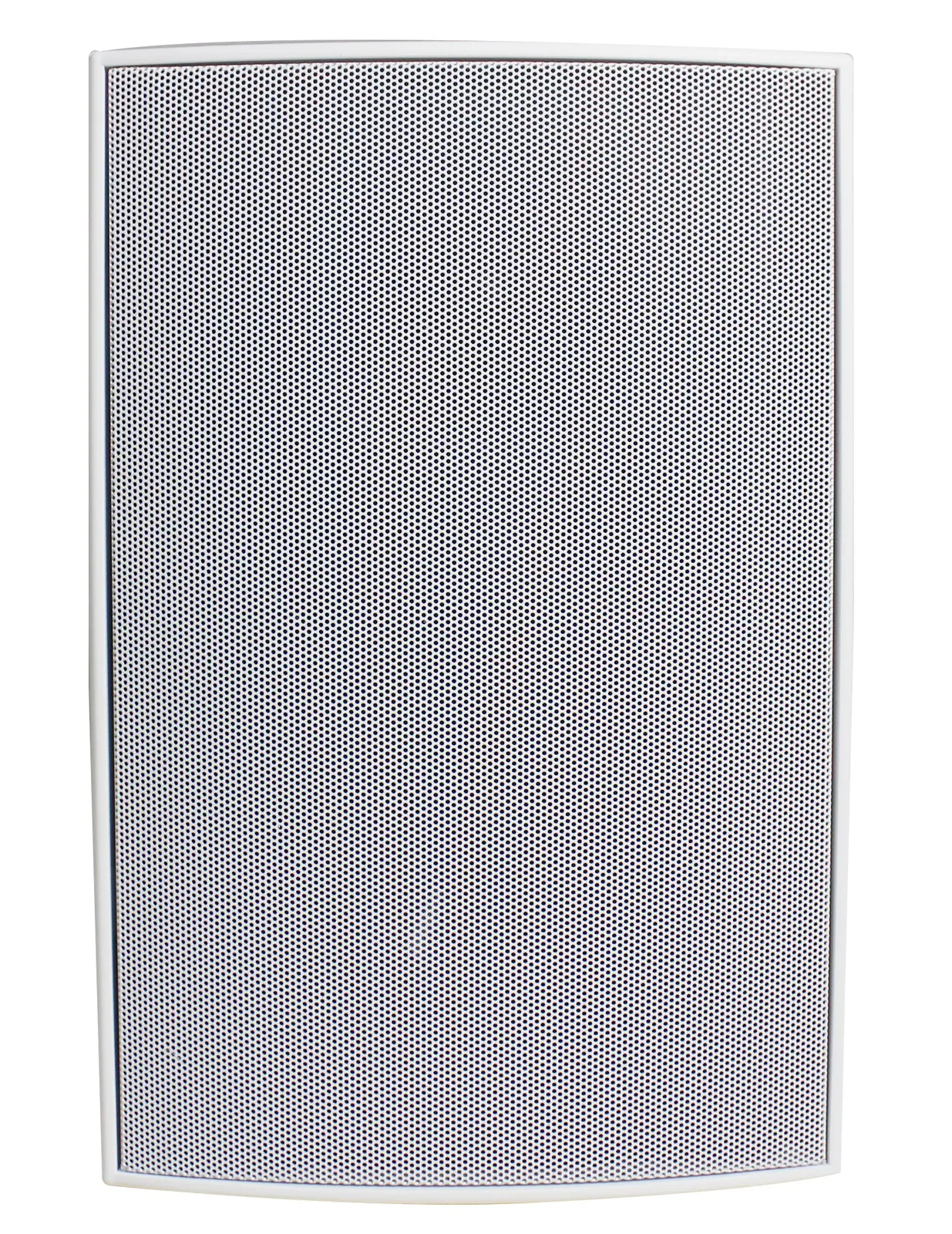

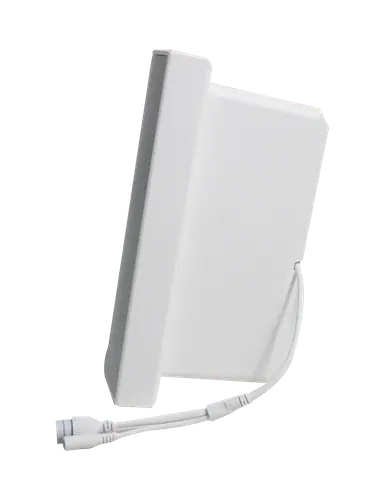

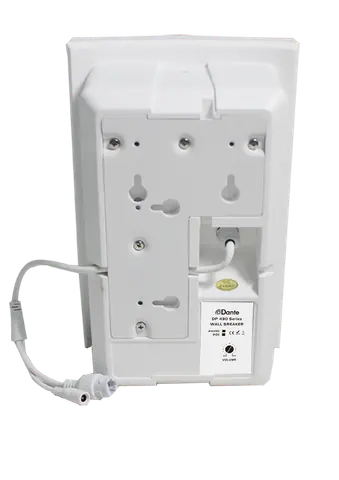

Dante Wall Mounted Speaker

ModelDante DP 430

Output power: 30W
Frequency response: 80Hz – 20kHz
Dimensions: (High)295 x (Width)195 x (Depth)155mm
Weight: 2.6kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 18 values

What this product is, in numbers.

PDFSpecifications1.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

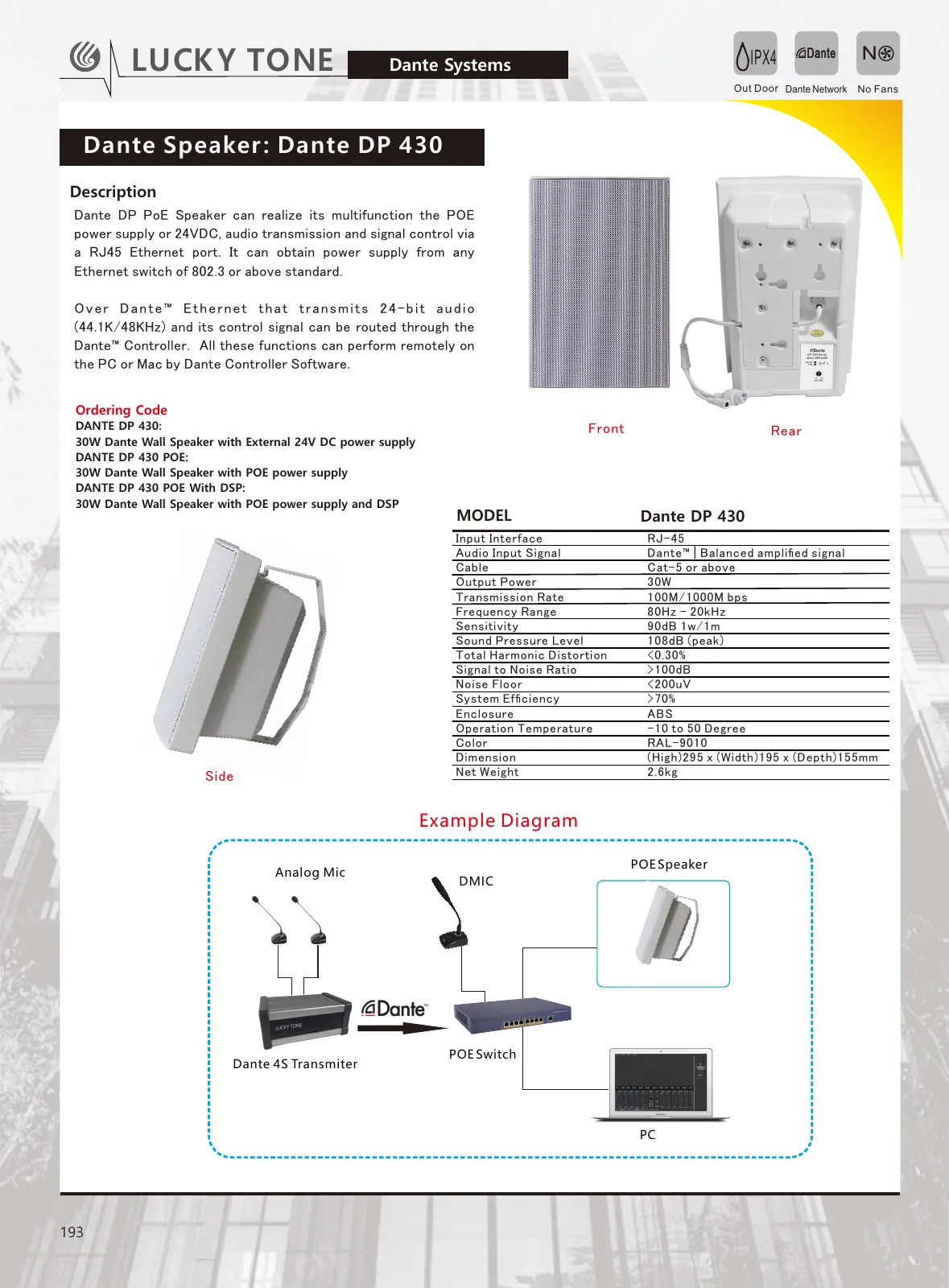

01Specifications18

Model: Dante DP 430
Input Interface: RJ-45
Audio Input Signal: Dante™ Balanced amplified signal
Cable: Cat-5 or above
Output Power: 30W
Transmission Rate: 100M/1000M bps
Frequency Range: 80Hz – 20kHz
Sensitivity: 90dB 1w/1m
Sound Pressure Level: 108dB (peak)
Total Harmonic Distortion: <0.30%
Signal to Noise Ratio: >100dB
Noise Floor: <200uV
System Efficiency: >70%
Enclosure: ABS
Operation Temperature: -10 to 50 Degree
Color: RAL-9010
Dimension: (High)295 x (Width)195 x (Depth)155mm
Net Weight: 2.6kg

02DescriptionManufacturer's description

What it is.

Description

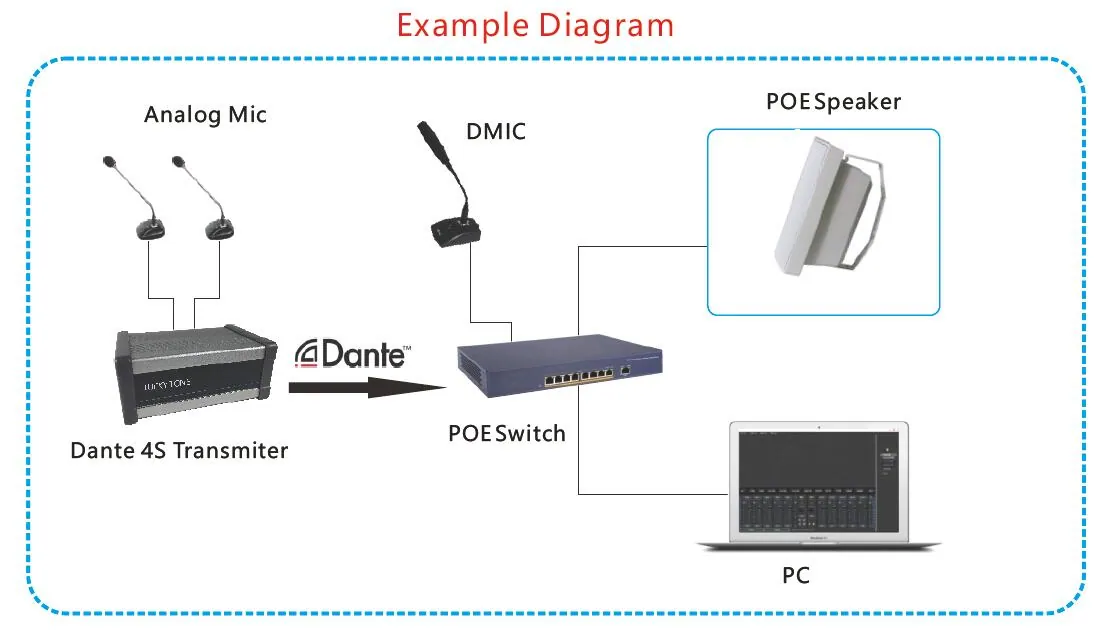

Dante DP PoE Speaker can realize its multifunction the POE power supply or 2 4VDC, audio transmission and signal control via a RJ45 Ethernet port. It can obtain power supply from any Ethernet switch of 802.3 or above standard. Over Dante™ Ethernet that transmits 24-bit audio (44.1K/48KHz) and its control signal can be routed through the Dante™ Controller. Allthese functions can perform remotely on the PC or Mac by Dante Controller Software.
