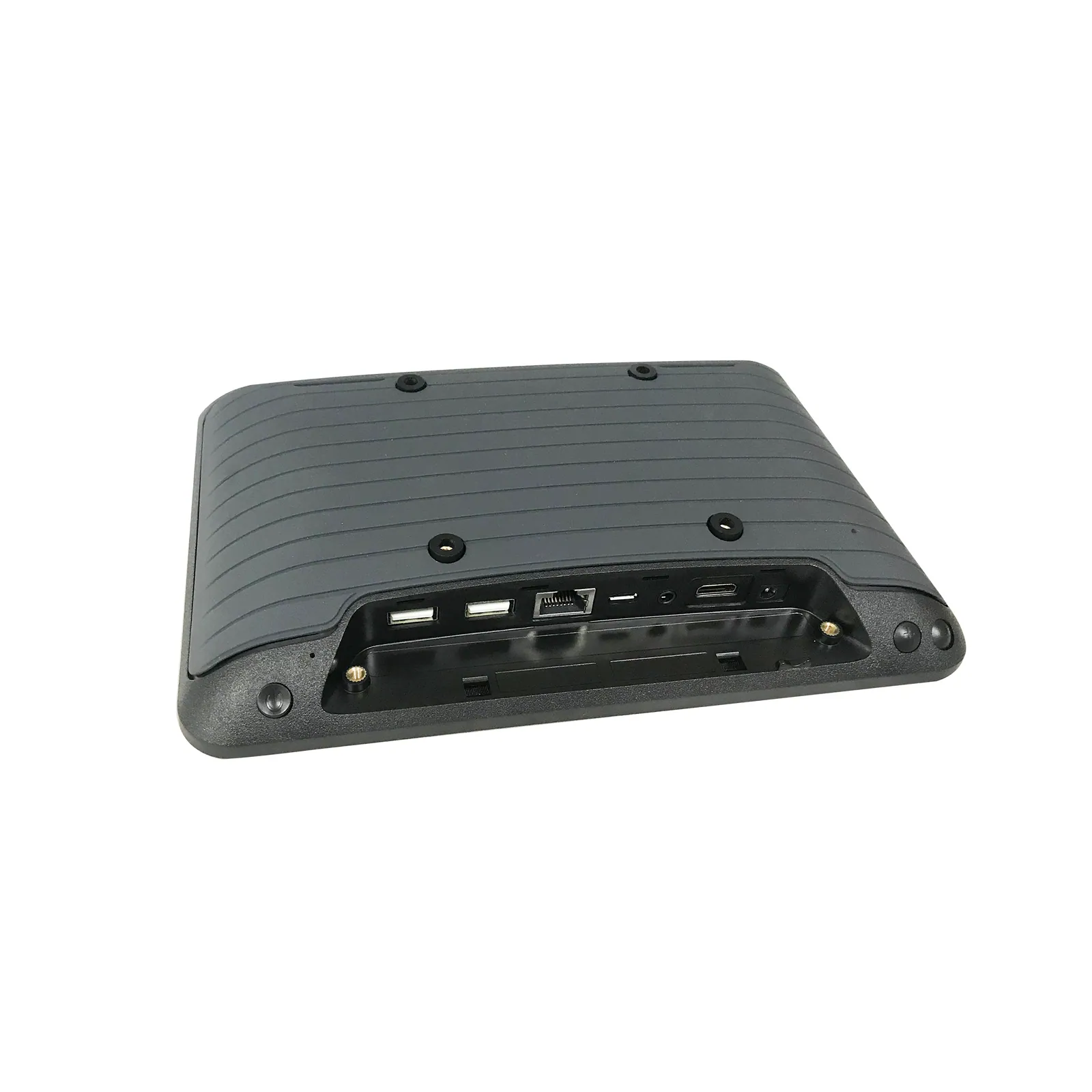

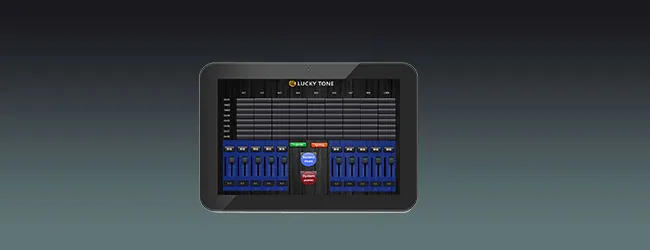

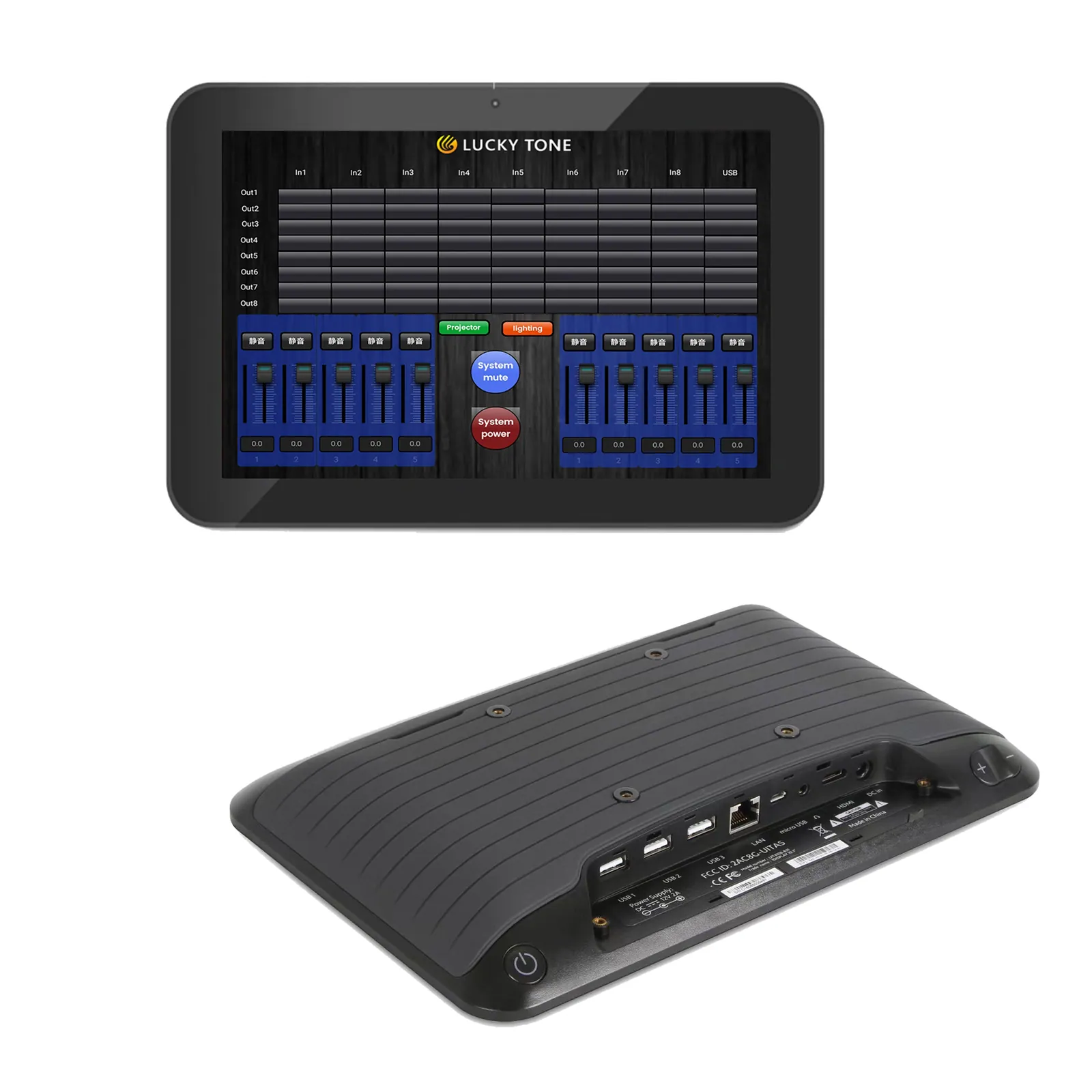

Lucky Tone Dante Wall Control Panel DCON 9
ModelDCON 9
Dante Wall Control Panel for DSP 1616N+, 1616ND+, 880N+, 880ND+,3232ND+, 6464ND+
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications15
- Model
- DCON 9
- Screen
- 8 Inch
- Color
- Black
- Screen Type
- IPS
- Resolution
- 1280×800
- Brightness
- 250cd/m2
- Operating System
- Android 8.1
- Main Chip
- Quad-core cortex-A17 , RockChip RK3288
- RAM
- 2GB
- Storage
- 16G
- Contrast Ratio
- 800:1
- Aspect Ratio
- 16:9
- Power Input
- DC 12V 1.5A &PoE IEEE802.3AT
- Product Dimensions
- 212.2×147.6x31mm
- Product Weight
- 0.7Kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
- Supports centralized control of processing functions for 32 devices.

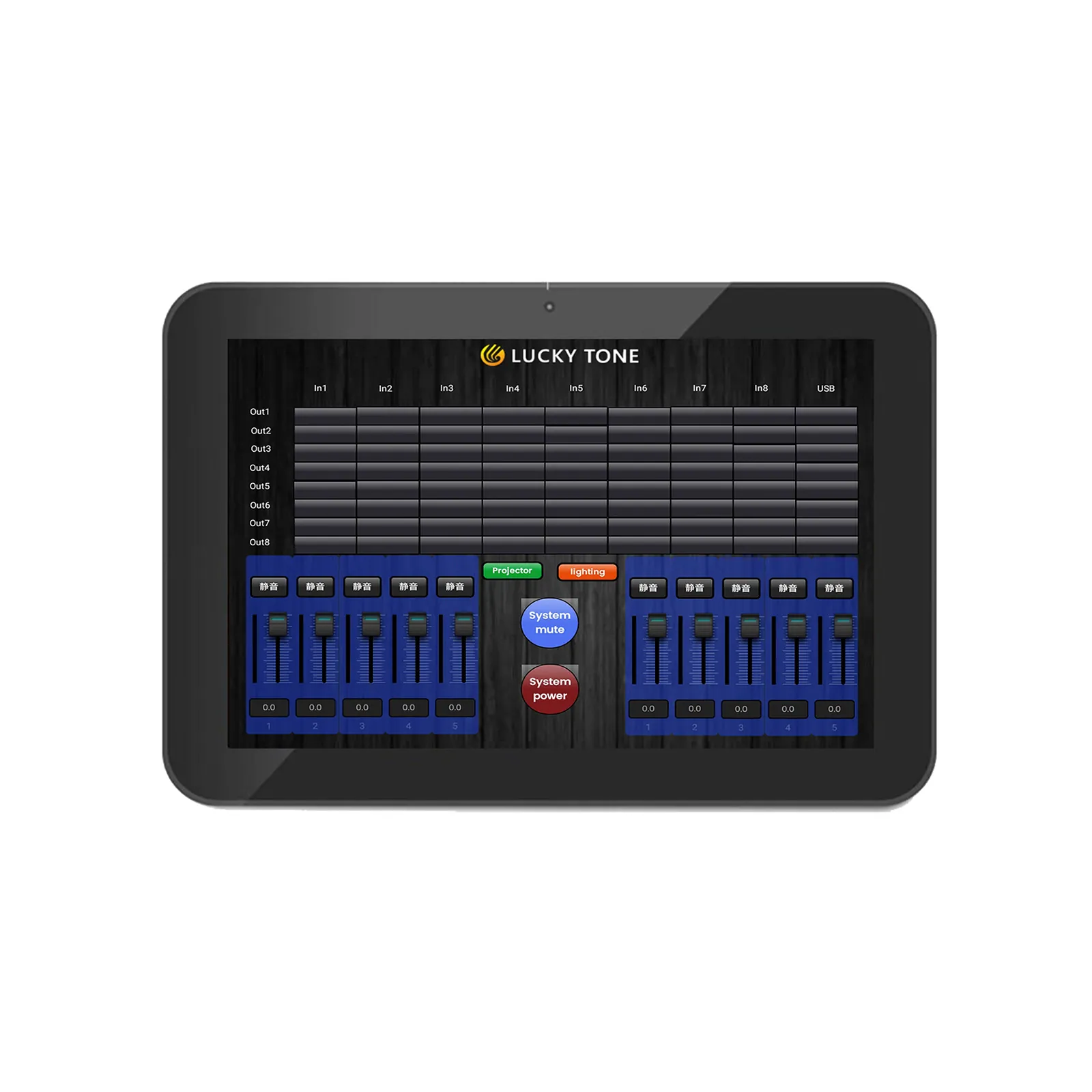

- Control of DSP volume, mute, presets, matrix mixing, and device status detection.
- Functions support user customization.
- Adopt UDP communication protocol.
- Powered by PoE or DC 12V.
