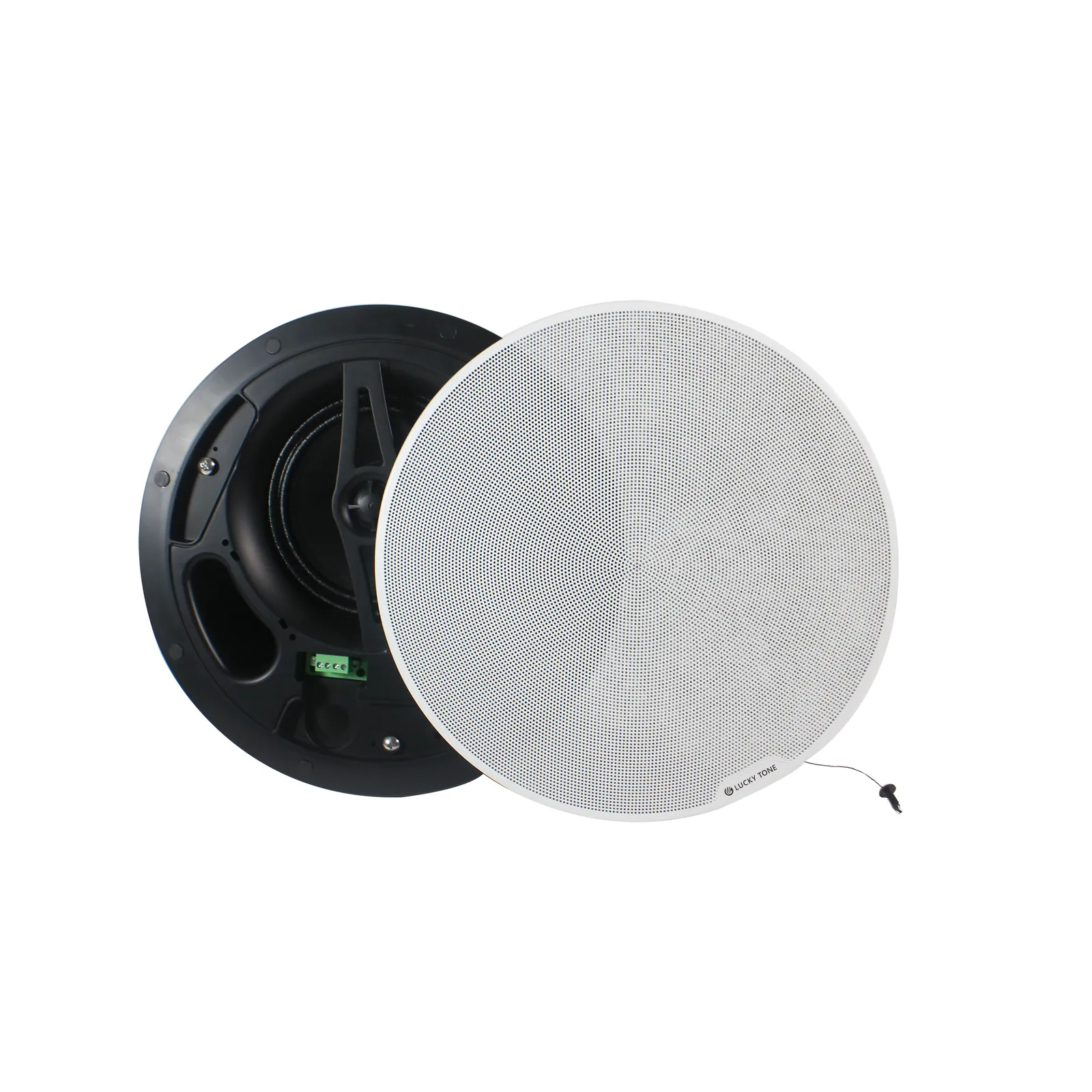

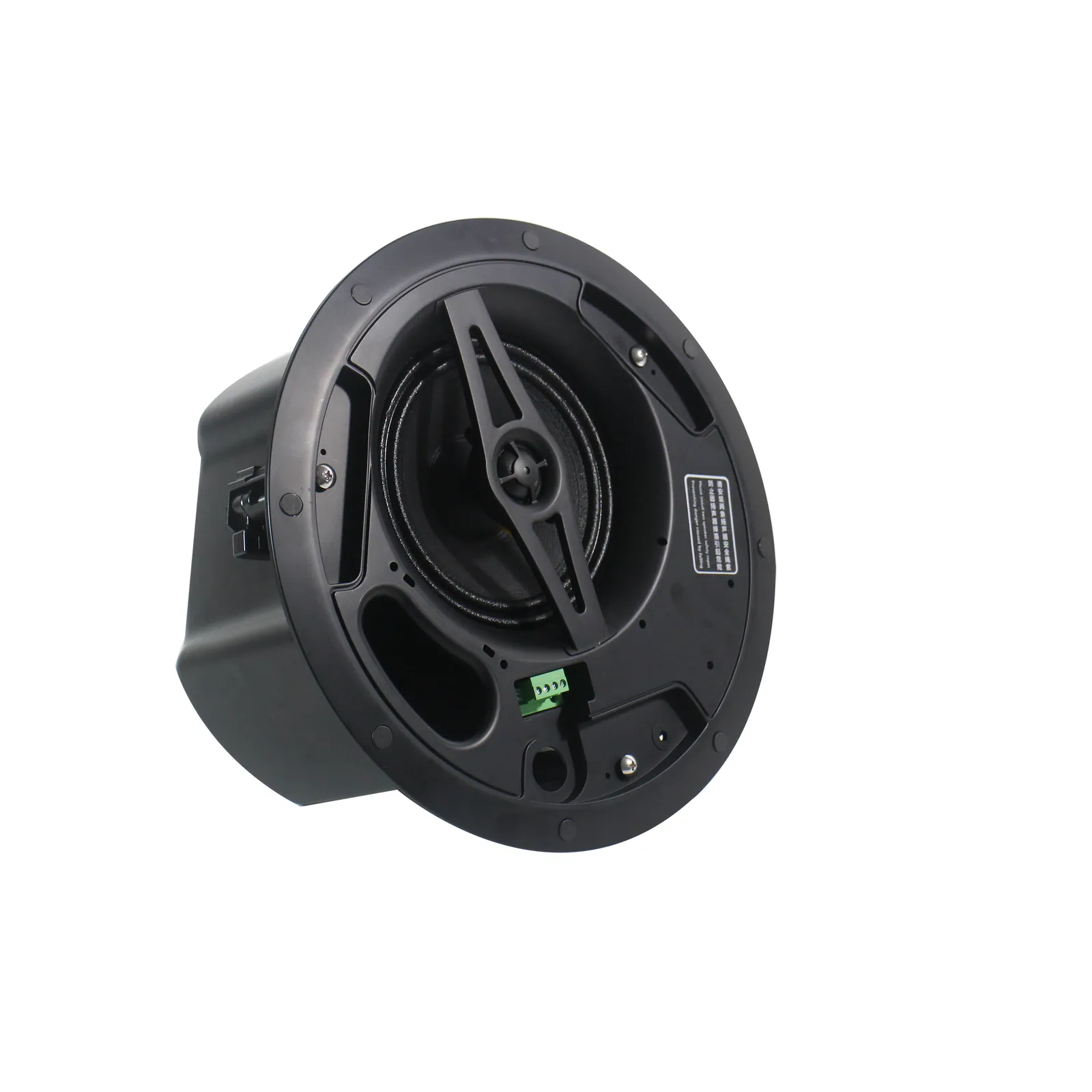

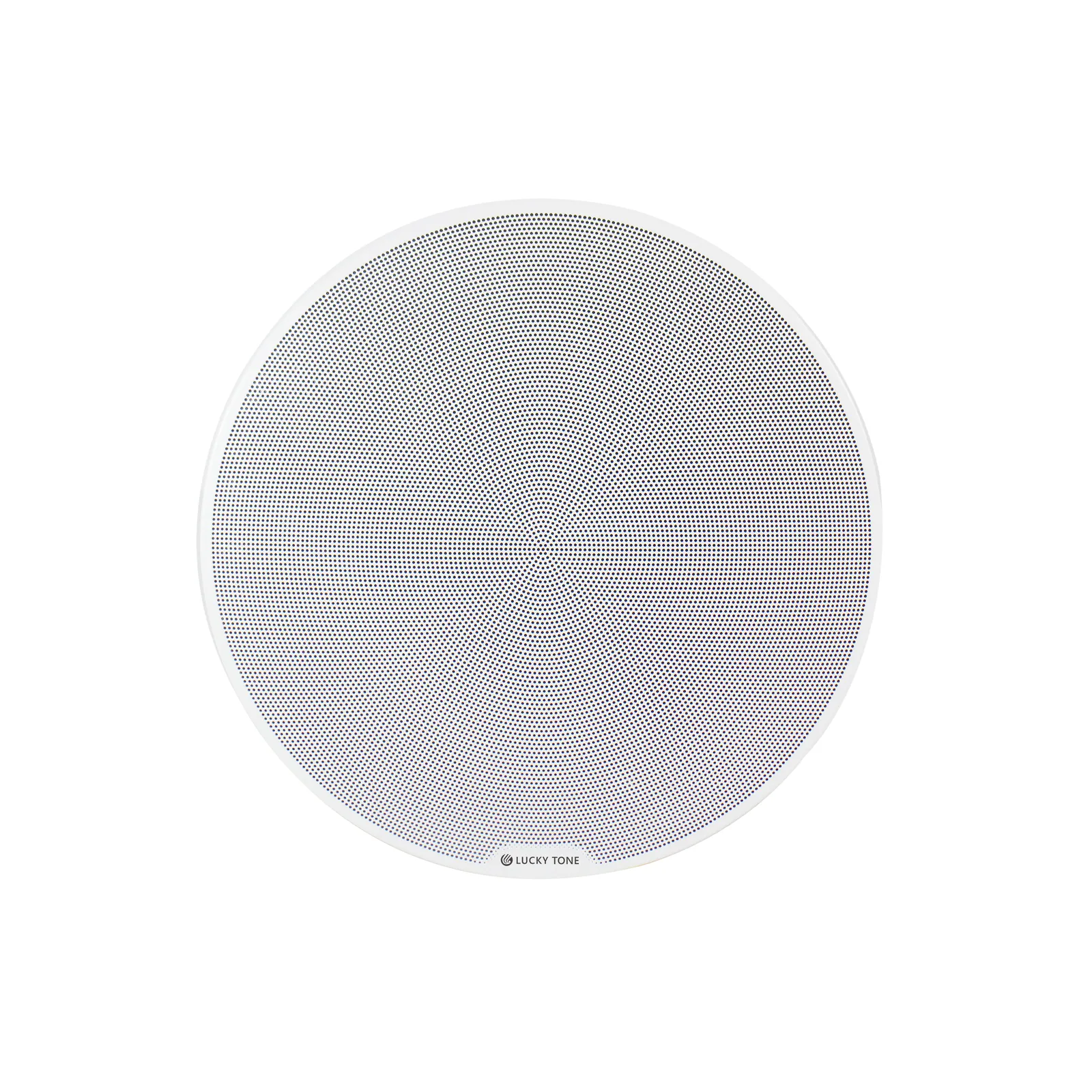

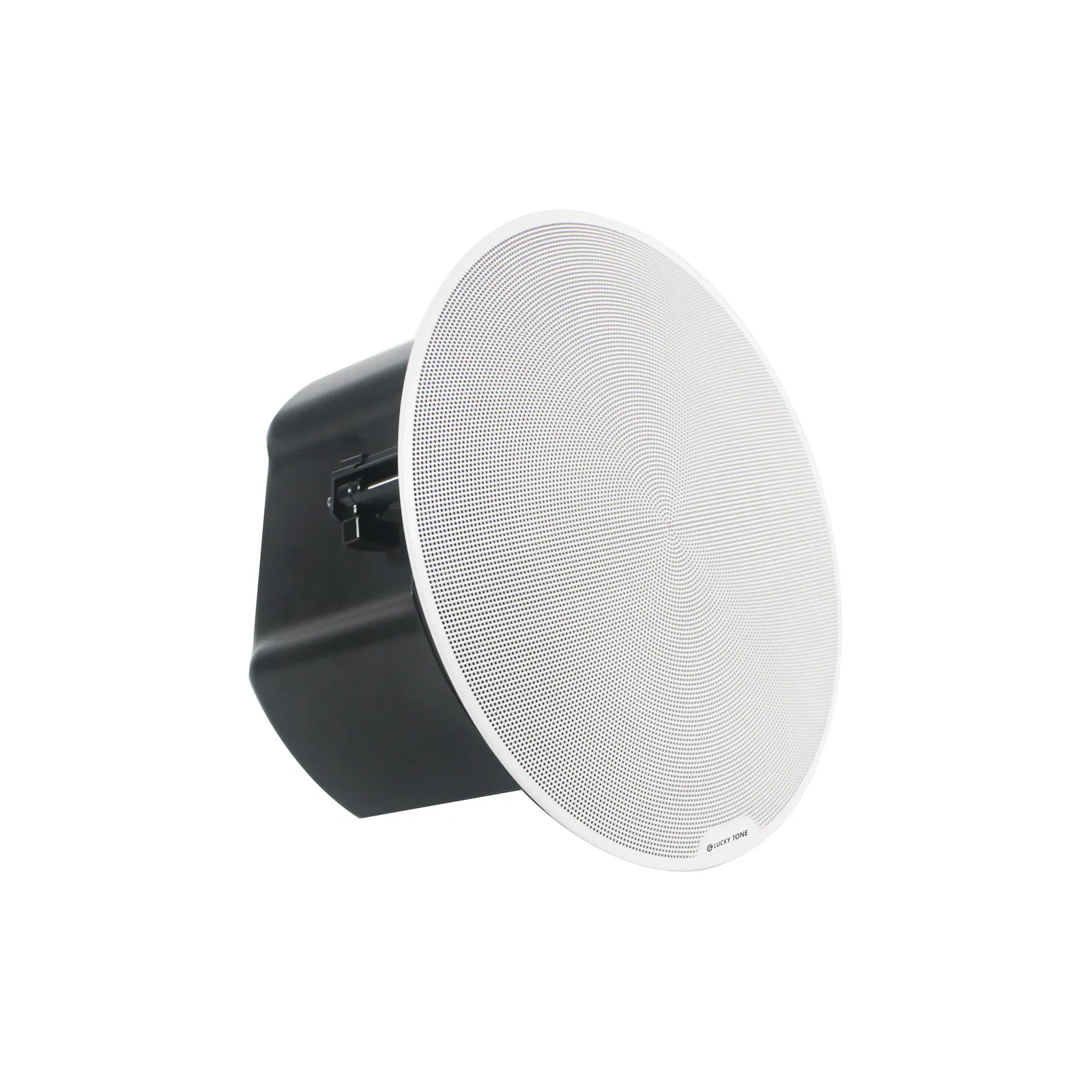

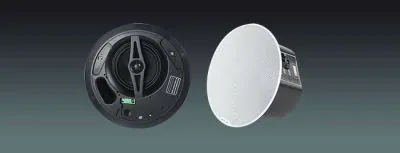

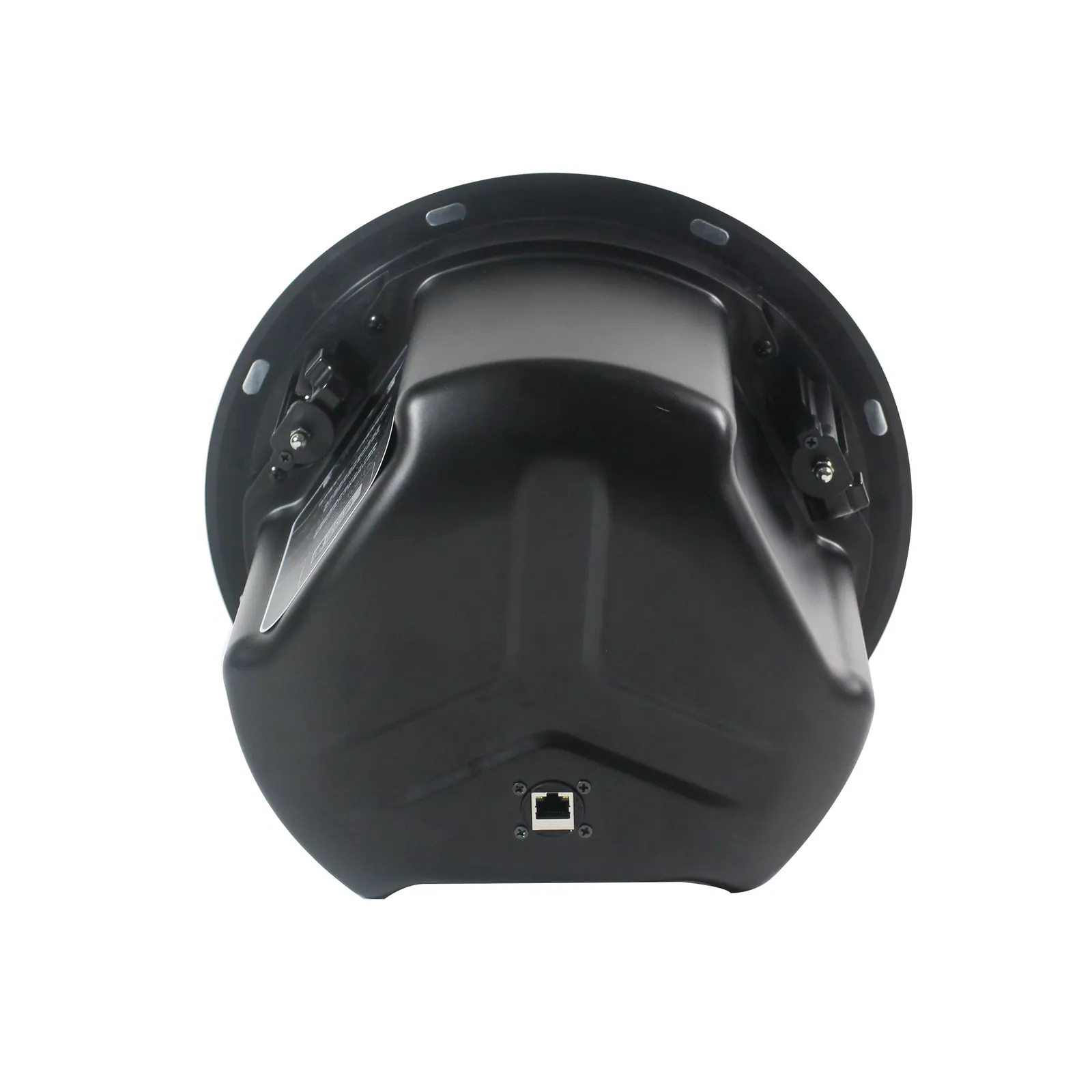

Dante 6-Inch Coaxial Ceiling Speaker with POE and DSP

ModelDANTE DP 660R POE with DSP / DP660V

With two-way drivers, the 60-watt loudspeaker offers rich lows and clear, intelligible highs-along with premium aesthetics that complement any commercial sound installation.

Frequency response: 75Hz~20KHz
Weight: DANTE DP 660R POE with DSP: 4.5kg; DP660V: 5.2kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models2 models in the family

Models compared.

Model	DANTE DP 660R POE with DSP	DP660V
Speaker Size	1×1” tweeter + 1×6.5” woofer	1×1” tweeter + 1×6.5” woofer
Power at 8ohm	60W (240W, Peak)	100W (400W, Peak)
Power at 100V	/	80W/40W/20W/10W
Power at 70V	/	40W/20W/10W/5W
Sensitivity(1M/W)	91dB	93.1dB
SPL	108dB	111.1dB
Frequency Range	75Hz~20KHz	75Hz~20KHz
Input Interface	RJ45	/
Audio Transmission Protocol	Dante	/
Audio Routing Control	Dante Controller	/
Power Input	802.3af/802.3at/802.3bt compatible	/
Material	Iron+ABS	Iron+ABS
Cutout Size	Dia 176mm	Dia 176mm
Product Size	Dia 316*197mm	Dia 316*197mm
Net Weight	4.5kg	5.2kg
Packaging Weight	6.3g	7kg

02DescriptionManufacturer's description

What it is.

With two-way drivers, the 60-watt loudspeaker offers rich lows and clear, intelligible highs-along with premium aesthetics that complement any commercial sound installation. DANTE DP 660R POE with DSP features a 6.5-inch woofer and a 1.25-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75Hz-20kHz.

Features

High-Quality Audio

The rimless Dante ceiling speaker with DSP and PoE delivers exceptional audio quality, ensuring clear and immersive sound reproduction in any space.

Seamless Integration

Designed with a rimless and discreet profile, this speaker seamlessly blends into any environment, making it an aesthetically pleasing choice for both residential and commercial installations.

Dante Compatibility

Featuring Dante networking technology, this speaker allows for easy integration into audio-over-IP systems, simplifying audio distribution and control in large-scale installations.

Digital Signal Processing (DSP)

The built-in DSP capabilities enable precise tuning and optimization of audio output, ensuring that sound is tailored to the specific acoustics of the room or venue.

Power over Ethernet (PoE)

With PoE support, this speaker can be powered and connected through a single Ethernet cable, simplifying installation and reducing the need for additional power sources, making it a cost-effective choice.
