Sheet 05.177

Lucky Tone · Loudspeakers

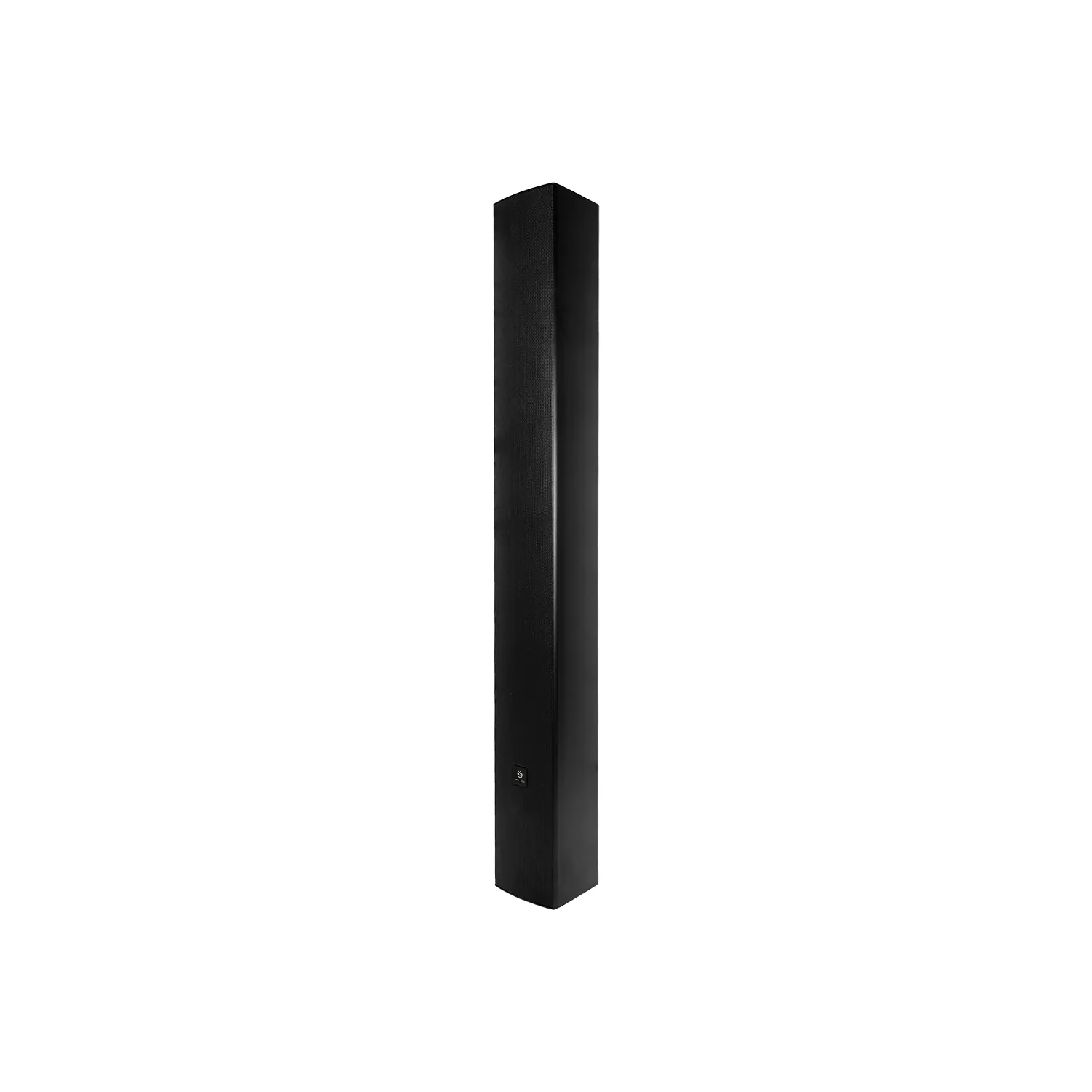

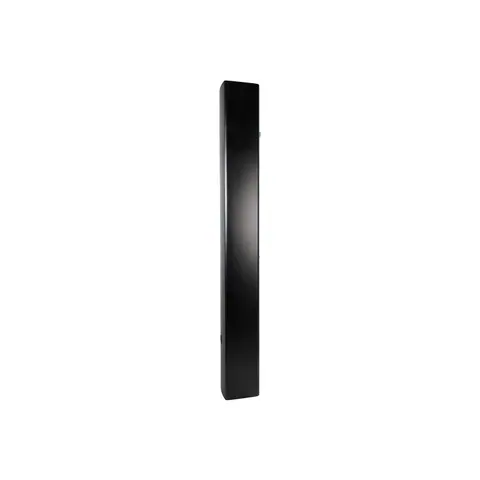

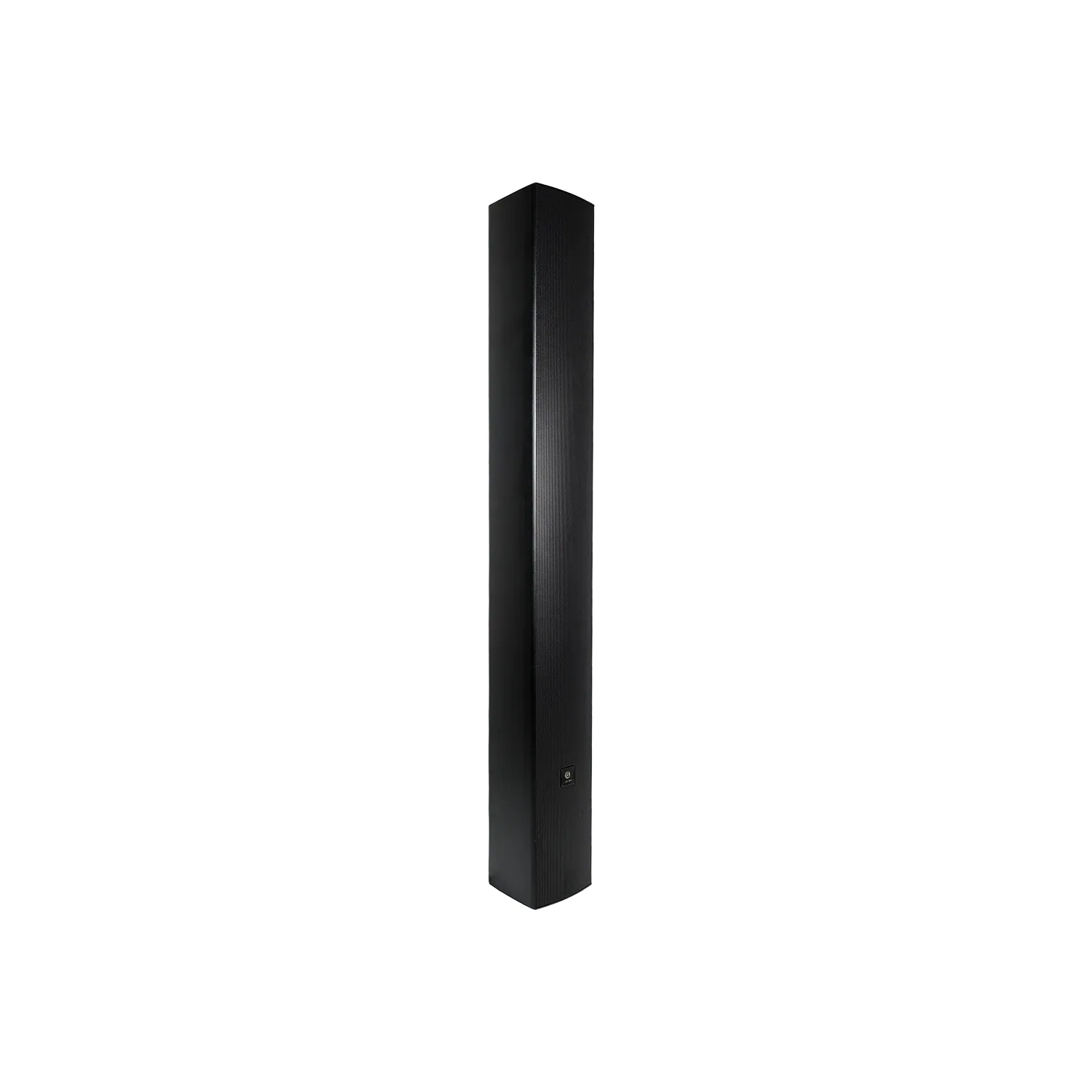

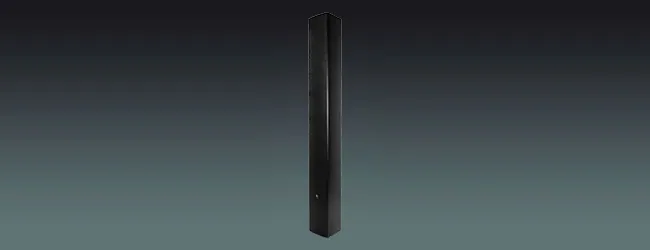

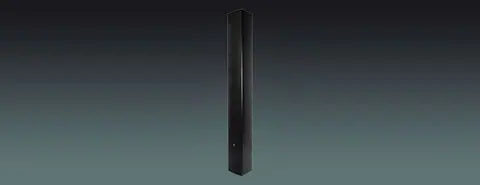

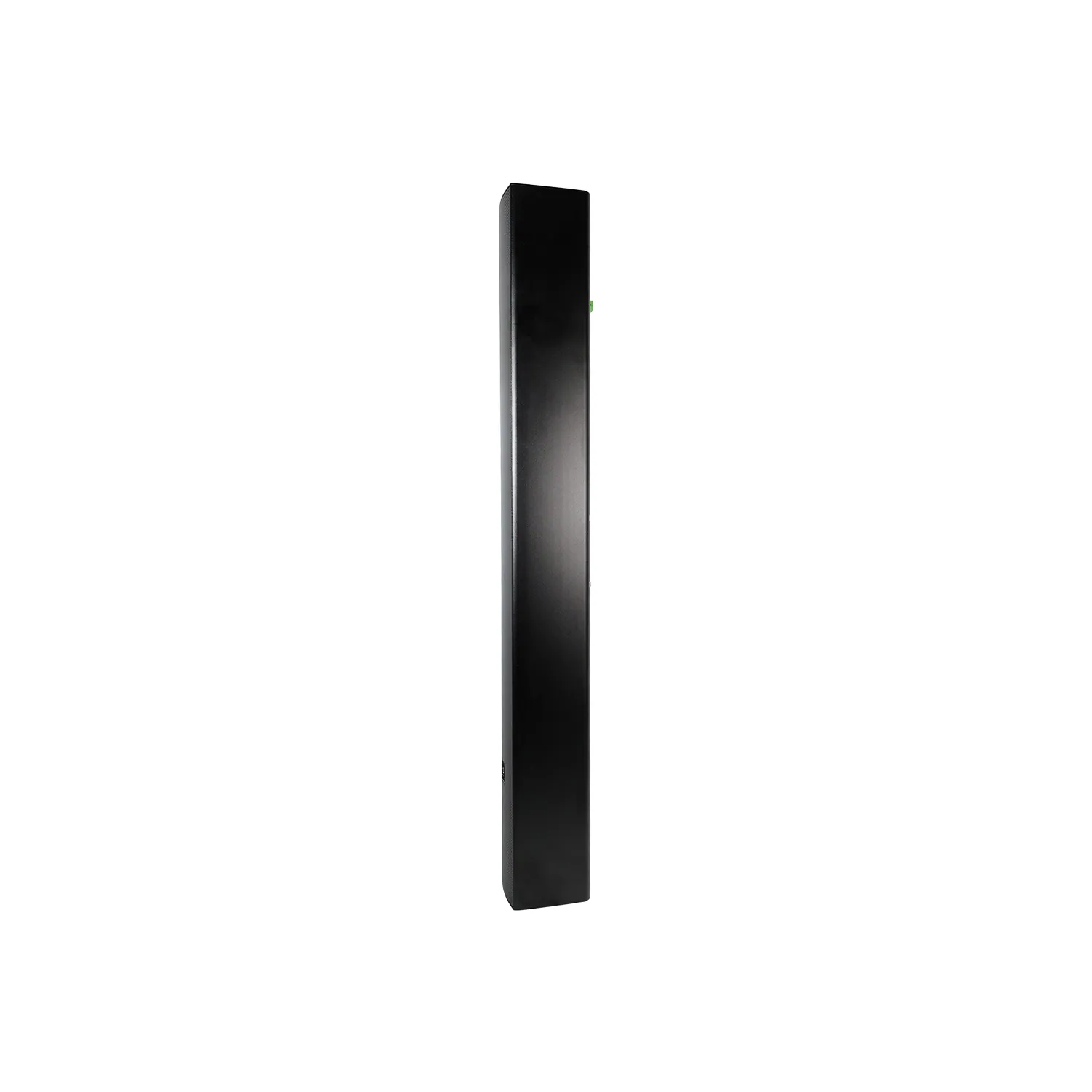

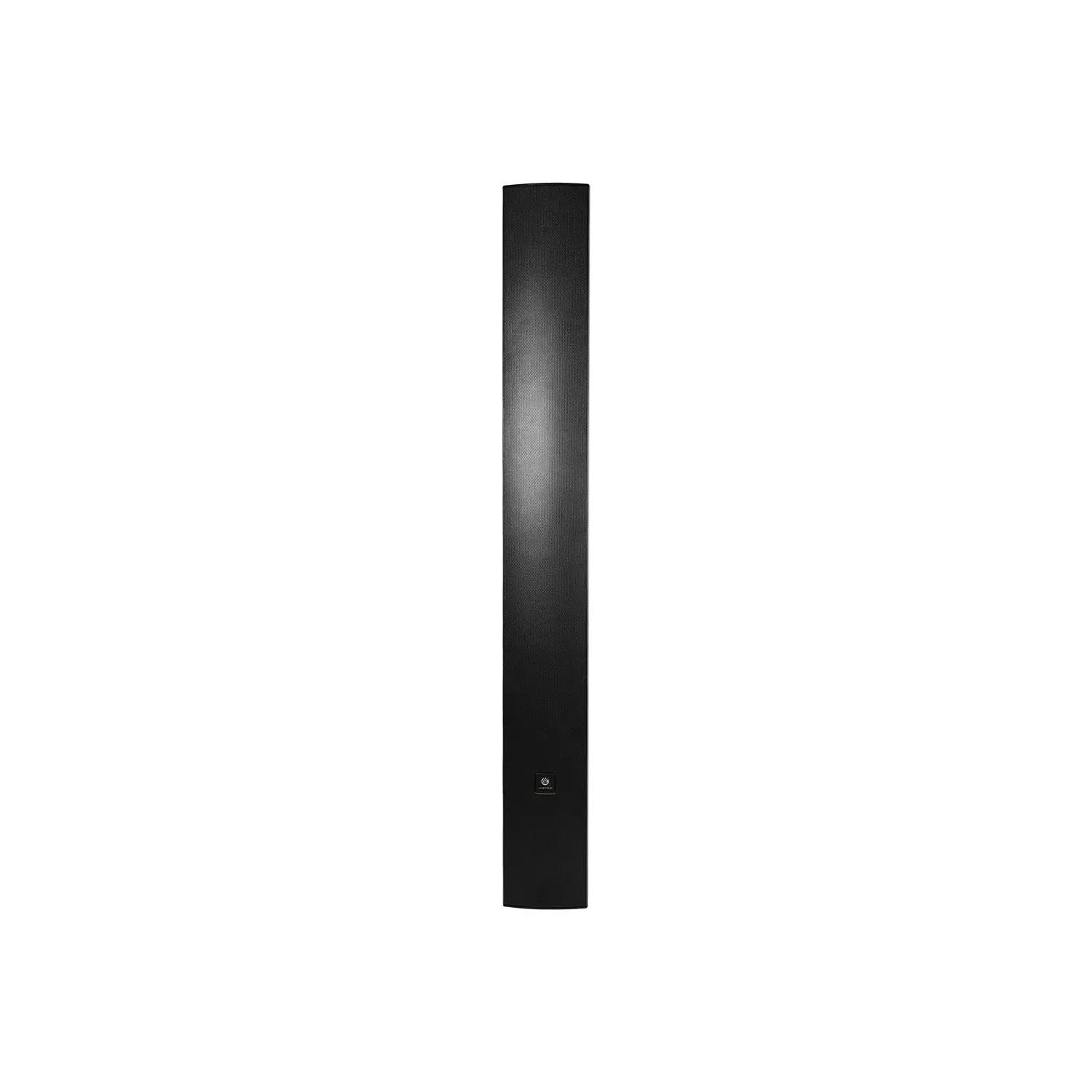

Line Array Column Speaker

ModelDP 440B/DP 440S

Unsurpassed sound quality for best speech intelligibility

Output power: 440W
Frequency response: 100Hz~20kHz
Weight: 8.2kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 14 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications14

Model: DP 440B/DP 440S
Output Power: 440W
Peak Power: 1760W
Impedance: 4ohm
Frequency Response: 100Hz~20kHz
Sensitivity(1m/1W): 94dB
SPL: 117dB
Dispersion Angle: Vertical: 20° and horizontal: 160°
Material: Aluminum alloy

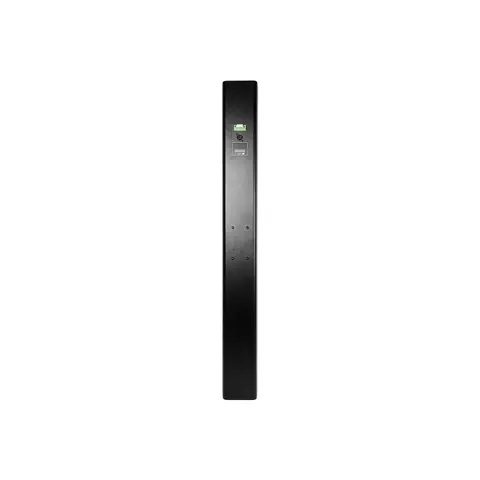

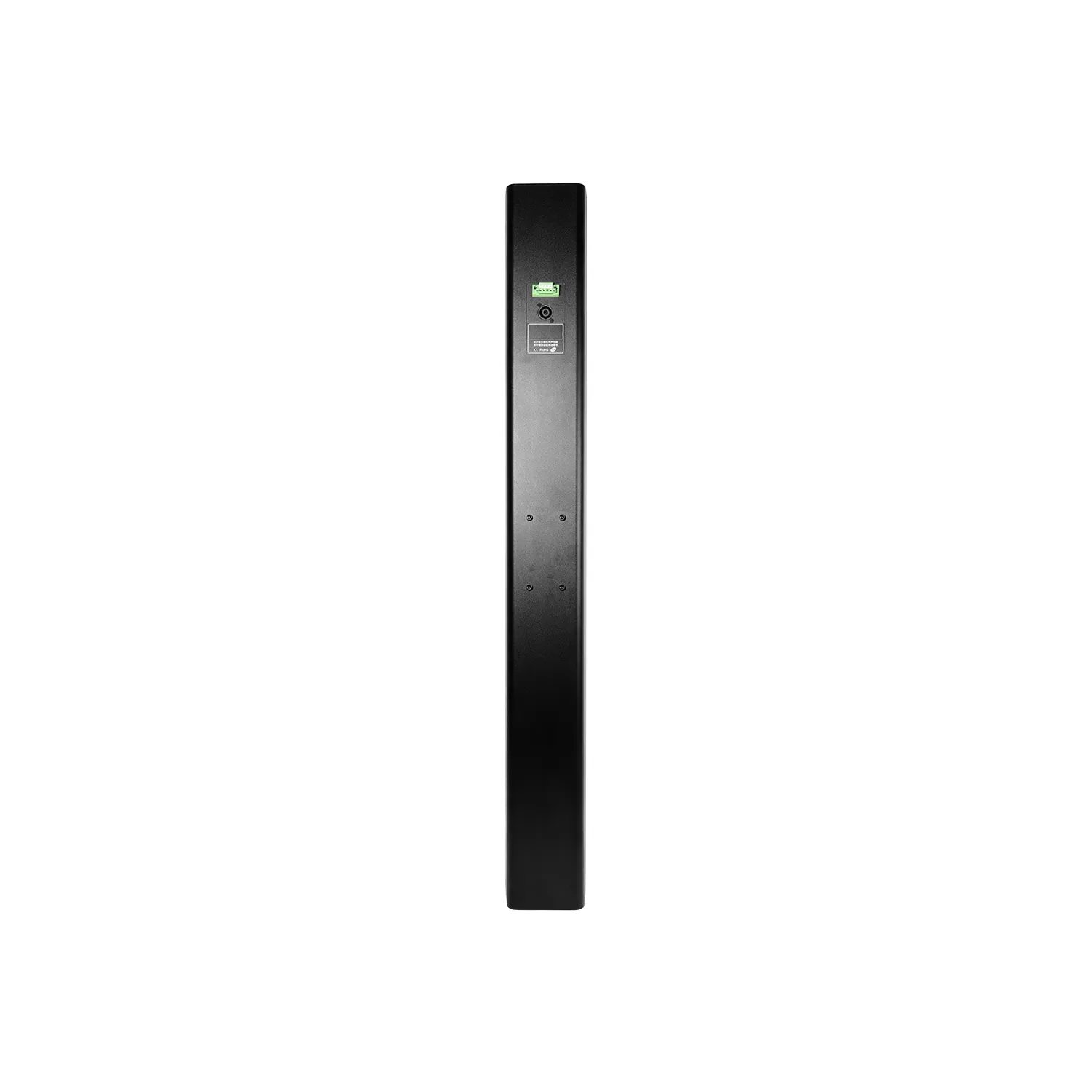

Connection Interface: 1 NL4 socket(+1/-1)+1 Euroblock
Speaker Driver: 8×4″ neodymium magnet, 1*25.4mm voice coil neodymium magnet
Color: Black/Silver
Net Weight: 8.2kg
Product Dimensions: 1140x134x153mm

02DescriptionManufacturer's description

What it is.

8 × 4″ high performance driver

Sleek and Durable Design

Wide Coverage Area

Unobtrusive design for environments with demanding acoustics

Flexible, uncomplicated installation

03Documents1 file · 1.8 MB

Documents and files.

Datasheets and manuals01

PDFLucky-Tone-DP-440B-DP-440S-Catalog-20240716.pdf1.8 MB

04Related products

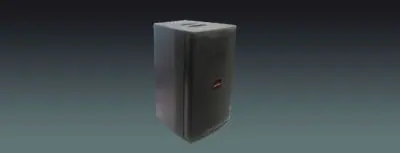

EQ-176Lucky ToneKP Series Professional SpeakersKP-610 / KP-612 / KP-615 · LoudspeakersFrequency response60Hz-18KHz

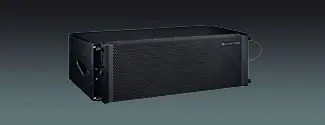

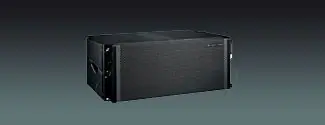

EQ-178Lucky ToneLine Array SpeakersLA-208 · Loudspeakers

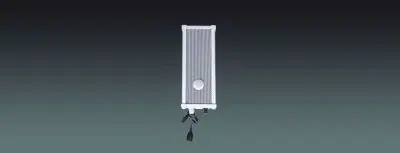

EQ-175Lucky ToneIR Alert Column SpeakerIR-10 · LoudspeakersPower supply110 to 240VAC,50/60HzWeight1kg
