Sheet 05.176
Lucky Tone · Loudspeakers

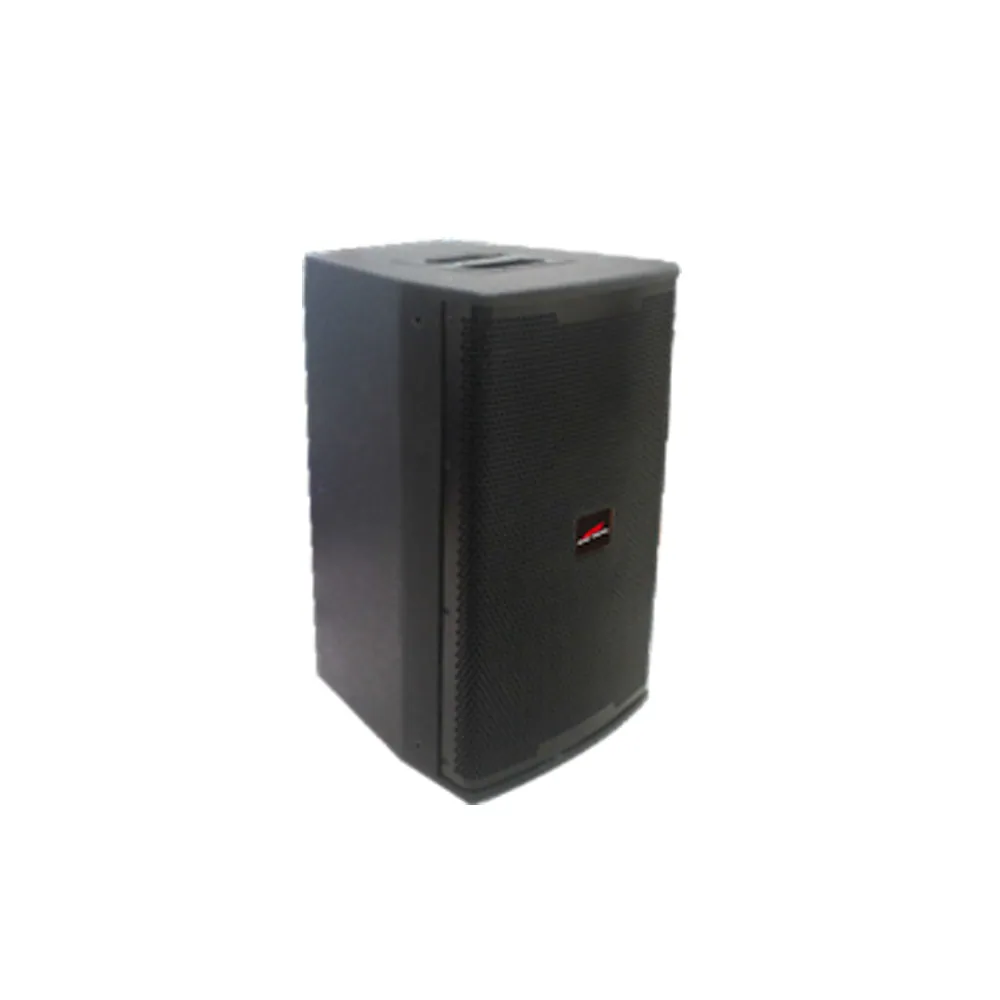

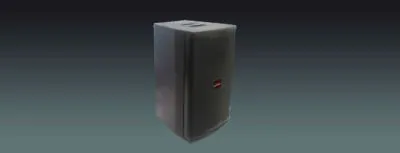

KP Series Professional Speakers
ModelKP-610 / KP-612 / KP-615
10/12/15 inch plywood speaker
- Frequency response
- 60Hz-18KHz
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
KP Series Professional SpeakersPrice on requestRequest a quotation
01Models3 models in the family
Models compared.

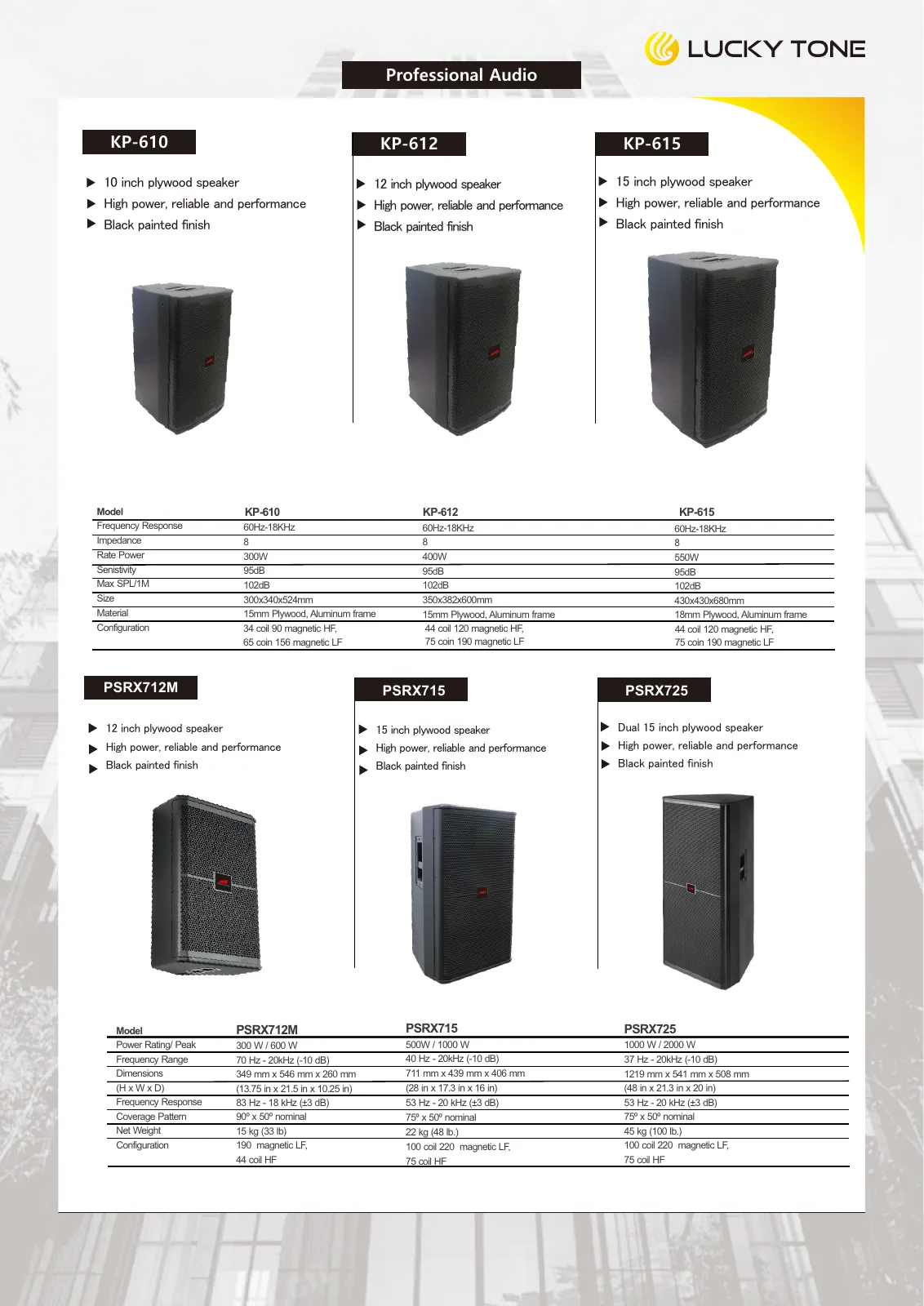

| MODEL | KP-610 | KP-612 | KP-615 |
|---|---|---|---|
| Frequency Response | 60Hz-18KHz | 60Hz-18KHz | 60Hz-18KHz |
| Impedance | 8OHM | 8OHM | 8OHM |
| Rate Power | 300W | 400W | 550W |
| Senistivity | 95dB | 95dB | 95dB |
| Max SPL/1M | 102dB | 102dB | 102dB |
| Size | 300x340x524mm | 350x382x600mm | 430x430x680mm |
| Material | 15mm Plywood, Aluminum frame | 15mm Plywood, Aluminum frame | 18mm Plywood, Aluminum frame |
| Configuration | 34 coil 90 magnetic HF,65 coin 156 magnetic LF | 44 coil 120 magnetic HF,75 coin 190 magnetic LF | 44 coil 120 magnetic HF,75 coin 190 magnetic LF |
02DescriptionManufacturer's description
What it is.
High power, reliable and performance
Black painted finish
03Documents1 file · 2.4 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
