Sheet 05.271
Lucky Tone · Dante

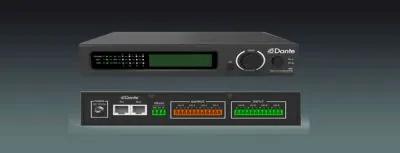

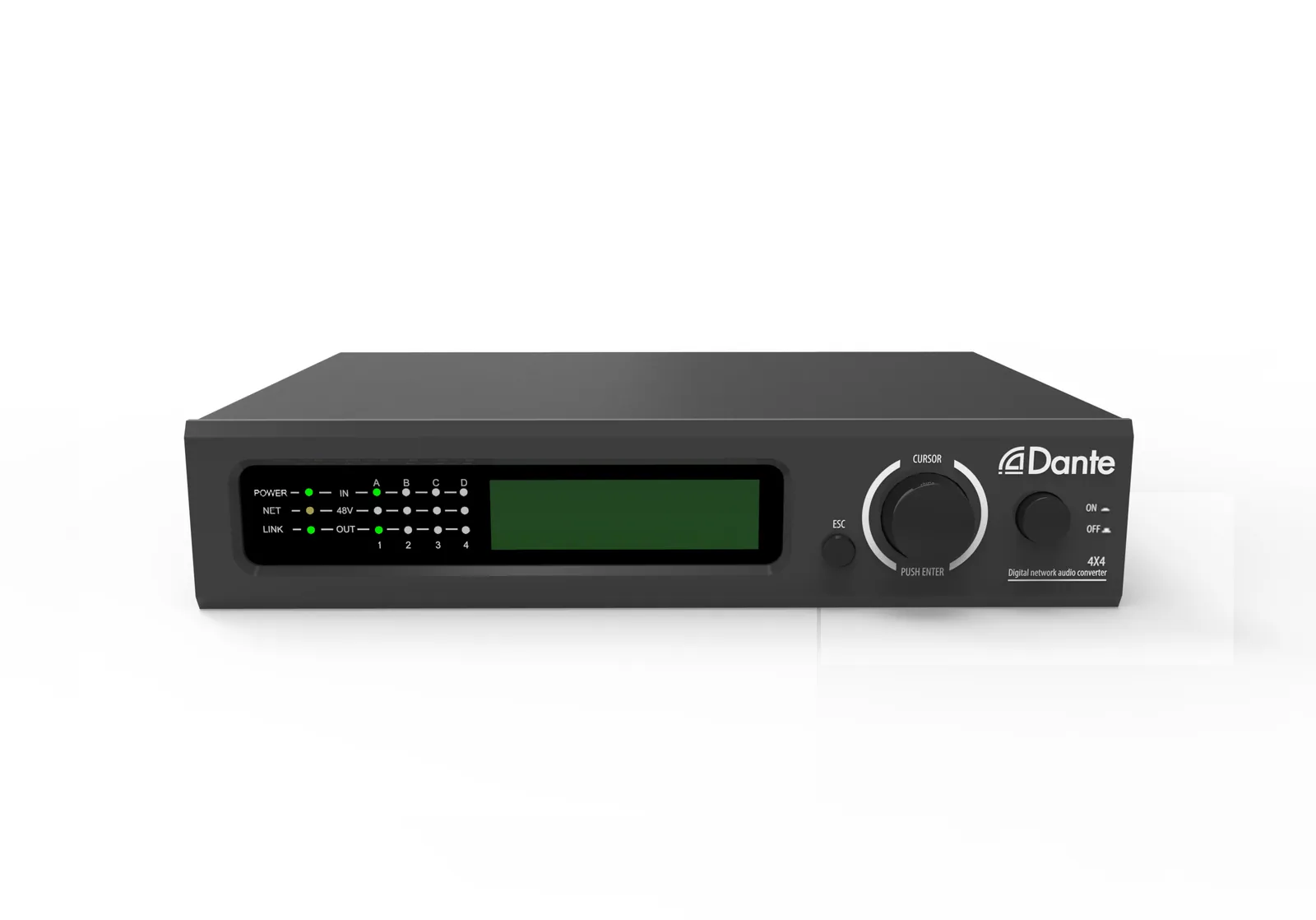

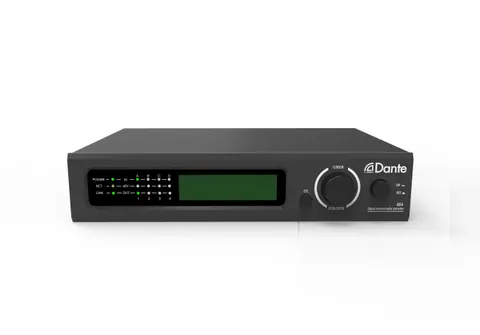

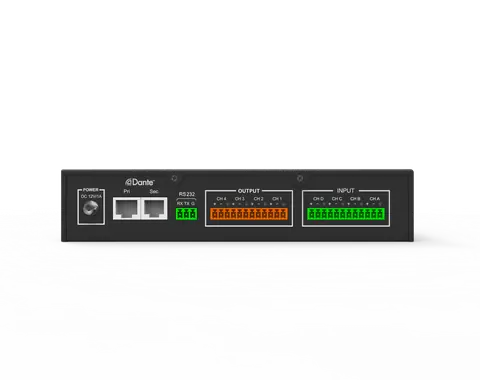

4 in 4 out Dante Converter/Transmitter
ModelDSP-440P
Dante 440P is a 4×4 channels Dante network
- Frequency response
- 20Hz-20kHz,|Deviation|<=0.2dB
- Weight
- 1.38kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
4 in 4 out Dante Converter/TransmitterPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 21 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications21
- MODEL
- DSP-440P
- Channel
- 4*4
- Voltage
- DC12V
- Currency(PV)
- 800mA
- Audio
- LINE & MIC
- Bit Depth
- 24Bit
- Sampling
- 48KHz
- Max input
- 12dBu
- Gain
- 0dB
- SNR
- 106dB @12dBu, 1kHz,20kHz LPF, A-wt
- THD
- -79dB @12dBu, 1kHz, 20kHz LPF, A-wt
- Frequency response
- 20Hz-20kHz,|Deviation|<=0.2dB
- Ground noise
- 22uVrms @20kHz LPF
- Channel isolation
- <-110dB @0dBu, 1kHz
- CMR
- >57dB @ 0dBu, 1kHz
- System delay
- <1ms
- Balance input impedance
- 11.5kΩ
- Output impedance
- 100Ω
- Operating temperature
- -20°C–80°C
- L*W*H
- 215*145*45mm
- Weight
- 1.38kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Description
- audio interface box, which can access analog
- audio signals, convert into digital signals and
- transmit to any Dante audio network device
- through the Dante protocol. Provides with a high
- quality, long-distance and low-delay audio
- transmission.
- Dante digital network audio technology is
- uncompressed, professional digital audio
- transmission technology (AoIP) based on gigabit
- Ethernet network transmission. Dante
- technology supports dozens or even hundreds of
- devices for digital audio signal network
- transmission in the audio system, so as to realize
- the digital signal interconnection between
- devices, and have stable and reliable signal
- synchronization and other functions.
Feature
- 4 channels audio balance input, 4 channels audio balance
- output.
- Sampling frequency 24bit-44.1k/48k/96k.
- MIC-48V/MIC/12dBu/22dBu 4 level sensitivities in
- option.
- THD: <0.005%.
- SNR: >-92dB (-20dBu@1KHz).
- Dynamic range: >92dB (-12dBu@1KHz).
- Underground noise: <-92dBu (MIC/48: -81dBu).
- Frequency response: 20Hz-20KHz@±0.3dB
- (MIC/48V: 20Hz20KHz@±1.5dB).
- Flexible topological mode, support extend the bulk
- transmitter and receiver.
- Operating voltage: DC12V, currency: 800mA.
- Support GPIO control peripherals.
- Standard computer software monitoring and management.
