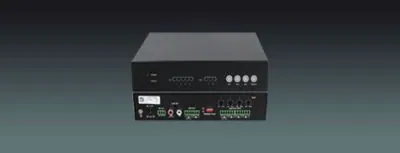

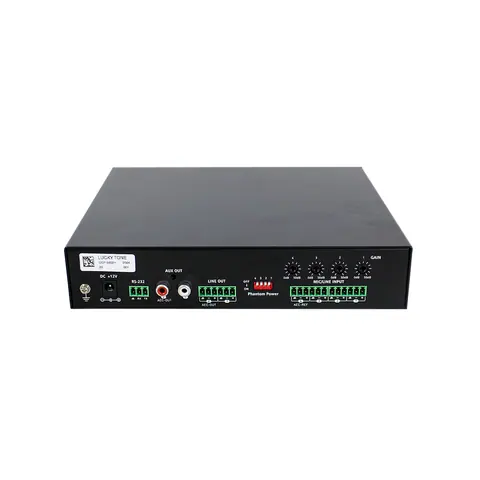

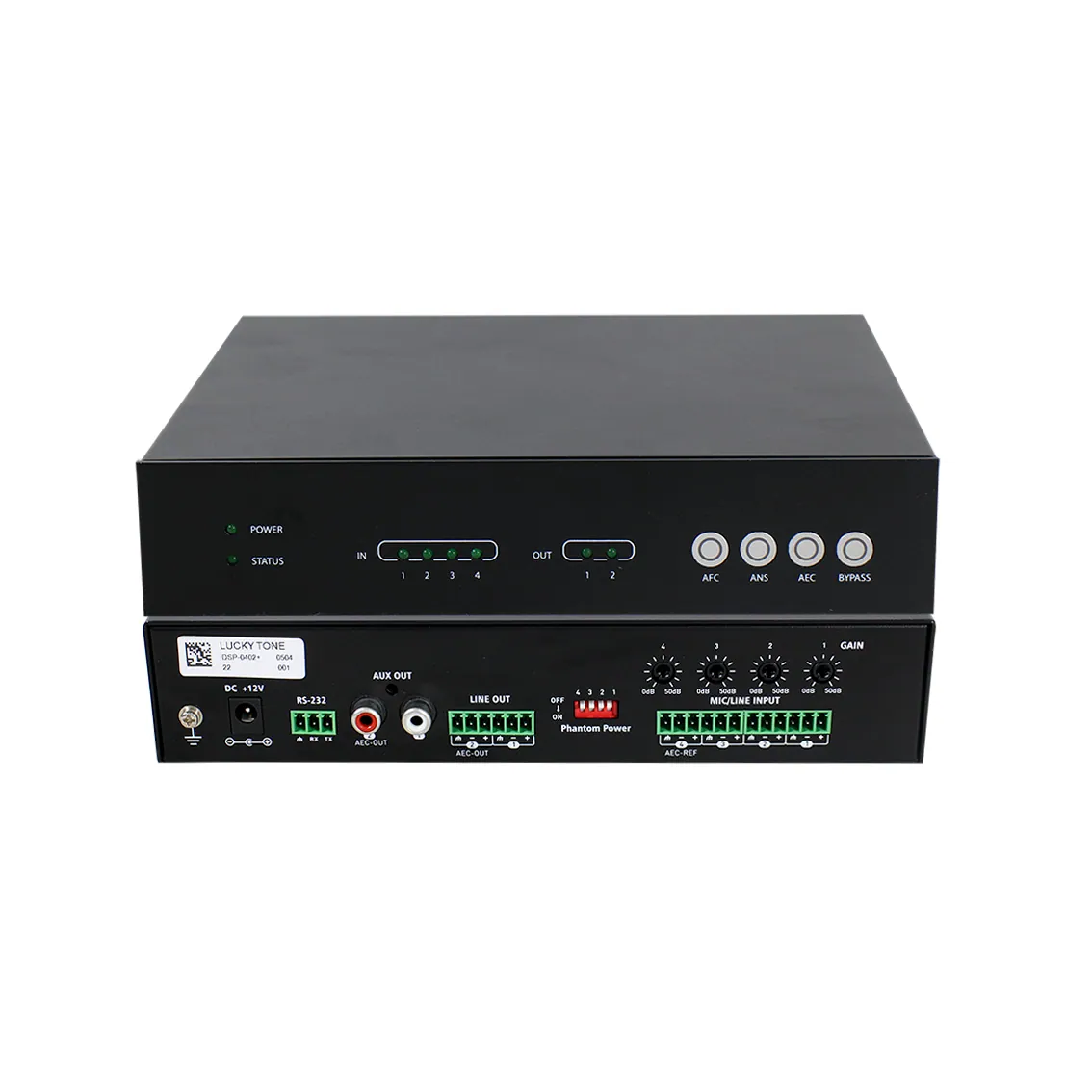

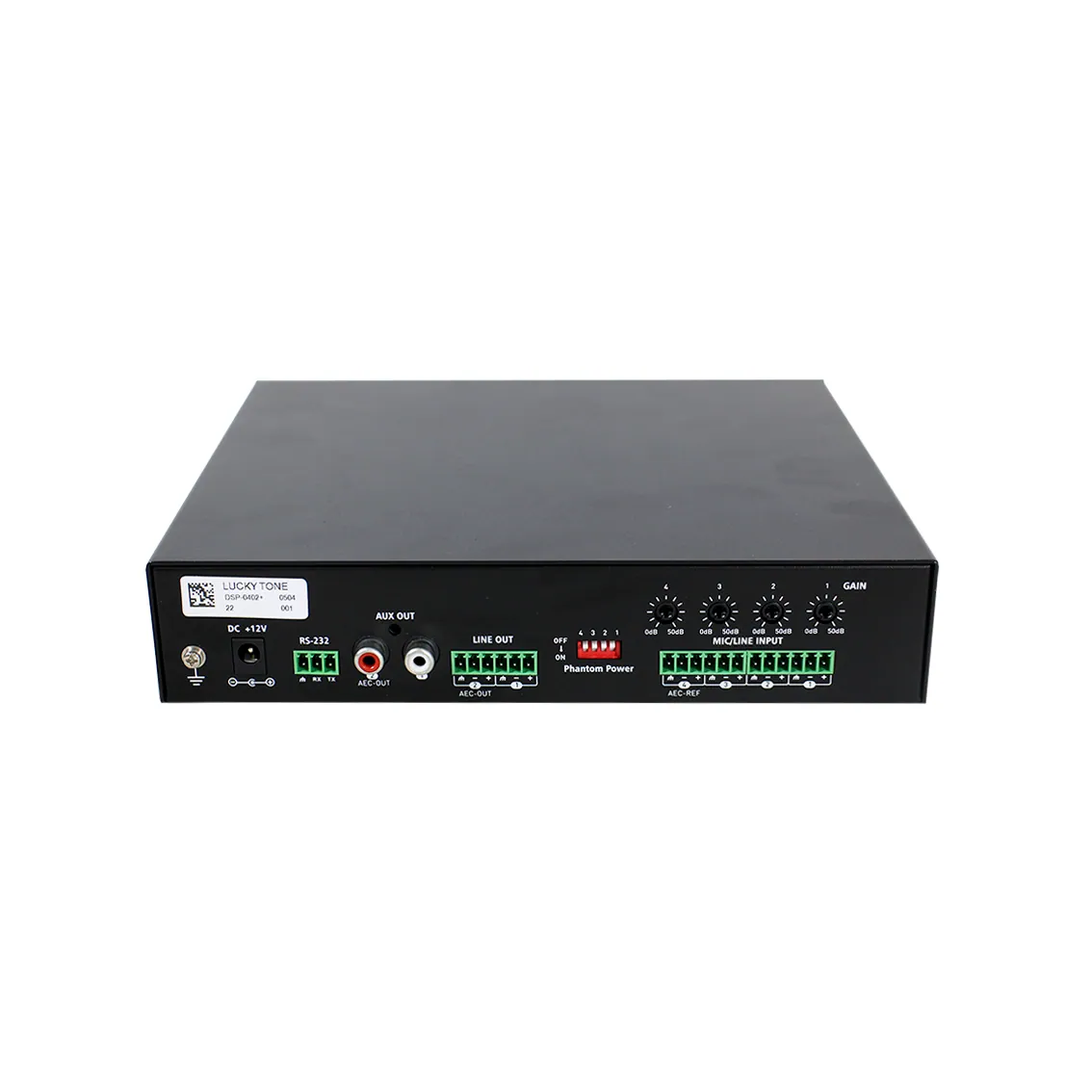

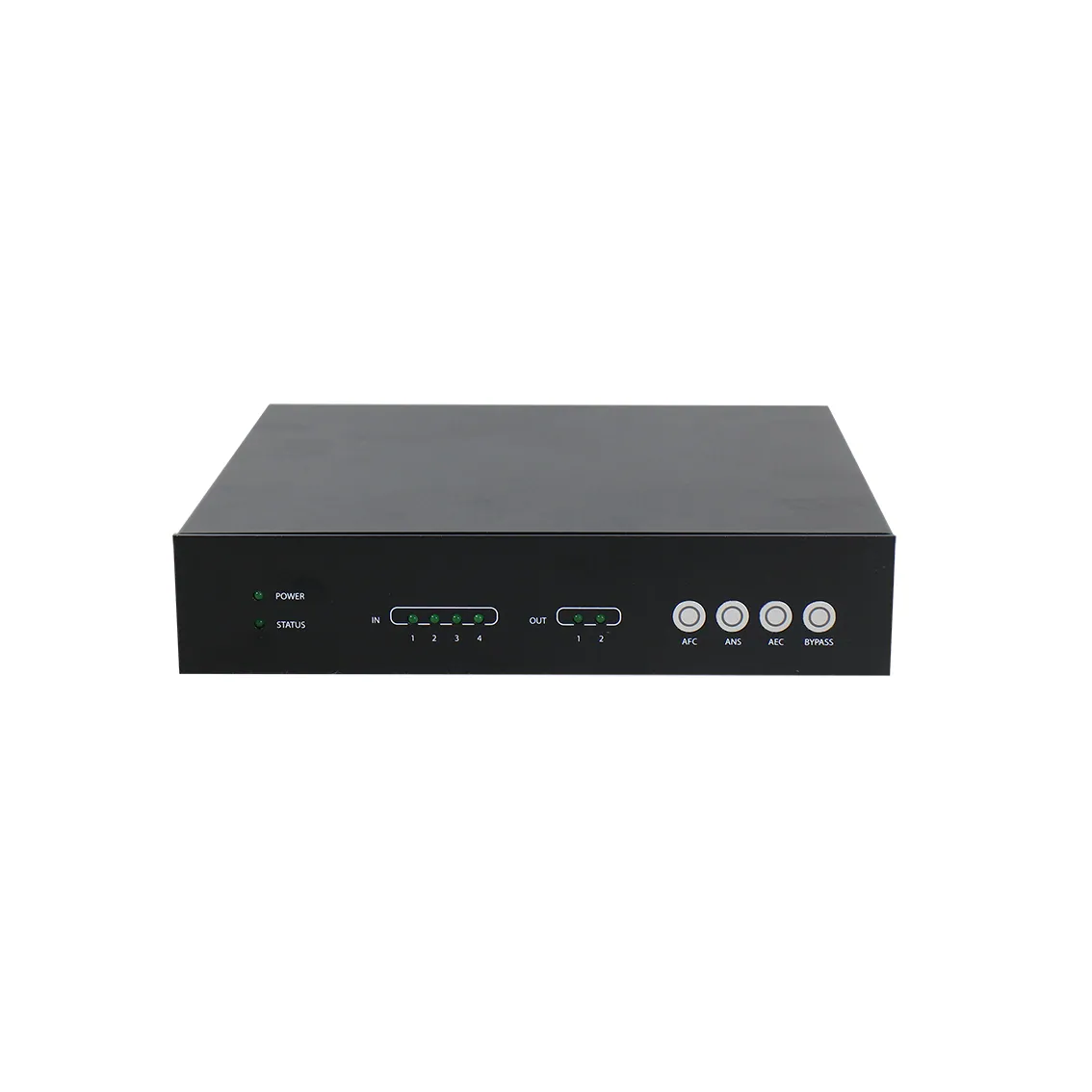

4 In 2 Out Automatic DSP Audio Processor

ModelDSP-0402+

Developed for normalized recording and broadcasting, remote interaction and conference sound

Frequency response: (20~20kHz):±0.3dB
Power supply: DC12V
Dimensions: 215x182x44mm
Weight: 1.2KG

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 20 values

What this product is, in numbers.

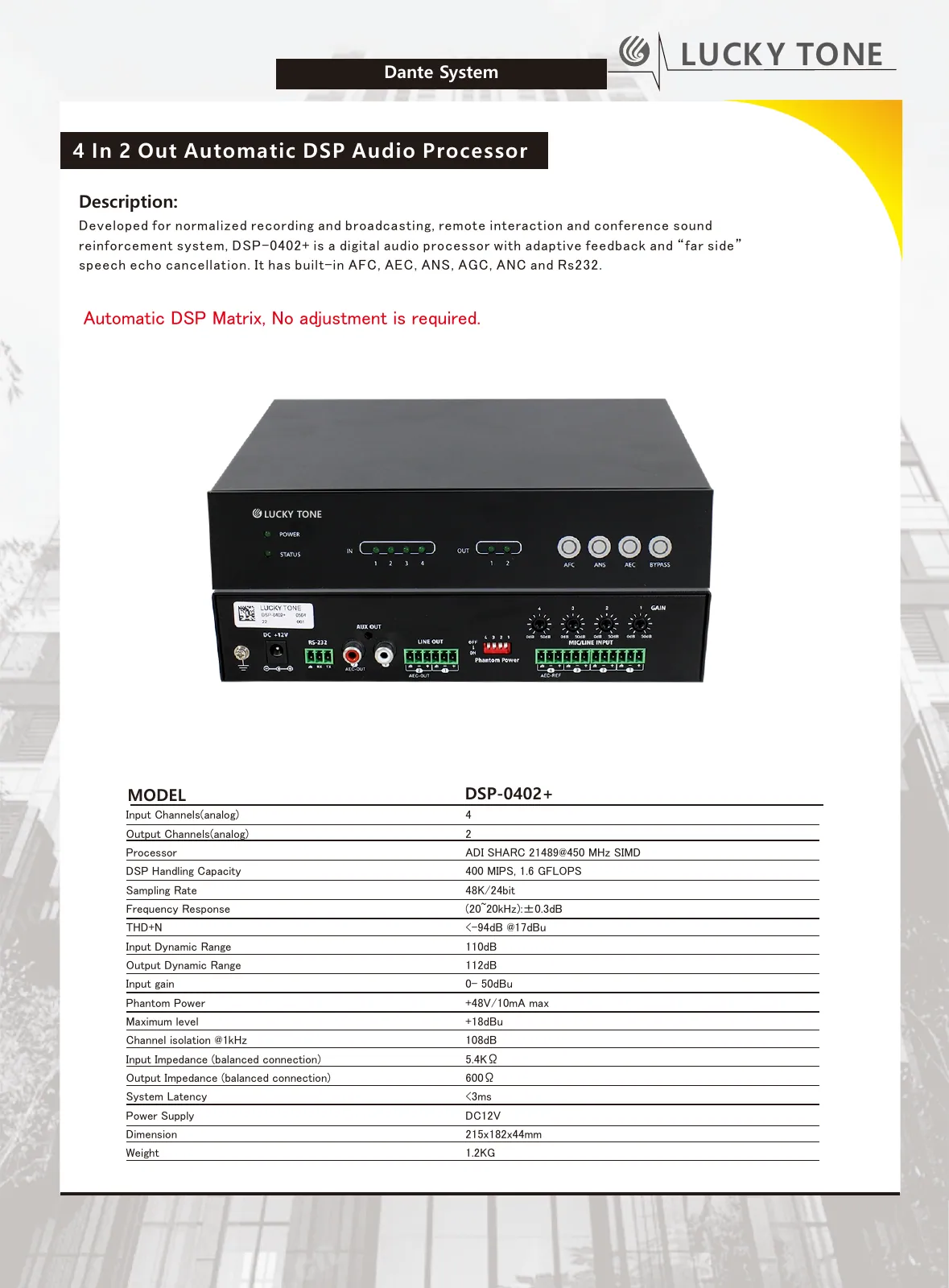

PDFSpecifications1.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications20

MODEL: DSP-0402+
Input Channels(analog): 4
Output Channels(analog): 2
Processor: ADI SHARC 21489@450 MHz SIMD
DSP Handling Capacity: 400 MIPS, 1.6 GFLOPS
Sampling Rate: 48K/24bit
Frequency Response: (20~20kHz):±0.3dB
THD+N: <-94dB @17dBu
Input Dynamic Range: 110dB
Output Dynamic Range: 112dB
Input gain: 0- 50dBu
Phantom Power: +48V/10mA max
Maximum level: +18dBu
Channel isolation @1kHz: 108dB
Input Impedance (balanced connection): 5.4KΩ
Output Impedance (balanced connection): 600Ω
System Latency: <3ms
Power Supply: DC12V
Dimension: 215x182x44mm
Weight: 1.2KG

02DescriptionManufacturer's description

What it is.

Description

reinforcement system, DSP-0402+ is a digital audio processor with adaptive feedback and “far side”speech echo cancellation. It has built-in AFC, AEC, ANS, AGC, ANC and Rs232.

Automatic DSP Matrix, No adjustment is required.
