Sheet 05.268
Lucky Tone · Dante

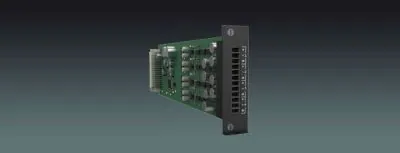

4 Channel Output module
ModelDSP-AO4 LD+
MODELDSP-AO4 LD+Dynamic range>118dBFrequency response (±0.2dB)20Hz~20kHzOutput impedance 102 ΩChannel Crosstalk <-112dBTHD+N <0.002%Maximum output level (@1% distortion) +22dBuInterfacefour 3-pin Euro breakaway terminals
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
4 Channel Output modulePrice on requestRequest a quotation
01DescriptionManufacturer's description
What it is.

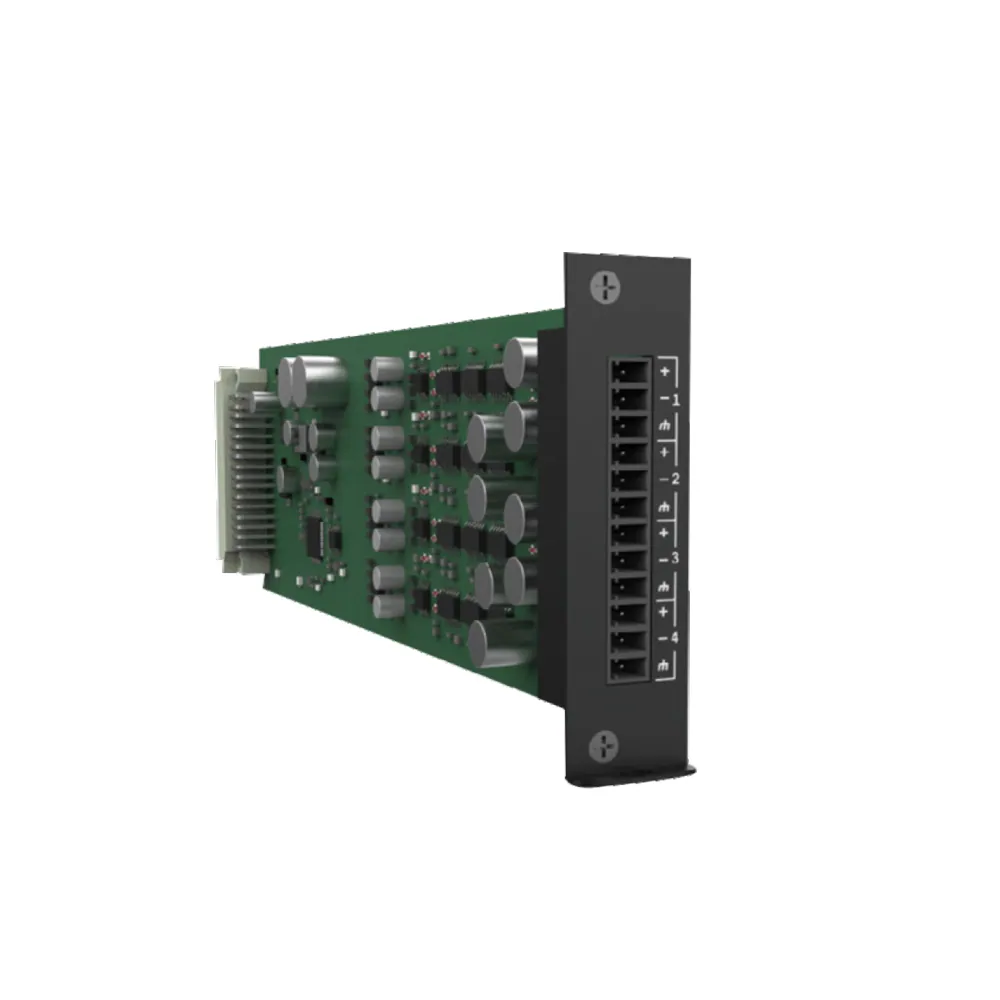

The analog output card provides 4-channel line output. DSP AO4 LD+ employs electronically balanced outputs and plug-in connectors. Control functions for each output include: gain level and mute control.
4 balanced line outputs
Easy for installation
Control and configure via software

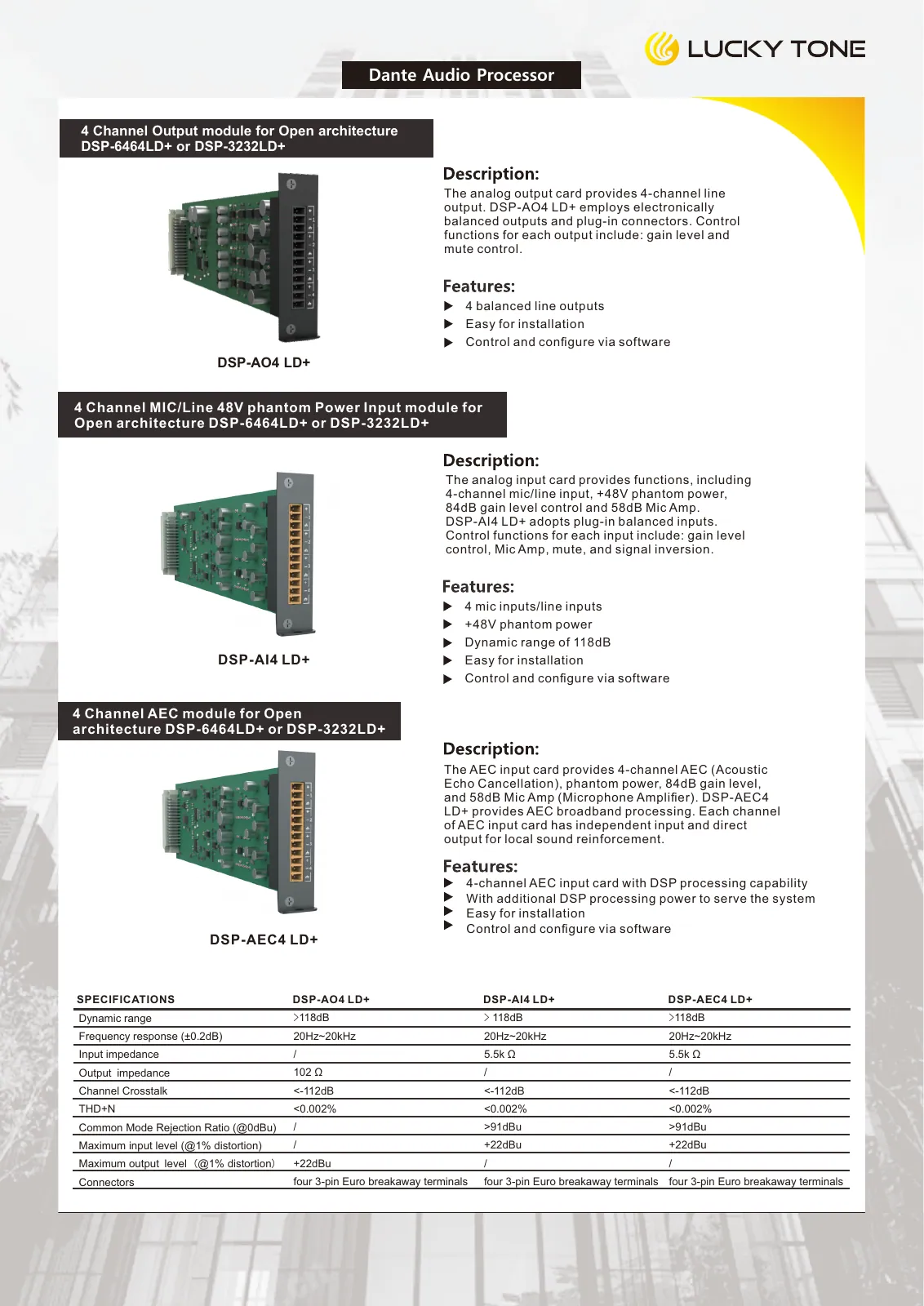

02Documents1 file · 1.5 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
