Sheet 05.264
Lucky Tone · Dante

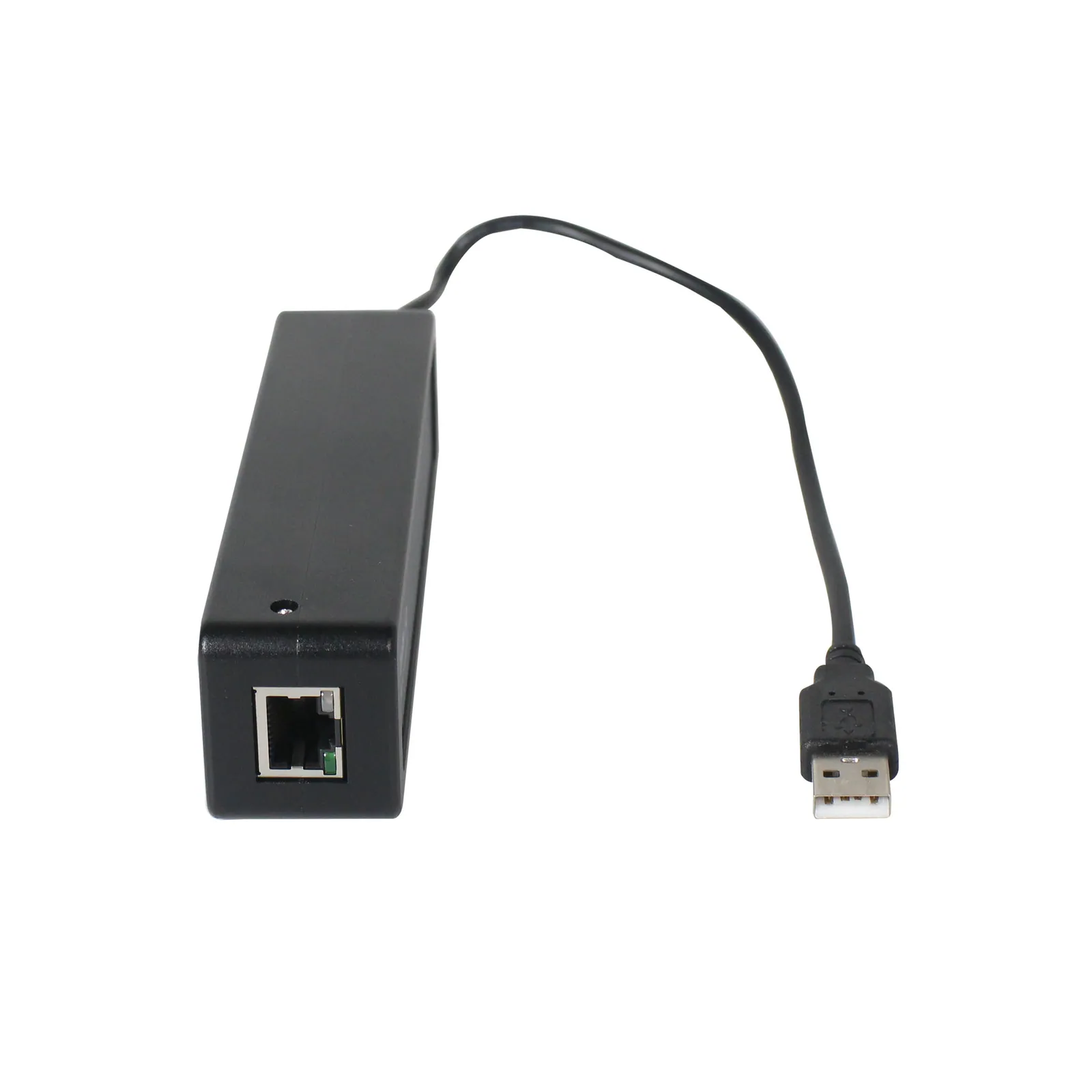

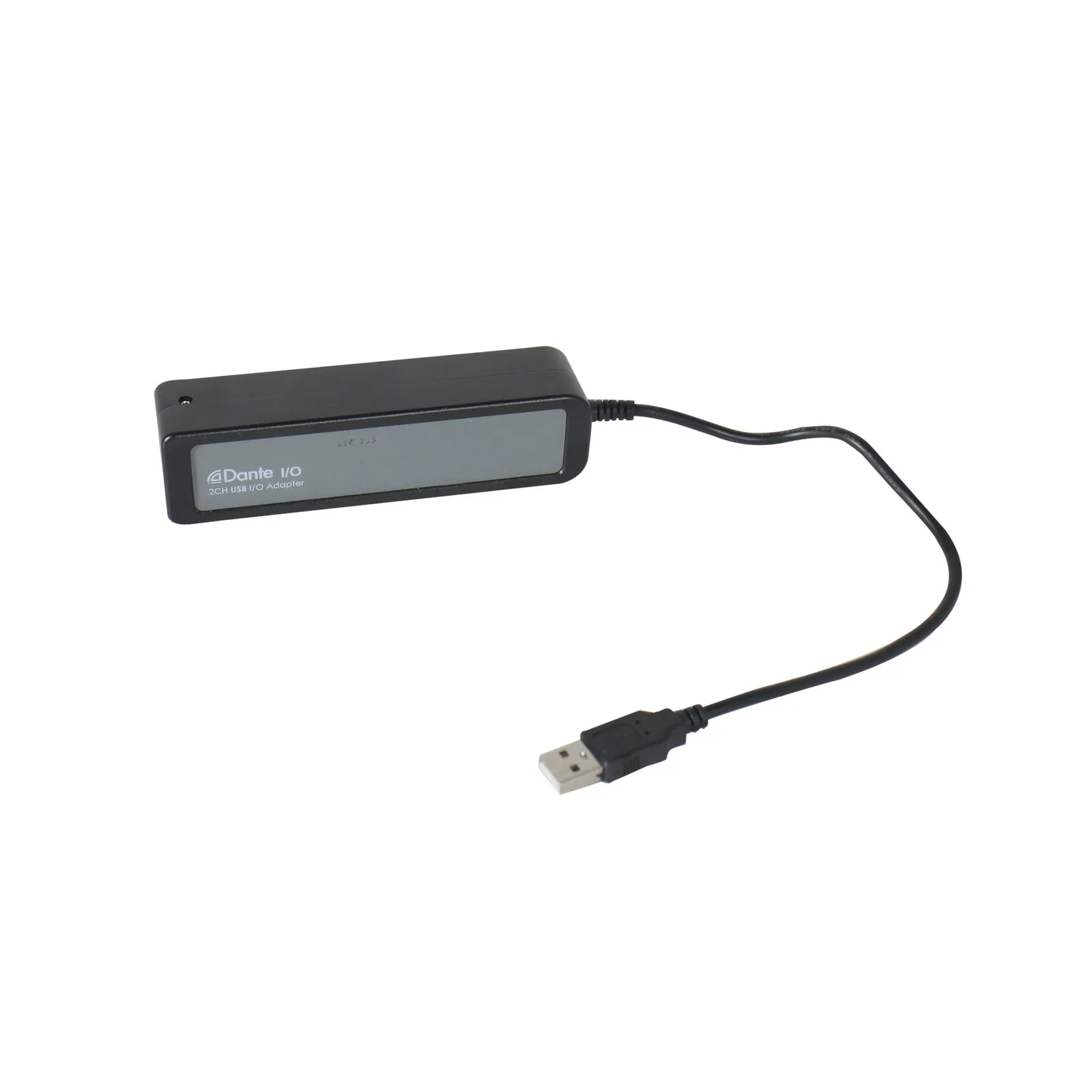

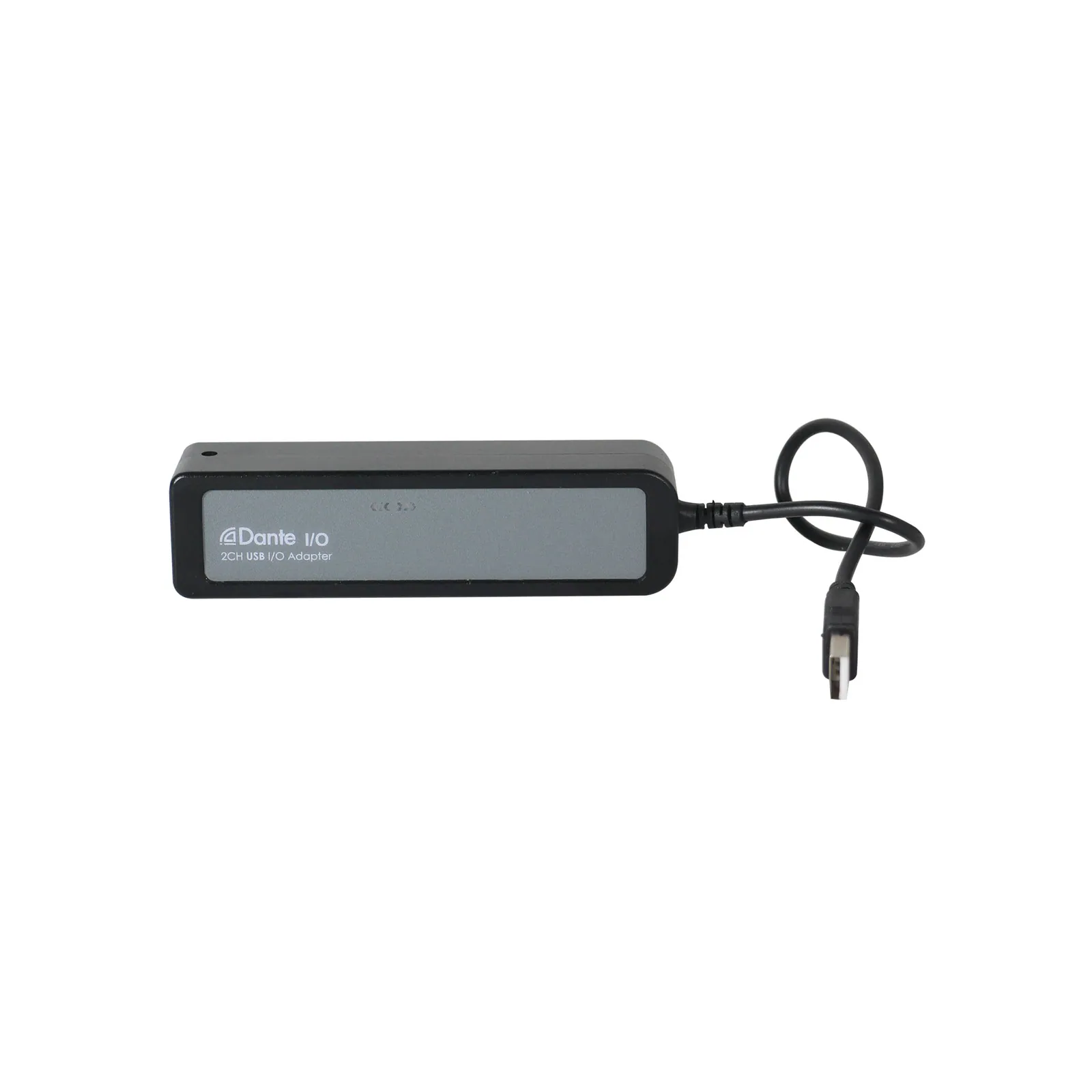

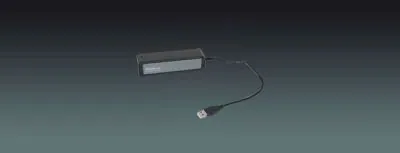

Lucky Tone 2-Channel Dante Converter DU22(USB to Dante)
ModelDU22(USB to Dante)
Convert 2 channels of analog line input signals to a Dante network
- Power supply
- DC 5V
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
2-Channel Dante ConverterPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 6 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications6
- MODEL
- DU22(USB to Dante)
- Connector
- RJ45 & USB Type A
- Sampling Rate
- 44.1kHz/ 48kHz/96kHz
- Data Bits
- 24bit
- Dante Device delay
- 1,2,or5ms
- Power Supply
- DC 5V
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
High Resolution 24 Bit Analog to Digital Conversion
AES67 compliant
Powered by Power over Ethernet switch or a PoE injector (802.3 af/at class1) or DC 5V via Micro USB connector
