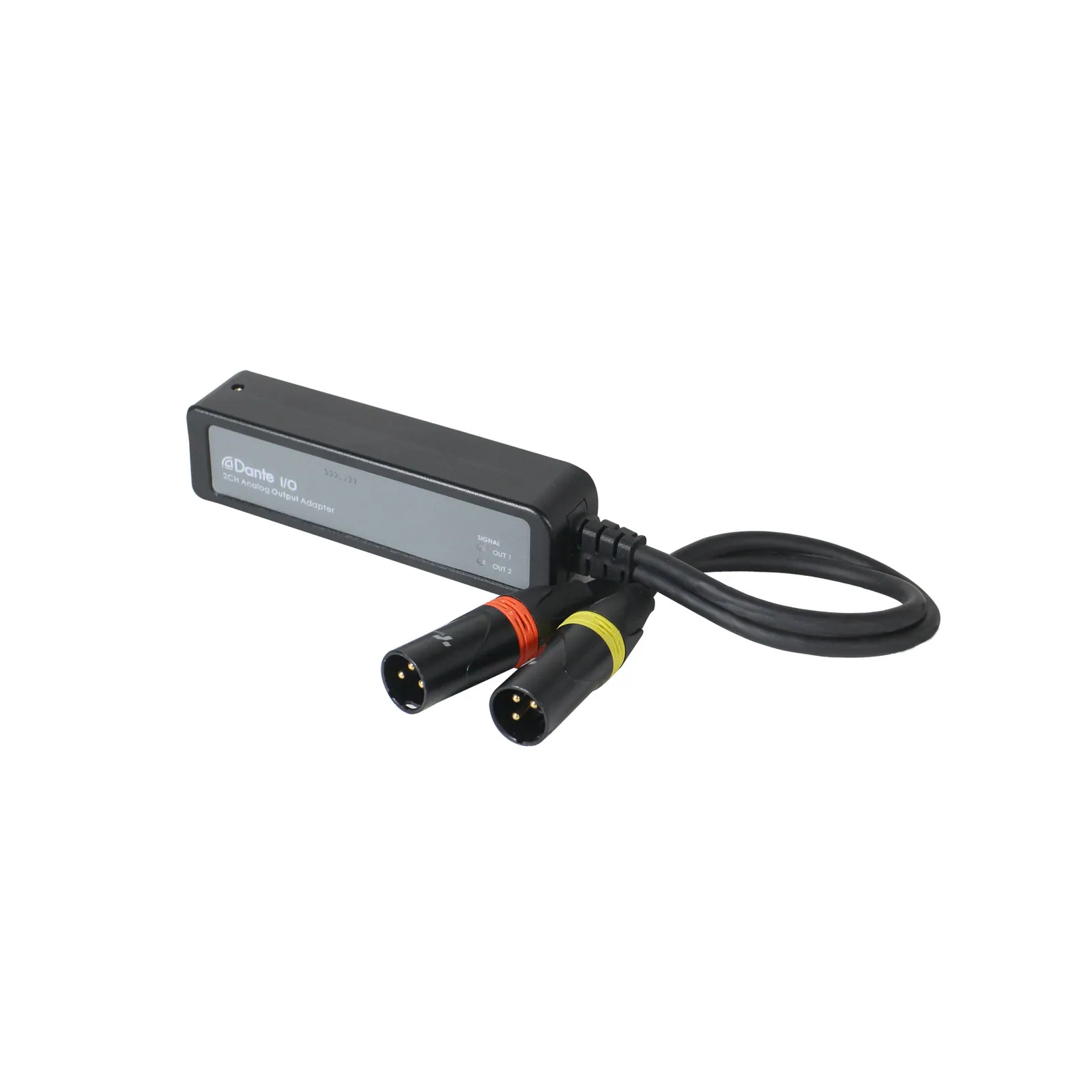

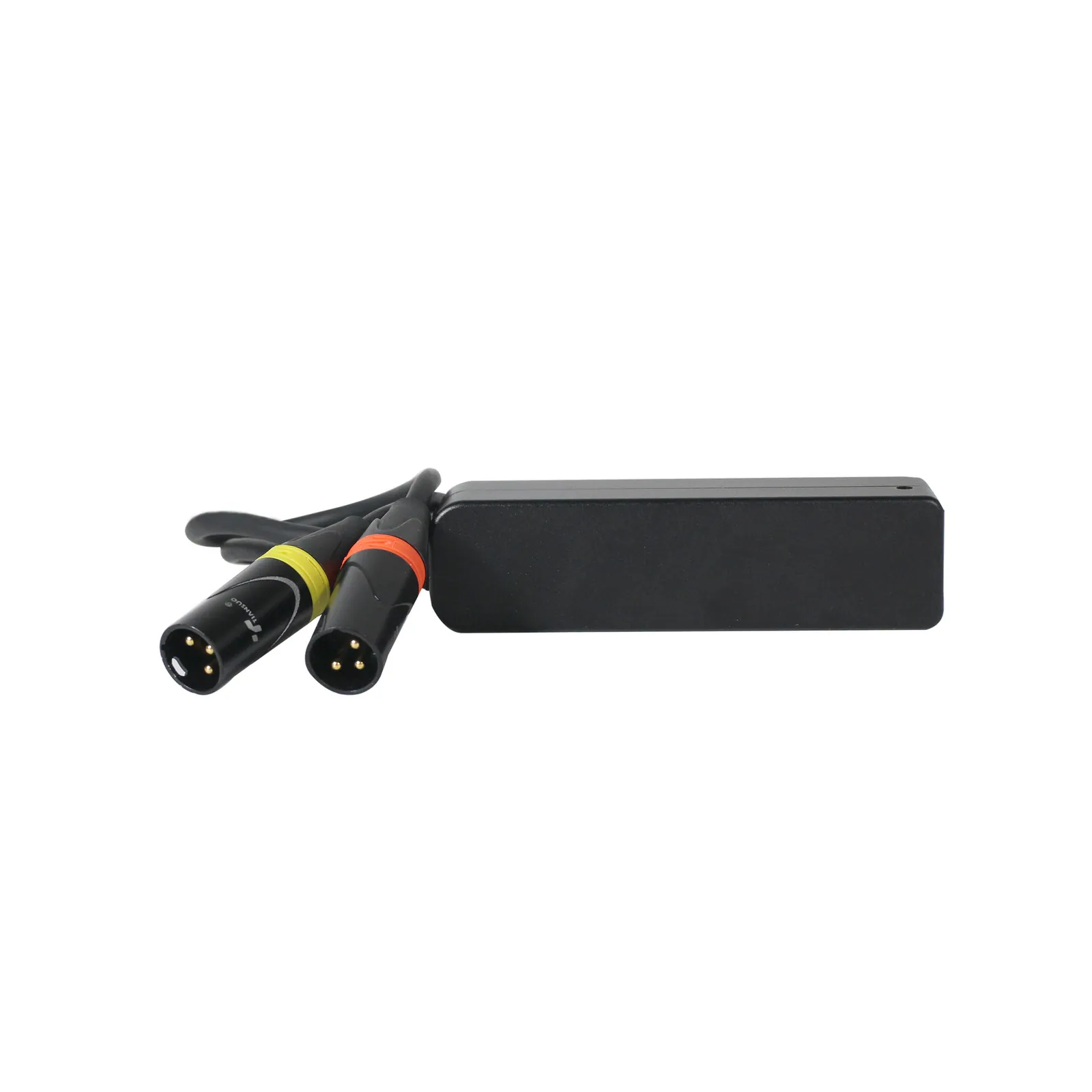

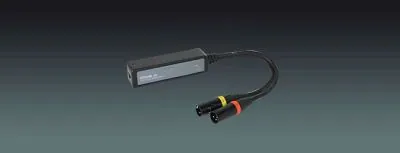

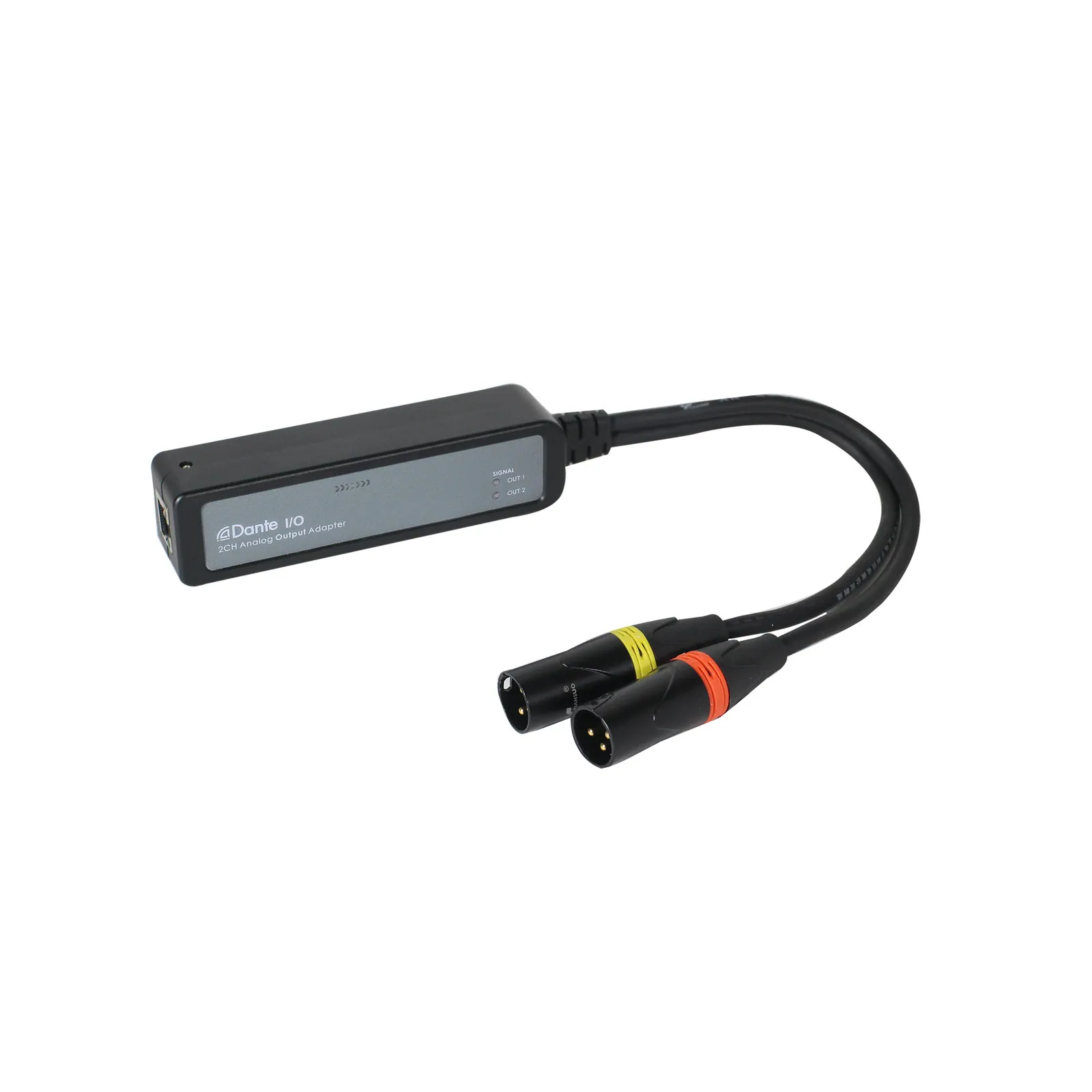

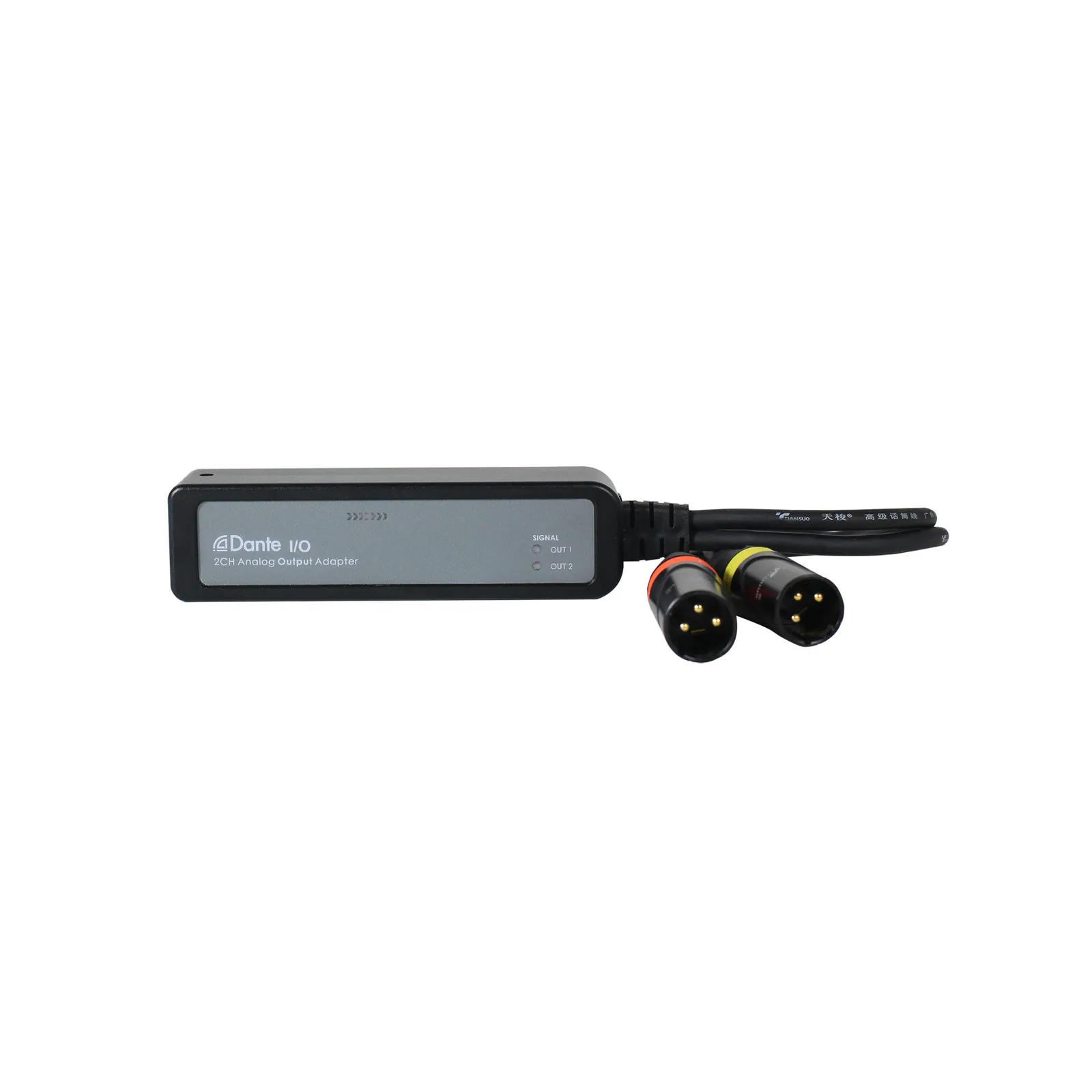

Lucky Tone 2-Channel Dante Converter DO22(Dante to Analog)

ModelDO22(Dante to Analog)

Convert 2 channels of analog line input signals to a Dante network

Frequency response: 20Hz to 20kHz(-/+0.1dB)
Power supply: Class 1 802.3af PoE

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 11 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications11

MODEL: DO22(Dante to Analog)
Maximum Output Level: 18dbu
Dynamic Range: 116dB
THD+N: 0.001% at 1kHz 4dBu
Signal-to-noise Ratio: 116dB
Frequency Response: 20Hz to 20kHz(-/+0.1dB)
Connector: RJ45 & 2XLR-M
Sampling Rate: 44.1kHz/48kHz/96kHz
Data Bits: 24bit
Dante Device delay: <1ms
Power Supply: Class 1 802.3af PoE

02DescriptionManufacturer's description

What it is.

High Resolution 24 Bit Analog to Digital Conversion

AES67 compliant
