Sheet 05.431
Lucky Tone · Conference systems
UHF Tour Guide System
ModelGD-100TU Transmitter / GD-101RU Receiver
This wireless tour guide system applies the stable and reliable wireless technology to analyze the difference available frequencies and picks the most suitable one with least disturbance for transition of audio signal.
- Frequency response
- GD-100TU Transmitter: UHF 740~820MHz; MODEL: Frequency Range; GD-101RU Receiver: UHF 740 ~820MHz
- Power supply
- GD-100TU Transmitter: NiMH AA 1.2V*2; MODEL: THD; GD-101RU Receiver: <0.5%
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
UHF Tour Guide SystemPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| MODEL | GD-100TU Transmitter | MODEL | GD-101RU Receiver |
|---|---|---|---|
| Frequency Range | UHF 740~820MHz | Frequency Range | UHF 740 ~820MHz |
| Channels | 80 | Channels | 80 |
| Adjustable ID | 80 | Adjustable ID | 80 |
| Stabalized Type | PLL | Stabalized Type | PLL |
| Working Type | F3E | Frequency Deviation | ±75K |
| Frequency Deviation | ± 75 | S/N Ratio | 60dB A weighted |
| Transmitting Rated Power | ≤10mV | Receiving Sensitivity | -100dBμ |
| Subharmonic | Main Wave <45 dB | Frequency Response | 100~15KHz |
| Capsule Type | Condenser | Display | OLED |
| Directivity | Ultra Cardioid | Operation Range | 30~80M |
| Input Pressure | ≤130dB | Power Supply | Li-Po 3.7V 800mA |
| Frequency Response | 100~15KHz | Battery Operation Time | 10 Hours |
| Display | OLED 17*5 | Antenna | Microstrip |
| Operation Range | 30~80M | Headphone output | 5mV |
| Power Supply | NiMH AA 1.2V*2 | THD | <0.5% |
| Battery Operation Time | 10~15 Hours | Size & Weight | 72*43*21mm, 40g (without Battery) |
| Antenna | Whip Microstrip | Temperature Range | -10~60°C |
| Headphone output | 5mV | ||
| THD | <0.5% | ||
| Size & Weight | 85*65*40mm, 155g (without Battery) | ||
| Temperature Range | -10~50°C |
02DescriptionManufacturer's description
What it is.
This wireless tour guide system applies the stable and reliable wireless technology to analyze the difference available frequencies and picks the most suitable one with least disturbance for transition of audio signal. It digitizes the audio signal to process and modulation before transmit. Receiver will scan the signal via identification verifying, read the transmitter frequency, process and signal and convert to the analog original sound. It is a economic yet power full system suitable for various of applications.
Features
- ● Stylish design and small in size
- ● Digital, DSP technology and with radio function
- ● Totally 80 sets can be used in the same place
- ● RFID software, radio frequency identification to prevent interference
- ● Unlimited receivers using at the same place

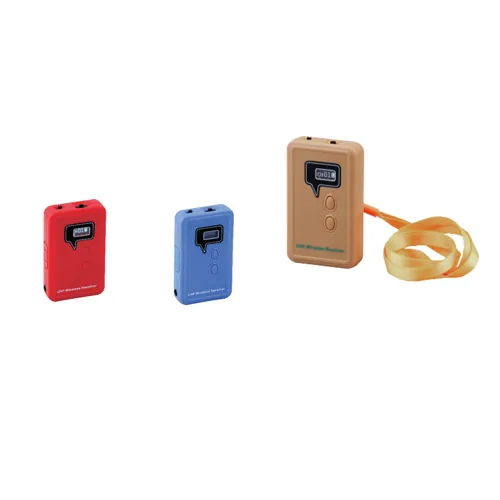

- ● Standard Yellow, optional in Red and Blue color
