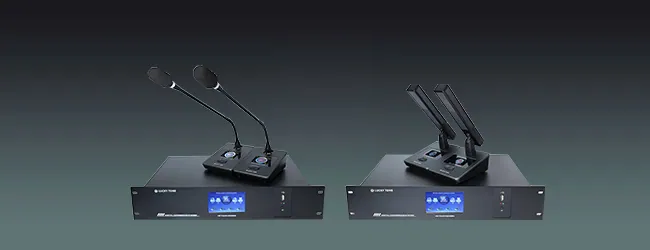

UC-880 Wireless Conference System with Voting & Video Tracing Function

ModelUC-880/UC-890

The UC-880 system is a wireless digital conferencing system designed to provide seamless communication and control during meetings.

Frequency response: 45HZ—18KHZ (±1dB)
Weight: 3.6Kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 2 groups · 24 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01System Control14

Carrier Frequency Band: UHF600—690MHz
Modulation: FM
Effective Working Distance: 60 meter
Oscillation Mode: PLL phase locked frequency synthesis
Sensitivity: When the deviation is equal to 25KHz and the input is 6dBv, S/N>60dB
Bandwidth: 30MHz
Maximum Deviation: +-45KHz
SNR: >105dB
T.H.D: <0.7% @1KHz
Frequency Response: 45HZ—18KHZ (±1dB)
Powered by: AC110V–220V
Net Weight: 3.6Kg
Product Size: 485X265X95MM
Output Socket: XLR parallel and 6.3 non-parallel sockets

02Microphone Unit10

Carrier Frequency Band: UHF600—690MHz
Oscillation Mode: PLL phase locked frequency synthesis
Harmonic Radiation: <-65dBm
Bandwidth: 30MHz
Maximum Deviation: +-45KHz
Sound Head: Condenser, unidirectional
RF Power Output: 15MW
Battery: 3.7V lithium battery/1.5V battery
Current Consumption: <150mA
Continuous Working Time: About 10 hours

02DescriptionManufacturer's description

What it is.

Description

The UC-880 system is a wireless digital conferencing system designed to provide seamless communication and control during meetings. It supports up to 200 units (1 chairman and 199 delegate units) and multiple systems can operate simultaneously by using different frequency channels. This system is ideal for environments where efficient communication and ease of control are crucial, such as corporate boardrooms, government meetings, and large conferences.

Features

This system does not require any additional equipment, and video tracking can be set directly through the host menu.

The system host and unit LCD display are more intuitive and user-friendly.

Support PELCO P/D and SONY EVI-D70 camera protocols, and the system can connect multiple cameras.

Each system can control up to 1 chairman and 199 units for simultaneous use. In the same environment, multiple wireless conference systems can be used simultaneously using different frequency channels. Each system can use up to 1 chairman and 3 representatives.

The host supports manual addressing.

System speaking mode: first-in-first-out, last-in-first-out, restricted mode, chairman mode.

The chairman has priority function control, which can be used to control the right to speak and control the atmosphere of the meeting.

The unit has a built-in large-capacity lithium polymer battery, which can be used continuously for up to 8 hours and can be used for 15 hours in standby.

03Documents1 file · 1.6 MB
