Sheet 05.536
Lucky Tone · Other equipment

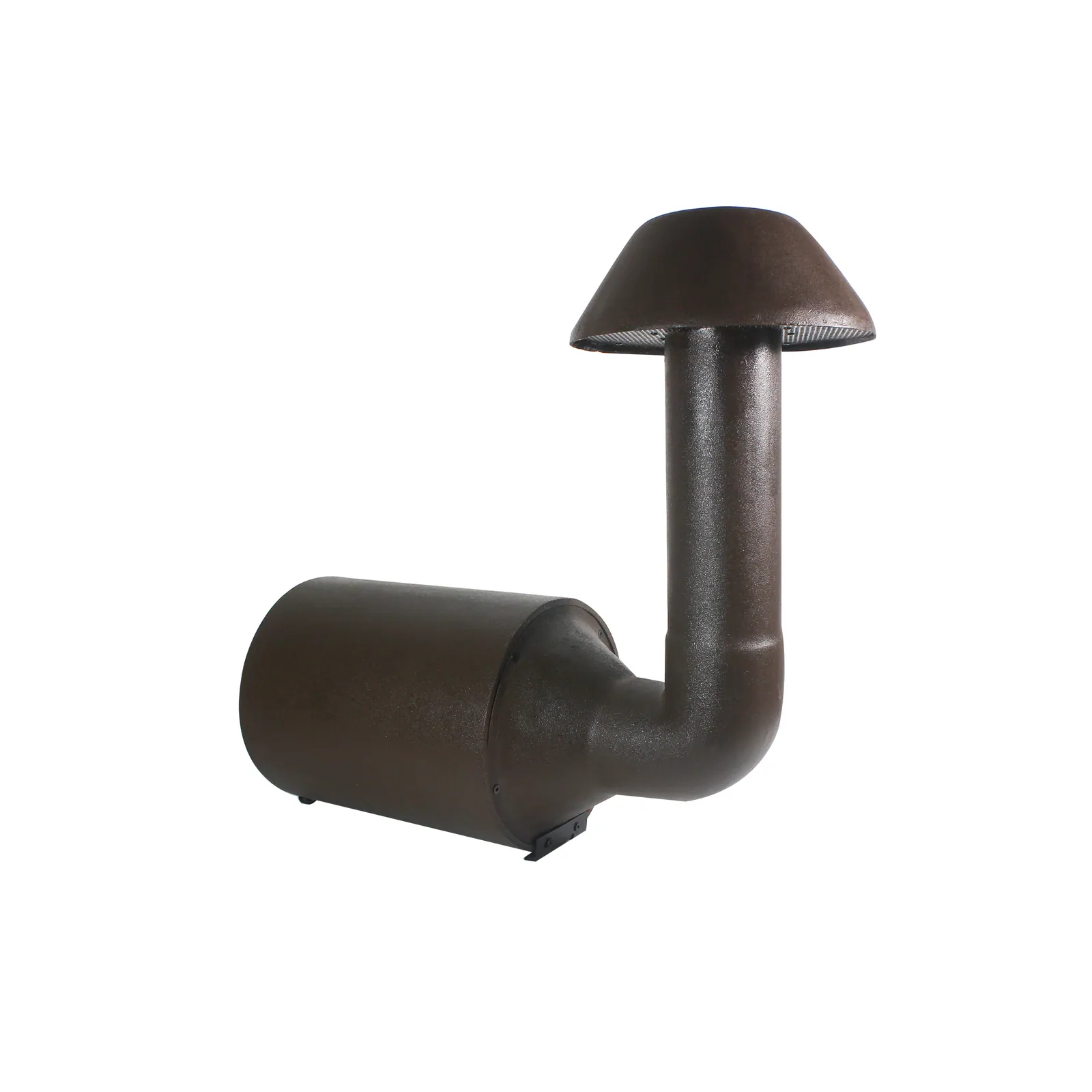

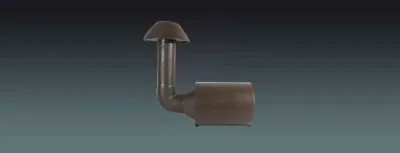

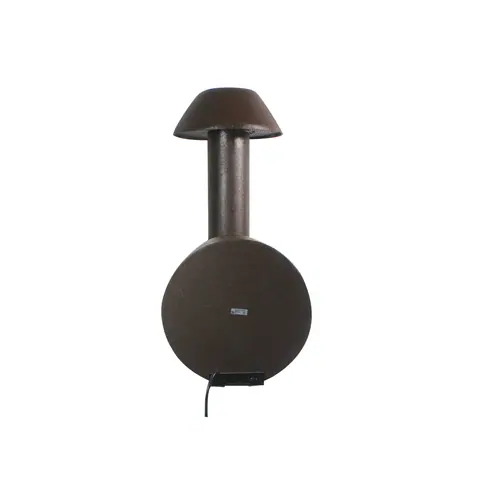

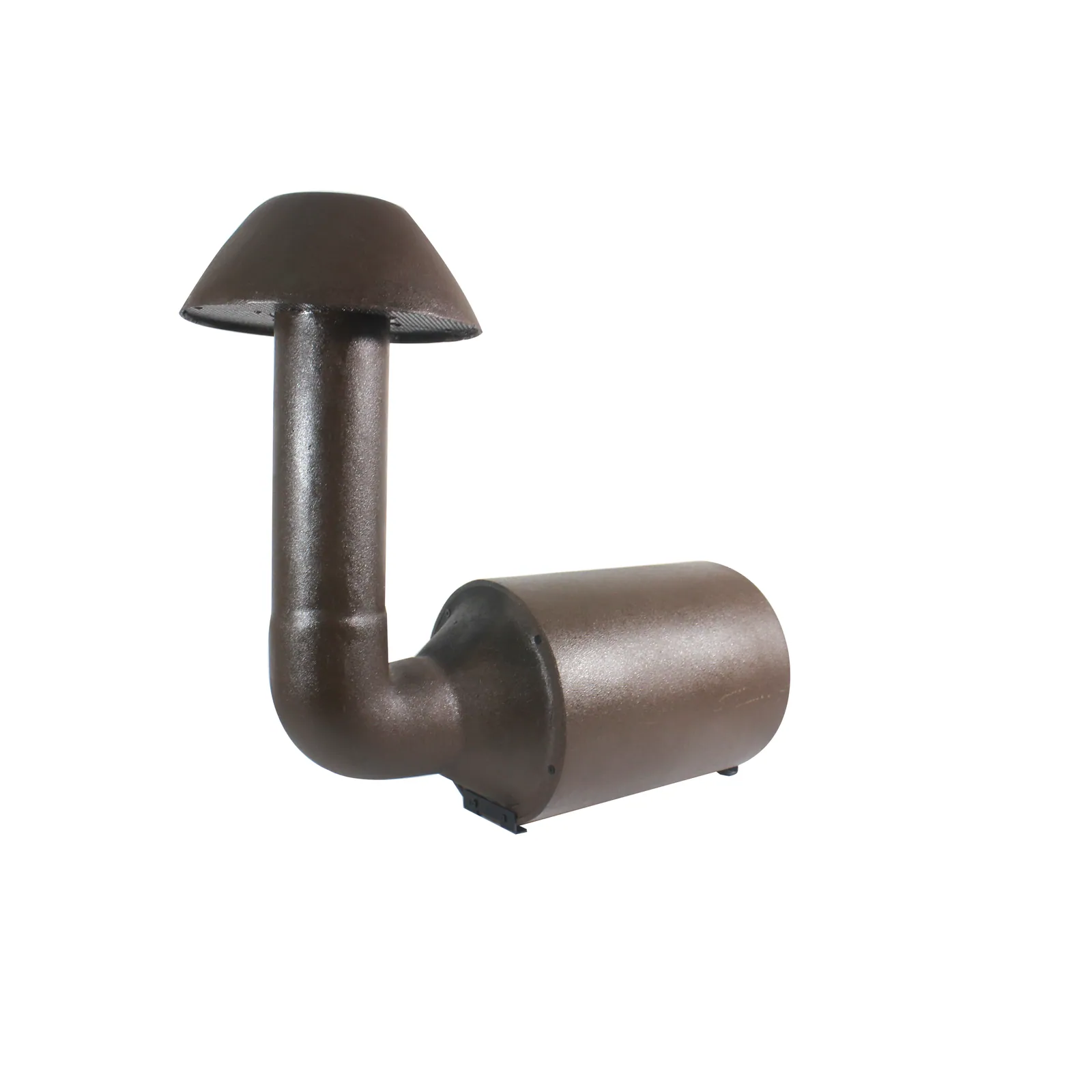

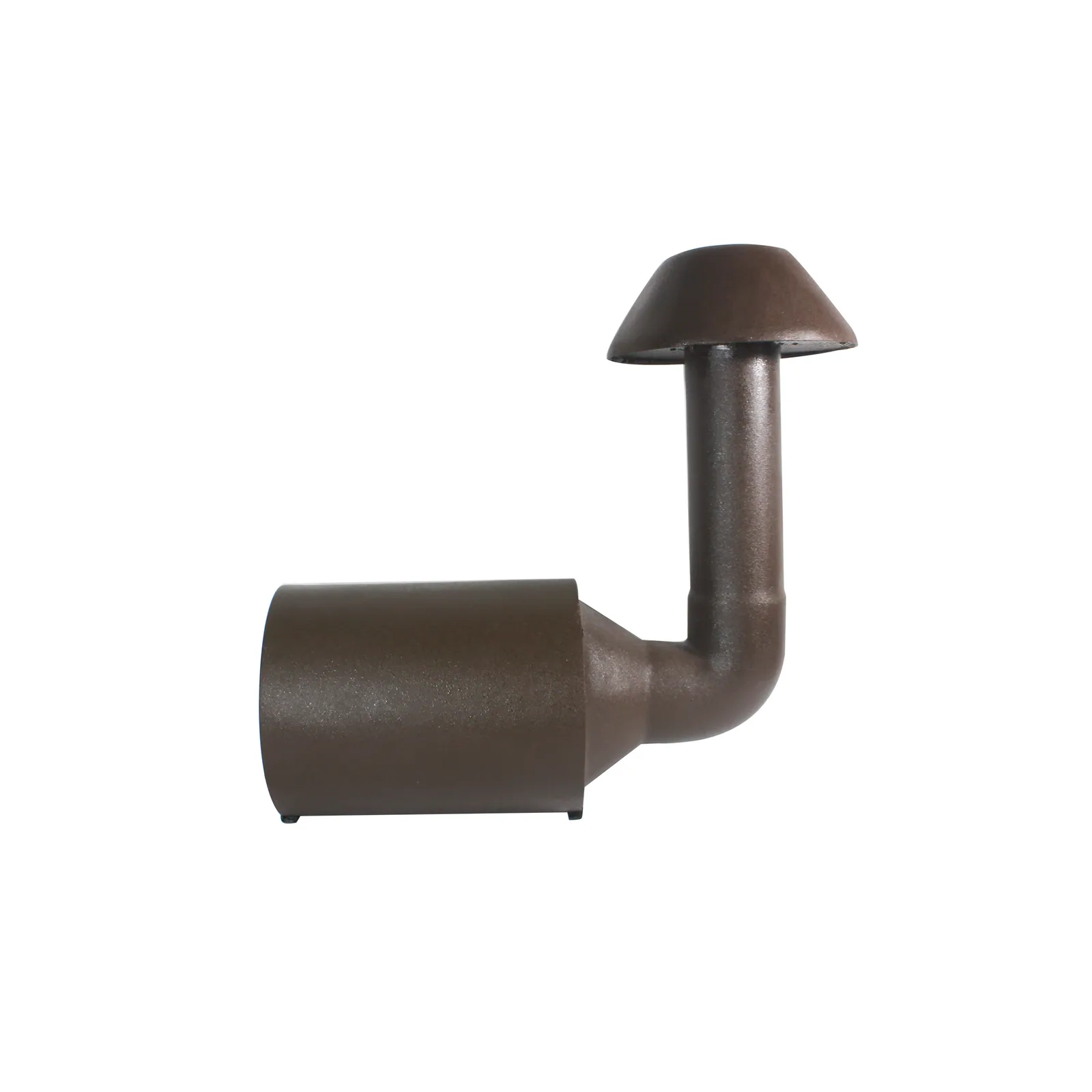

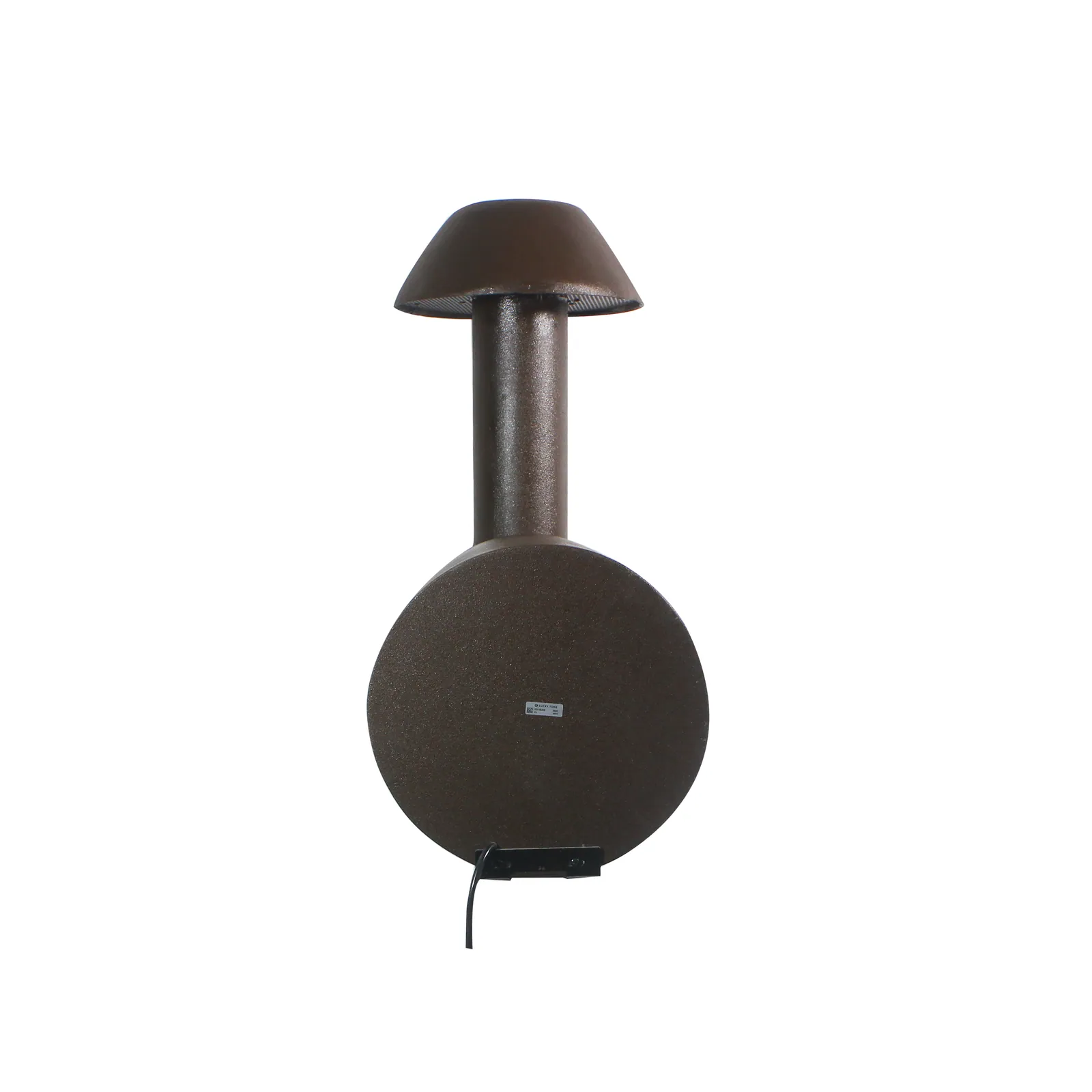

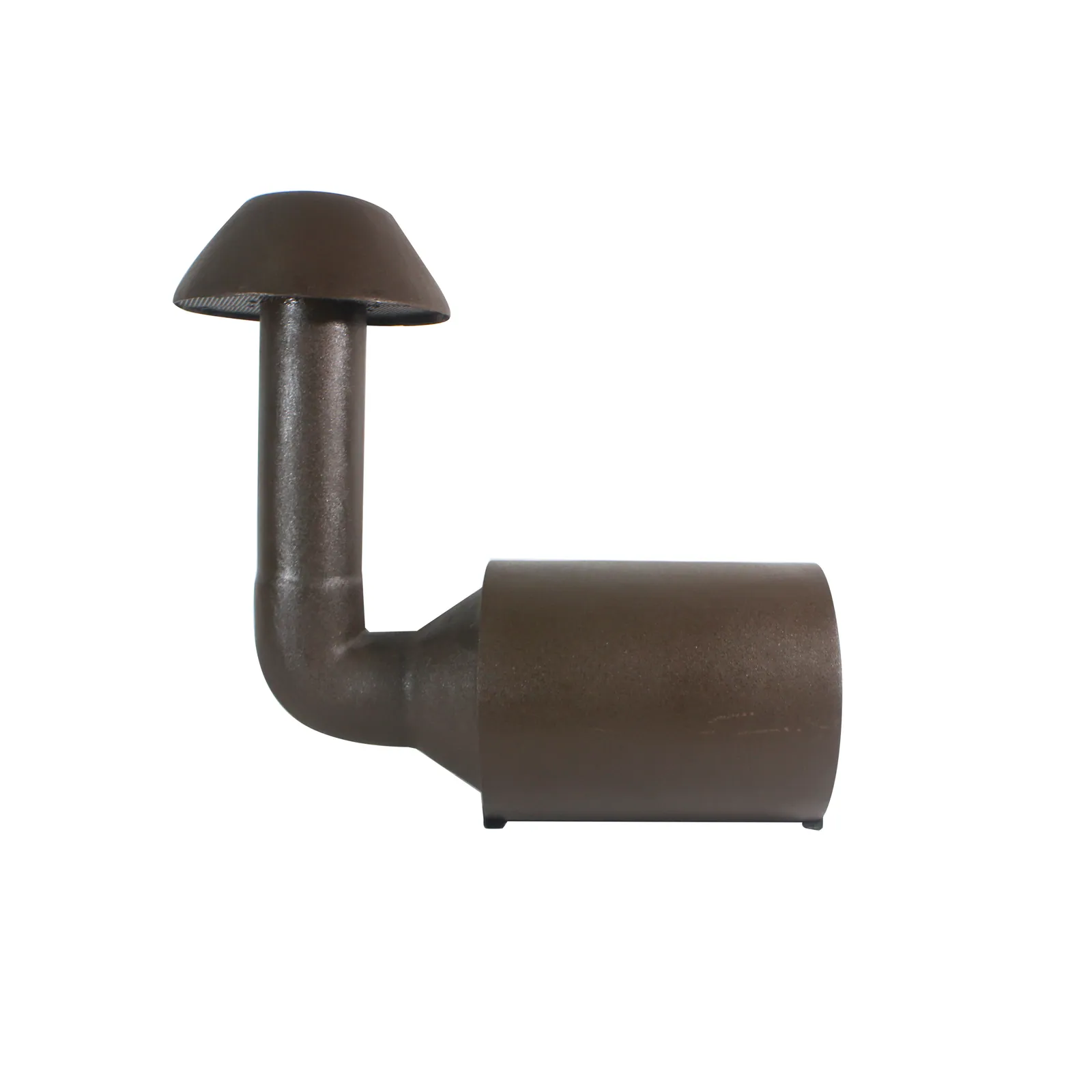

Waterproof 10″ In-Ground Subwoofer
ModelGD-10SUBV
The 10″ Ultra-Long Throw in Ground Subwoofer 250W with IP66 Protection is engineered to deliver powerful, deep bass for your outdoor audio setup. With its 250W RMS power handling, this subwoofer ensures a thrilling low-frequency experience.
- Frequency response
- 25Hz – 250Hz
- Dimensions
- 410xφ325xH780mm
- Weight
- 20kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Waterproof 10″ In-Ground SubwooferPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- Model
- GD-10SUBV
- Power at 100V
- 250W/125W/62W
- Power at 70V
- 125W/62W/31W
- Subwoofer Type
- In-ground
- Frequency Response
- 25Hz – 250Hz
- Sensitivity
- 88dB
- Impedance
- 8 ohm
- Rated Protection
- IP66 (dust-tight and water-resistant)
- Enclosure Type
- Sealed
- Construction Material
- Weather-resistant and durable materials
- Speaker Size
- 10 Inch
- Dimensions
- 410xφ325xH780mm
- Net Weight
- 20kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
The 10″ Ultra-Long Throw in Ground Subwoofer 250W with IP66 Protection is engineered to deliver powerful, deep bass for your outdoor audio setup. With its 250W RMS power handling, this subwoofer ensures a thrilling low-frequency experience. It features an IP66 rating, making it resistant to dust and water, allowing for reliable performance in various weather conditions.
The subwoofer’s ultra-long throw design guarantees exceptional bass response, providing a truly immersive audio experience. Its robust construction ensures durability, while the weather-resistant finish protects it from outdoor elements. With a frequency response of 25Hz to 200Hz and a sensitivity of 90dB, this subwoofer delivers outstanding sound quality.
Installation is a breeze with its easy in-ground setup. Upgrade your outdoor sound system with the 10″ Ultra-Long Throw in Ground Subwoofer 250W, and enjoy superior bass performance and long-lasting reliability.
