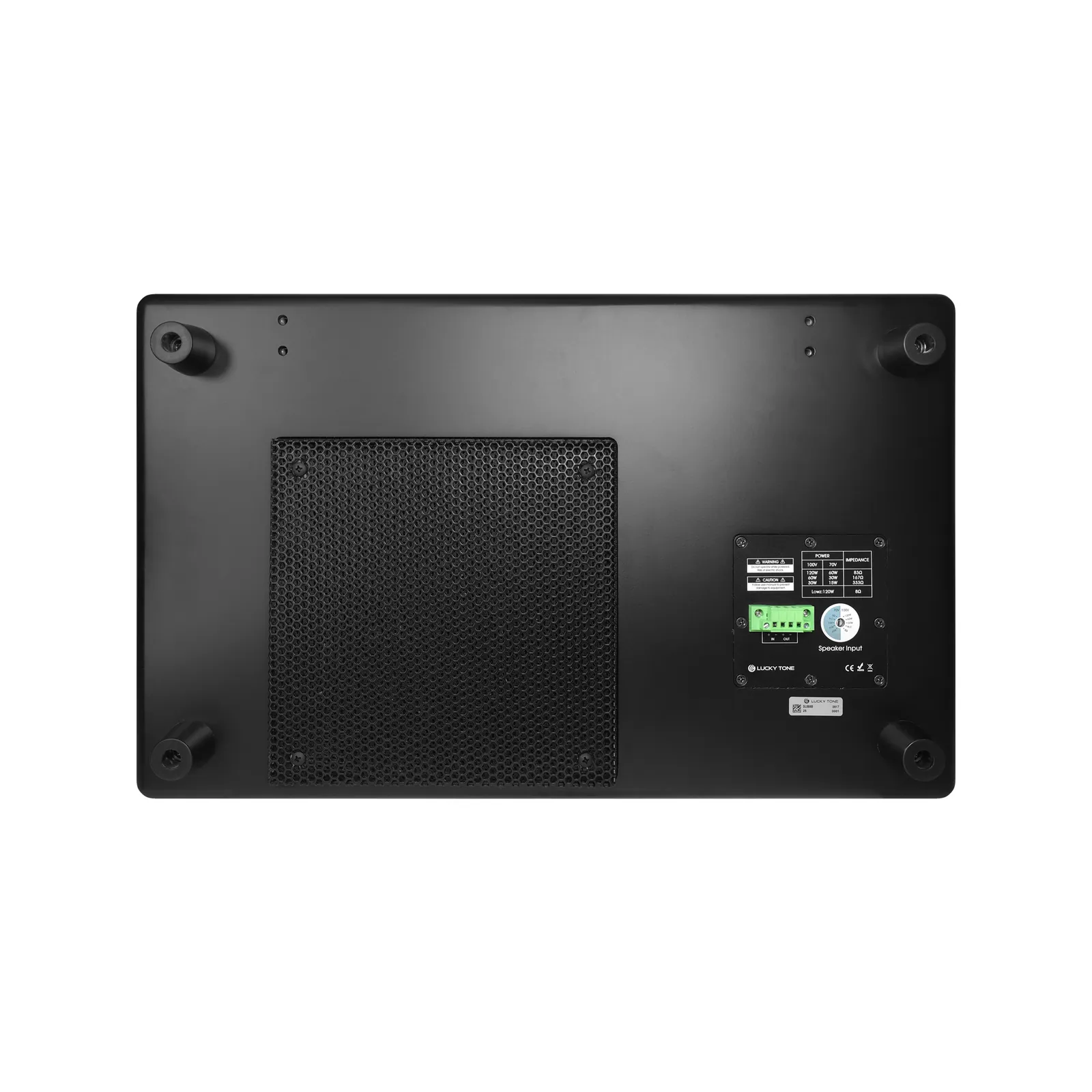

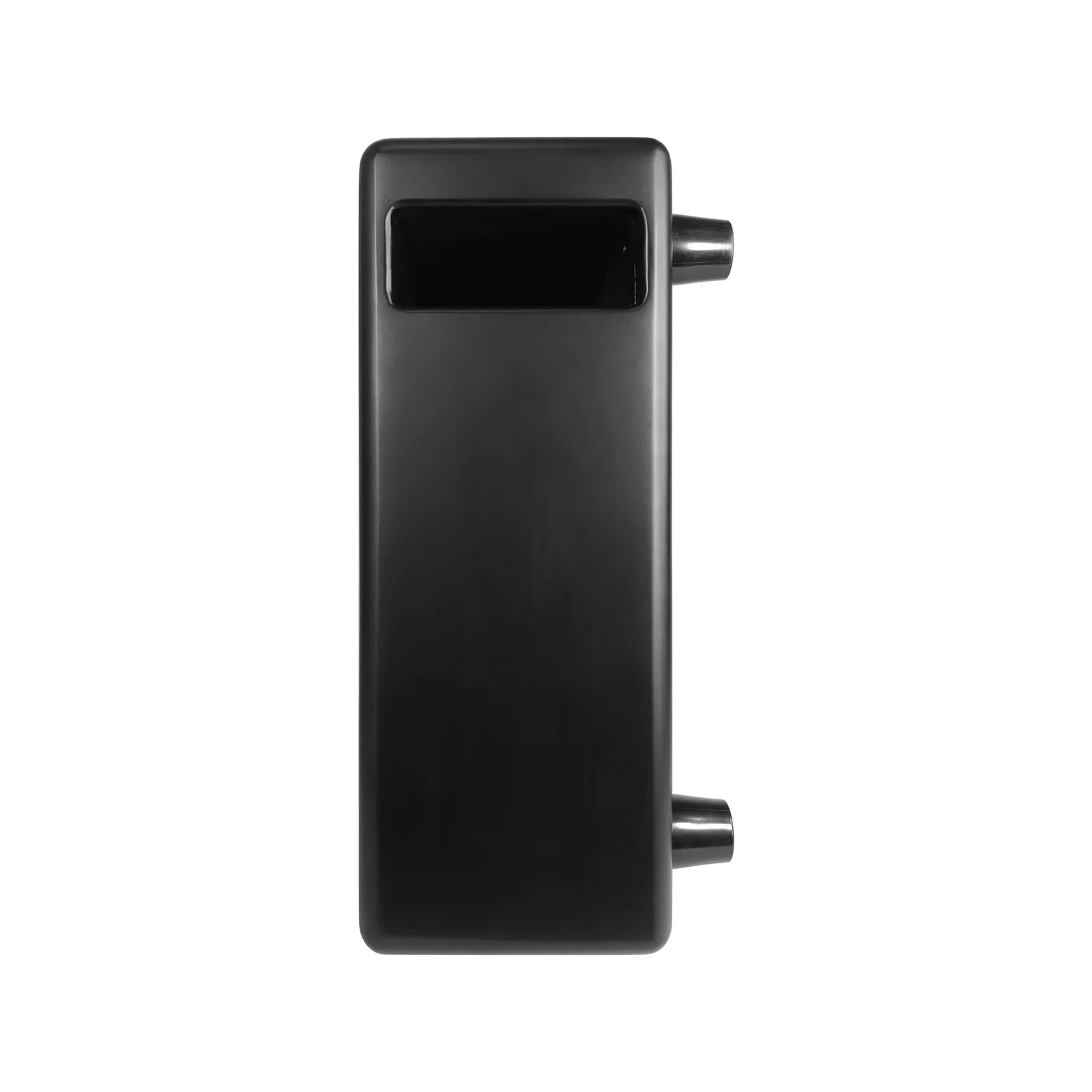

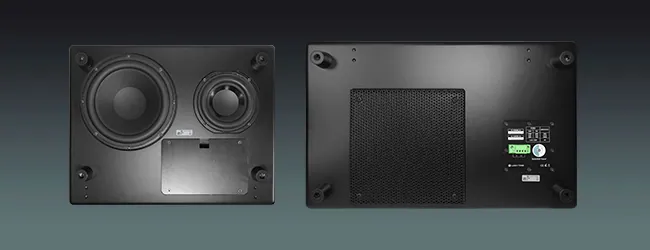

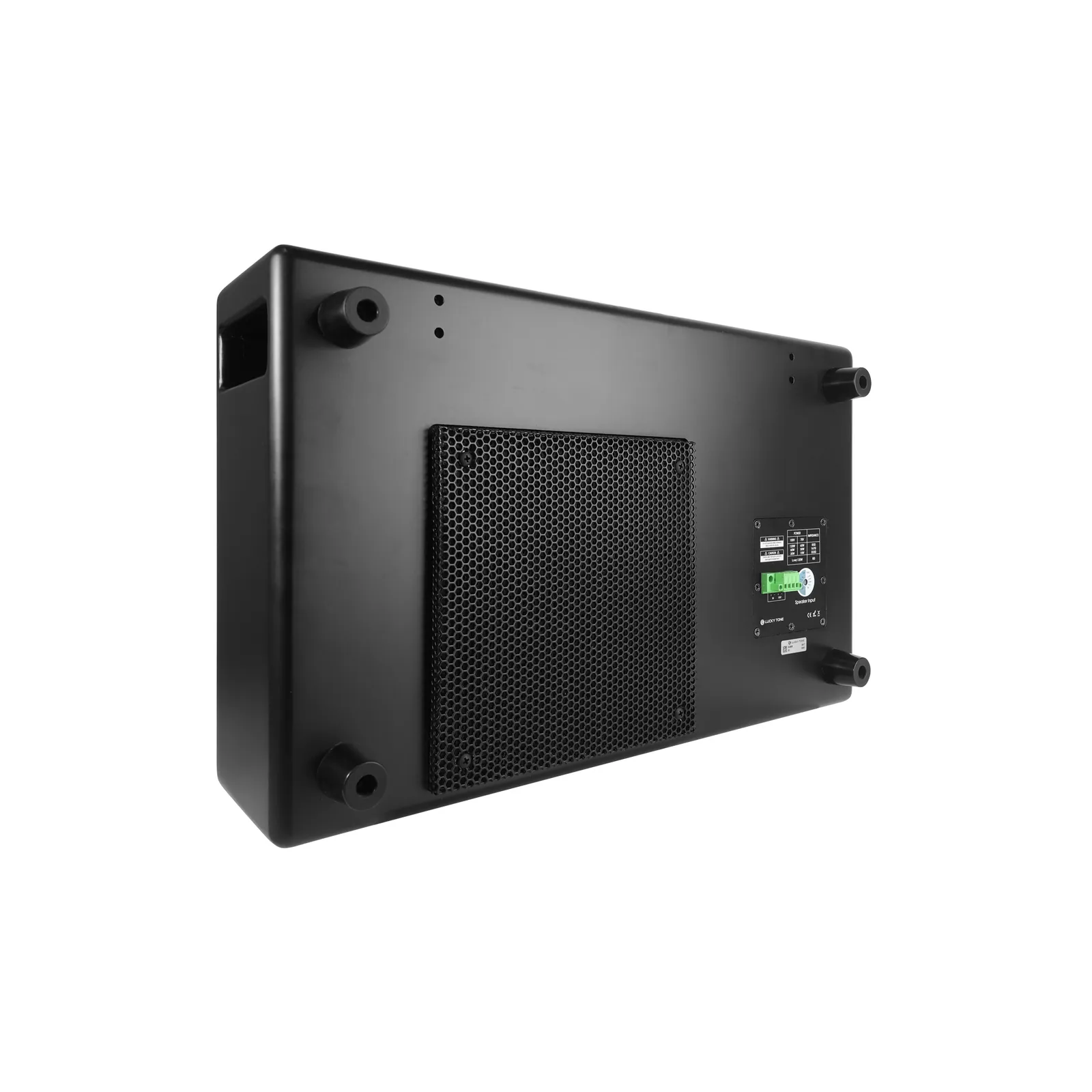

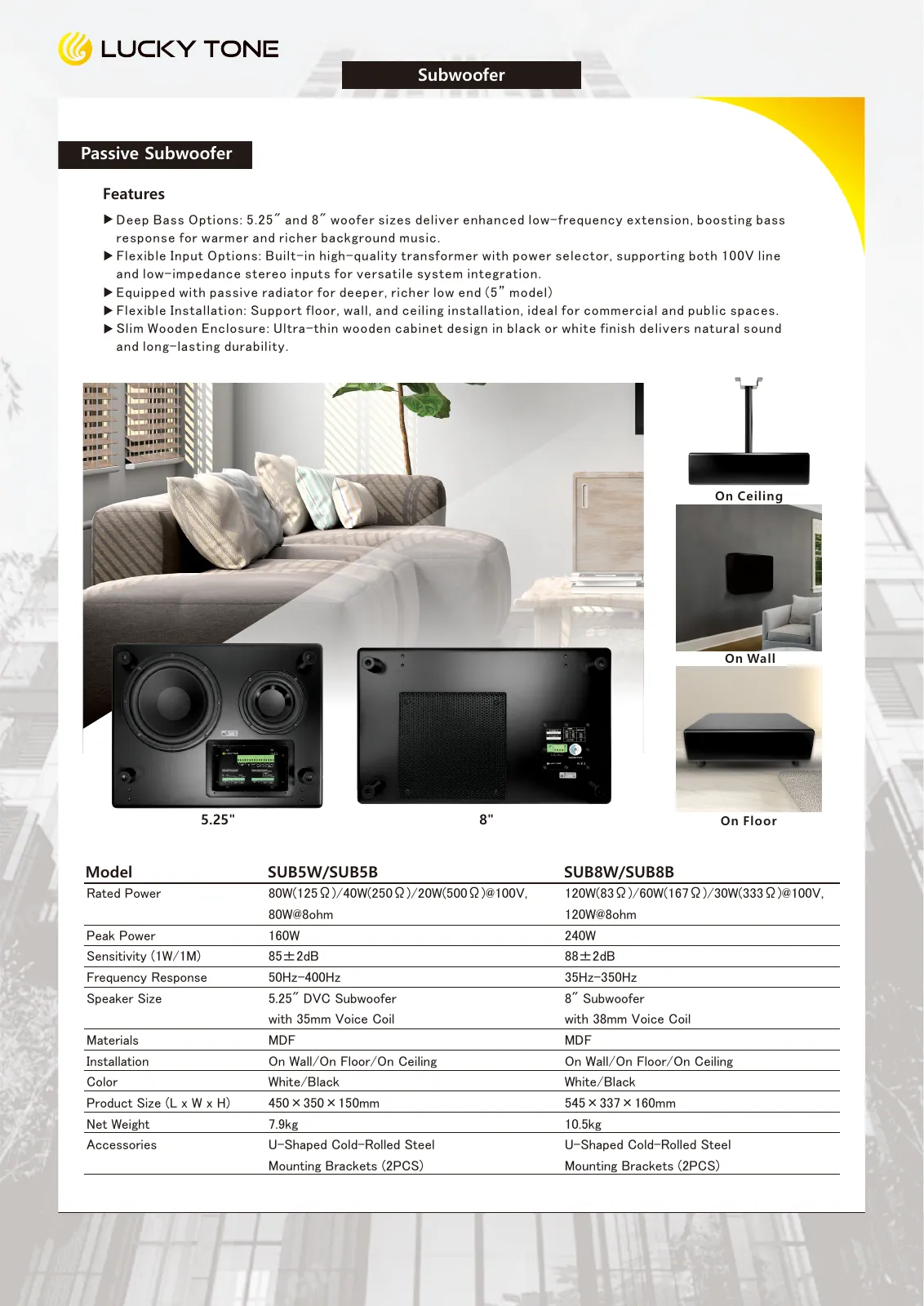

Passive Subwoofer

ModelSUB5W/SUB5B / SUB8W/SUB8B

Deep Bass Options: 5.25″ and 8″ woofer sizes deliver enhanced low-frequency extension, boosting bass

Output power: SUB5W/SUB5B: 80W(125Ω)/40W(250Ω)/20W(500Ω)@100V, 80W@8ohm; SUB8W/SUB8B: 120W(83Ω)/60W(167Ω)/30W(333Ω)@100V, 120W@8ohm
Frequency response: SUB5W/SUB5B: 50Hz-400Hz; SUB8W/SUB8B: 35Hz-350Hz
Weight: SUB5W/SUB5B: 7.9kg; SUB8W/SUB8B: 10.5kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models2 models in the family

Models compared.

Model	SUB5W/SUB5B	SUB8W/SUB8B
Rated Power	80W(125Ω)/40W(250Ω)/20W(500Ω)@100V, 80W@8ohm	120W(83Ω)/60W(167Ω)/30W(333Ω)@100V, 120W@8ohm
Peak Power	160W	240W
Sensitivity (1W/1M)	85±2dB	88±2dB
Frequency Response	50Hz-400Hz	35Hz-350Hz
Speaker Size	5.25″ DVC Subwoofer with 35mm Voice Coil	8″ Subwoofer with 38mm Voice Coil
Materials	MDF	MDF
Installation	On Wall/On Floor/On Ceiling	On Wall/On Floor/On Ceiling
Color	White/Black	White/Black
Product Size(L x W x H)	450×350×150mm	545×337×160mm
Net Weight	7.9kg	10.5kg

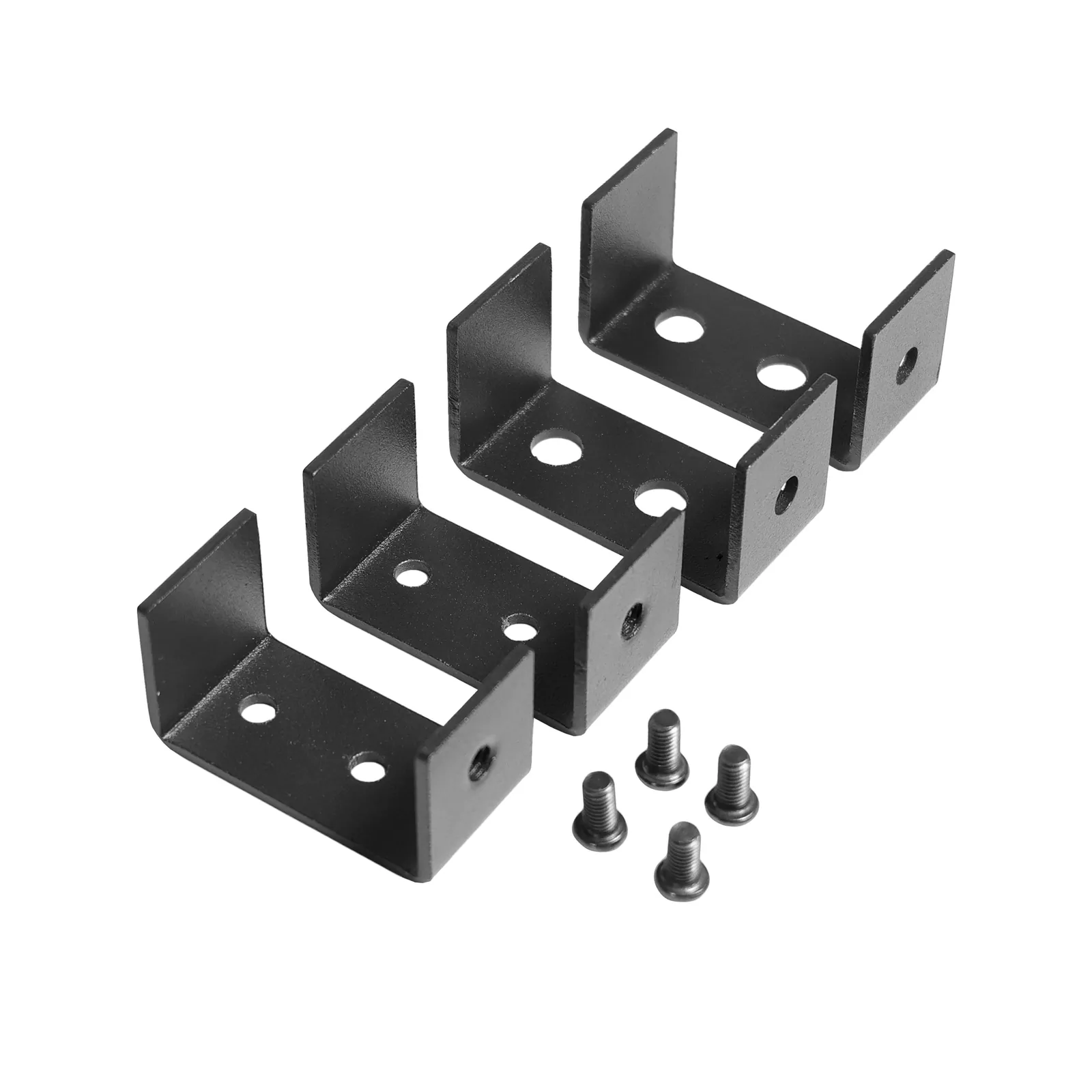

Accessories	U-Shaped Cold-Rolled Steel Mounting Brackets (2PCS)	U-Shaped Cold-Rolled Steel Mounting Brackets (2PCS)

02DescriptionManufacturer's description

What it is.

Features

response for warmer and richer background music.
Flexible Input Options: Built-in high-quality transformer with power selector, supporting both 100V line
and low-impedance stereo inputs for versatile system integration.

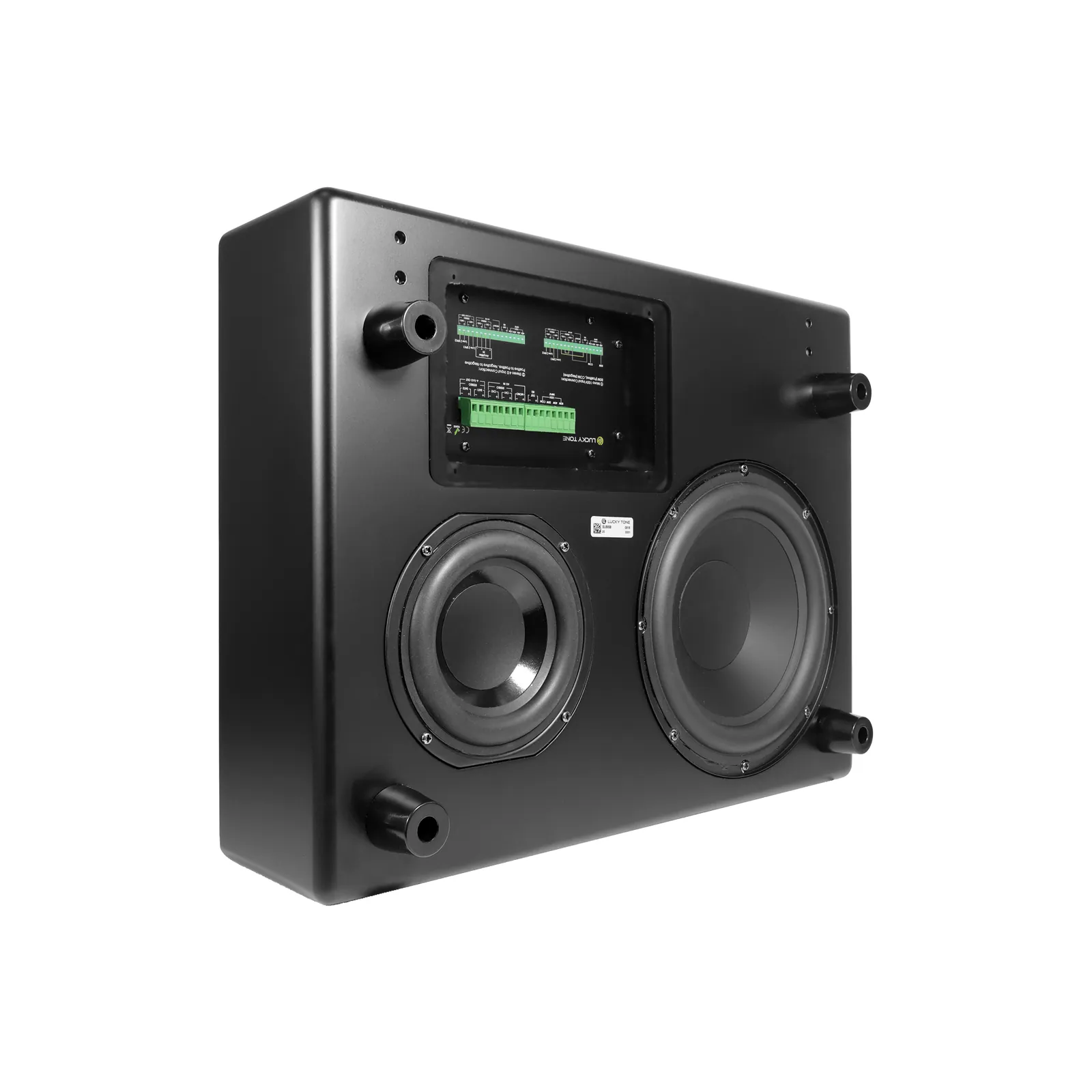

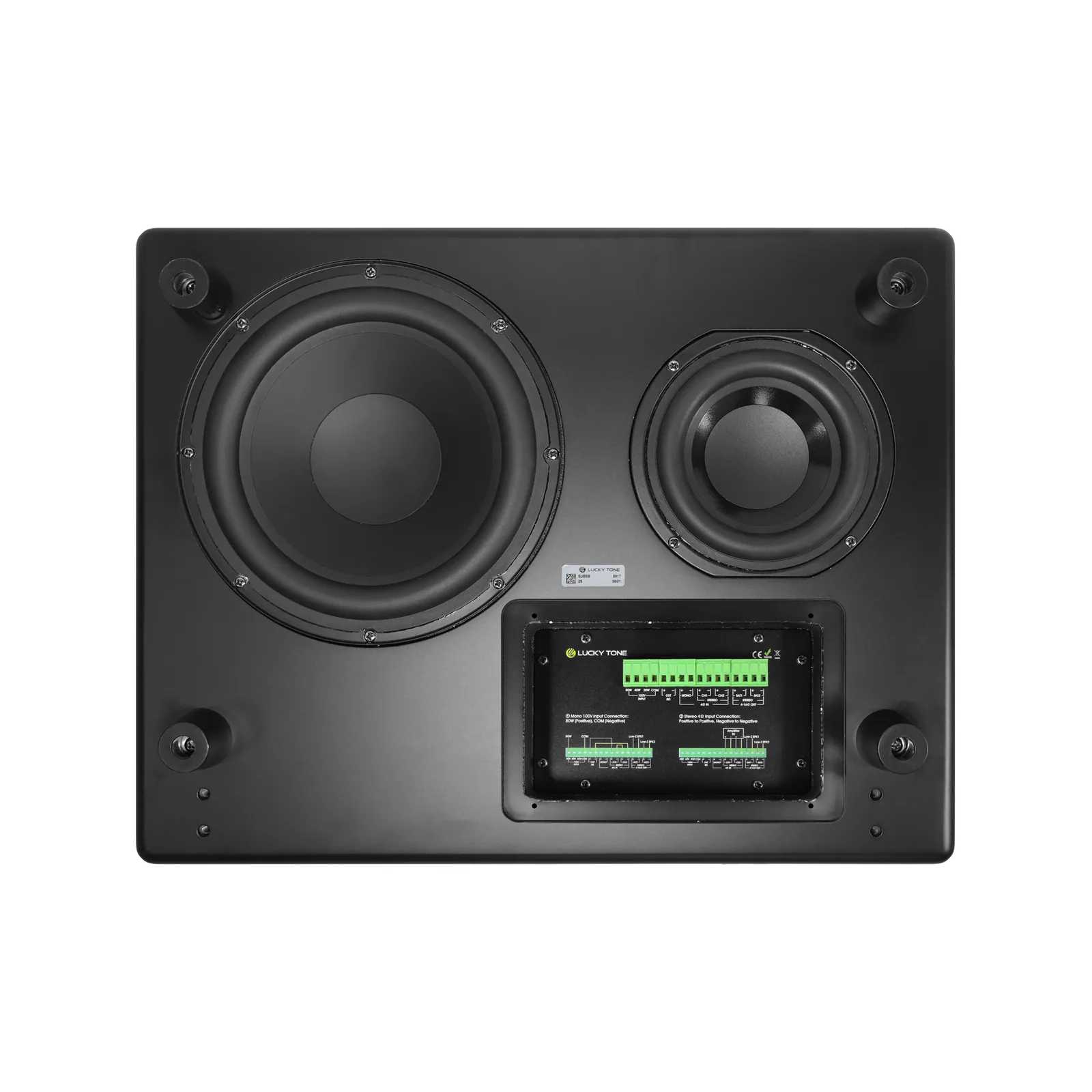

Equipped with passive radiator for deeper, richer low end (5” model)
Flexible Installation: Support floor, wall, and ceiling installation, ideal for commercial and public spaces.

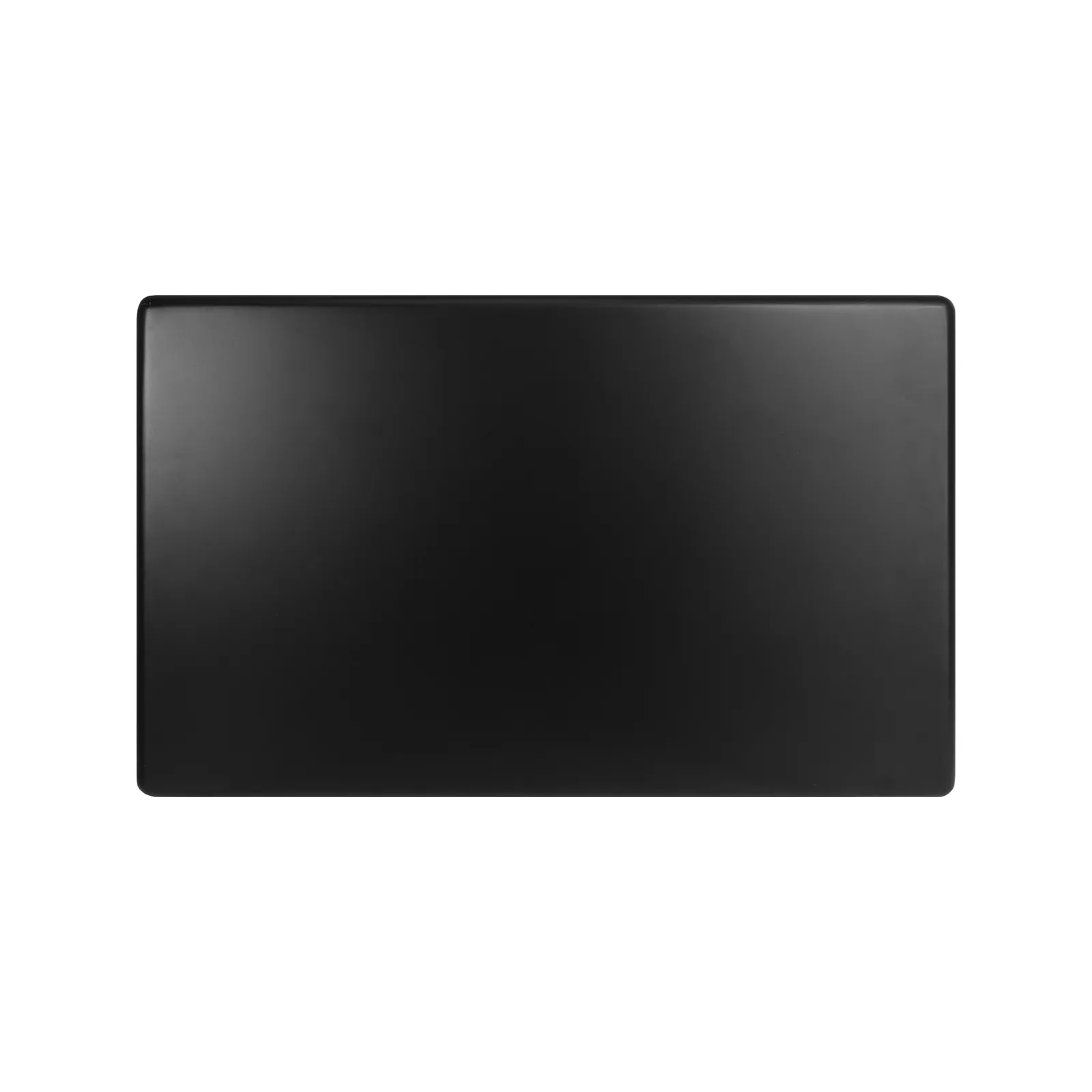

Slim Wooden Enclosure: Ultra-thin wooden cabinet design in black or white finish delivers natural sound
and long-lasting durability.

03Documents1 file · 6.5 MB
