Sheet 05.152
Lucky Tone · Loudspeakers

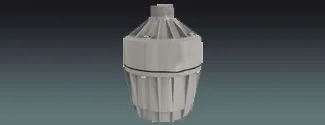

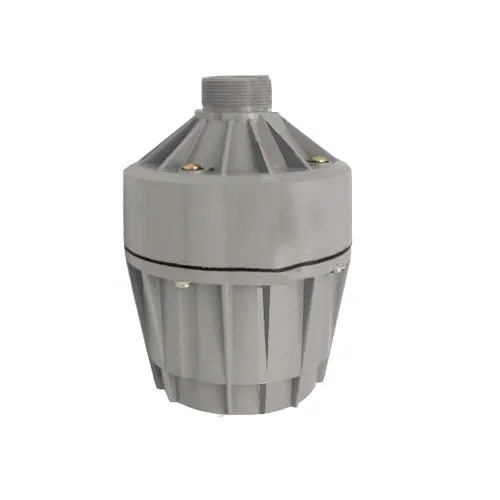

Lucky Tone Horn Driver H-60DT
ModelH-60DT
● Water proof with stainless steel screw for outdoor use (IP65)
- Weight
- 2.20kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Horn DriverPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 11 values
What this product is, in numbers.
PDFSpecifications2.3 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications11
- MODEL
- H-60DT
- Power at 100V
- 20/40/60W; 60W@ 16 ohm
- Power at 70V
- 10/20/30W; 60W@ 16 ohm
- SPL (1W/1M)
- 115dB
- Max SPL@1M
- 132dB
- Freq.Response
- 150Hz-7KHz
- Product Size
- Dia 110 x 154 mm
- Installation
- Fix to Horn
- Enclosure Material
- Aluminum
- Weight
- 2.20kg
- Finish
- Grey
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
● High efficient Neodymium magnet
● With 60W transformer
