Sheet 05.151
Lucky Tone · Loudspeakers

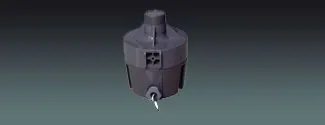

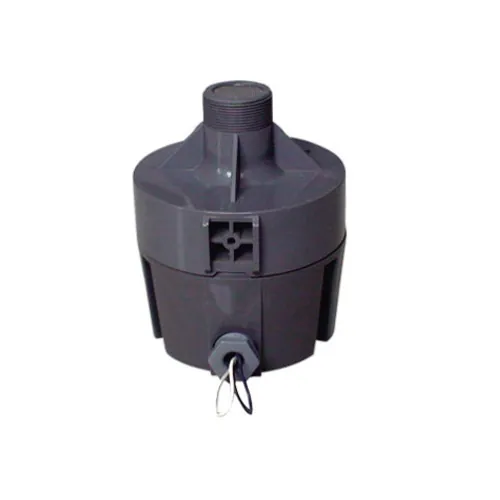

Lucky Tone Horn Driver H-30DT
ModelH-30DT
● Water proof with stainless steel screw for outdoor use (IP65)
- Weight
- 2.10kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Horn DriverPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 11 values
What this product is, in numbers.
PDFSpecifications2.3 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications11
- MODEL
- H-30DT
- Power at 100V
- 10/15/30W; 30W@ 16 ohm
- Power at 70V
- 5/7.5/15W; 15W@ 16 ohm
- SPL (1W/1M)
- 110dB
- Max SPL@1M
- 124dB
- Freq.Response
- 300Hz-5KHz
- Product Size
- Dia 108 x 132 mm
- Installation
- Fix to Horn
- Enclosure Material
- Plastic
- Weight
- 2.10kg
- Finish
- Grey
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
● Low impedance horn driver
● Good for Mosque
03Documents1 file · 2.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
