Sheet 05.158
Lucky Tone · Loudspeakers

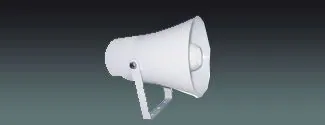

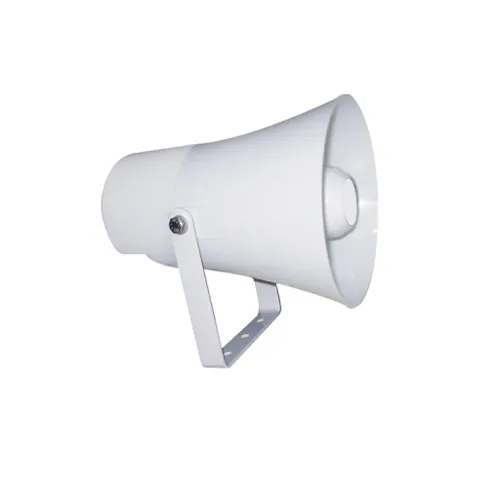

Lucky Tone Horn Speaker HN-10P
ModelHN-10P
Features:
- Weight
- 1.00kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Horn SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.

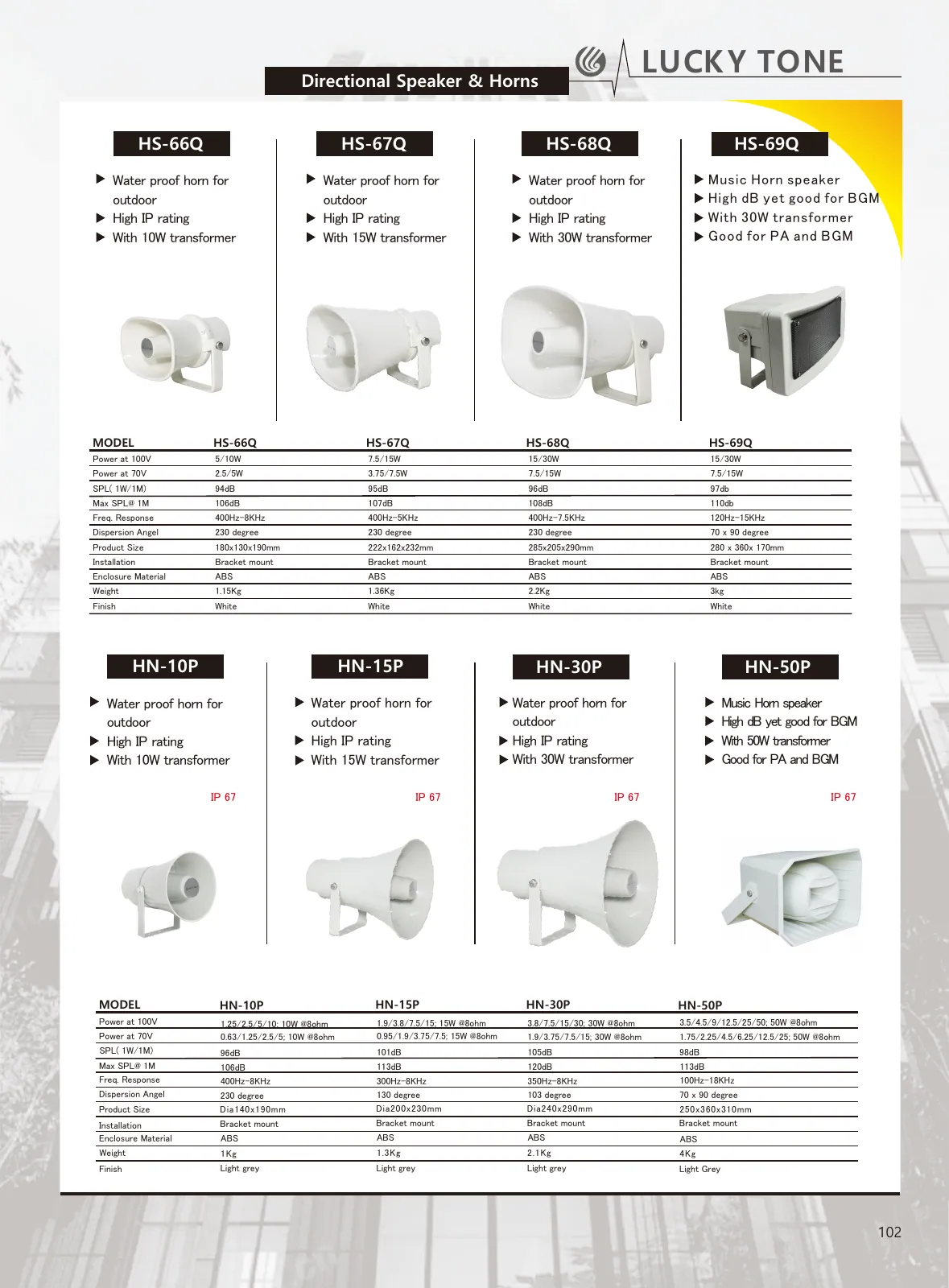

PDFSpecifications2.3 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- MODEL
- HN-10P
- Power at 100V
- 1.25/2.5/5/10; 10W @8ohm
- Power at 70V
- 1.25/2.5/5/10; 10W @8ohm
- SPL (1W/1M)
- 96dB
- Max SPL@1M
- 106dB
- Freq.Response
- 400Hz-8KHz
- Dispersion Angel
- 230 degree
- Product Size
- Dia 140 x 190 mm
- Installation
- Bracket
- Enclosure Material
- ABS
- Weight
- 1.00kg
- Finish
- Light Grey
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- ● Water proof horn for outdoor
- ● High IP rating (IP67)
- ● With 10W transformer
03Documents1 file · 2.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
