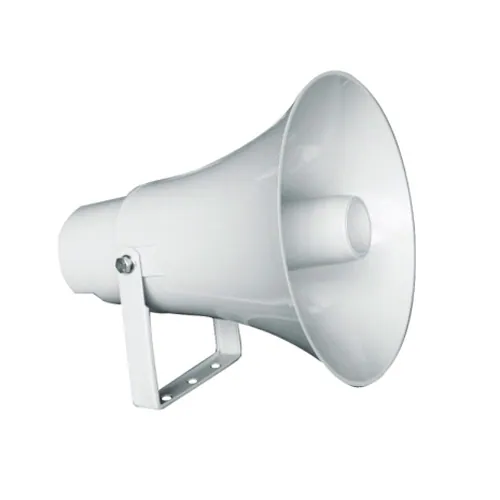

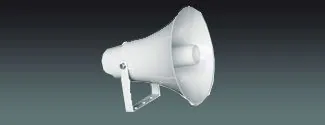

Lucky Tone Horn Speaker HN-30P
ModelHN-30P
Features:
- Weight
- 2.10kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Horn SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.
PDFSpecifications2.3 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- MODEL
- HN-30P
- Power at 100V
- 3.8/7.5/15/30; 30W @8ohm
- Power at 70V
- 3.8/7.5/15/30; 30W @8ohm
- SPL (1W/1M)
- 105dB
- Max SPL@1M
- 120dB
- Freq.Response
- 350Hz-8KHz
- Dispersion Angel
- 103 degree
- Product Size
- Dia 240 x 290 mm
- Installation
- Bracket
- Enclosure Material
- ABS
- Weight
- 2.10kg
- Finish
- Light Grey
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- ● Water proof horn for outdoor
- ● High IP rating (IP67)
- ● With 30W transformer
