Sheet 05.164
Lucky Tone · Loudspeakers

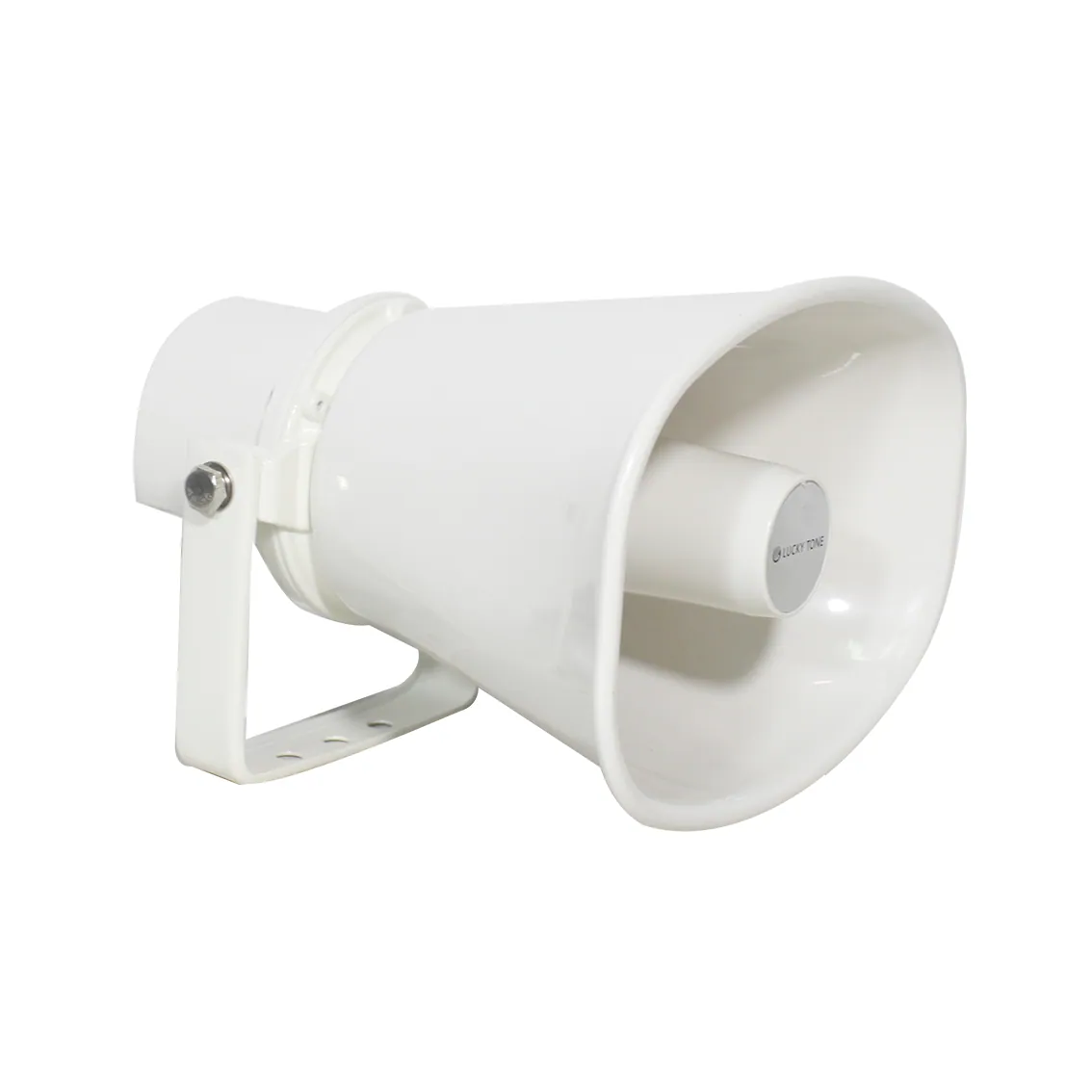

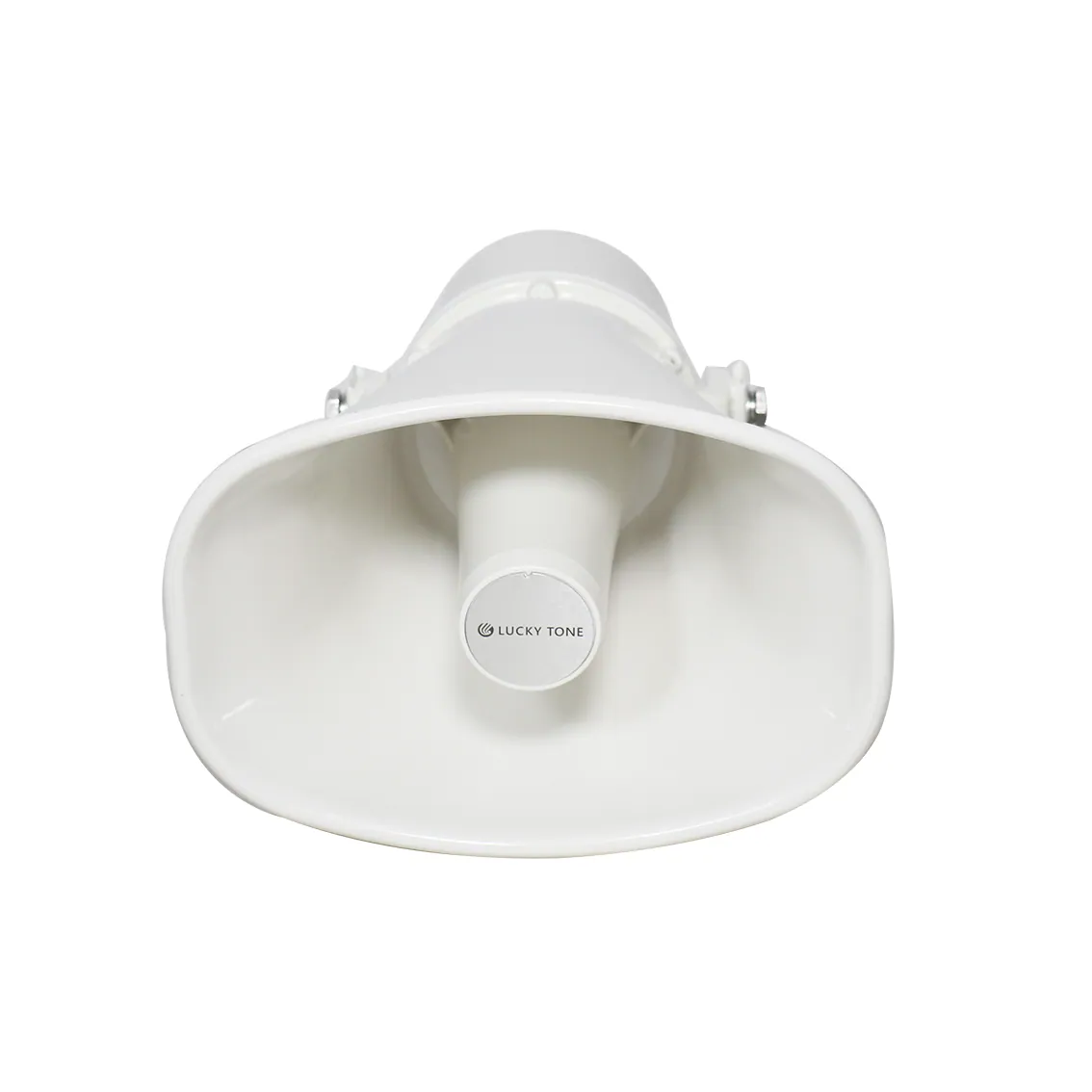

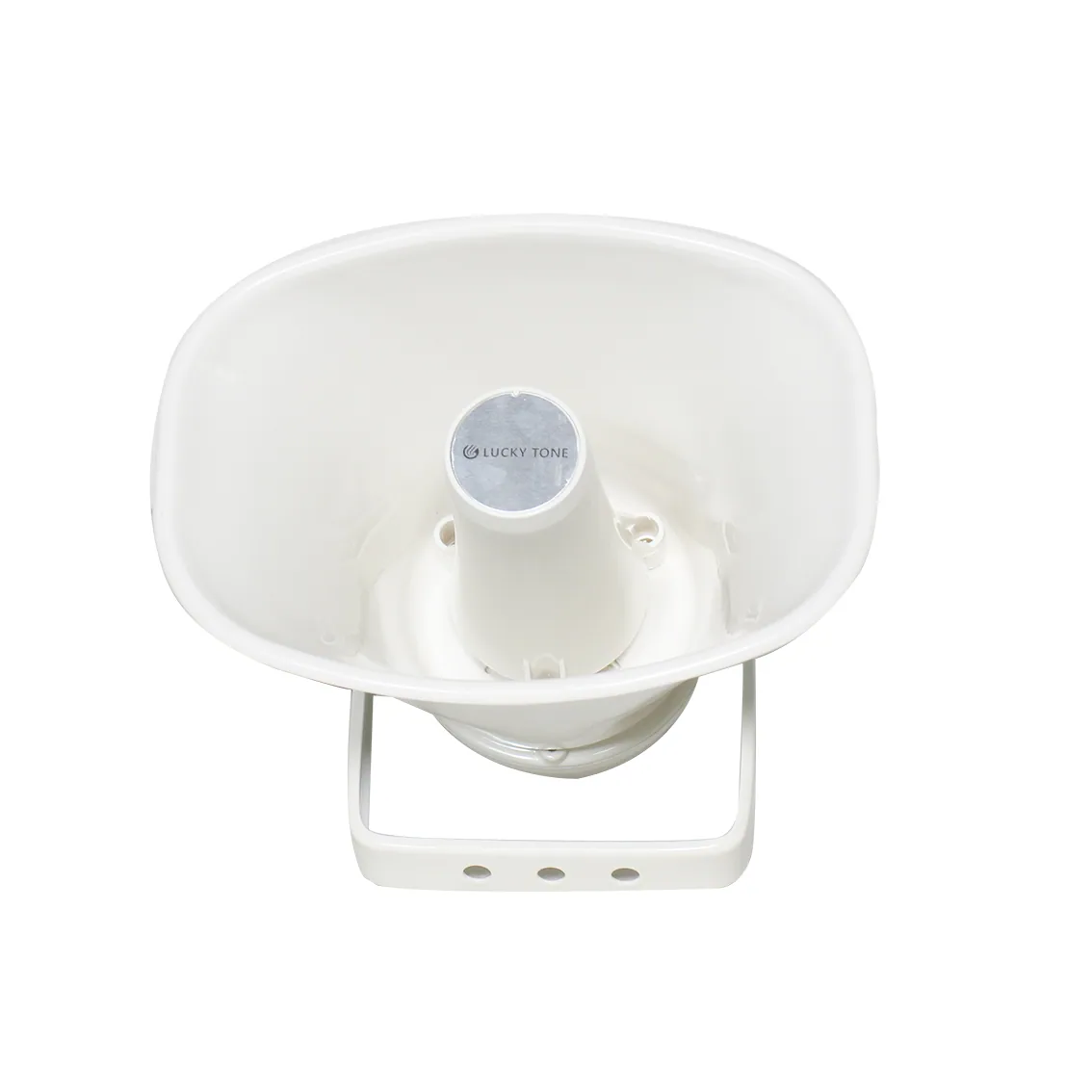

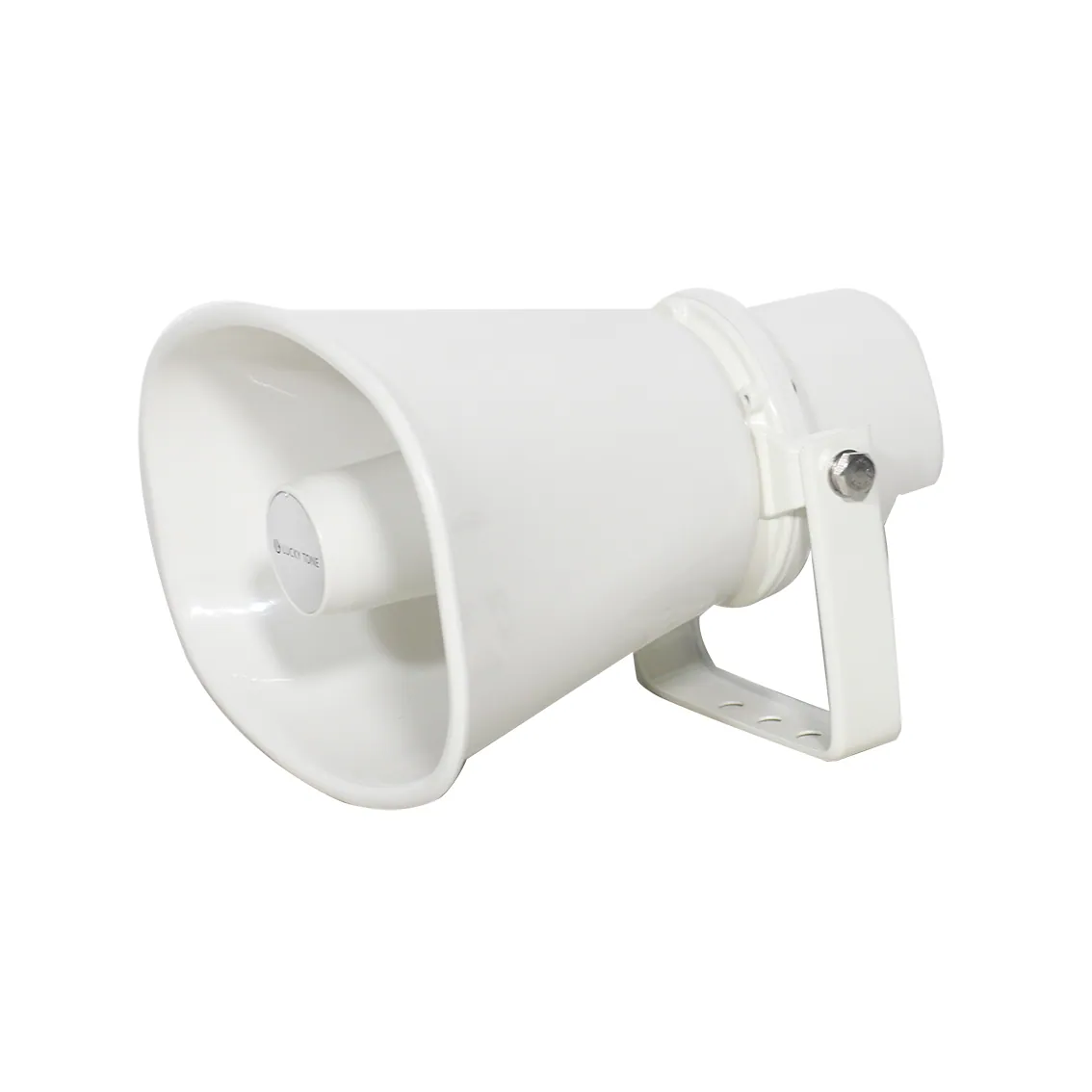

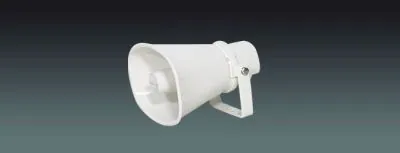

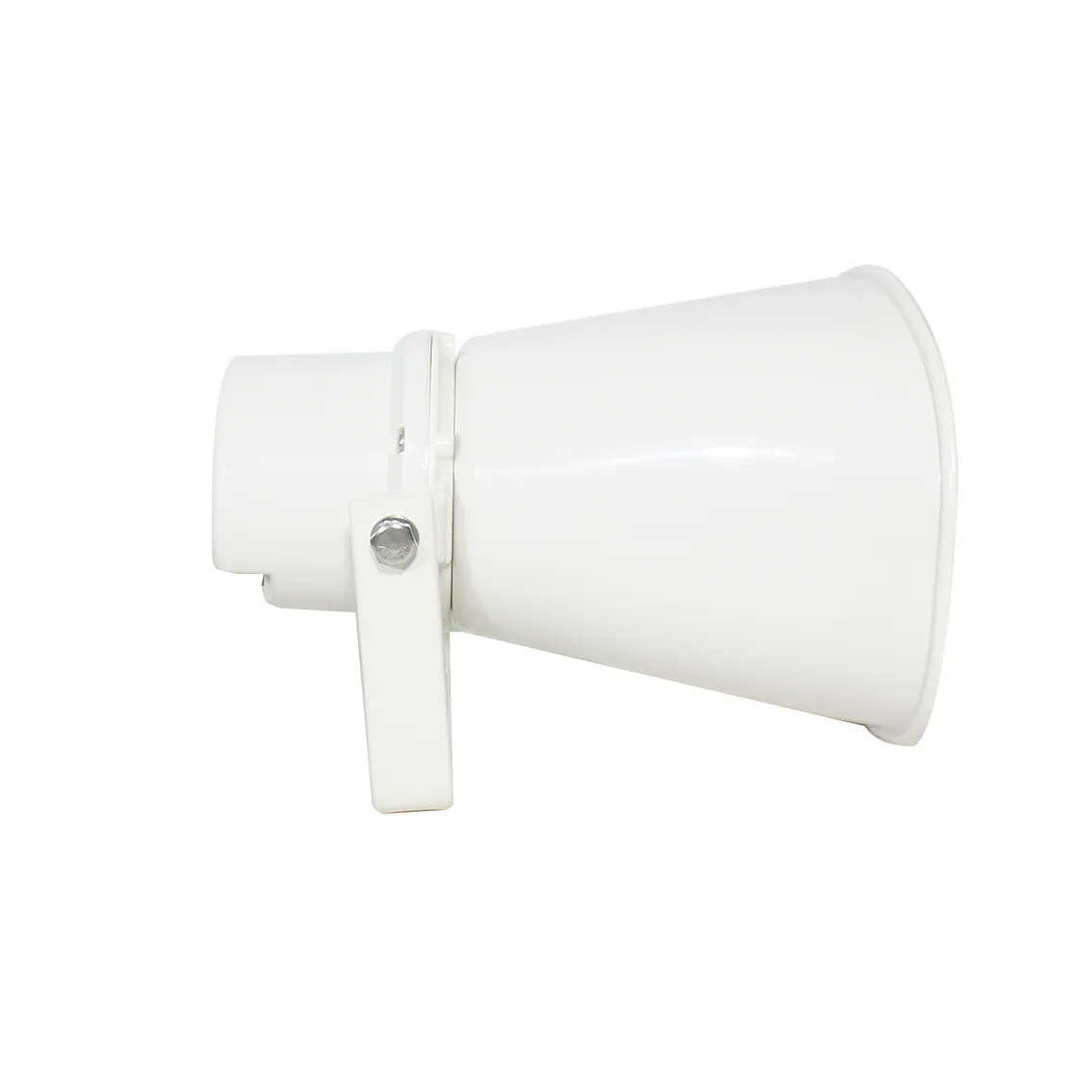

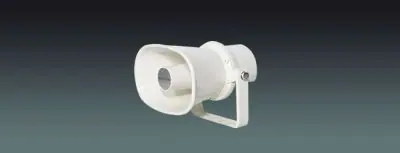

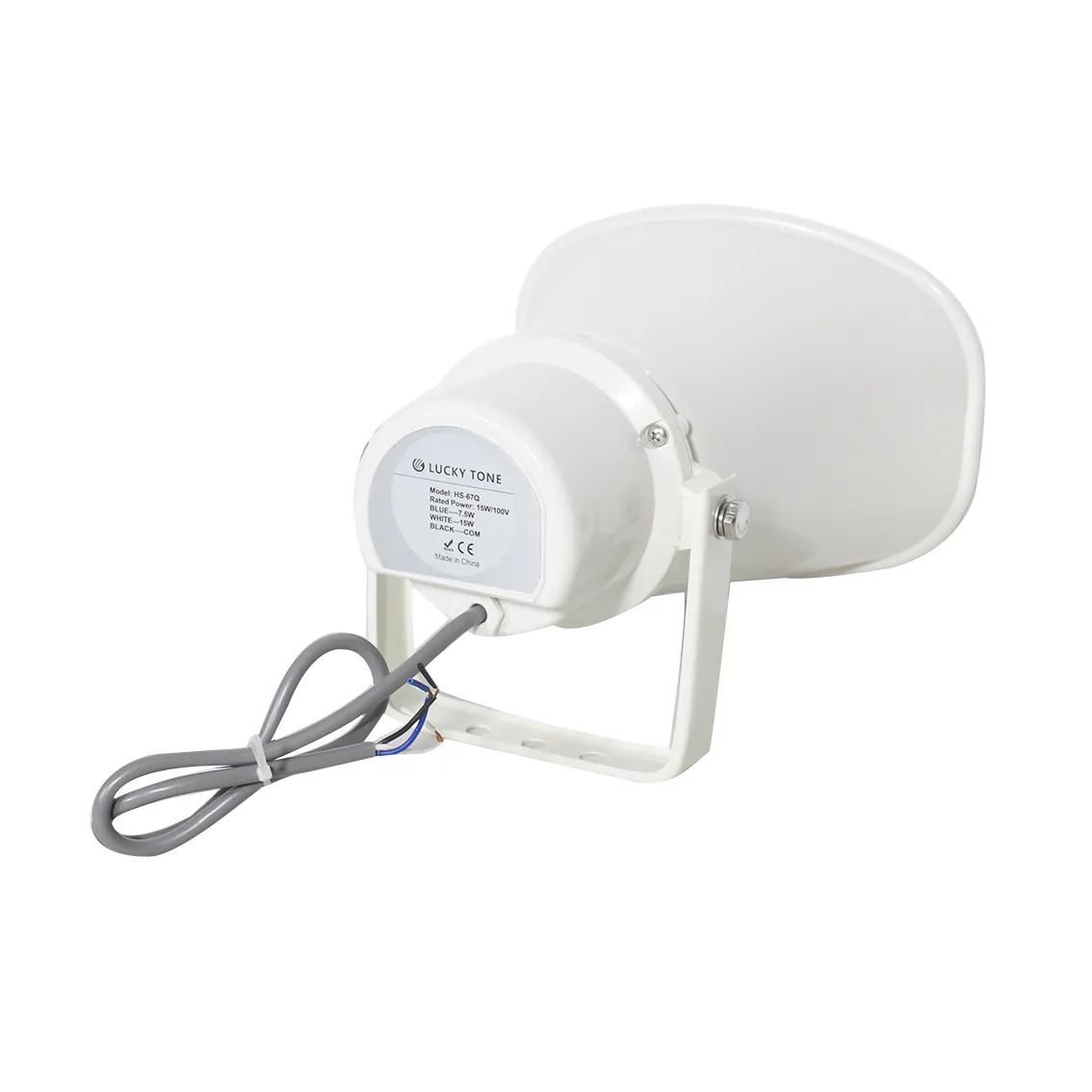

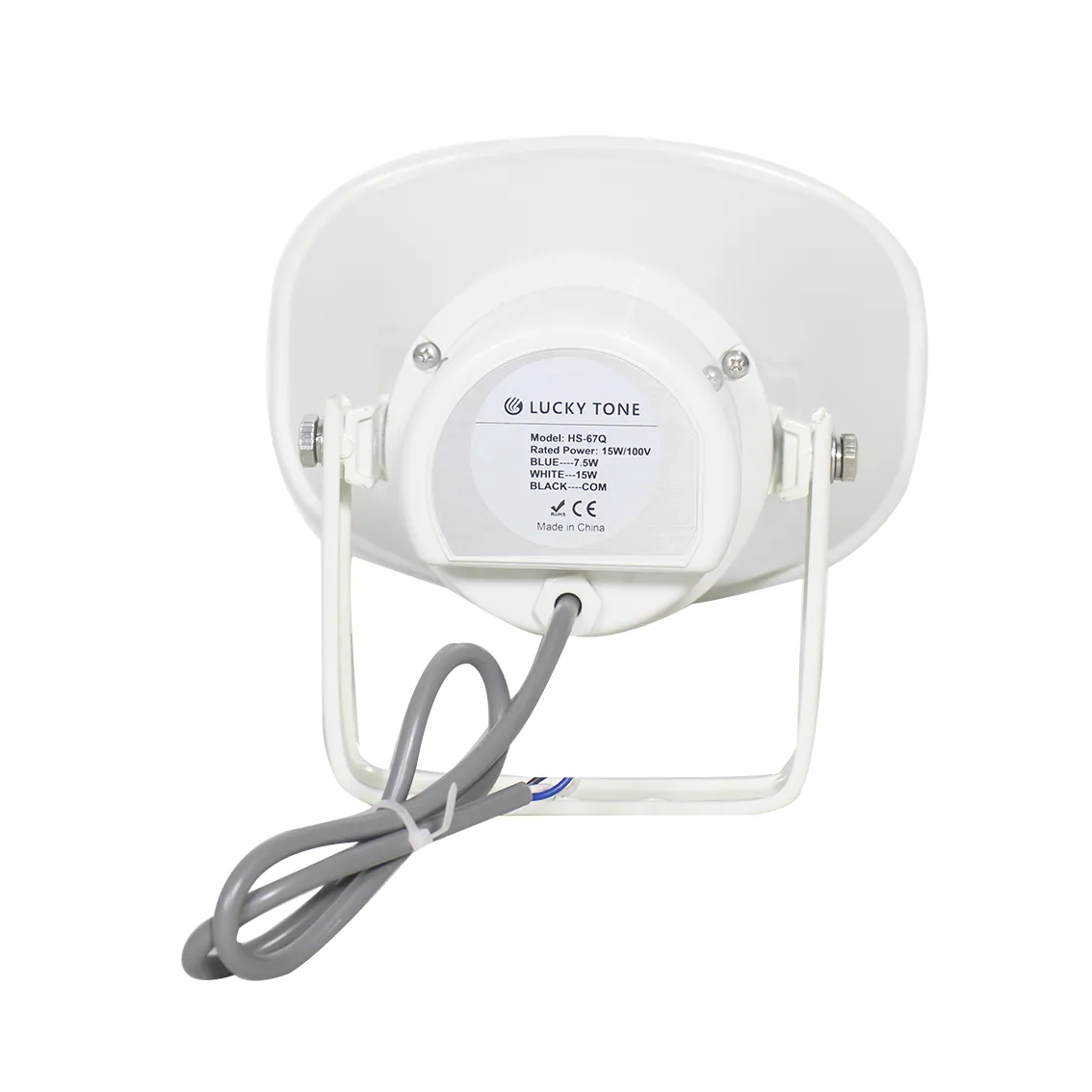

Lucky Tone Horn Speaker HS-67Q
ModelHS-67Q
Water proof horn for outdoor
- Weight
- 1.36Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Horn SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.
PDFSpecifications716 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- Model
- HS-67Q
- Power at 100V
- 7.5/15W
- Power at 70V
- 3.75/7.5W
- Sensitivity(1W/1M at 500 to 2,500Hz Peak Level)
- 112dB
- Max SPL@ 1M
- 123dB
- Freq. Response
- 400Hz-5KHz
- Dispersion Angel
- 230 degree
- Product Size
- 222x162x232mm
- Installation
- Bracket mount
- Enclosure Material
- ABS
- Weight
- 1.36Kg
- Finish
- White
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
High IP rating
With 15W transformer
03Documents1 file · 716 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
