Sheet 05.166
Lucky Tone · Loudspeakers

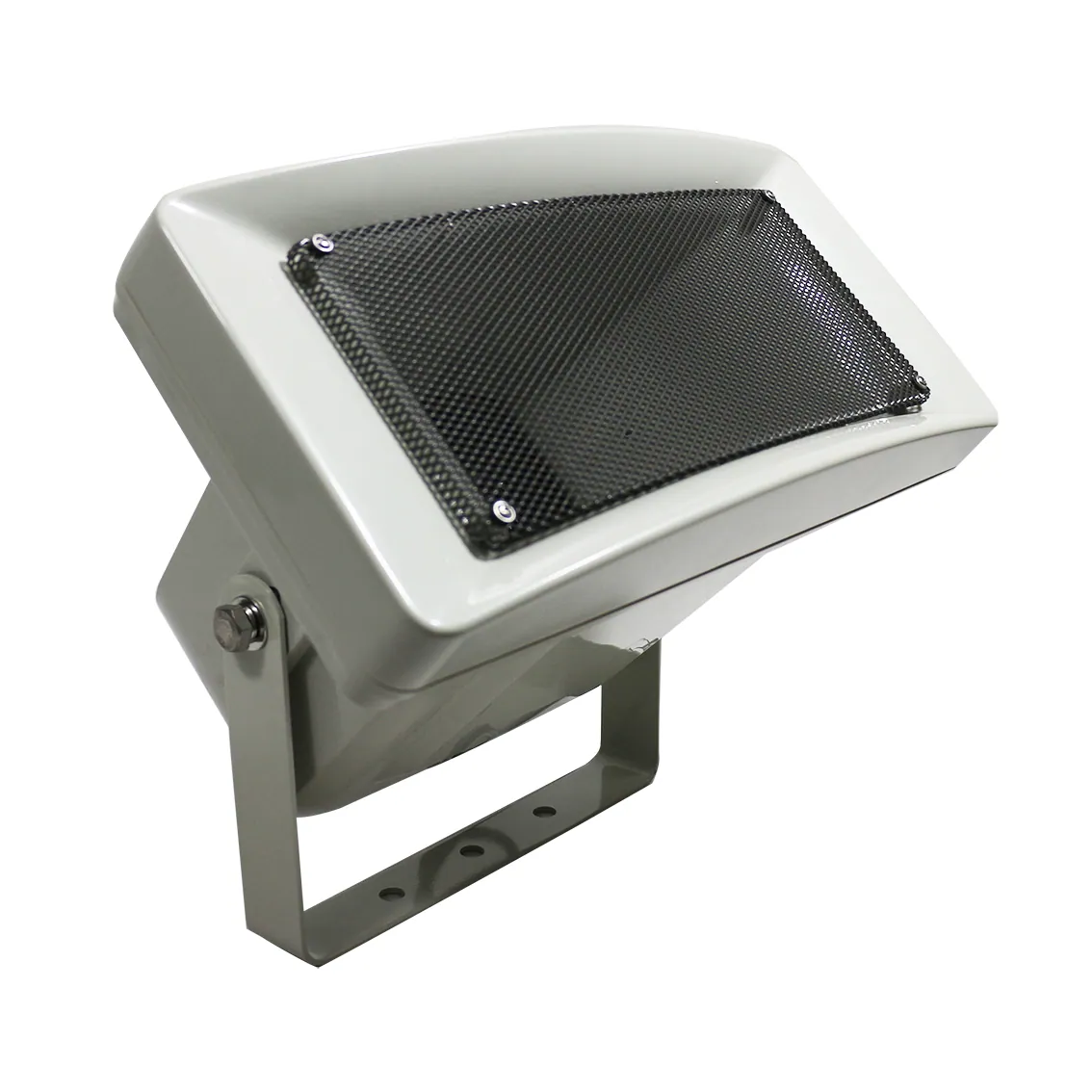

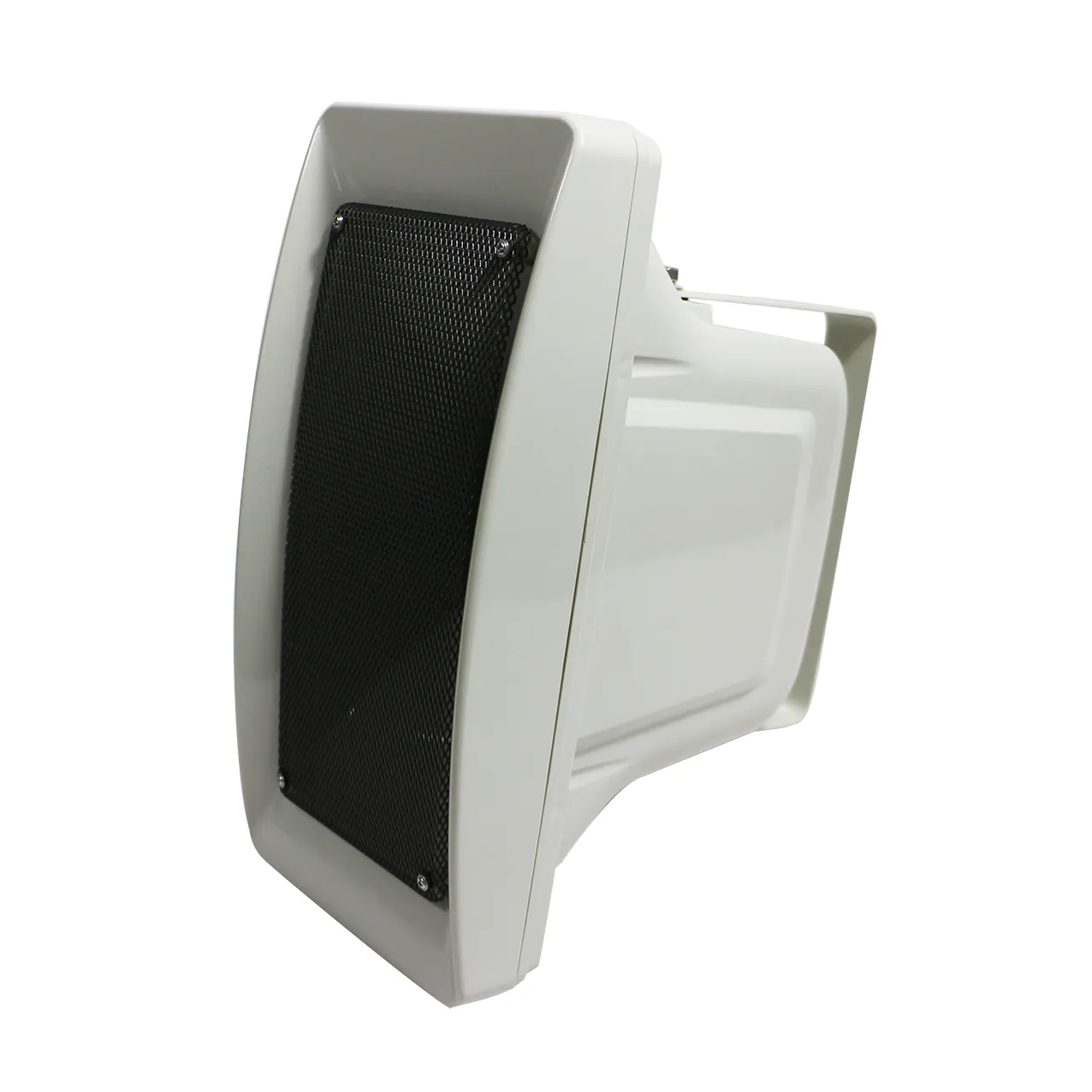

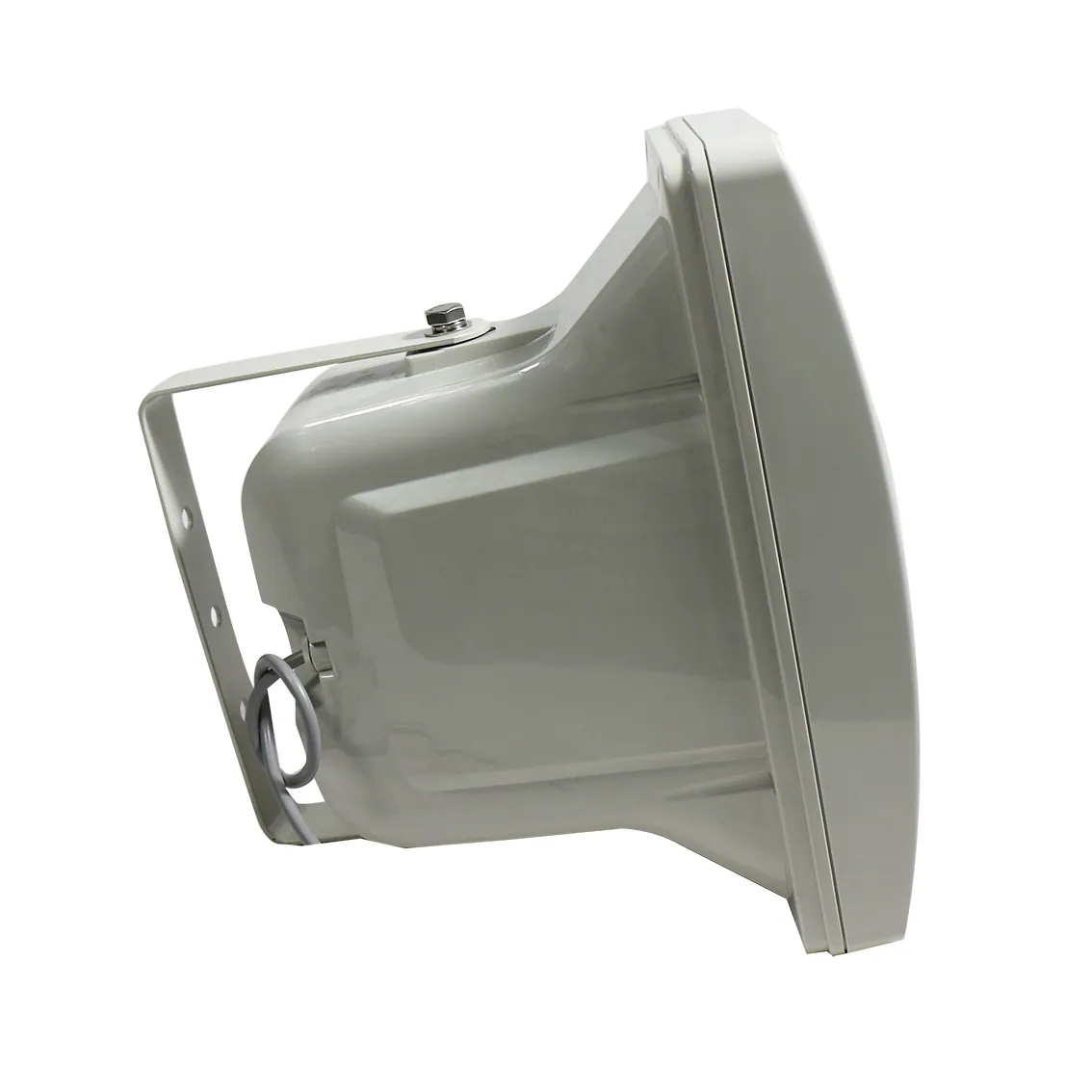

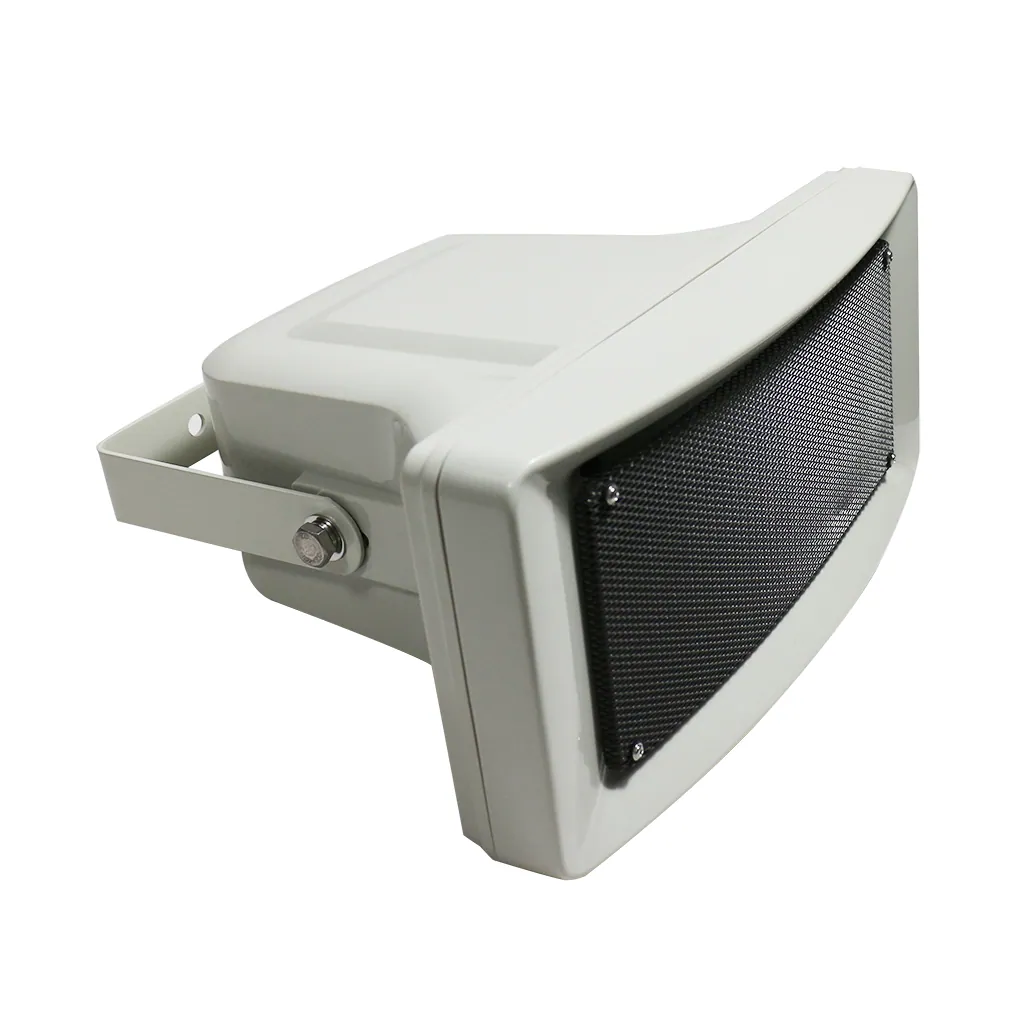

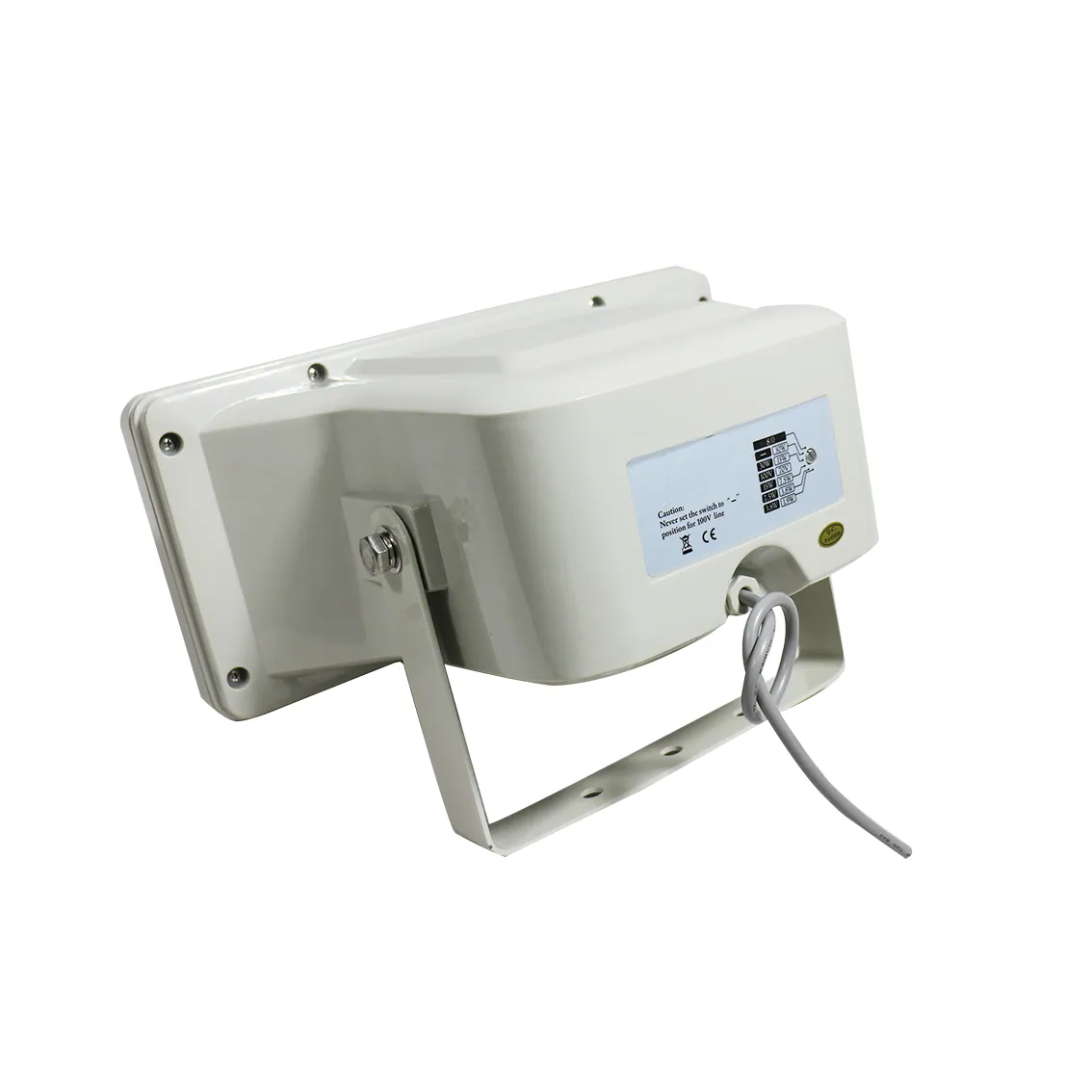

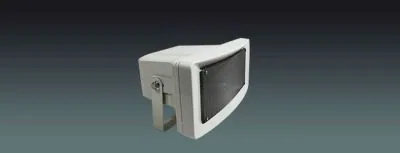

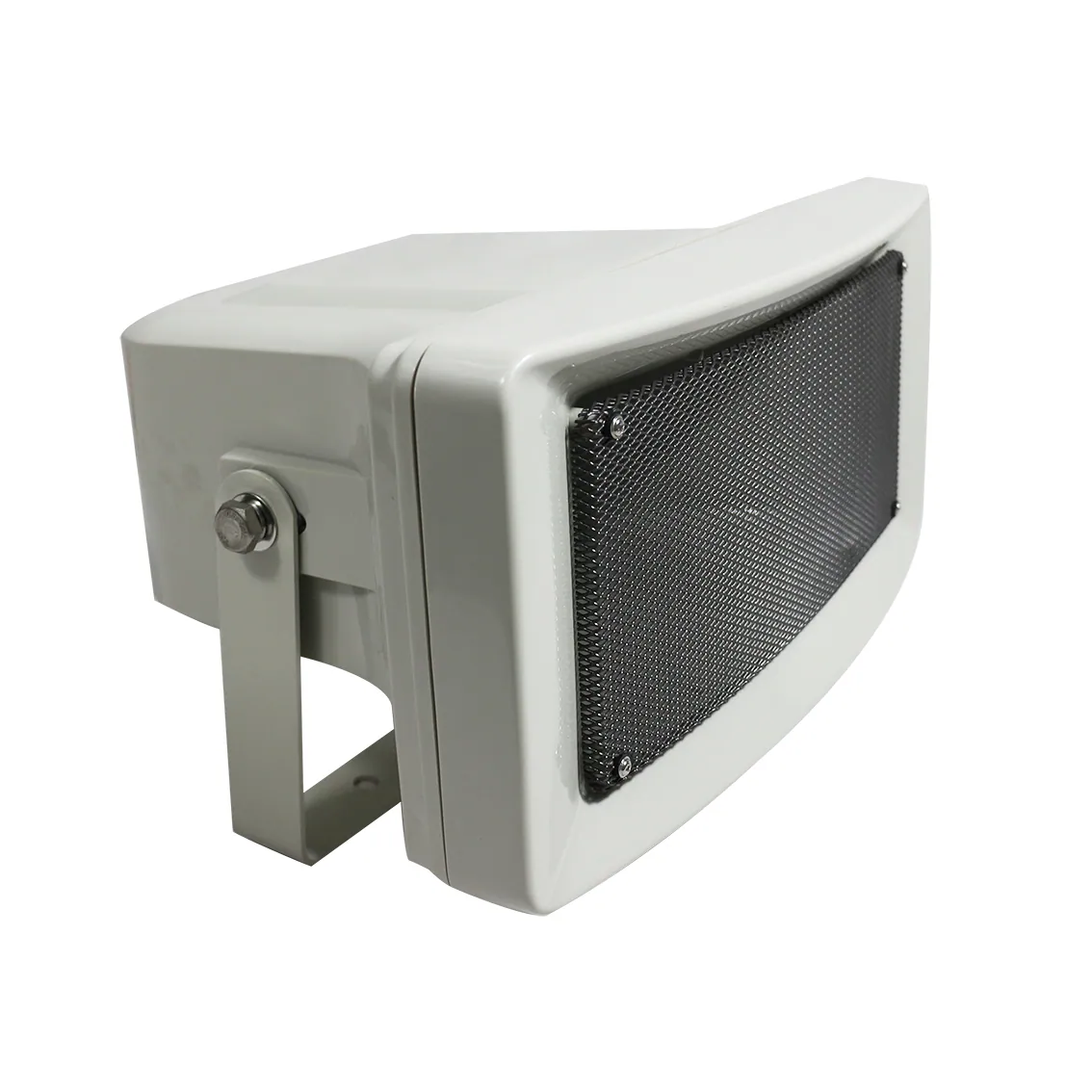

Lucky Tone Horn Speaker HS-69Q
ModelHS-69Q
Music Horn speaker
- Weight
- 3Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Horn SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.

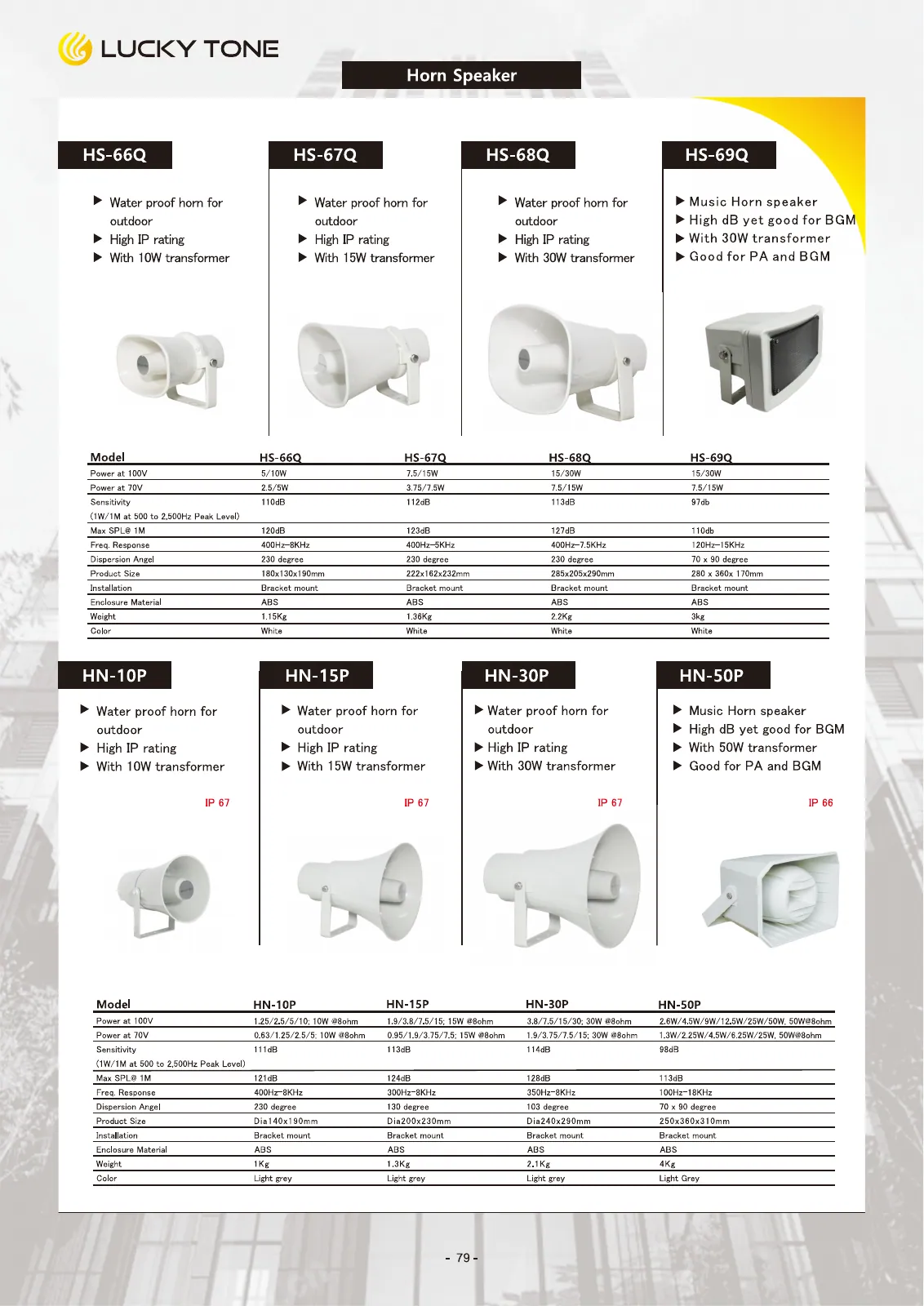

PDFSpecifications716 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- Model
- HS-69Q
- Power at 100V
- 15/30W
- Power at 70V
- 7.5/15W
- Sensitivity(1W/1M at 500 to 2,500Hz Peak Level)
- 97dB
- Max SPL@ 1M
- 110dB
- Freq. Response
- 120Hz-15KHz
- Dispersion Angel
- 70 x 90 degree
- Product Size
- 280 x 360x 170mm
- Installation
- Bracket mount
- Enclosure Material
- ABS
- Weight
- 3Kg
- Finish
- White
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
High dB yet good for BGM
With 30W transformer
Good for PA and BGM
03Documents1 file · 716 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
04Related products
In the same range.
EQ-165Lucky ToneHorn SpeakerHS-68Q · LoudspeakersWeight2.2Kg
EQ-167Lucky ToneIn and Outdoor Column SpeakerLSA-440 / LSA-430 / LSA-420 / LSA-410 · LoudspeakersWeightLSA-440: 4.1Kg; LSA-430: 3.2Kg; LSA-420: 2.5Kg; LSA-410: 1.8Kg

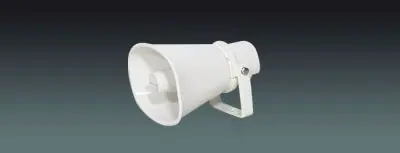

EQ-164Lucky ToneHorn SpeakerHS-67Q · LoudspeakersWeight1.36Kg
