Sheet 05.196
Lucky Tone Pendant speaker, product photo 1 of 8
Fig. 01 / 08 · manufacturer’s images

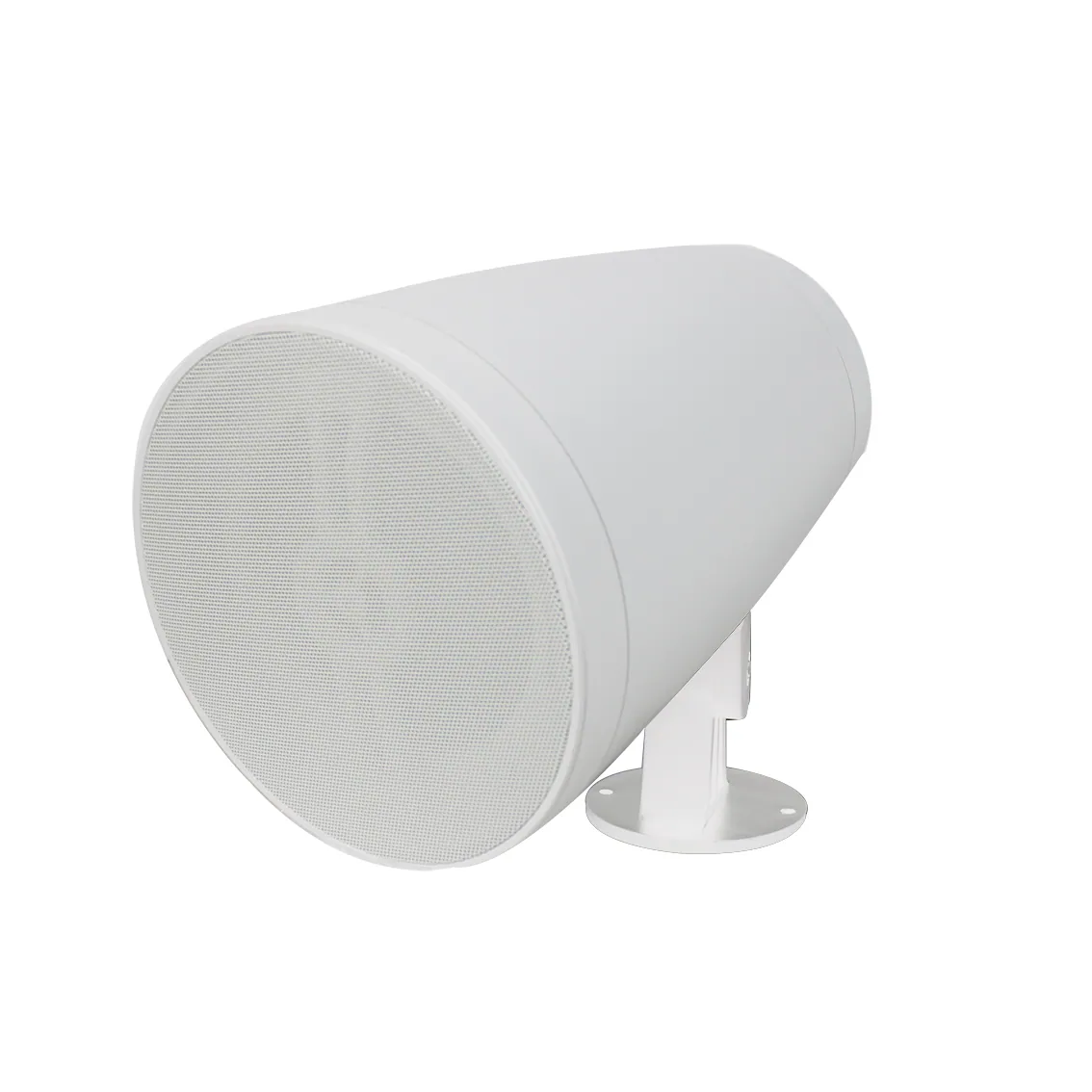

  • Lucky Tone Pendant speaker, product photo 1 of 8
  • Lucky Tone Pendant speaker, product photo 2 of 8

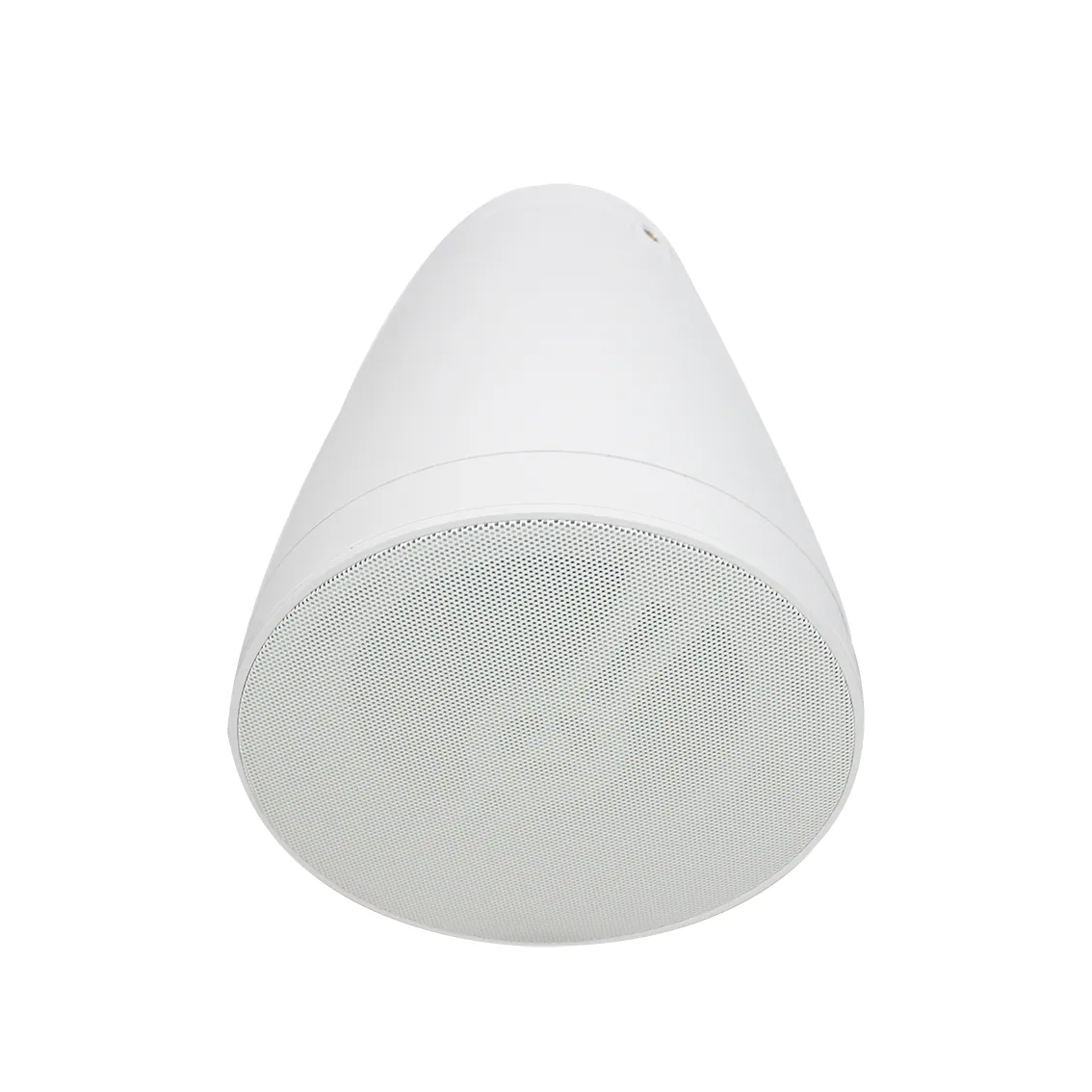

  • Lucky Tone Pendant speaker, product photo 3 of 8

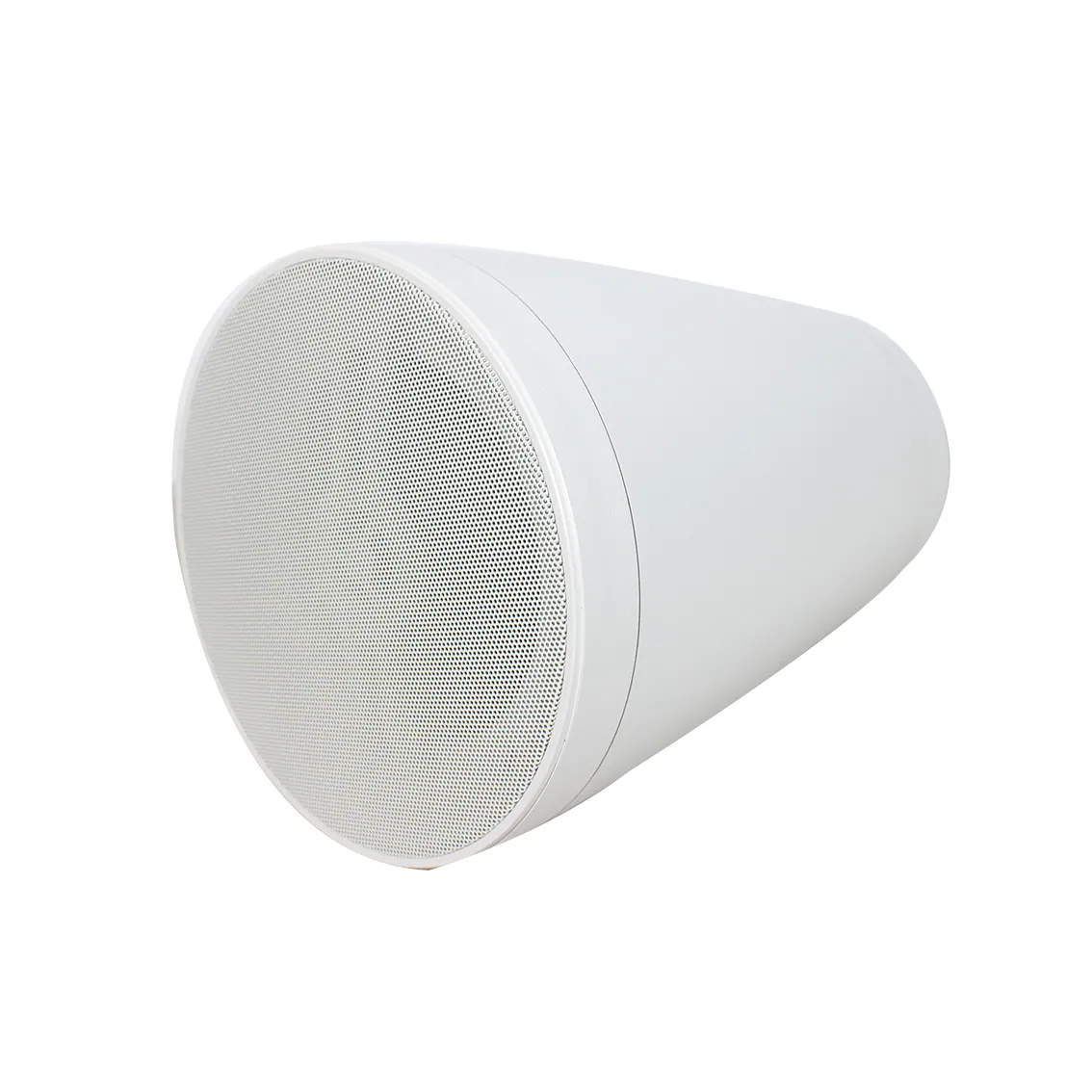

  • Lucky Tone Pendant speaker, product photo 4 of 8

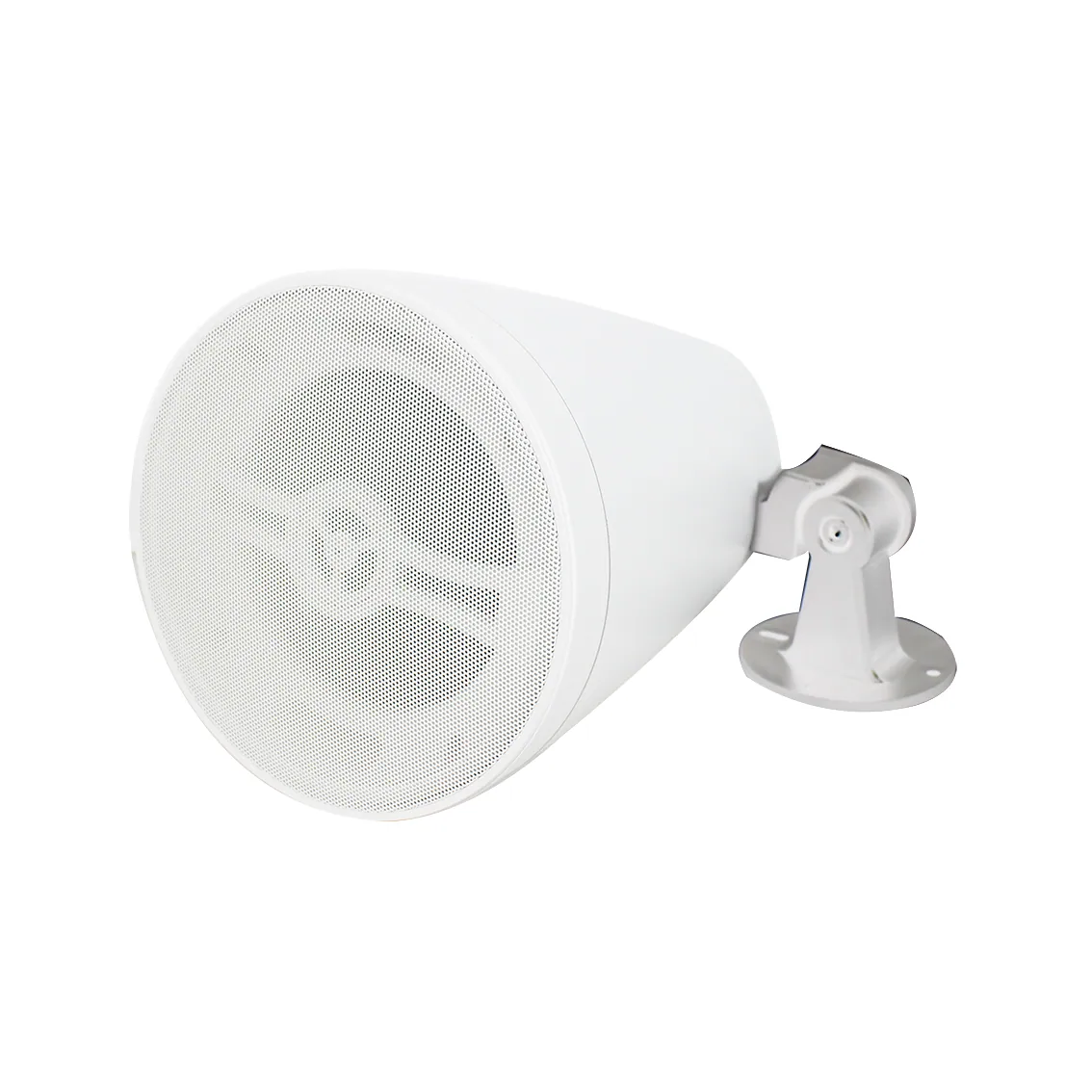

  • Lucky Tone Pendant speaker, product photo 5 of 8
  • Lucky Tone Pendant speaker, product photo 6 of 8
  • Lucky Tone Pendant speaker, product photo 7 of 8
  • Lucky Tone Pendant speaker, product photo 8 of 8
Lucky Tone · Loudspeakers

Lucky Tone Pendant speaker HWS-440W/B / HWS-550W/B / HWS-660W/B / HWS-880W/B

ModelHWS-440W/B / HWS-550W/B / HWS-660W/B / HWS-880W/B

Ceiling suspension or wall mount optional

PriceOn request
Request a quotationDiscuss your project

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models4 models in the family

Models compared.

MODELHWS-440W/BHWS-550W/BHWS-660W/BHWS-880W/B
Tweeter0.75″(20 mm) Silk soft dome1″(25mm) Silk soft dome1″(25mm) Silk soft dome1.1″(28 mm) Silk soft dome
Woofer4″(100 mm) Graphite Cone,Rubber Surround5″ (125mm) Graphite Cone,Rubber Surround6.5″ (165 mm) Graphite Cone,Rubber Surround8″(203 mm) Graphite Cone,Rubber Surround
Frequency Range+/-380 Hz-20k Hz98 Hz-20k Hz51 Hz-20k Hz44 Hz-20k Hz
Power Handling RMS40W 8 ohms50W, 8 ohms60W, 8 ohms80W, 8 ohms
Sensitivity83 dB84 dB85 dB86 dB
Dispersion Angle110°100°95°80°
Taps8Ω,0,20W,10W,5W,2.5W8Ω,0,30W,15W,7.5W,3.75W8Ω,0,40W,20W,10W,5W8Ω,0,50W,25W,12.5W,6.25W
Impedance8 ohms8 ohms8 ohms8 ohms
TerminationPluggable Terminal BlocksPluggable Terminal BlocksPluggable Terminal BlocksPluggable Terminal Blocks
AttachmentBrackets/Safety ropeBrackets/Safety ropeBrackets/Safety ropeSafety rope
Dimensions W*HDia 155 x 215mmDia 190 x 250mmDia 230 x 300mmDia 270 x 343mm
CertificationsIP66IP66IP66IP66
MaterialPPPPPPPP
02DescriptionManufacturer's description

What it is.

Innovative & unique design

Wide opening angle

  • With high-quality polypropylene enclosure
  • Adopt acoustic engineering craftsmanship
  • Provide premium performance for demanding applications
  • Suitable for bars, restaurants, retail, education, public facilities, corporate spaces, sport facilities
  • W: White Color,B: Black Color

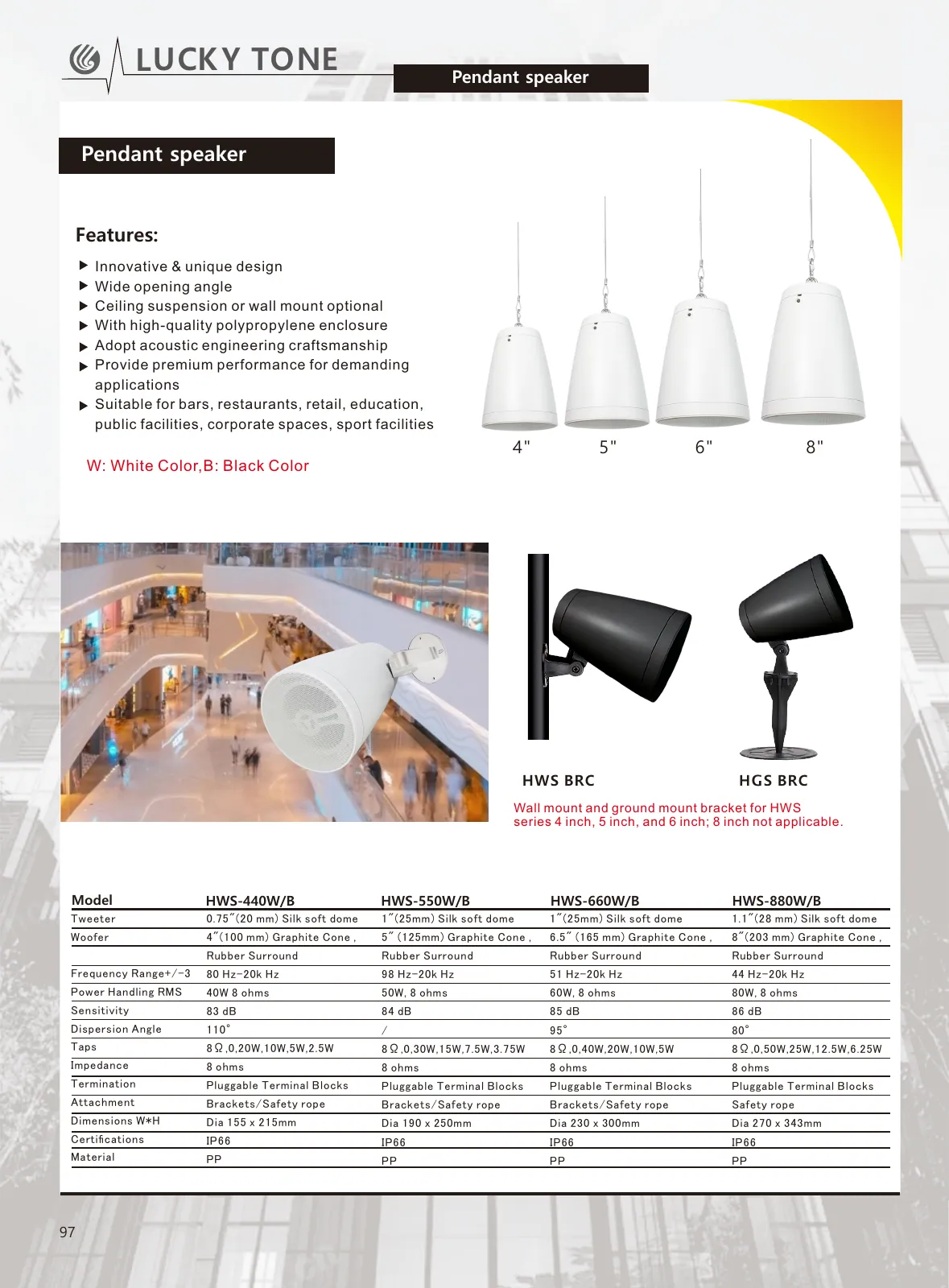

03Documents1 file · 1.4 MB

Documents and files.

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
