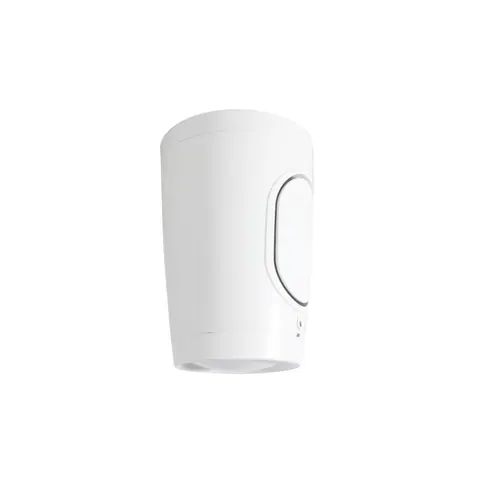

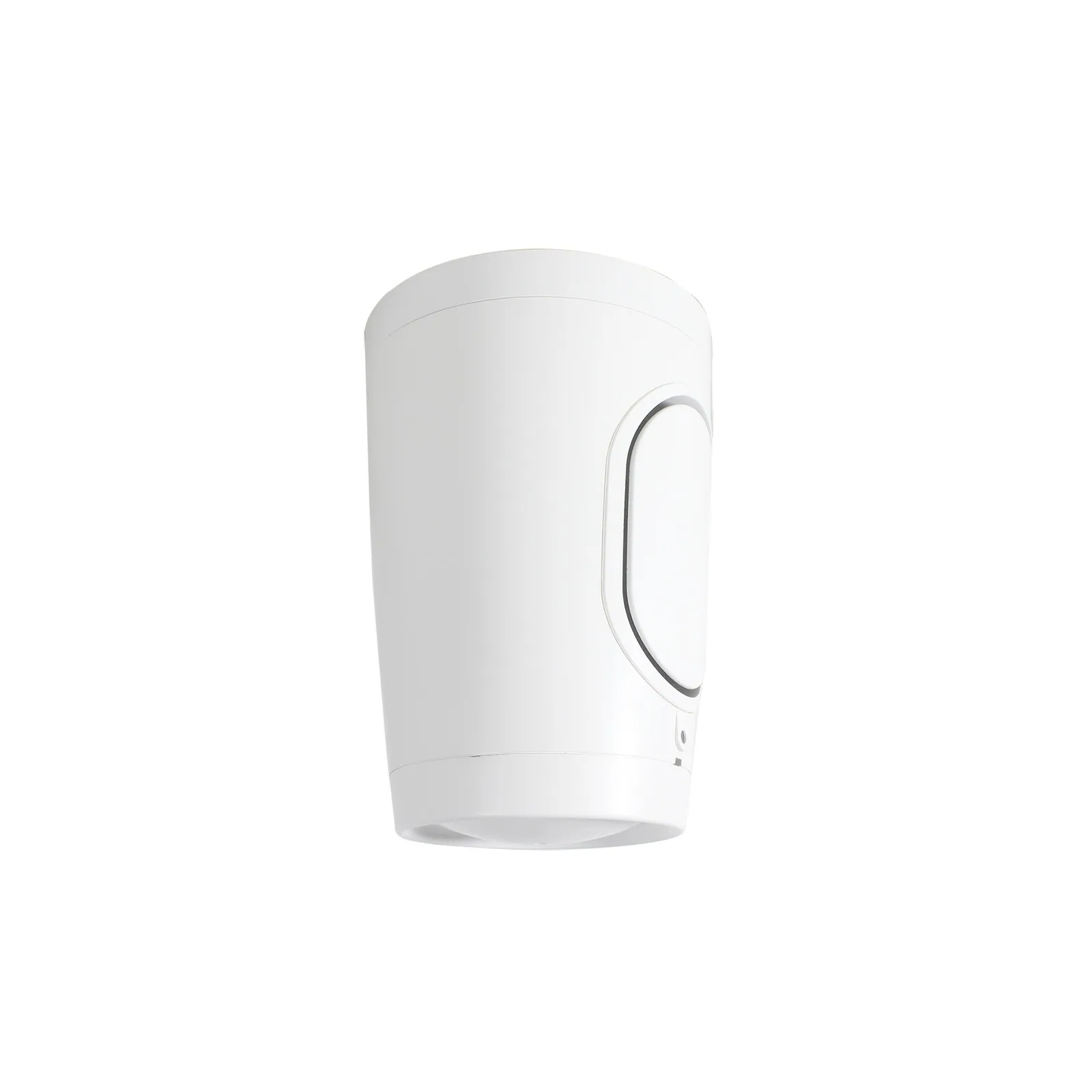

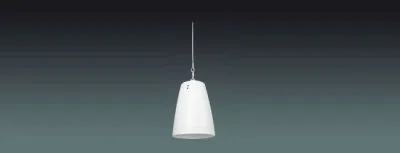

Pendant Speaker with OBE
ModelHWB-440W/B / HWB-550W/B / HWB-660W/B / HWB-880W/B

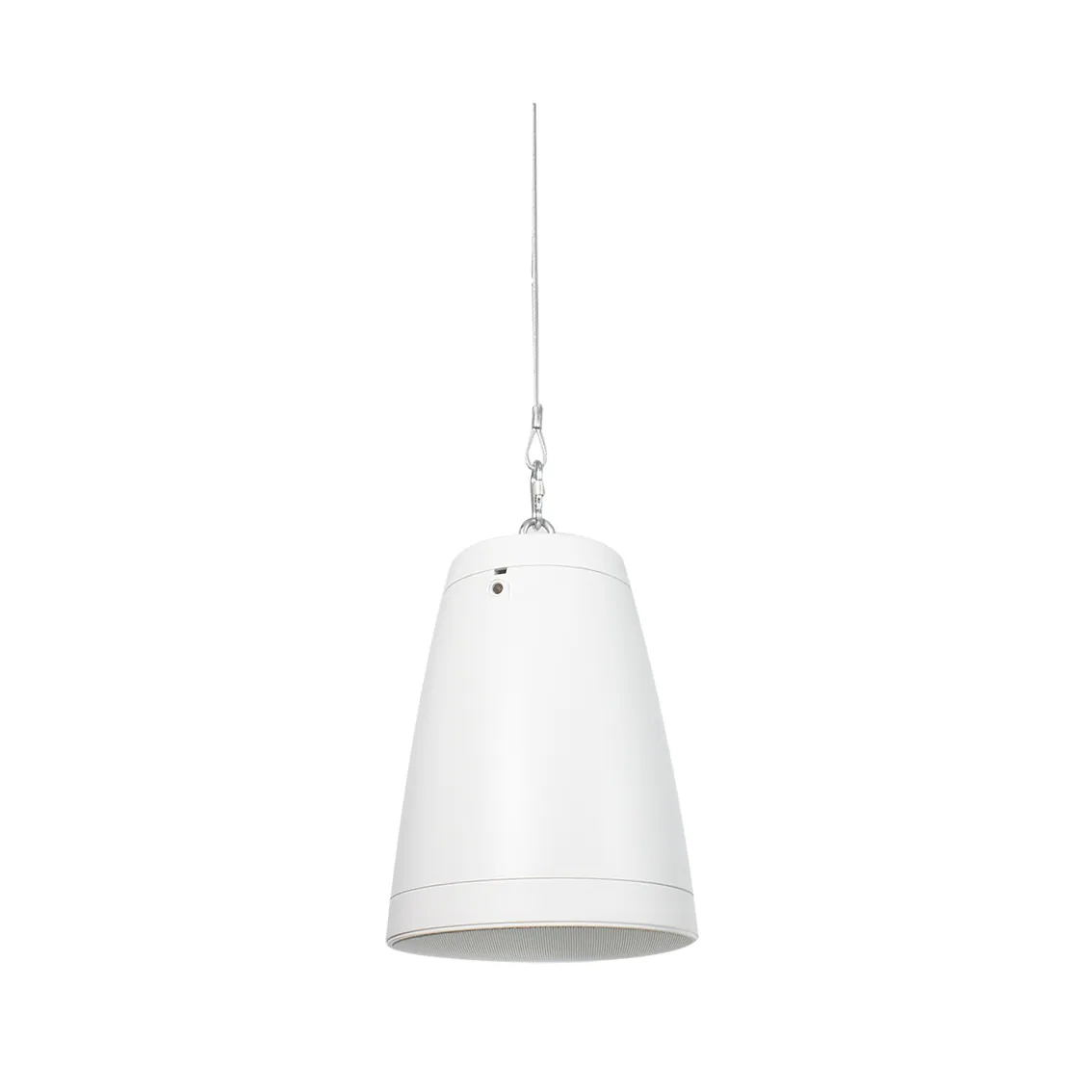

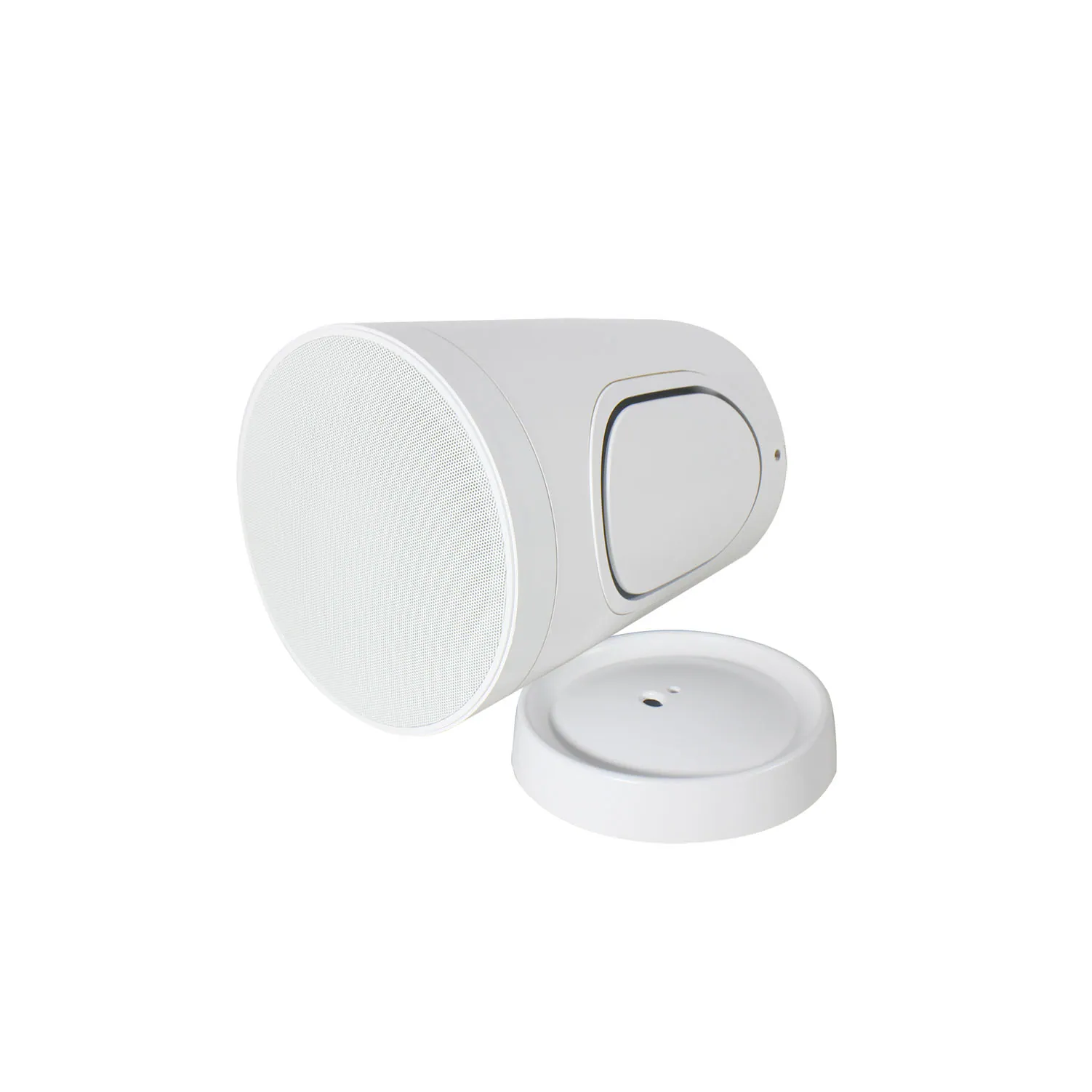

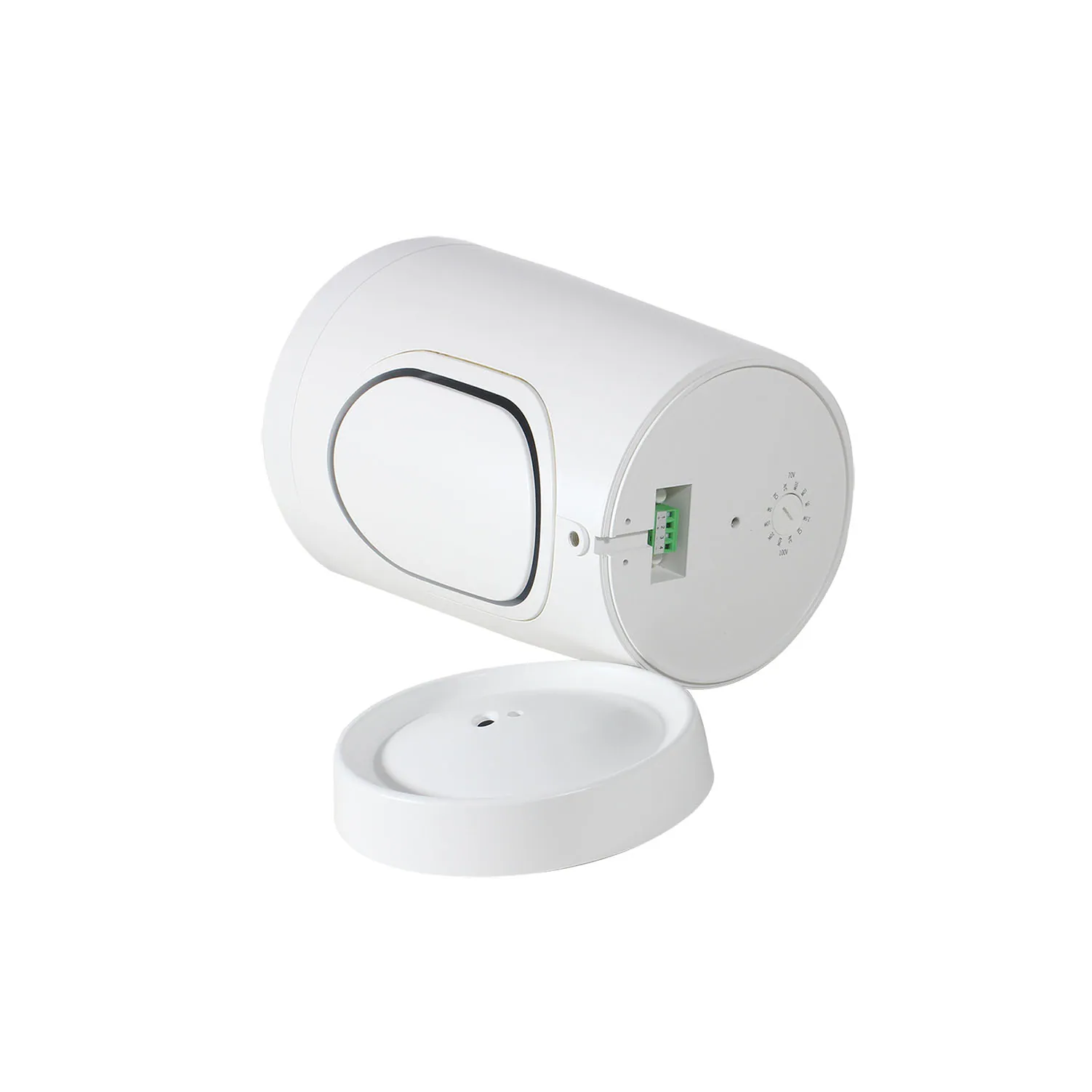

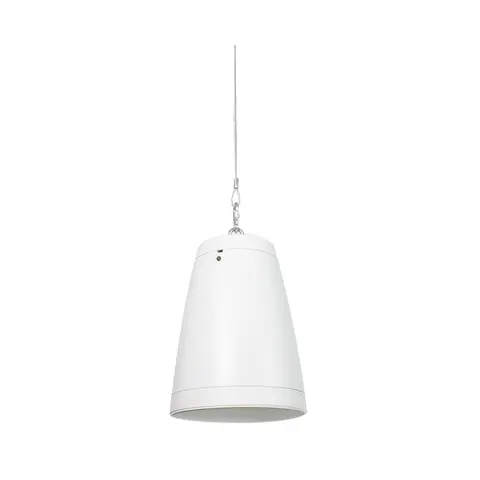

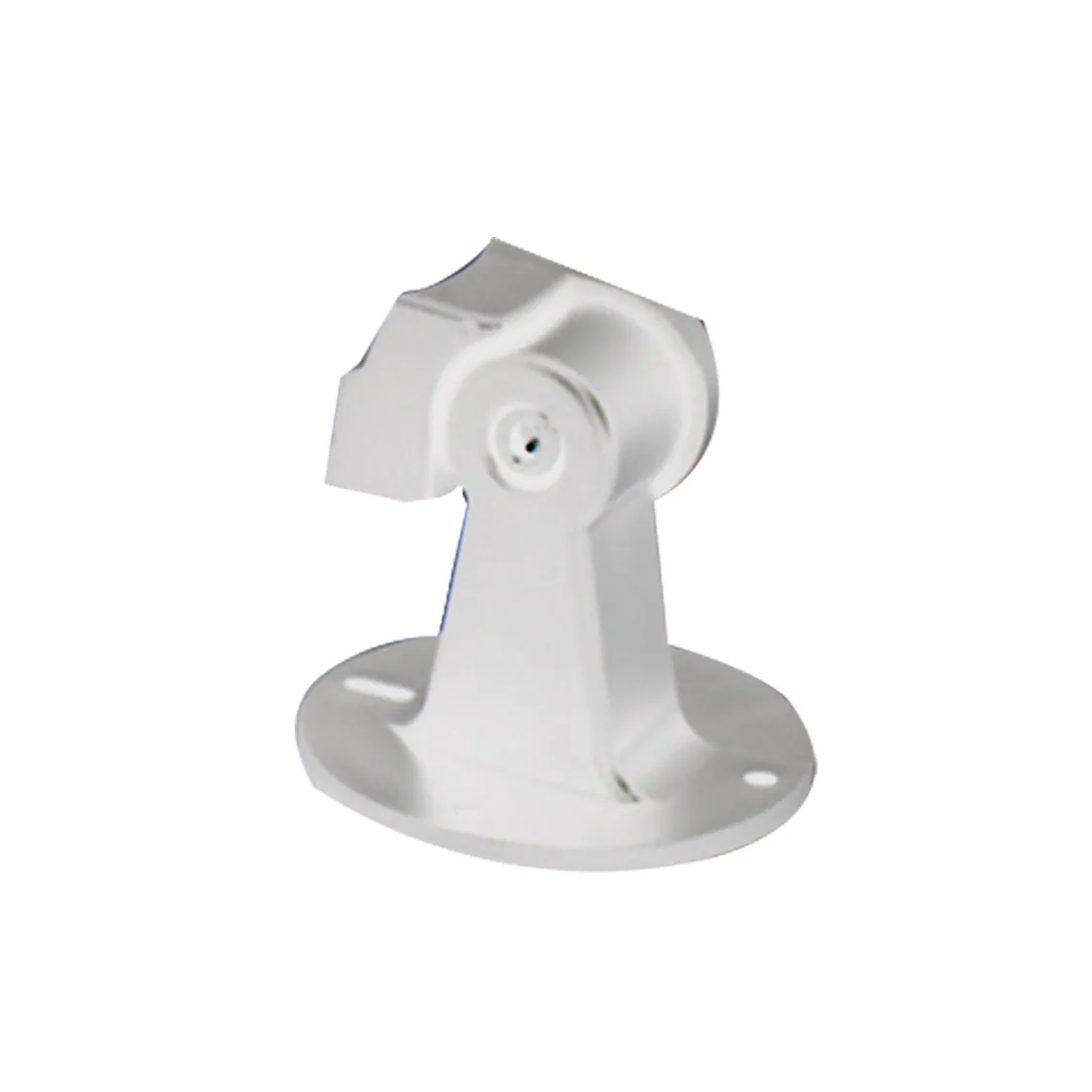

Ceiling suspension or wall mount optional

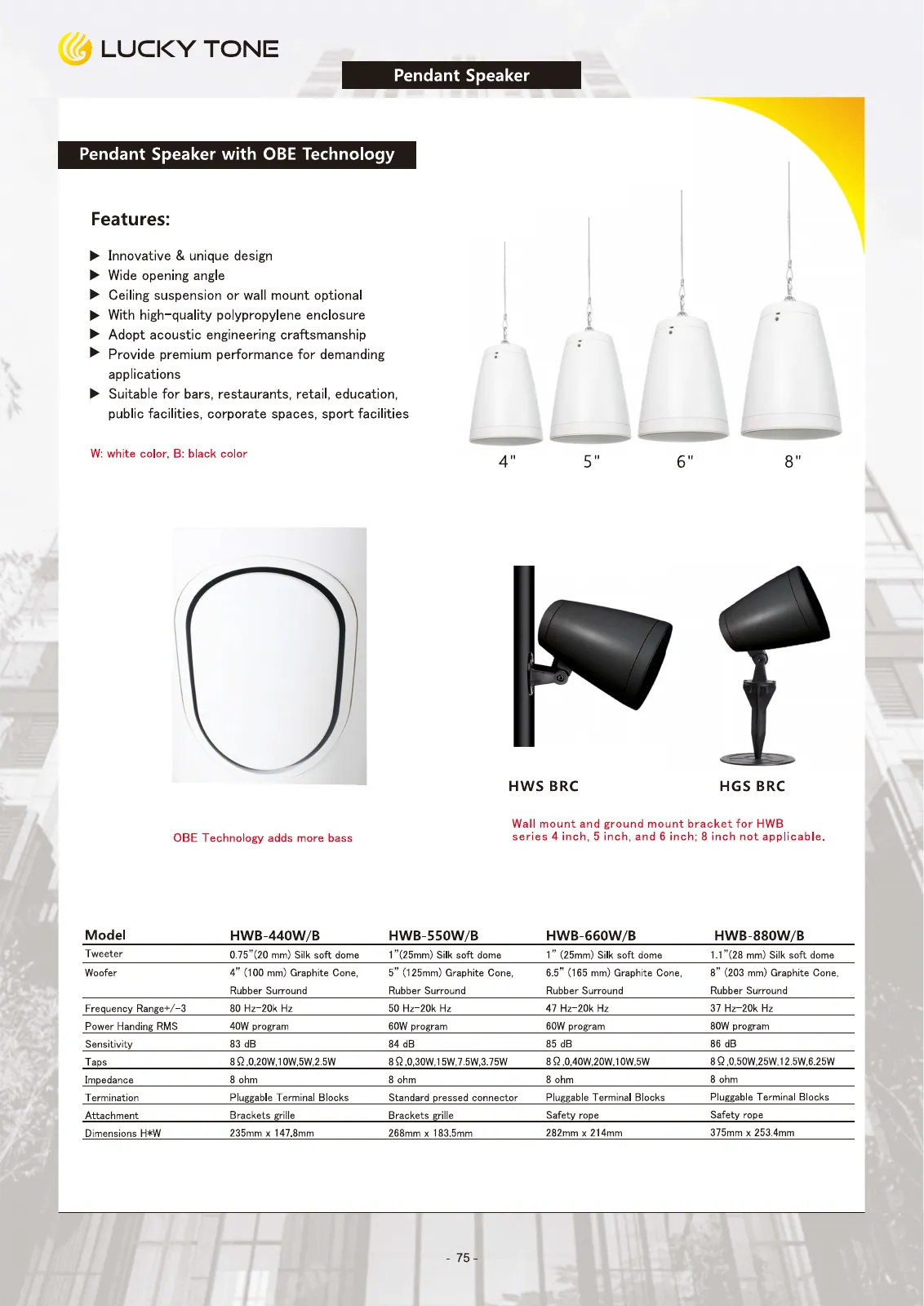

Models compared.
| Model | HWB-440W/B | HWB-550W/B | HWB-660W/B | HWB-880W/B |
|---|---|---|---|---|
| Tweeter | 0.75”(20 mm) Silk soft dome | 1”(25mm) Silk soft dome | 1” (25mm) Silk soft dome | 1.1”(28 mm) Silk soft dome |
| Woofer | 4” (100 mm) Graphite Cone,Rubber Surround | 5” (125mm) Graphite Cone,Rubber Surround | 6.5” (165 mm) Graphite Cone,Rubber Surround | 8” (203 mm) Graphite Cone,Rubber Surround |
| Frequency Range+/-3 | 80 Hz-20k Hz | 50 Hz-20k Hz | 47 Hz-20k Hz | 37 Hz-20k Hz |
| Power Handing RMS | 40W program | 60W program | 60W program | 80W program |
| Sensitivity | 83 dB | 84 dB | 85 dB | 86 dB |

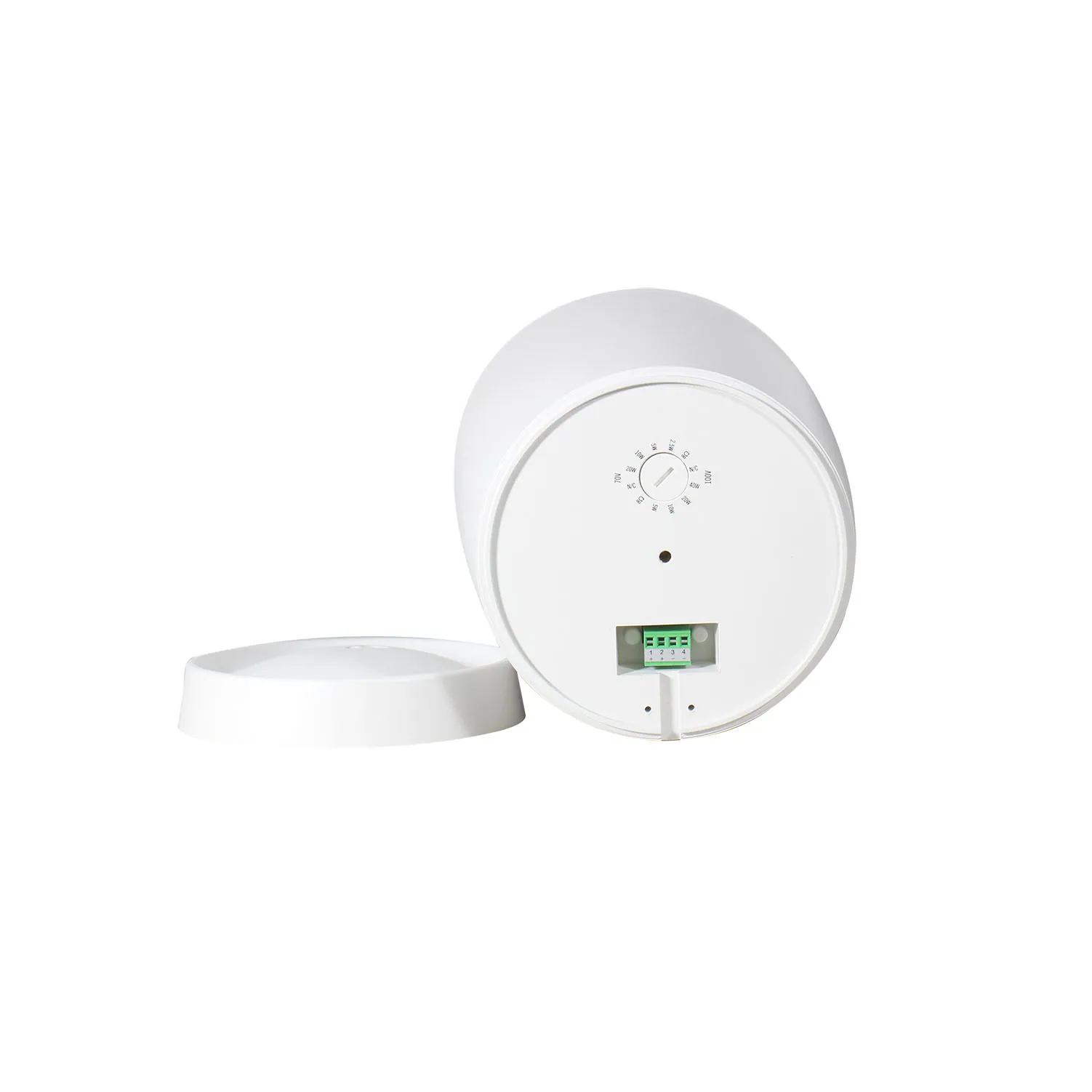

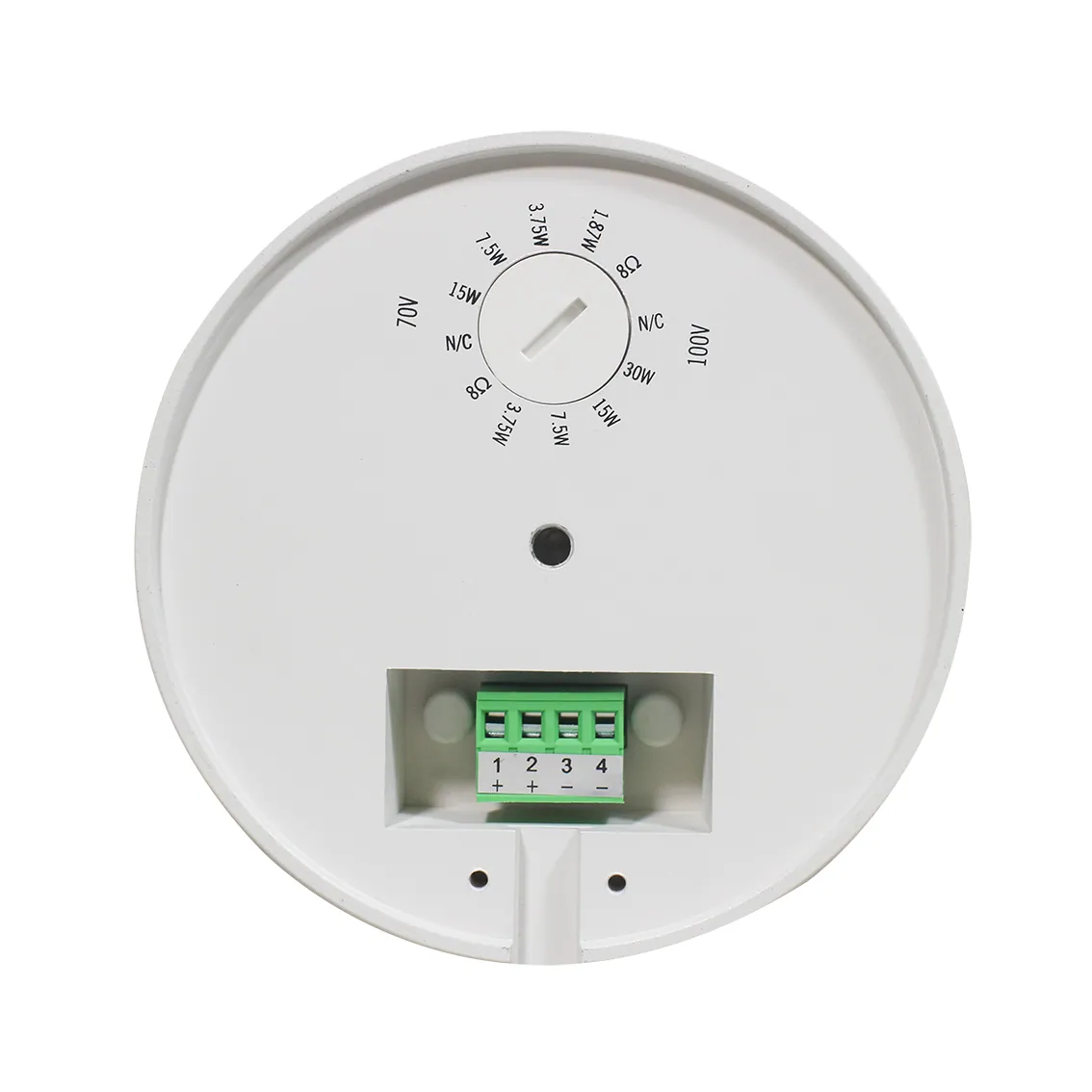

| Taps | 8Ω,0,20W,10W,5W,2.5W | 8Ω,0,30W,15W,7.5W,3.75W | 8Ω,0,40W,20W,10W,5W | 8Ω,0,50W,25W,12.5W,6.25W |
| Impedance | 8 ohm | 8 ohm | 8 ohm | 8 ohm |
| Termination | Pluggable Terminal Blocks | Standard pressed connector | Pluggable Terminal Blocks | Pluggable Terminal Blocks |
| Attachment | Brackets grille | Brackets grille | Safety rope | Safety rope |
| Dimensions H*W | 235mm x 147.8mm | 268mm x 183.5mm | 282mm x 214mm | 375mm x 253.4mm |
What it is.
Innovative & unique design
Wide opening angle
- With high-quality polypropylene enclosure
- Adopt acoustic engineering craftsmanship
- Provide premium performance for demanding applications
- Suitable for bars, restaurants, retail, education, public facilities, corporate spaces, sport facilities
- W: White Color,B: Black Color
