Sheet 05.426
Lucky Tone · Conference systems

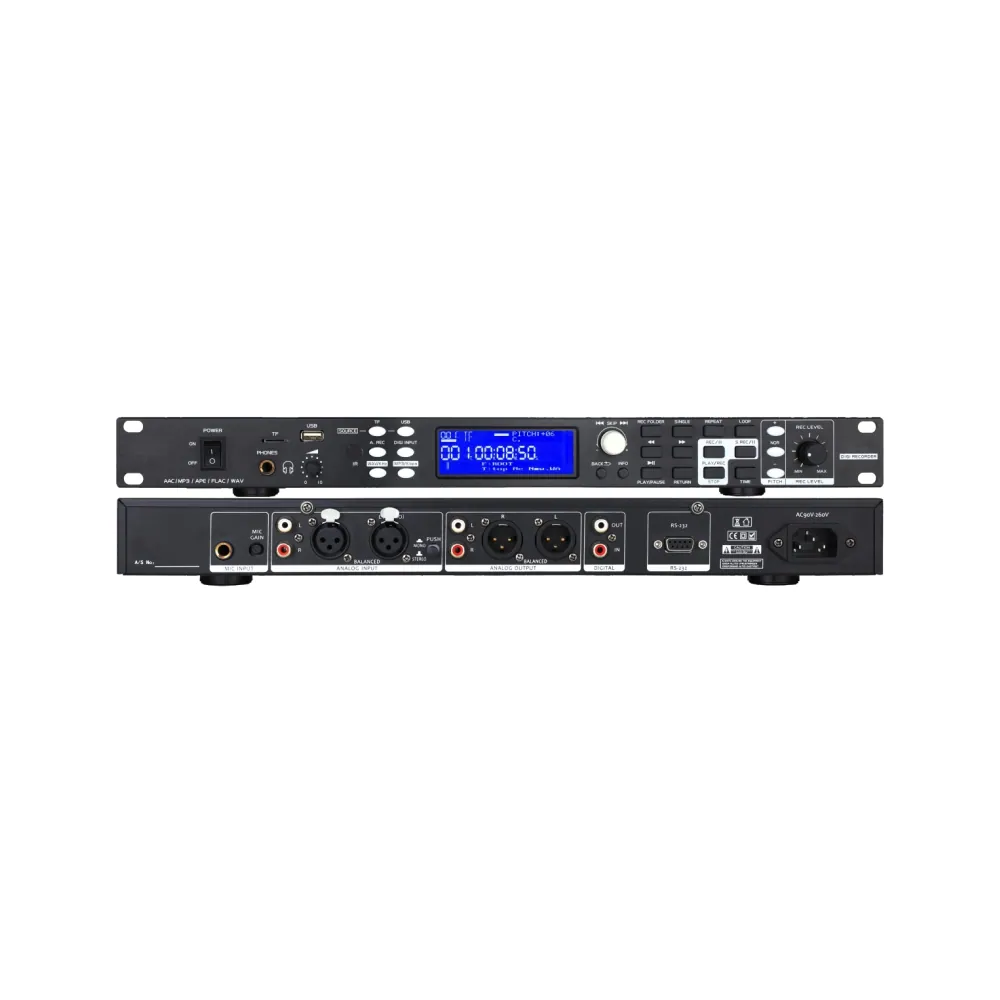

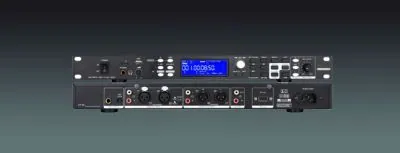

Professional Conference System Recorder
ModelLC-RCD
LC-RCD
- Frequency response
- 20hz – 20khz
- Power supply
- 90v-260v (50hz / 60hz)
- Weight
- 3 kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Professional Conference System RecorderPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 14 values
What this product is, in numbers.
PDFSpecifications2.4 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications14
- MODEL
- LC-RCD
- Power supply
- 90v-260v (50hz / 60hz)
- The power consumption
- 20w – 30w
- SNR
- 98 dB
- Frequency response
- 20hz – 20khz
- Audio output
- RCA,PHONES,XLR, DIGITAL
- Audio input
- RCA,XLR . DIGITAL . MIC
- Sound specifications
- USB,TF
- The total harmonic distortion
- >0.01%
- Dynamic Range
- > 98dB
- Distortion
- >0.01%
- Frequency
- 96KHz
- Size
- 483mm * 44mm * 210mm
- Weight
- 3 kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Professional Design
- 1U compact rack body size
- All New Design Main Control Board
- USB and TF recording and playing
- Hard disc is avalible (FAT 32)
- Accept AAC MP3 WAV APE FLAC playing
- Recording file can support WAV or Mp3
- Wav record support 48KHz or 96KHz
- MP3 record support 128 192 256 320 bit
Clear LCD display
- Mono transfer stereo audio switch button
- 0.01sec rapid record functions
- Record level manual adjust functions
Pitch +-24 functions
Auto record functions
- Digital or analog record switch
- Mic input record socket with vol
- Folders and tracks easy search by panel
- Rapid into Record folder button
- Single and continuous functions
- Repeat 1 and all functions
- Phones output with volume
- Time button functions (elapsed remain)
- 90V-260V switching power Supp
