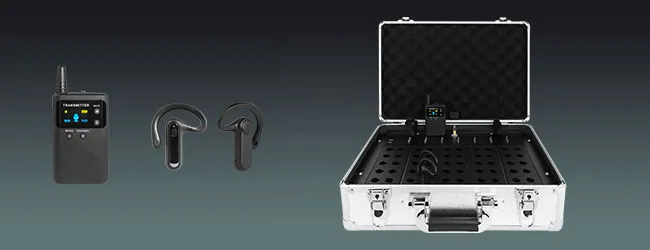

TG-2601 Tour Guide System
ModelTG-2601T
As a core tool for smart tourism, the tour guide system combines integrated technologies with scenario-based design to deliver efficient, personalized services for both visitors and attractions.
- Frequency response
- 2404–2478 MHz
- Dimensions
- 55×126×26mm
- Weight
- 105g
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
TG-2601 Tour Guide SystemPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 47 values
What this product is, in numbers.
PDFSpecifications1.6 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications47

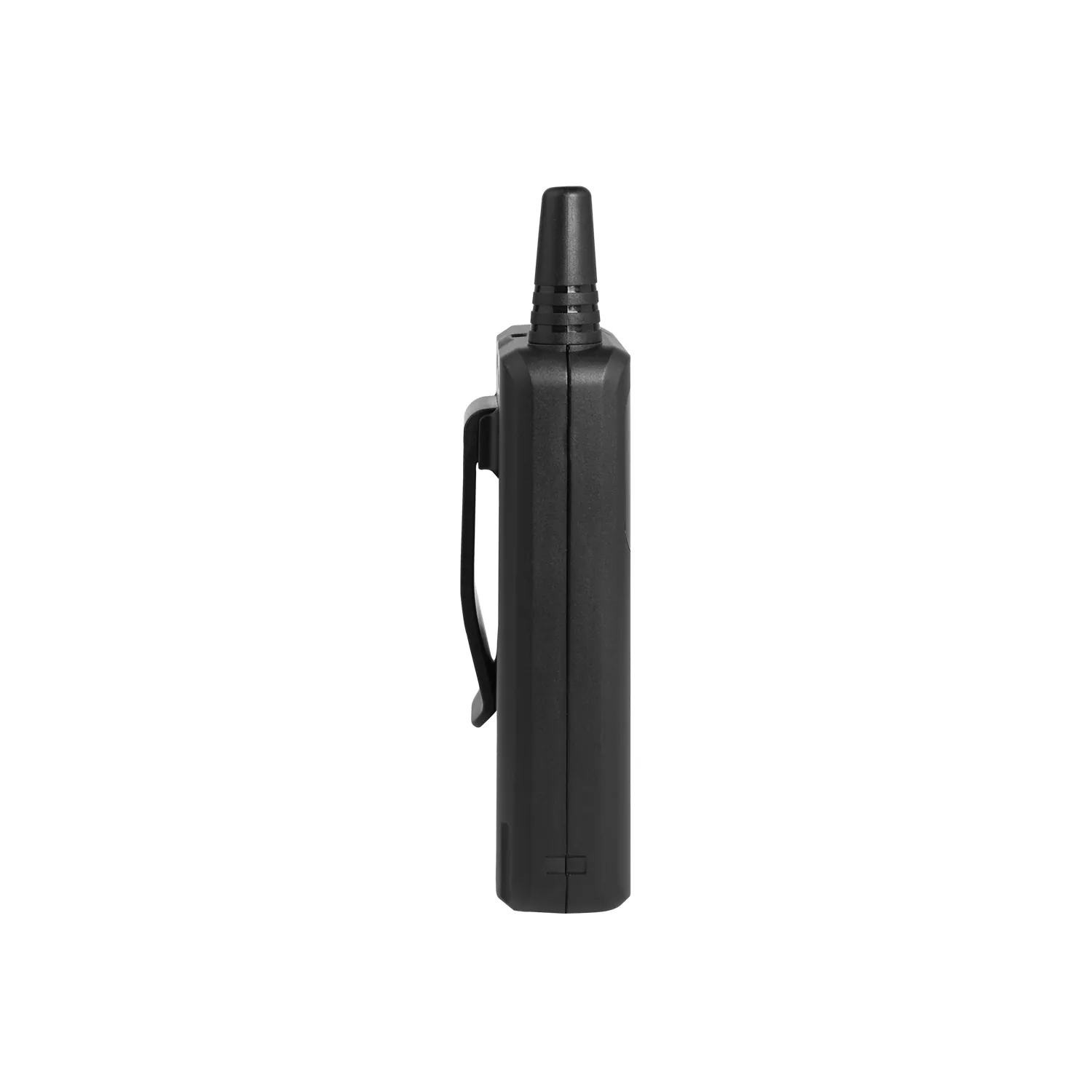

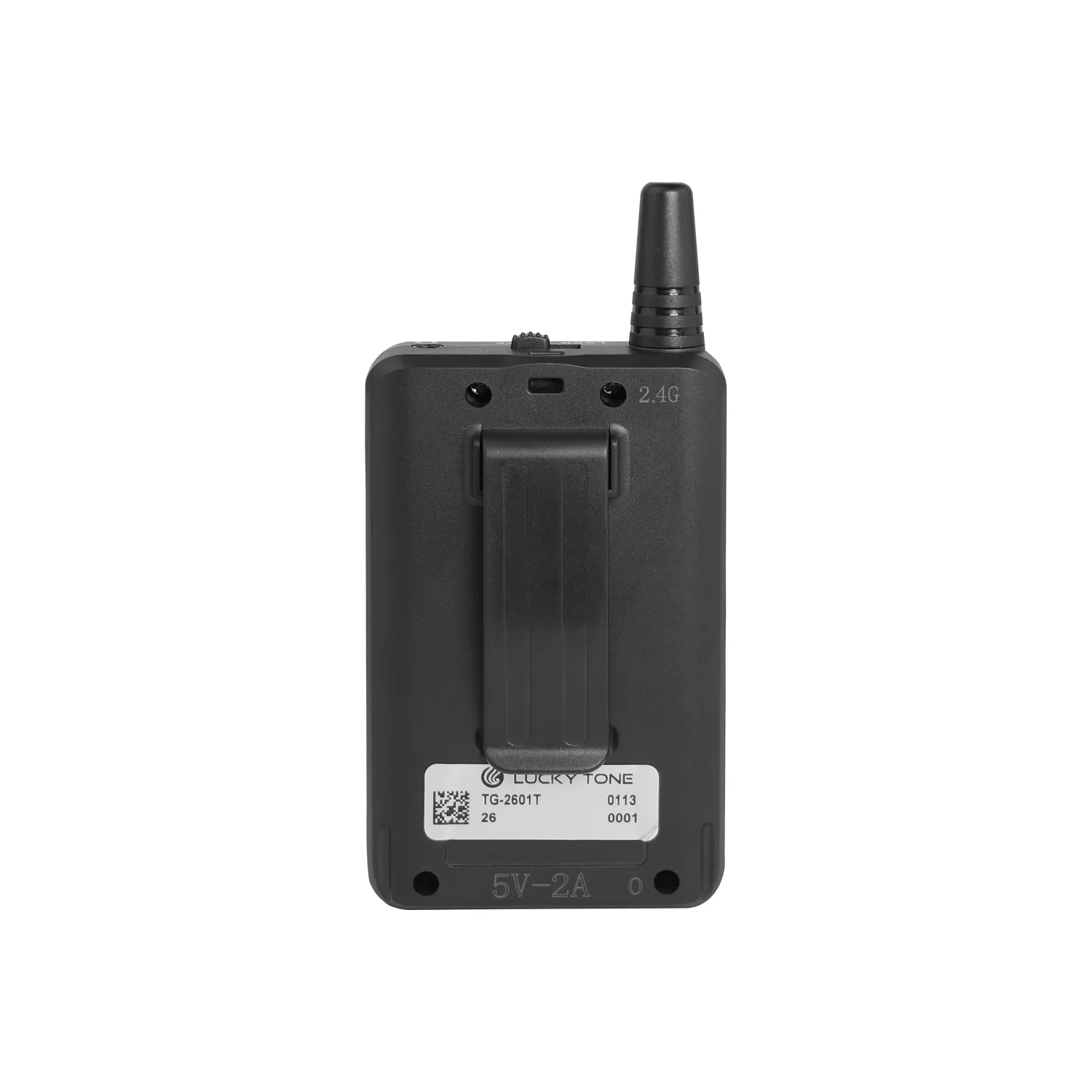

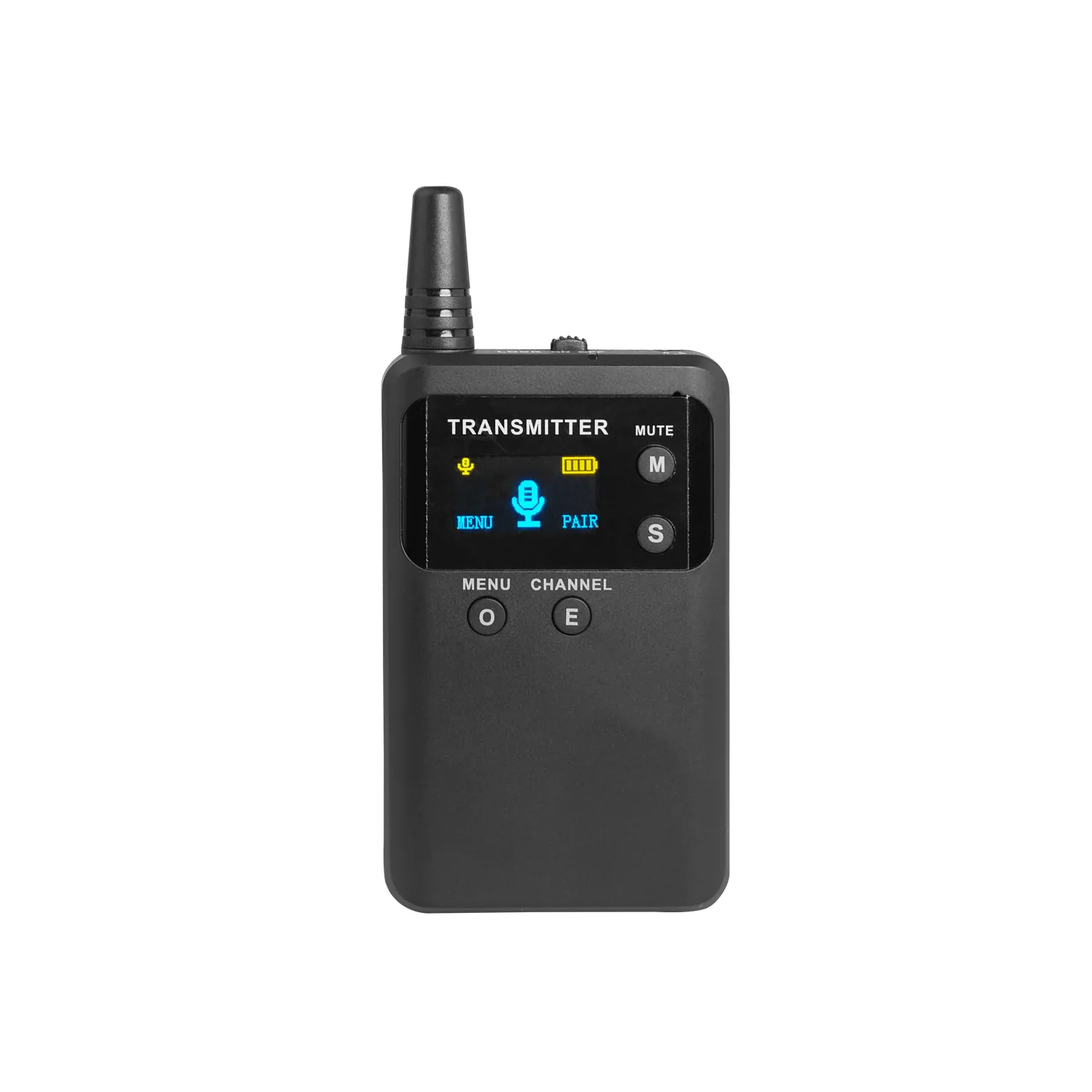

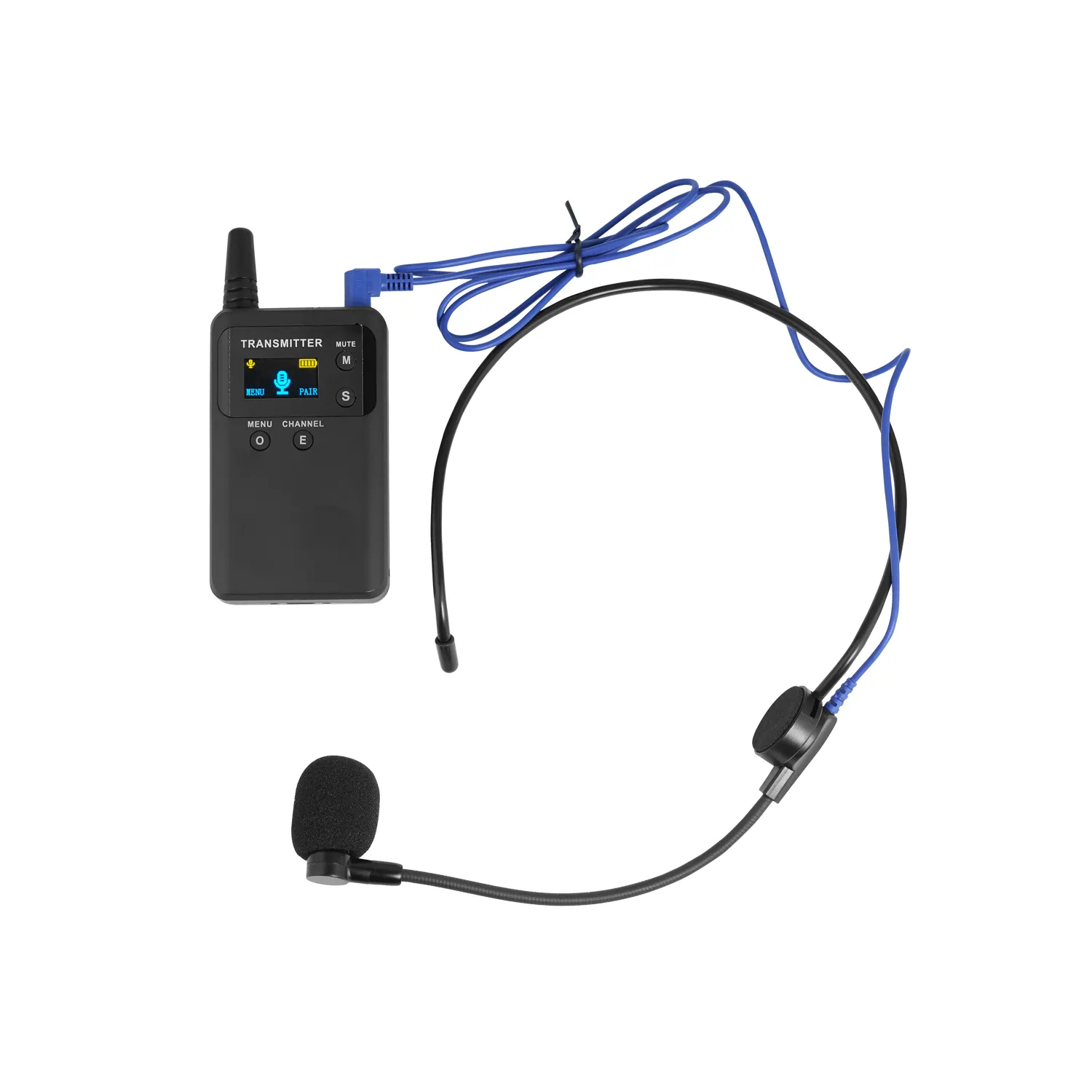

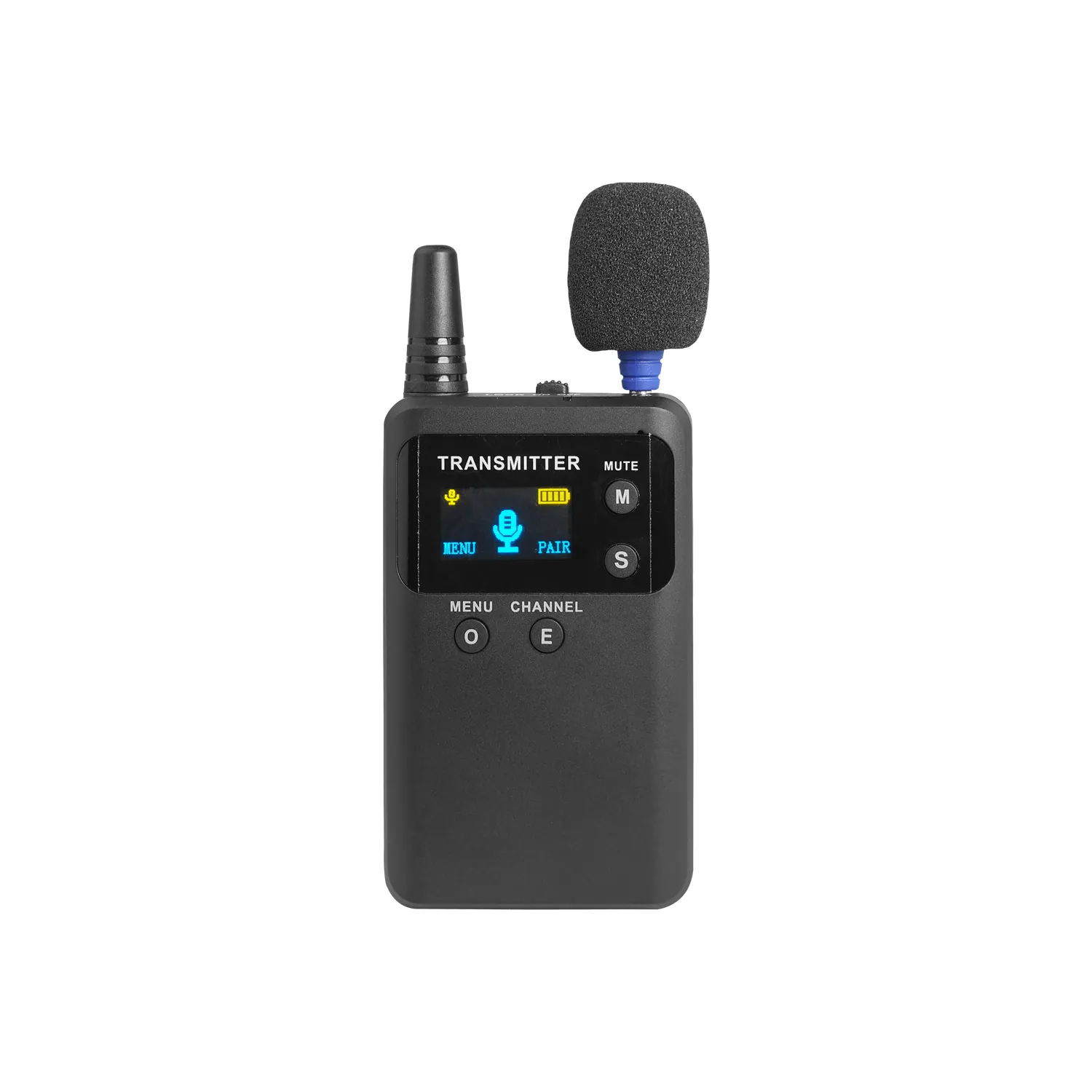

- Model
- TG-2601T
- Frequency Range
- 2404–2478 MHz
- Frequency Response
- 100 Hz–20 kHz
- Channels
- 999
- Pairing Method
- One-key Automatic Pairing
- Charging Voltage
- DC 5V
- Operating Current
- 140 ± 5 mA
- S/N Ratio
- >67dB
- Dynamic Range
- 95dB
- T.H.D
- <0.5% @ 1kHz
- Battery Runtime
- Approx. 20 hours
- Charging Time
- Approx. 3.5–4 hours
- Dimensions
- 55×126×26mm
- Weight
- 105g
- Effective Operating Range
- 100 m
- Battery Type
- Lithium Polymer Battery
- Material
- ABS
- Color
- Black
- Standard Accessories
- Lanyard

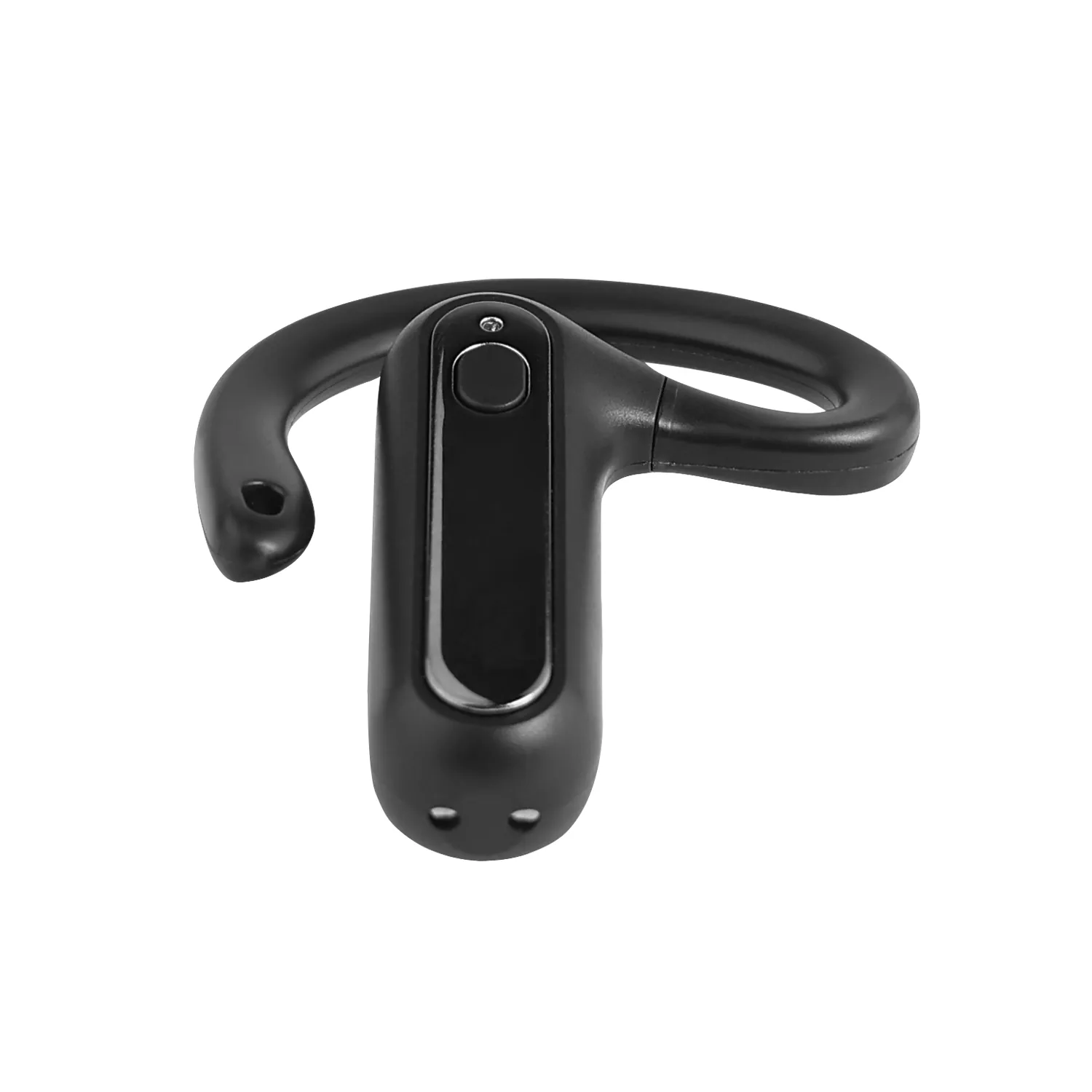

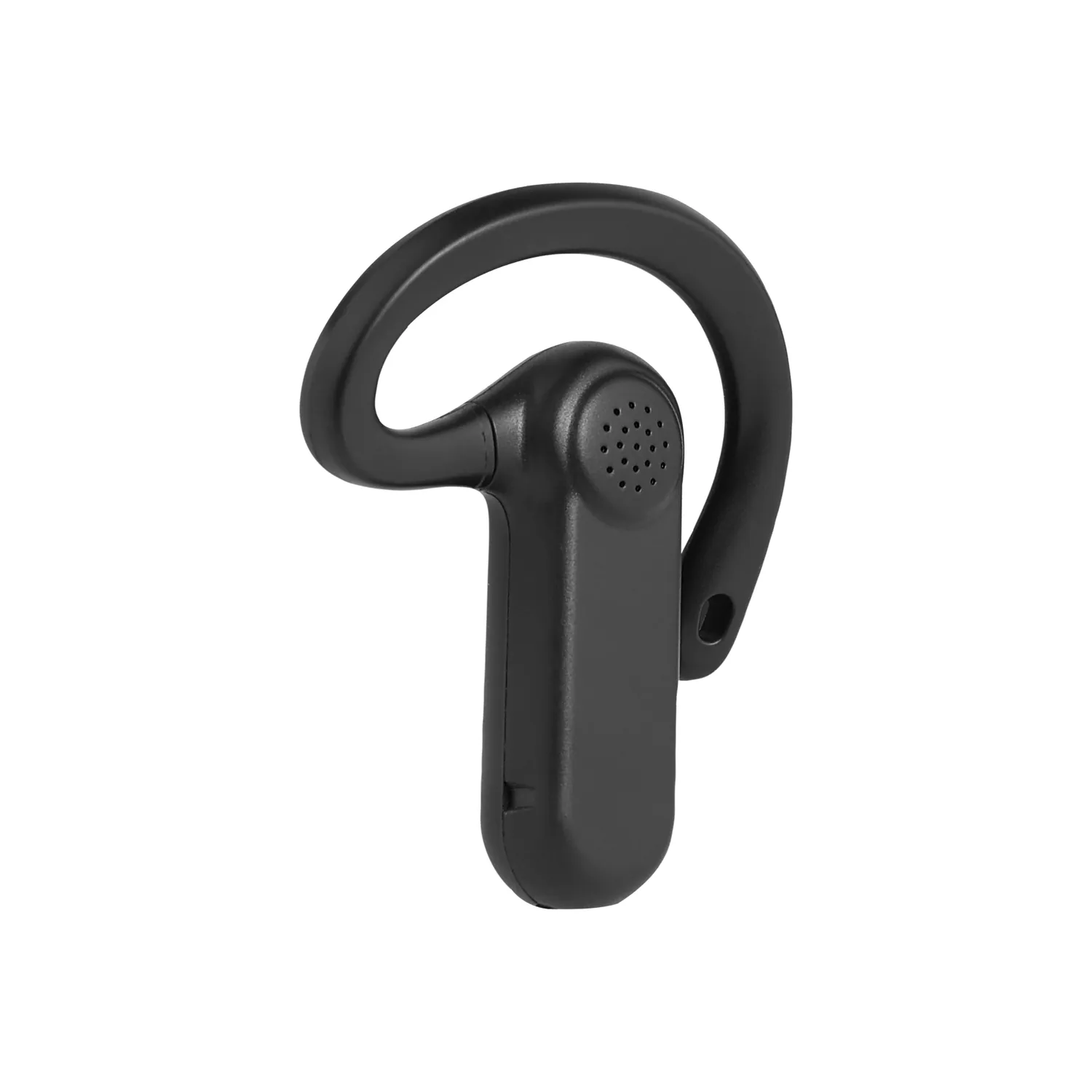

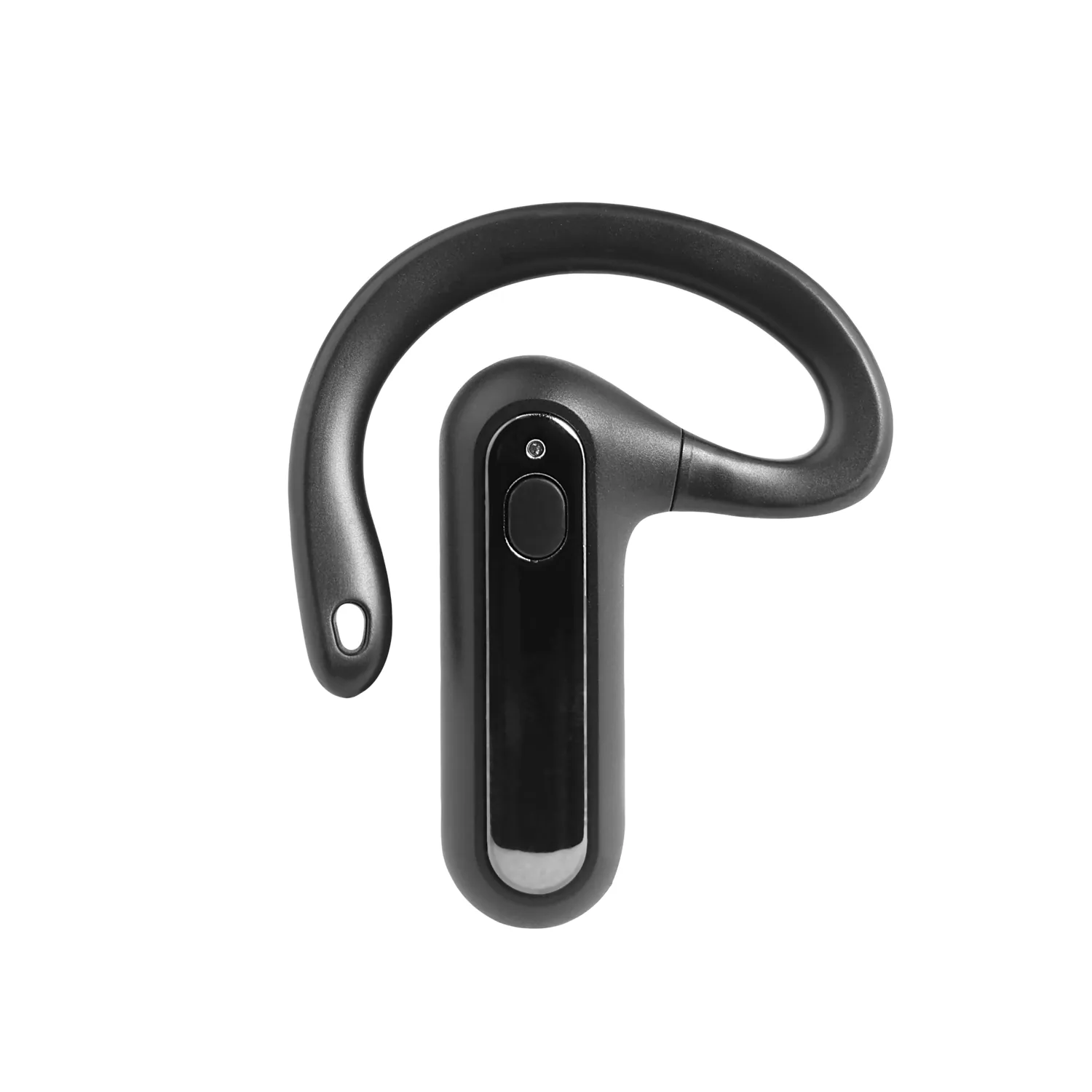

- Model
- TG-2601R
- Frequency Range
- 2404–2478 MHz
- Frequency Response
- 100 Hz–20 kHz
- Channels
- 999
- Pairing Method
- One-key Automatic Pairing
- Charging Voltage
- DC 5V
- Operating Current
- 19 ± 5 mA
- S/N Ratio
- > 50 dB
- Sensitivity
- 97dB
- Distortion
- < 0.5% @ 1 kHz
- Battery Life
- Approx. 6 hours
- Charging Time
- Approx. 1.5–2 hours
- Device Dimensions
- 61.8×51.7×12.5mm
- Device Weight
- 11.8g
- Effective Operating Range
- 100 m
- Battery Type
- Lithium Polymer Battery
- Housing Material
- ABS
- Color
- Black
- Standard Accessories
- Earhook

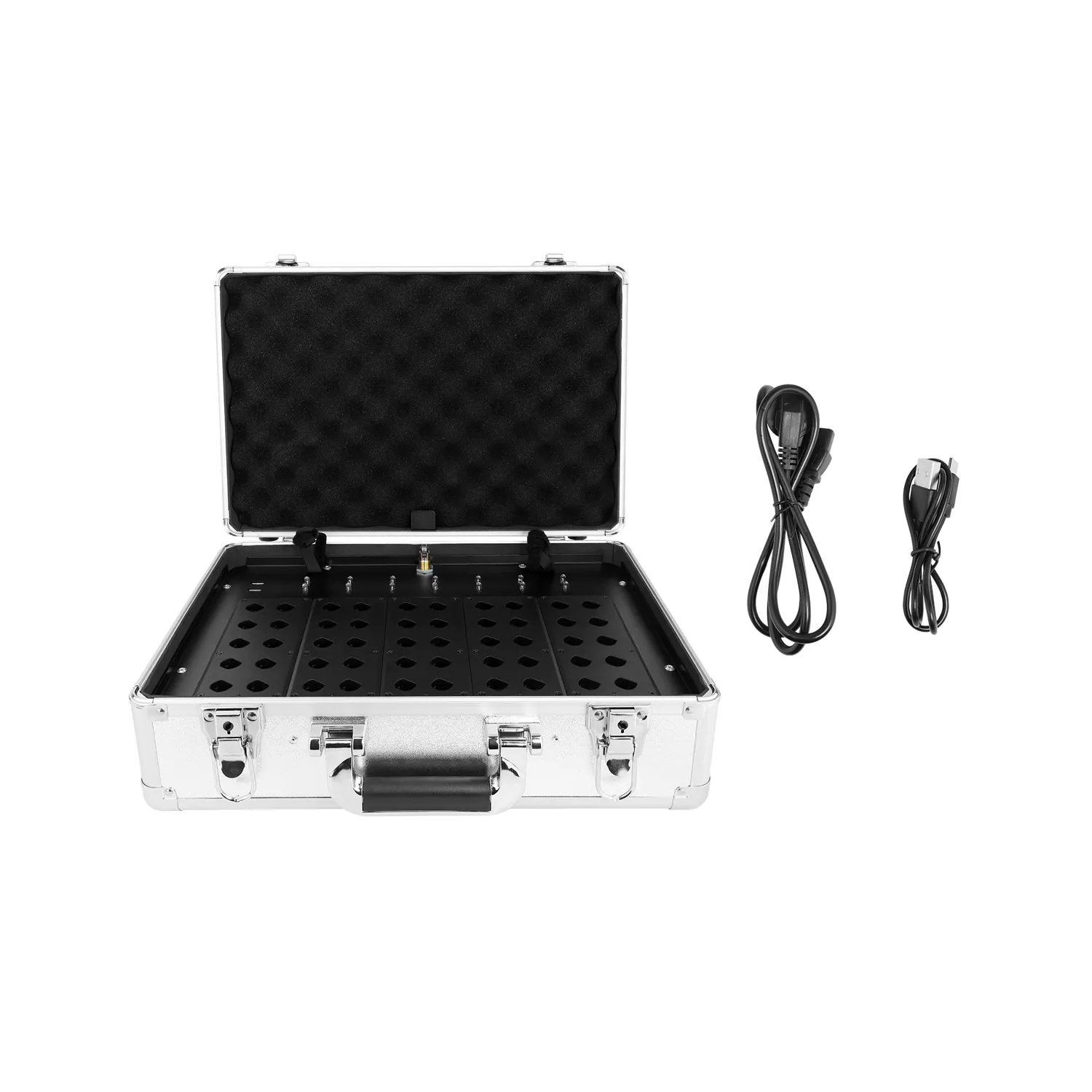

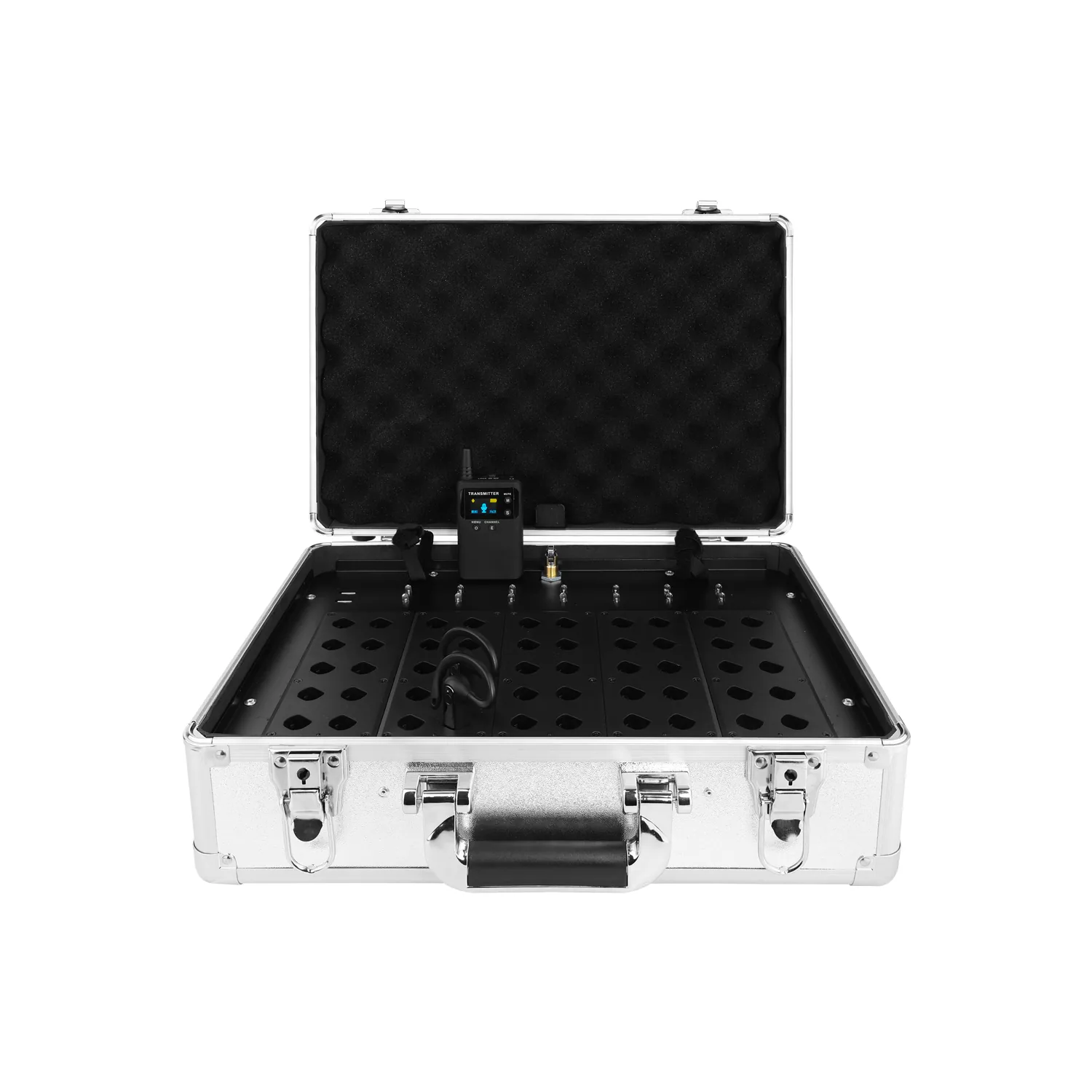

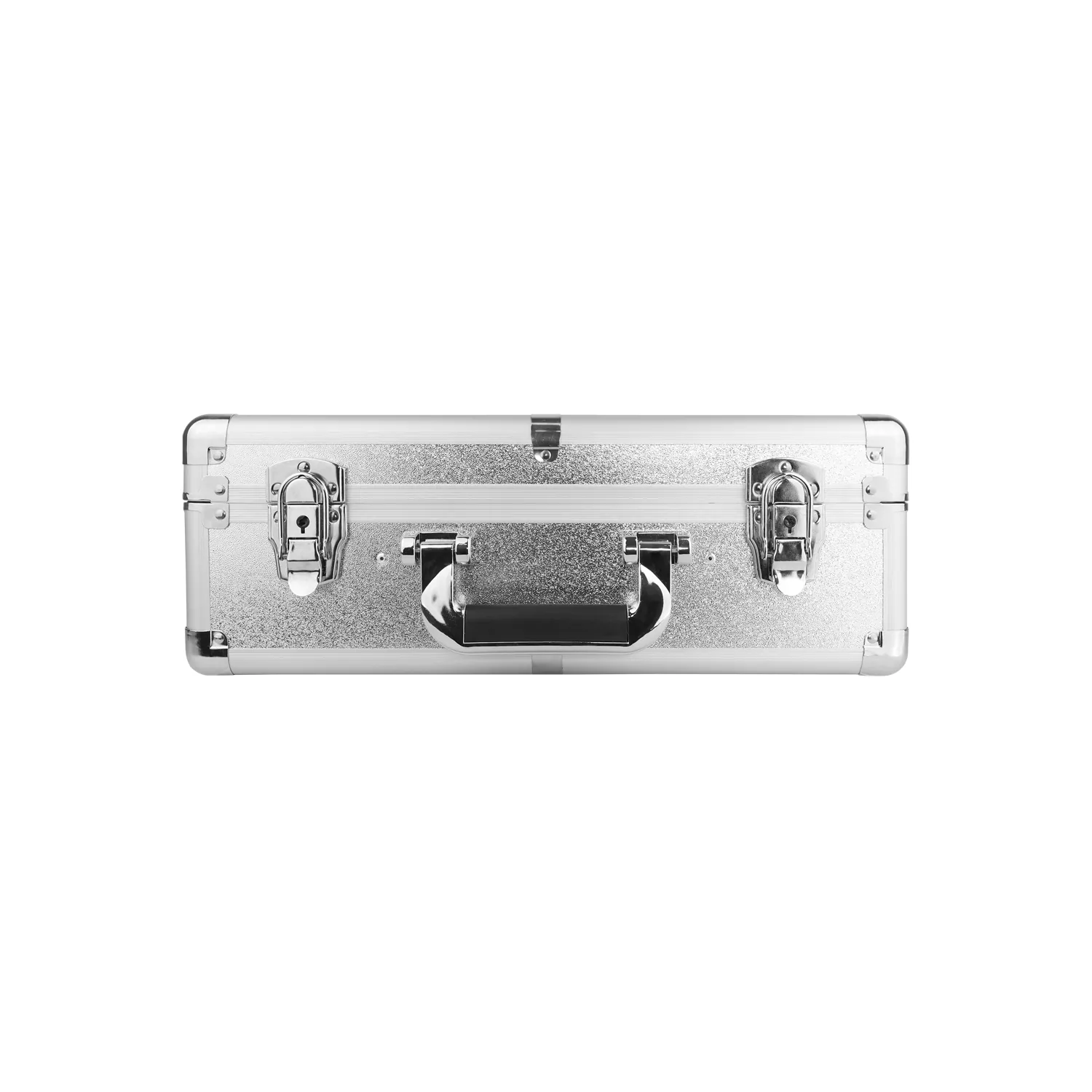

- Model
- TG-2601C
- Power Consumption
- 50W
- Input voltage
- 200-240V/ 50-60Hz
- Output voltage
- DC5V/10A
- Precision
- ±5%
- Dimension
- 420×157×350 mm
- Slots
- 50
- Charging port
- 2
- Weight
- 3.49kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Description
Features
2.4G line-of-sight transmission with strong anti interference performance; multi-channels for multi-group use without cross-talk.
Capacity battery supports up to 20 hours of continuous use, meeting all-day guided tour demands.

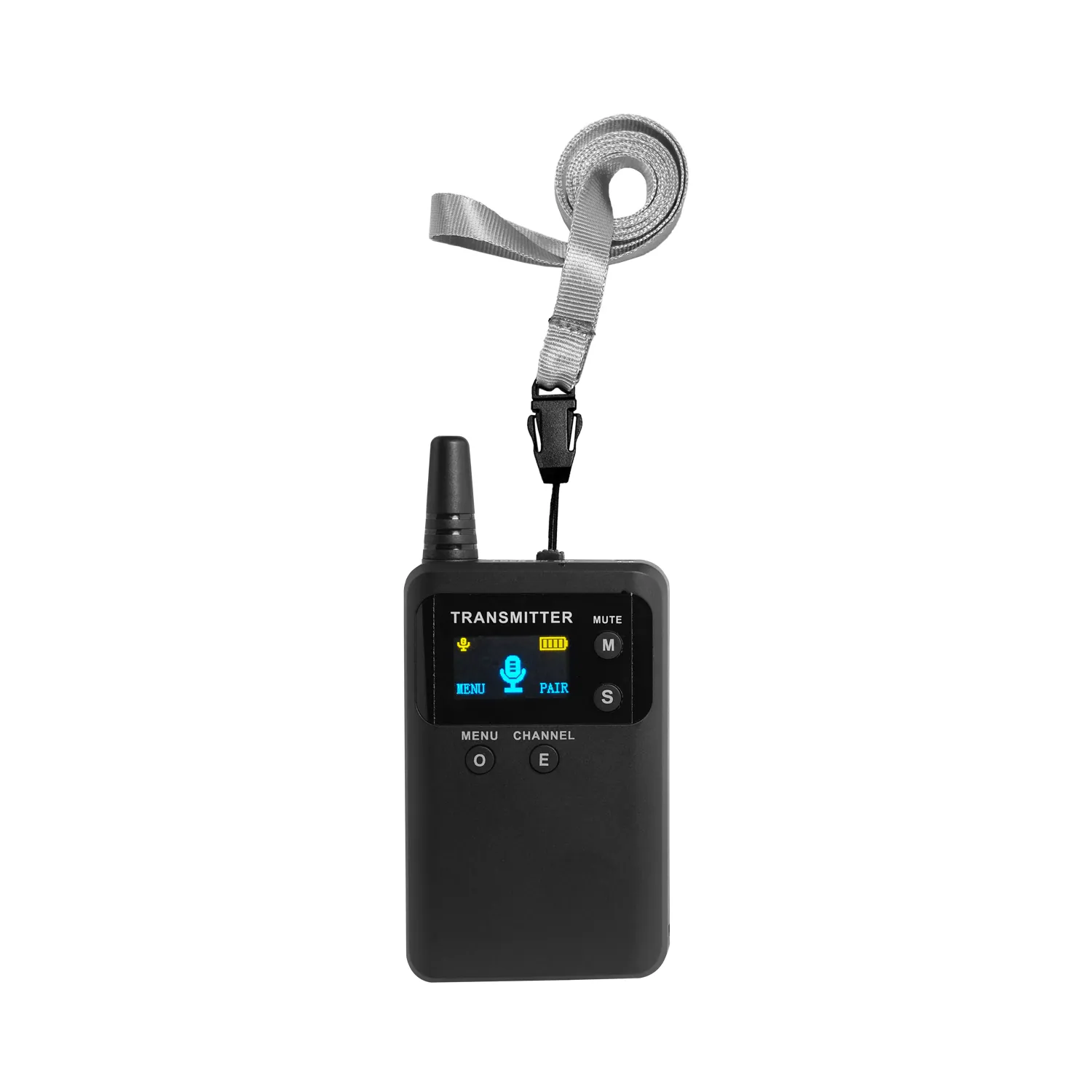

Lightweight design with a lanyard for neck or chest wear; ABS non-slip, drop-resistant housing.
Manual tuning via knob or buttons for quick channel switching; transmit power is meeting international safety requirements.
Supports custom branding with logo laser engraving or printing

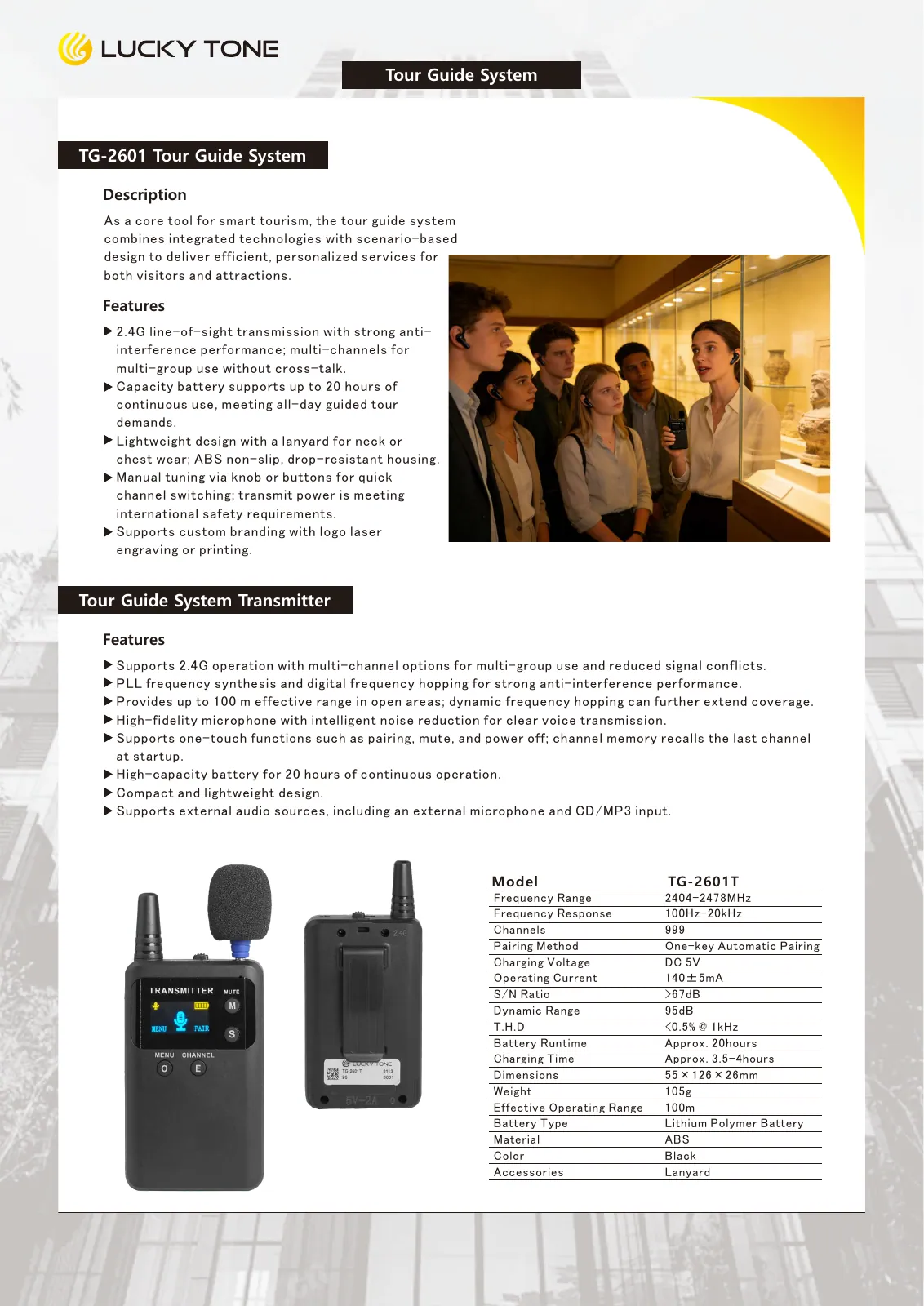

03Documents1 file · 1.6 MB
