Sheet 05.449
Lucky Tone · Microphones

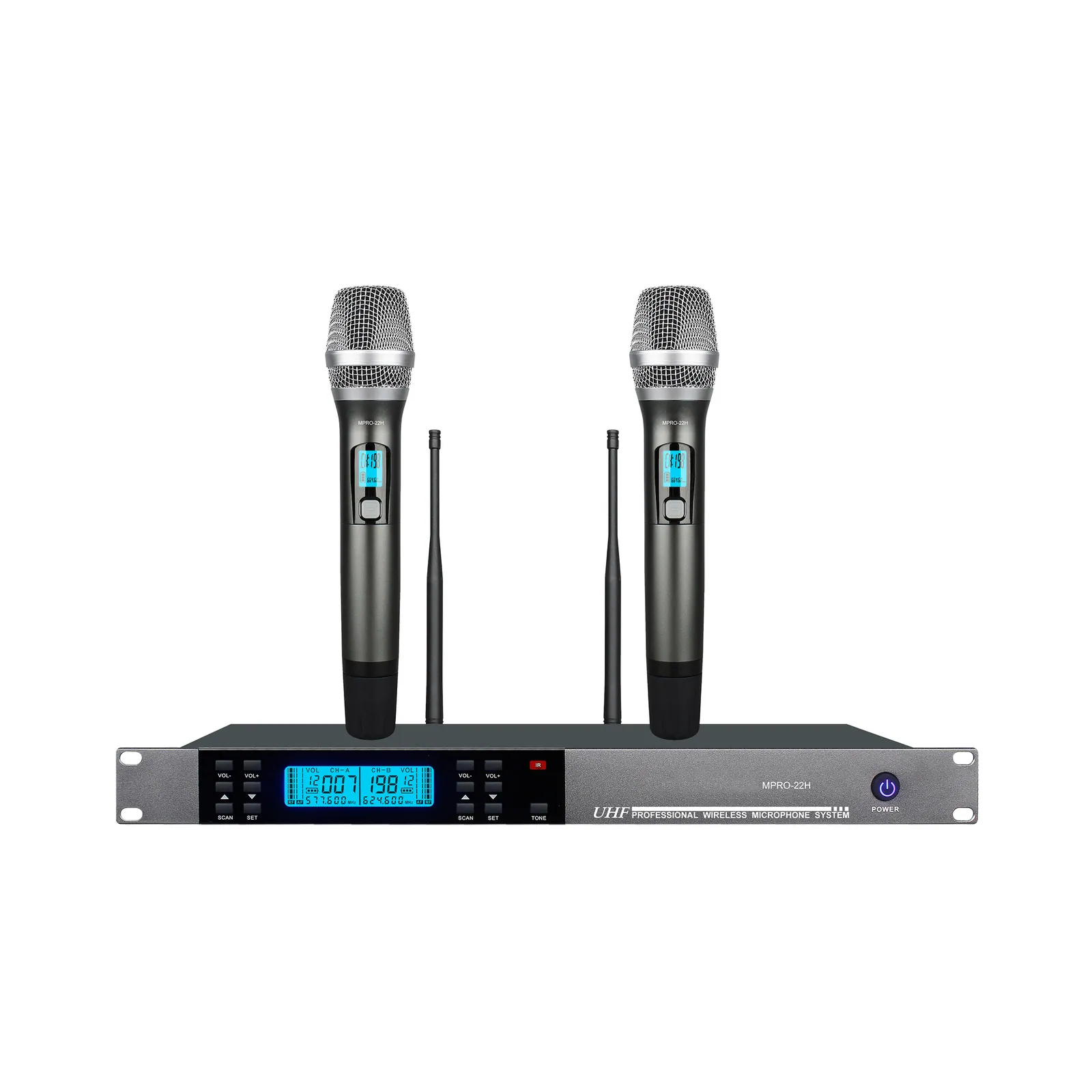

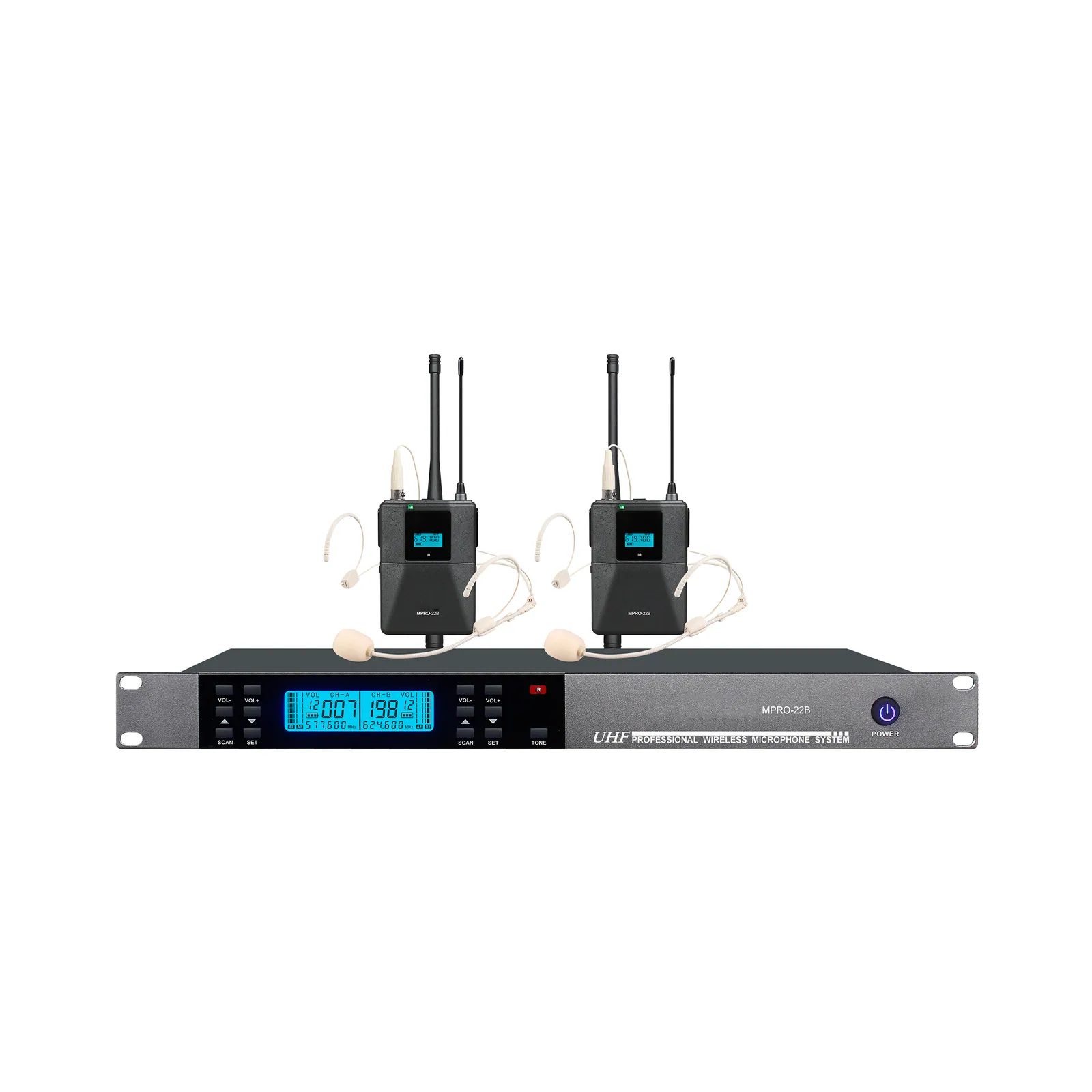

Lucky Tone Dual Channel Wireless Microphone MPRO-22H/MPRO-22B
ModelMPRO-22H/MPRO-22B
With UHF PLL circuit, achieving long-distance receiving and enhancing signal stability
- Output power
- 30rnW
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Dual Channel Wireless MicrophonePrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 18 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications18
- Model
- MPRO-22H/MPRO-22B
- Bandwidth
- 50MHz
- Frequency interval
- 250KH
- Carrier frequency
- UHF520-950MHz
- Channel number
- 2 channels
- Chassis material
- Metal chassis
- Rack unit
- EIA standard 1U
- RF stability
- ±0.005%(-10~50°C)
- Oscillating mode
- PLL phase-locked frequency synthesis
- Switchable frequency number
- 200 selectable
- Receiving mode
- Dual Tuner auto-select
- Bandwidth
- 25MHz
- FM mode
- Infrared pairing
- Output power
- 30rnW
- Max Offset
- ±70KHz
- Microphone capsule
- Dynamic
- Power supply mode
- 2 AA batteries
- Battery life
- About 8 hours
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
MPRO-22H/MPRO-22B
With IR auto pairing key
With strong anti-interference ability, faster connection speed, and more stable signal
Sturdy and durable
- Easy to operate and set up

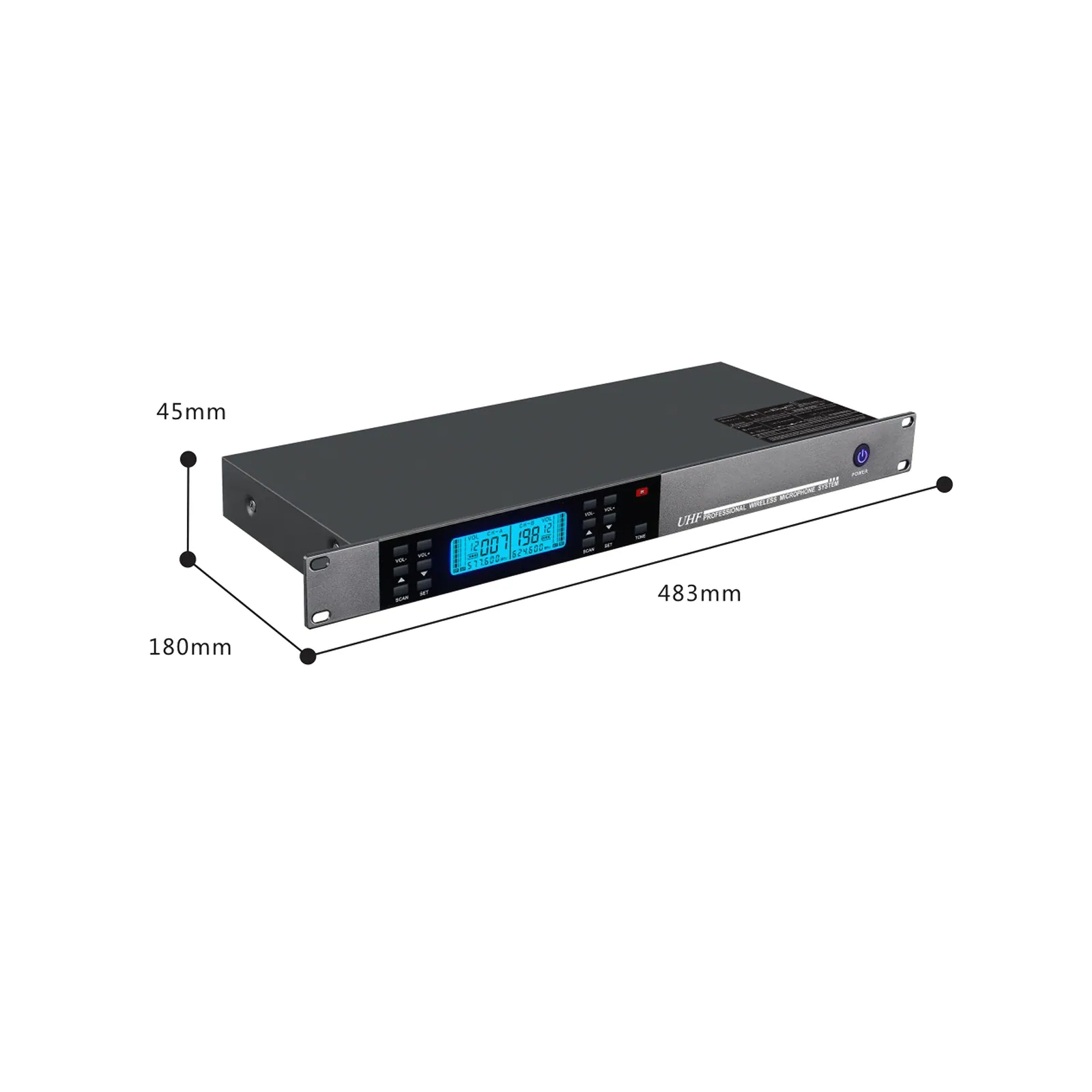

- 1U metal cabinet with built-in dual-channel receiving module
- A preset group of 150 frequencies do not interfere with each other
- Ideal for karaoke, home KTV, big party, DJ, church, wedding, speech, class use
