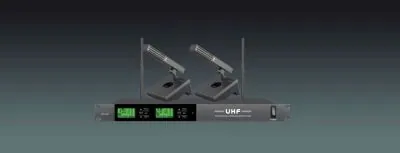

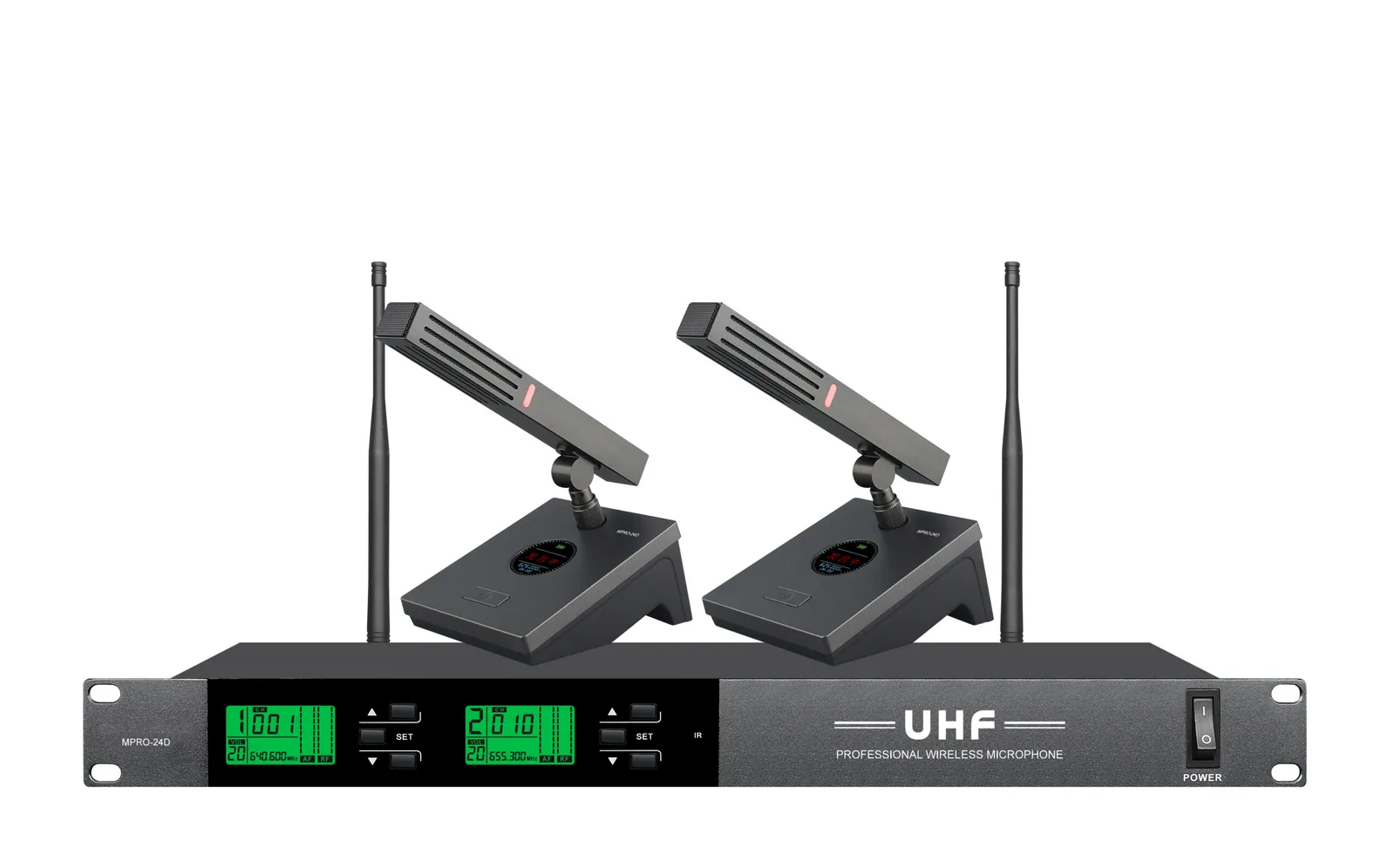

Lucky Tone Dual Channel Wireless Microphone MPRO-24D

ModelMPRO-24D

UHF wireless microphone is less likely to subject to interference than VHF microphone, transmitting more stable signal.

Frequency response: UHF499MHz-900MHz
Power supply: DC 12V

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 22 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications22

Model: MPRO-24D
Receiver
Oscillation mode: PLL frequency synthesis
Frequency range: UHF499MHz-900MHz
Frequency stability: ±0.001%
Modulation mode: FM
SNR: >60dB
Distortion: <0.5%@1KHz
Receiver sensitivity: 1.2/UV @S/N=12dB
Power supply: DC 12V
Audio output: Independent 0-2V2/Hybrid 0-2V
Transmitter
Power supply: DC 3V(1.5V AA×3)
Microphone power consumption: 110mA
Carrier frequency: UHF499MHz-937MHz
Frequency stability: ±0.001%
Max frequency offset: ±70KHz
SNR: >60dB
Adjacent frequency interference ratio: >80dB
Dynamic range: ≥100dB
Microphone capsule: Dynamic
Directivity: Cardioid
Frequency response: 60Hz-17KHz
Microphone sensitivity: -42±2dB@1KHz

02DescriptionManufacturer's description

What it is.

MPRO-24D

Up to 200 frequencies, several sets of microphones can be used simultaneously without worrying about interferences

With auto pairing technology
With high-end liquid crystal display
Ultra-long operating range. The UHF Handheld wireless microphone has a wireless range of up to 100 meters.
Digital ID identification technology, without worrying about interferences
Unique digital encryption technology, preventing off-site surveillance or eavesdropping
Built-in feedback suppressor, one-key eliminating howling
