Sheet 05.259
Lucky Tone · Mixers and processors

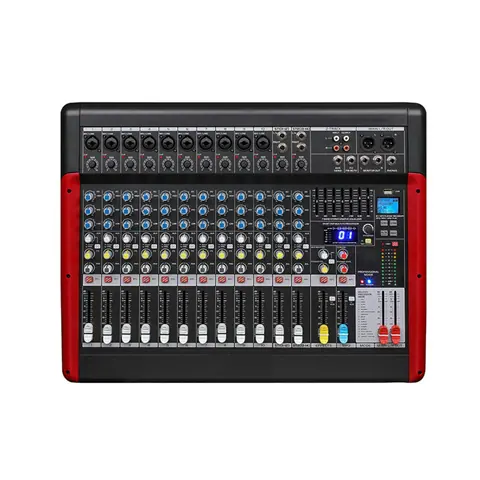

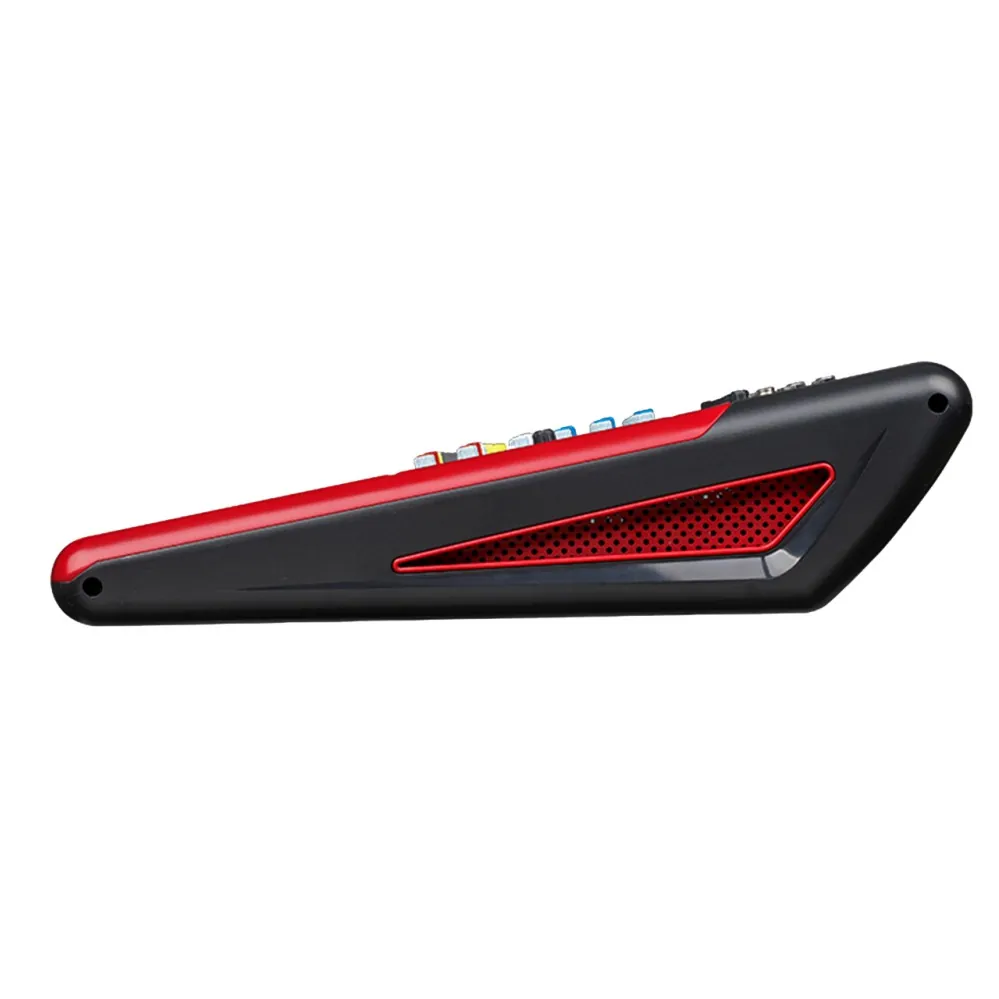

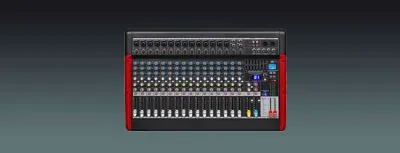

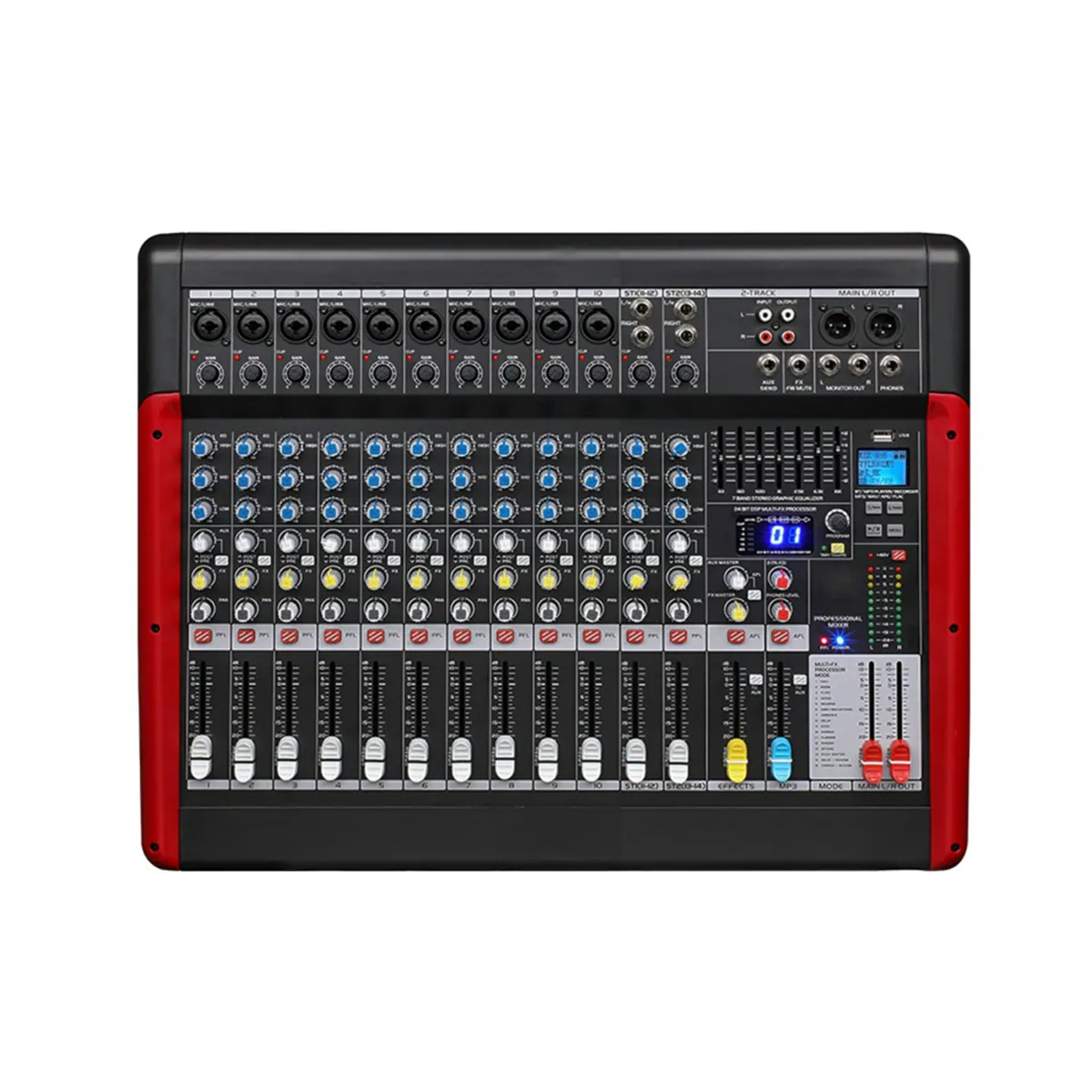

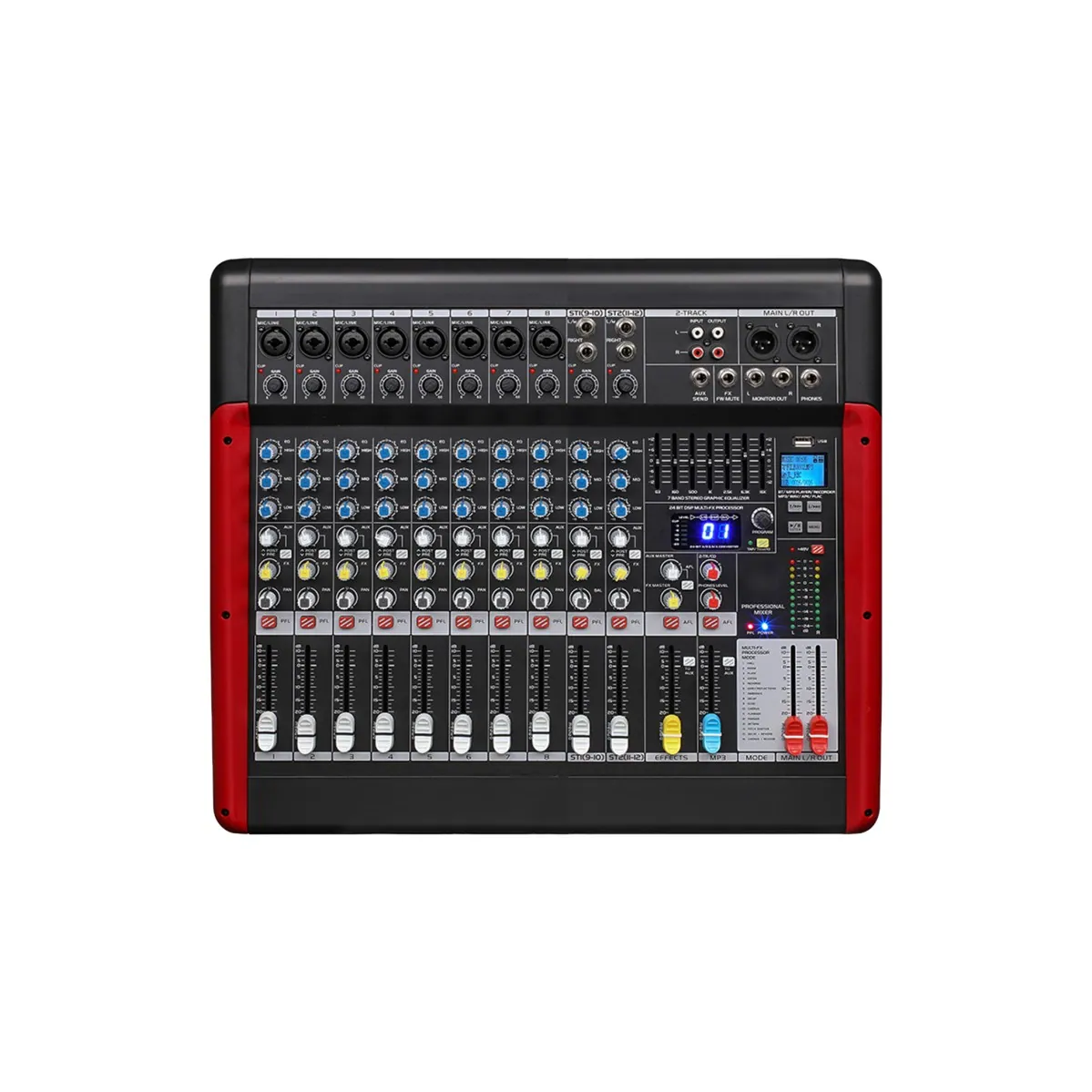

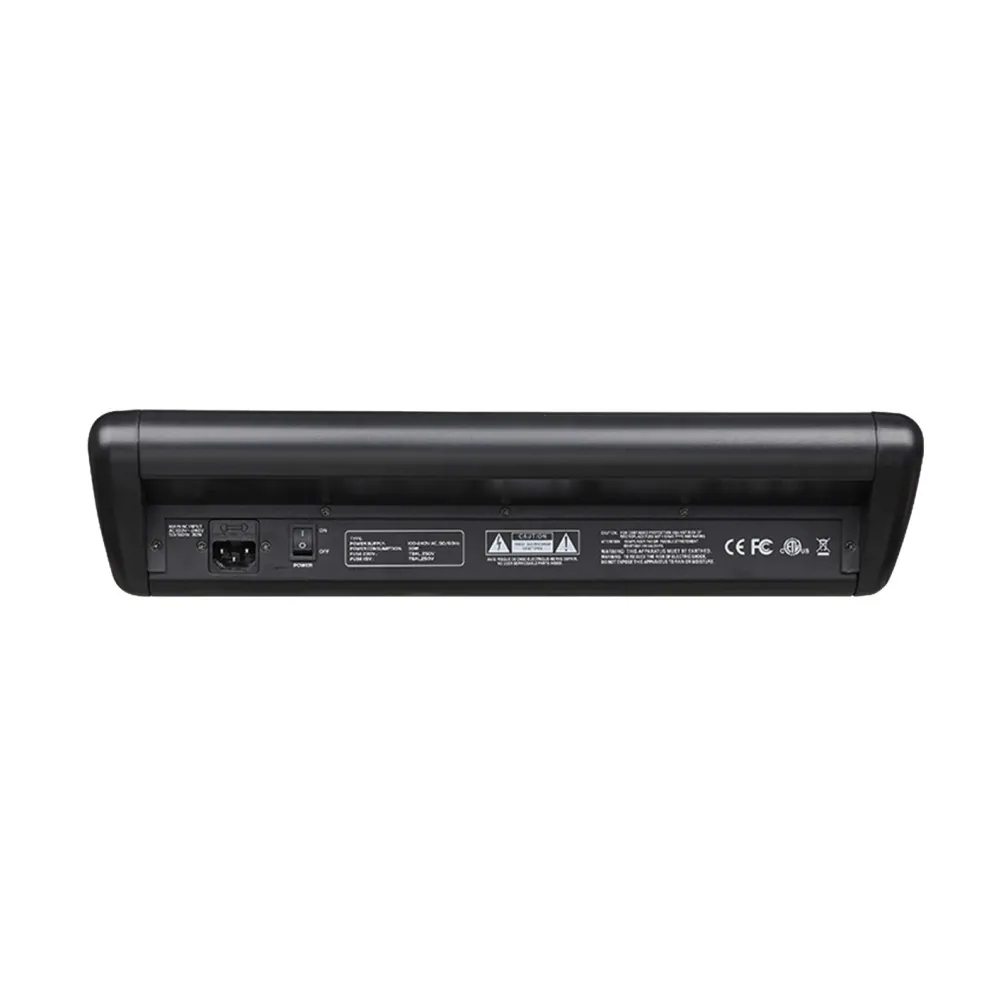

MG Series Audio Mixer
ModelMX-12FX / MX-14FX / MX-18FX
8 mono+2 stereo / 10 mono+2 stereo / 14 mono+2 stereo channel
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
MG Series Audio MixerPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| MODEL | MX-12FX | MX-14FX | MX-18FX |
|---|---|---|---|
| Line Channel | 8 mono+2 stereo | 10 mono+2 stereo | 10 mono+2 stereo |
| Channel EQ | 3 BAND | 3 BAND | 3 BAND |
| AUX Output | 2 | 2 | 2 |
| EFFECT | 24bit DSP effect processor | 24bit DSP effect processor | 24bit DSP effect processor |
| Main EQ | 7 BAND | 7 BAND | 7 BAND |
| Gain control | MIC +34dBu /Line+26dBu | MIC +34dBu /Line+26dBu | MIC +34dBu /Line+26dBu |
| Phantom Power | 48V DC | 48V DC | 48V DC |
| Faders | 60mm dust protected faders | 60mm dust protected faders | 60mm dust protected faders |
| Other functions | 2-Track monitoring and replay to LR,Headphones and local monitor outputs,MP3 player/recorder | 2-Track monitoring and replay to LR,Headphones and local monitor outputs,MP3 player/recorder | 2-Track monitoring and replay to LR,Headphones and local monitor outputs,MP3 player/recorder |
02DescriptionManufacturer's description
What it is.
LR main mix/ 2 AUX sends
Responsive 3 band EQ
Individual phantom power
- Channel and master meters
- Per channel pre/post fader aux switching
- 60mm dust protected faders
- 2-Track monitoring and replay to LR
- Headphones and local monitor outputs
- Dedicated stereo, peak-retaining monitor meters
- Electronically balanced XLR outputs with +26dBu drive capability
- Preamp +34dBu maximum input capability for mic or line
- Ultra low noise mix head amp design
7-band graphic EQ
24bit DSP effect processor
MP3 player/recorder with concise human-machine interactive interface
Internal power supply
Metal jacks, gold-plated XLRs, sealed pots and switches

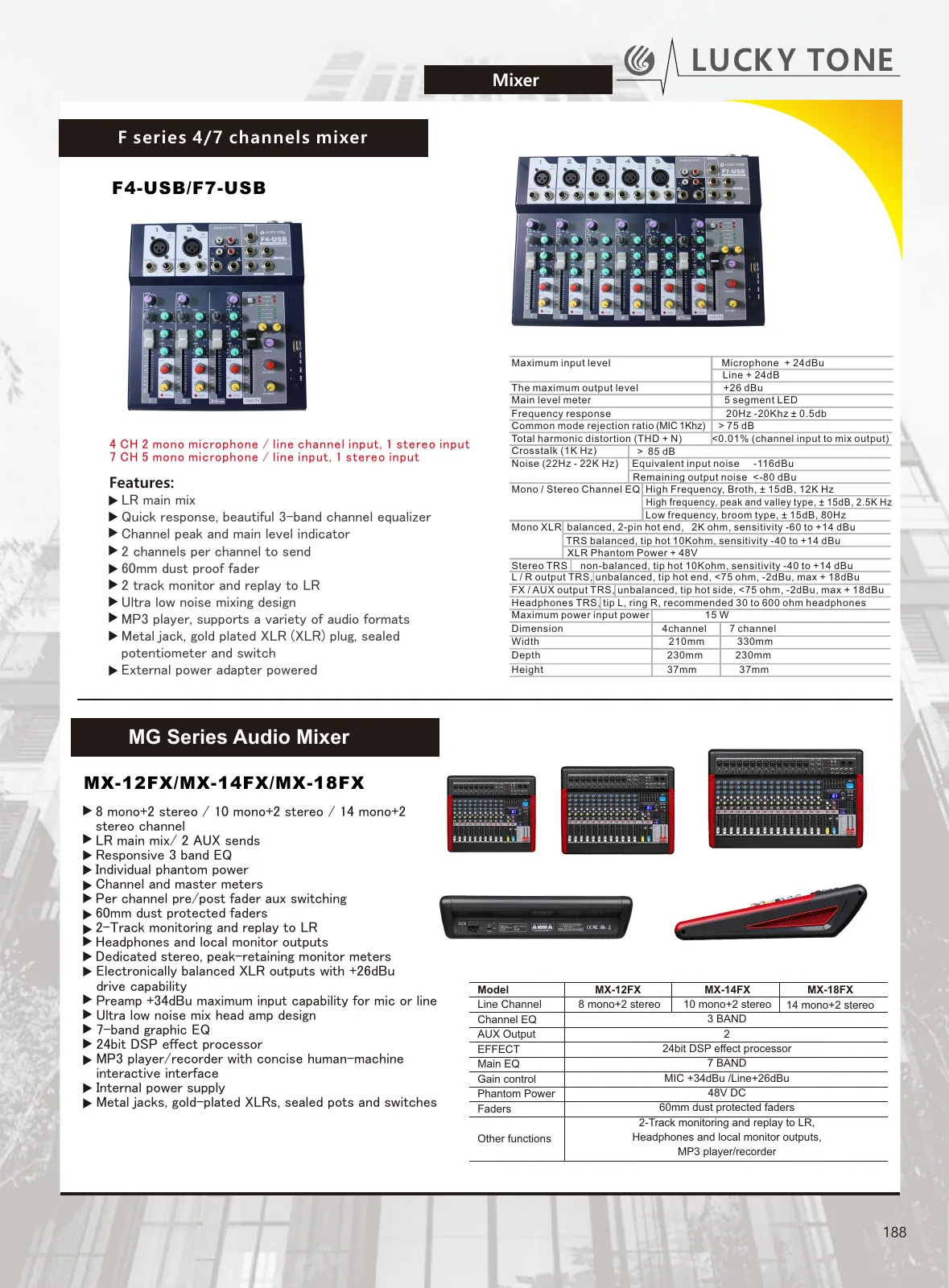

03Documents1 file · 3.2 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
