Sheet 05.261
Lucky Tone · Mixers and processors

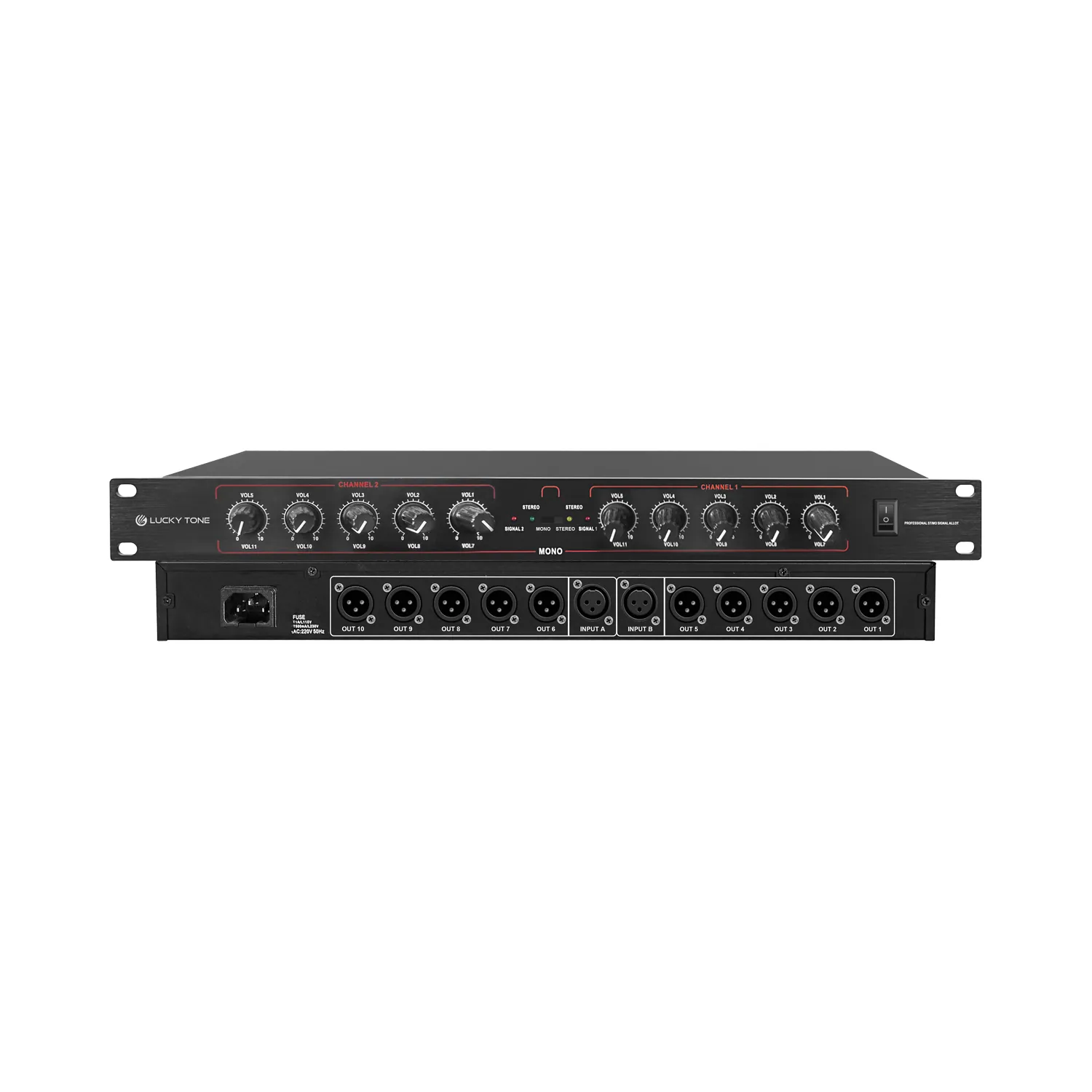

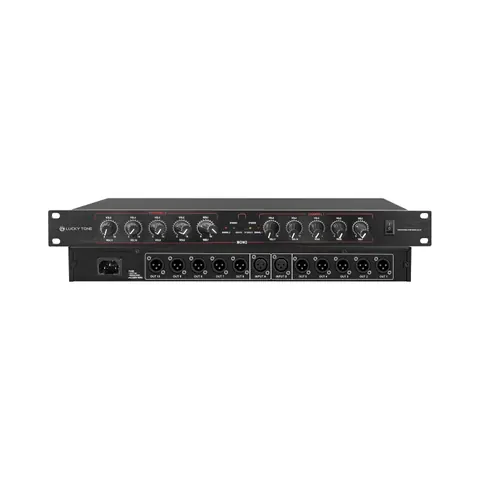

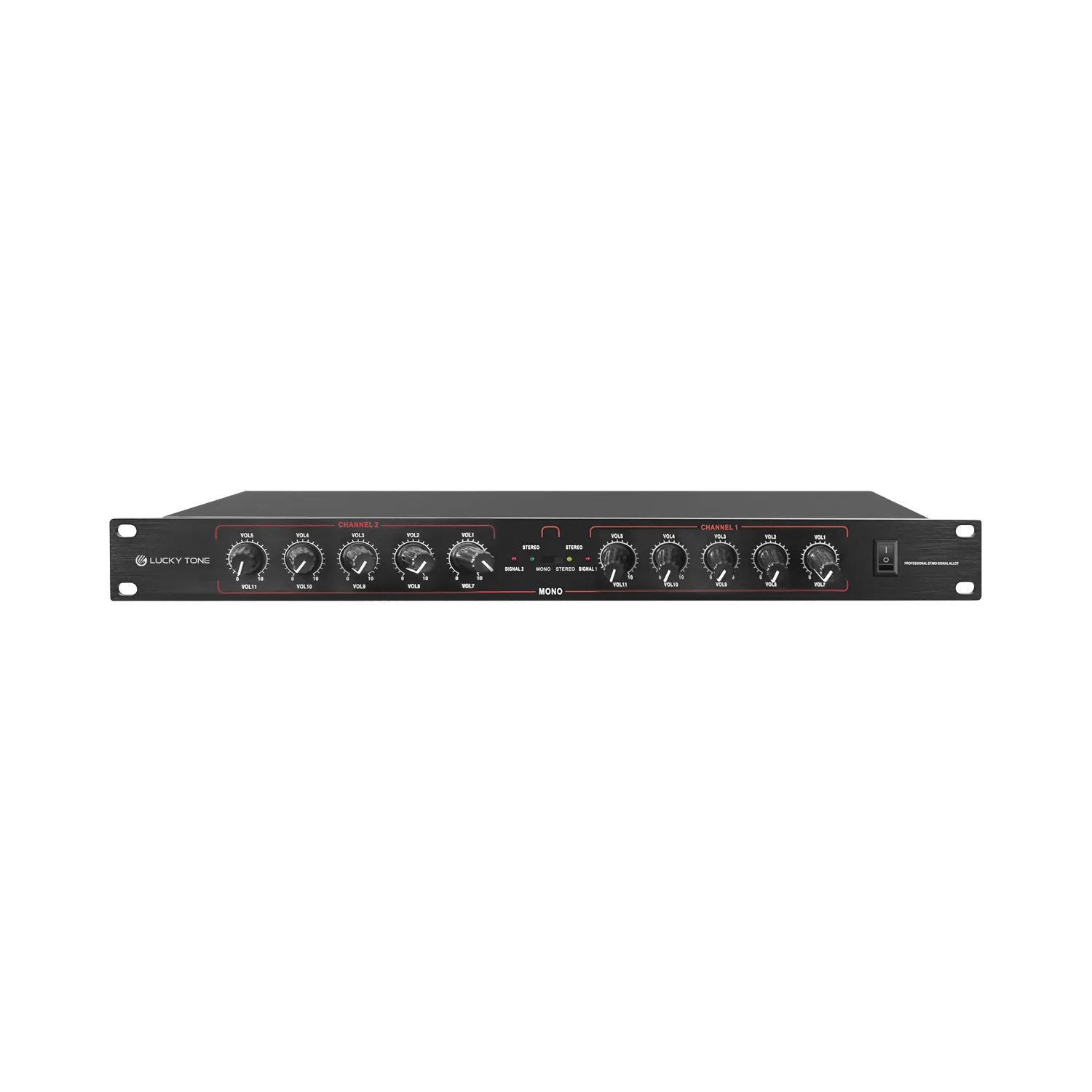

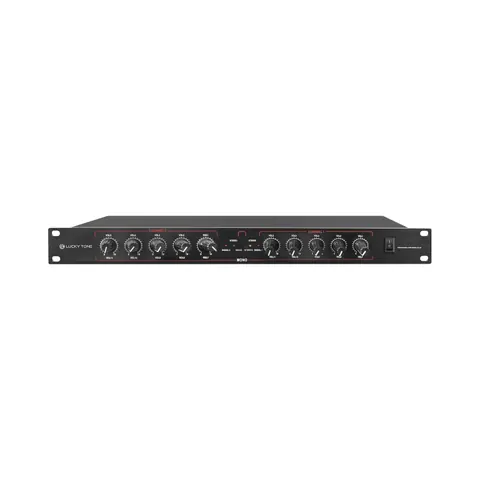

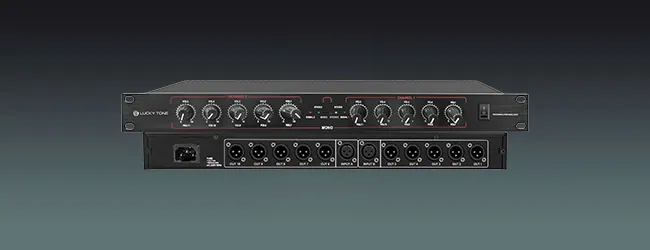

Signal Distributor, 2 inputs, 10 outputs
ModelSA-210
The Signal Distributor is designed to distribute a single input signal to multiple output ports and is widely used in audio and video systems.
- Frequency response
- 20Hz – 22kHz
- Dimensions
- 19” x 1.73” x 6.1” (483 x 44 x 155mm)
- Weight
- 4.2 lbs. (2.1kg)
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Signal Distributor, 2 inputs, 10 outputsPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.

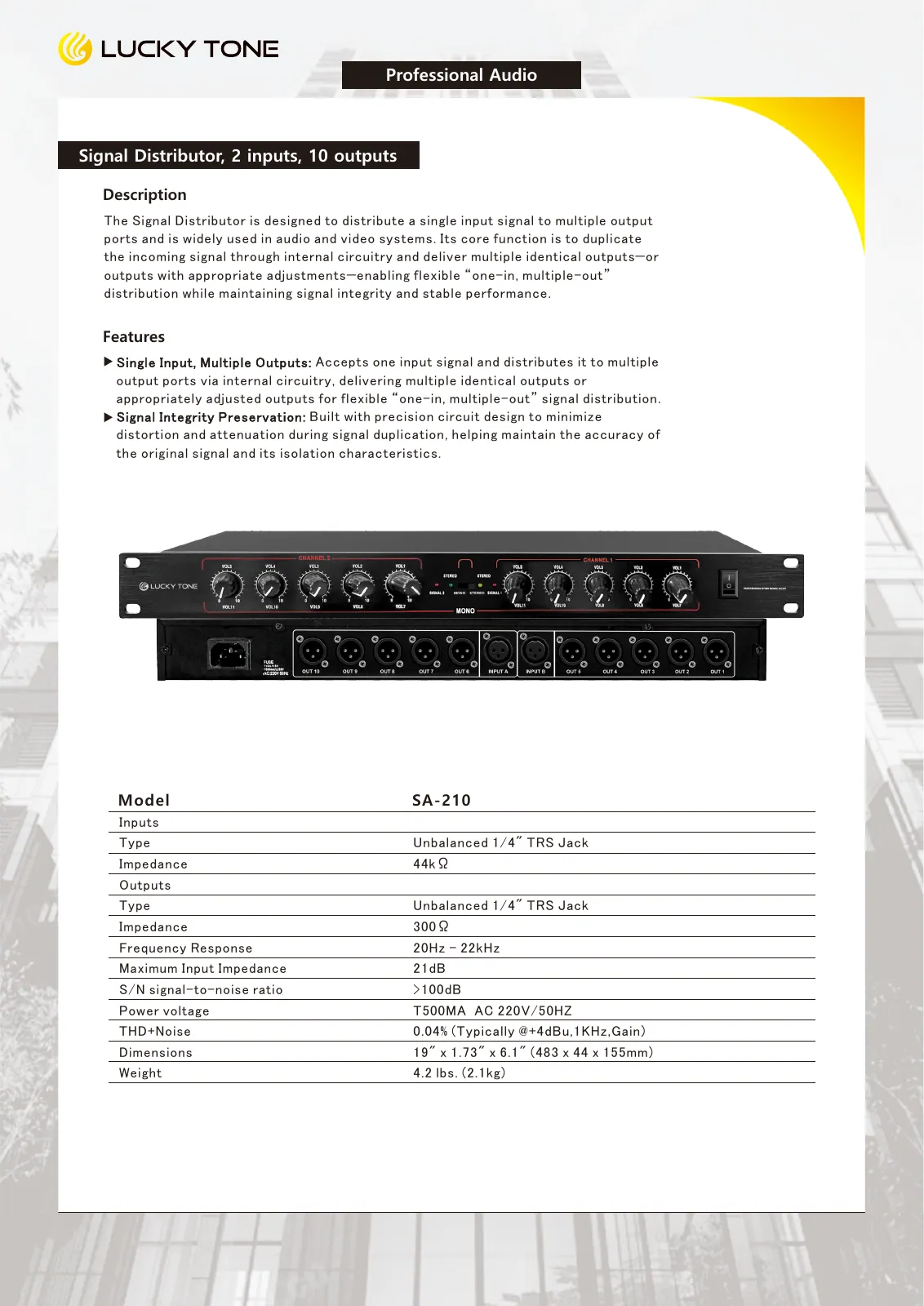

PDFSpecifications8.5 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- Model
- SA-210
- Inputs
- Type
- Unbalanced 1/4″ TRS Jack
- Impedance
- 44kΩ
- Outputs
- Type
- Unbalanced 1/4″ TRS Jack
- Impedance
- 300Ω
- Frequency Response
- 20Hz – 22kHz
- Maximum Input Impedance
- 21dB
- S/N signal-to-noise ratio
- >100dB
- Power voltage
- T500MA AC 220V/50HZ
- THD+Noise
- 0.04% (Typically @+4dBu,1KHz,Gain)
- Dimensions
- 19” x 1.73” x 6.1” (483 x 44 x 155mm)
- Weight
- 4.2 lbs. (2.1kg)
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Description
The Signal Distributor is designed to distribute a single input signal to multiple output ports and is widely used in audio and video systems. Its core function is to duplicate the incoming signal through internal circuitry and deliver multiple identical outputs-or outputs with appropriate adjustments-enabling flexible “one-in, multiple-out” distribution while maintaining signal integrity and stable performance.
Features
Single Input, Multiple Outputs: Accepts one input signal and distributes it to multiple output ports via internal circuitry, delivering multiple identical outputs or appropriately adjusted outputs for flexible “one-in, multiple-out” signal distribution.
Signal Integrity Preservation: Built with precision circuit design to minimize distortion and attenuation during signal duplication, helping maintain the accuracy of the original signal and its isolation characteristics.
03Documents1 file · 8.5 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
