Sheet 05.328
Lucky Tone · IP, SIP and ONVIF
Network Audio Router
ModelSIP-RT11
Professional SIP audio encoder and decoder to transmit audio signal to all devices in the network
- Power supply
- 9- 24 VDC
- Dimensions
- 130 x 85 x 30 mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Network Audio RouterPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 10 values
What this product is, in numbers.

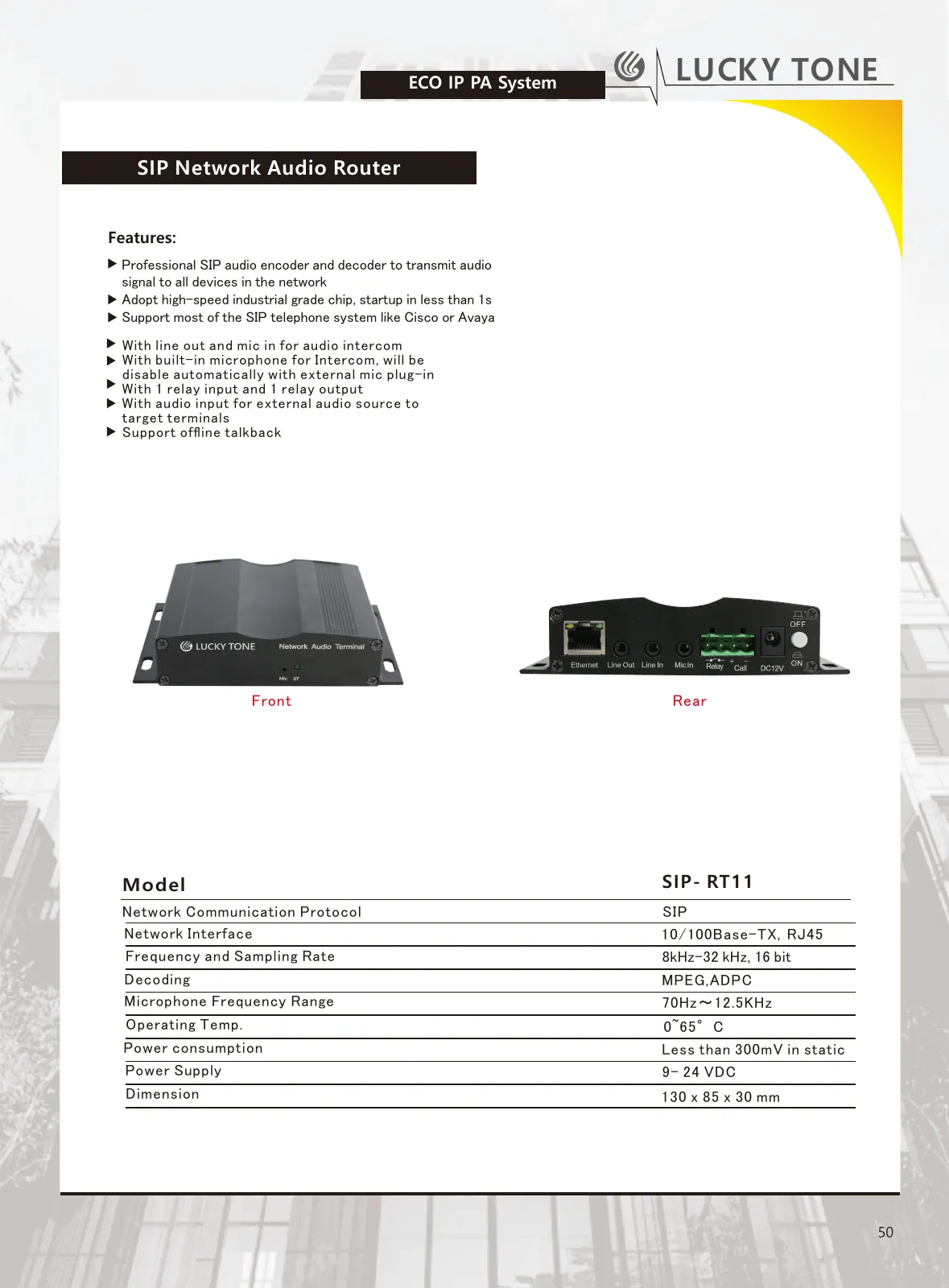

PDFSpecifications1.8 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications10
- Specification
- SIP-RT11
- Network Communication Protocol
- SIP
- Network Interface
- 10/100Base-TX,RJ45
- Frequency and Sampling Rate
- 8kHz-32 kHz, 16 bit
- Decoding
- MPEG,ADPC
- Microphone Frequency Range
- 70Hz~12.5KHz
- Operating Temp.
- 0~65°C
- Power consumption
- Less than 300mV in static
- Power Supply
- 9- 24 VDC
- Dimension
- 130 x 85 x 30 mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Adopt high-speed industrial grade chip, startup in less than 1s
- Support most of the SIP telephone system like Cisco or Avaya

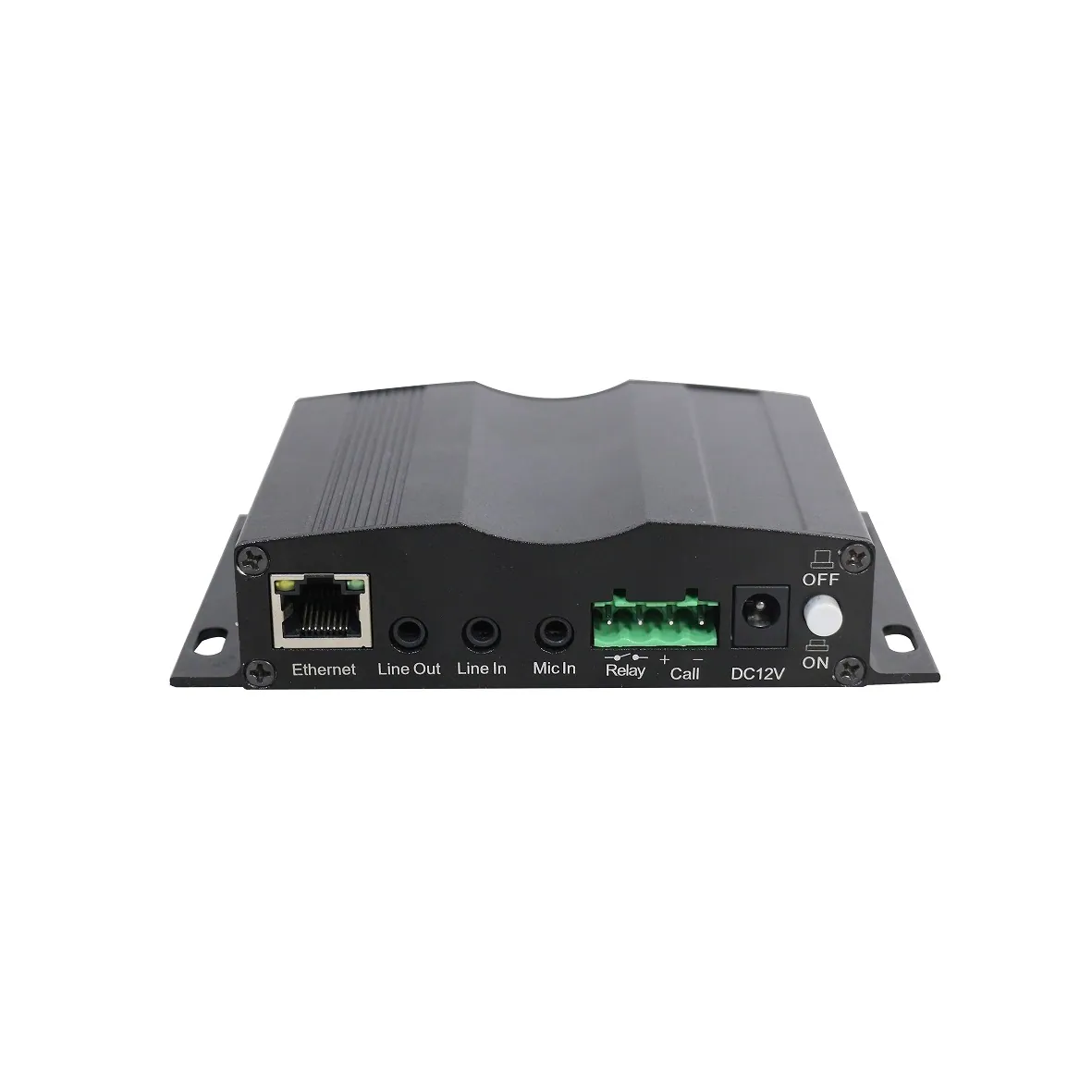

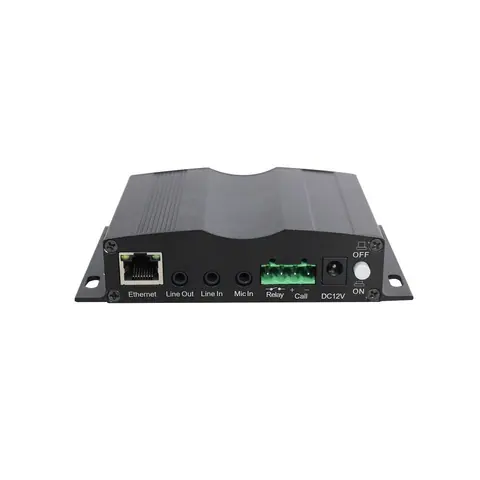

- With line out and mic in for audio intercom
- With built-in microphone for Intercom, will be disable automatically with external mic plug-in
- With 1 relay input and 1 relay output
- With audio input for external audio source to target terminals
- Support offline talkback (without server for SIP)
03Documents1 file · 1.8 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
