Sheet 05.331
Lucky Tone · IP, SIP and ONVIF

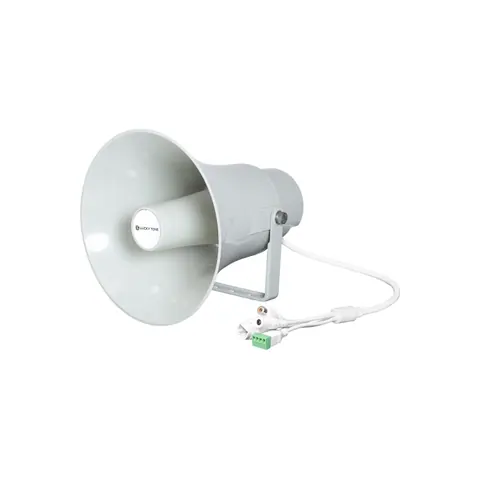

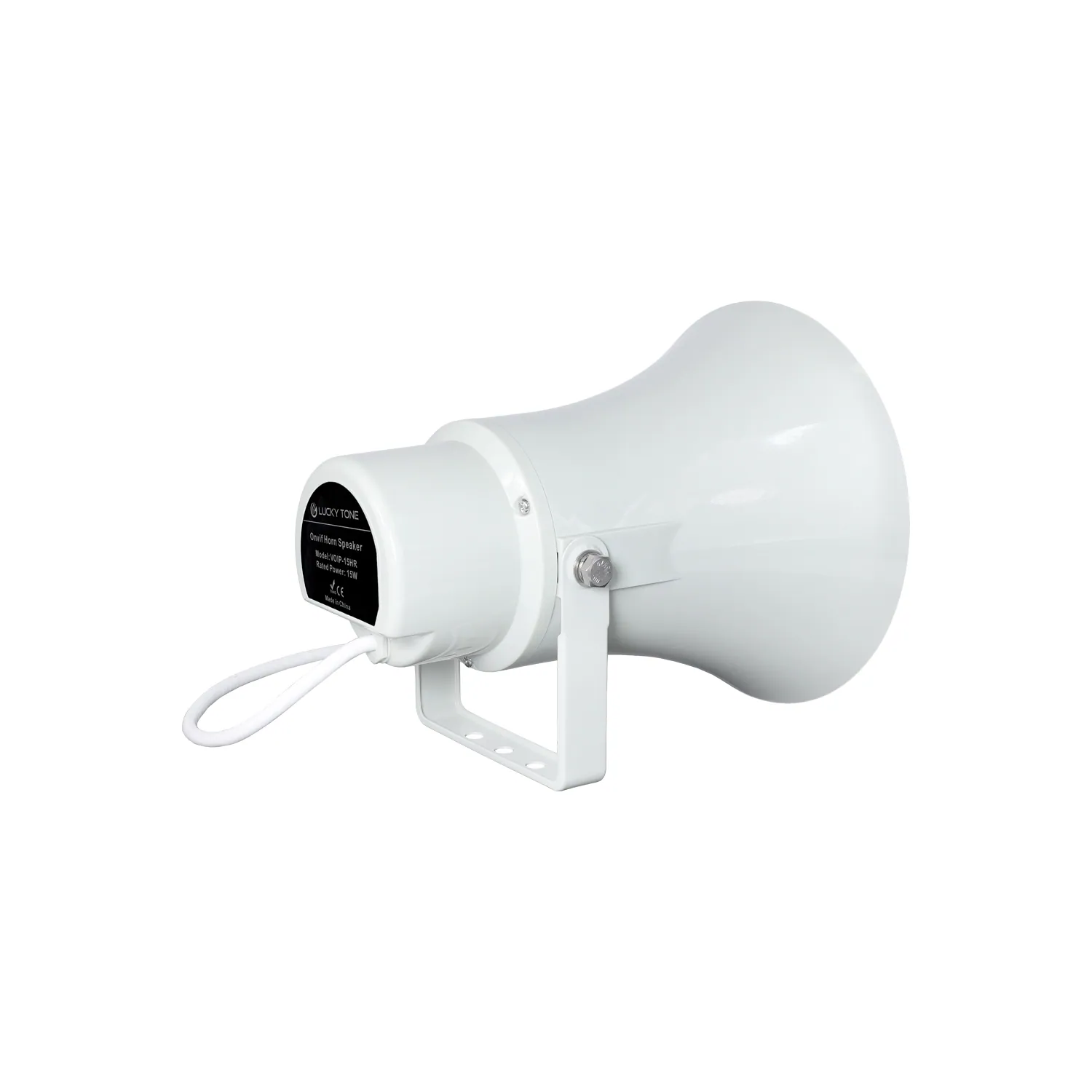

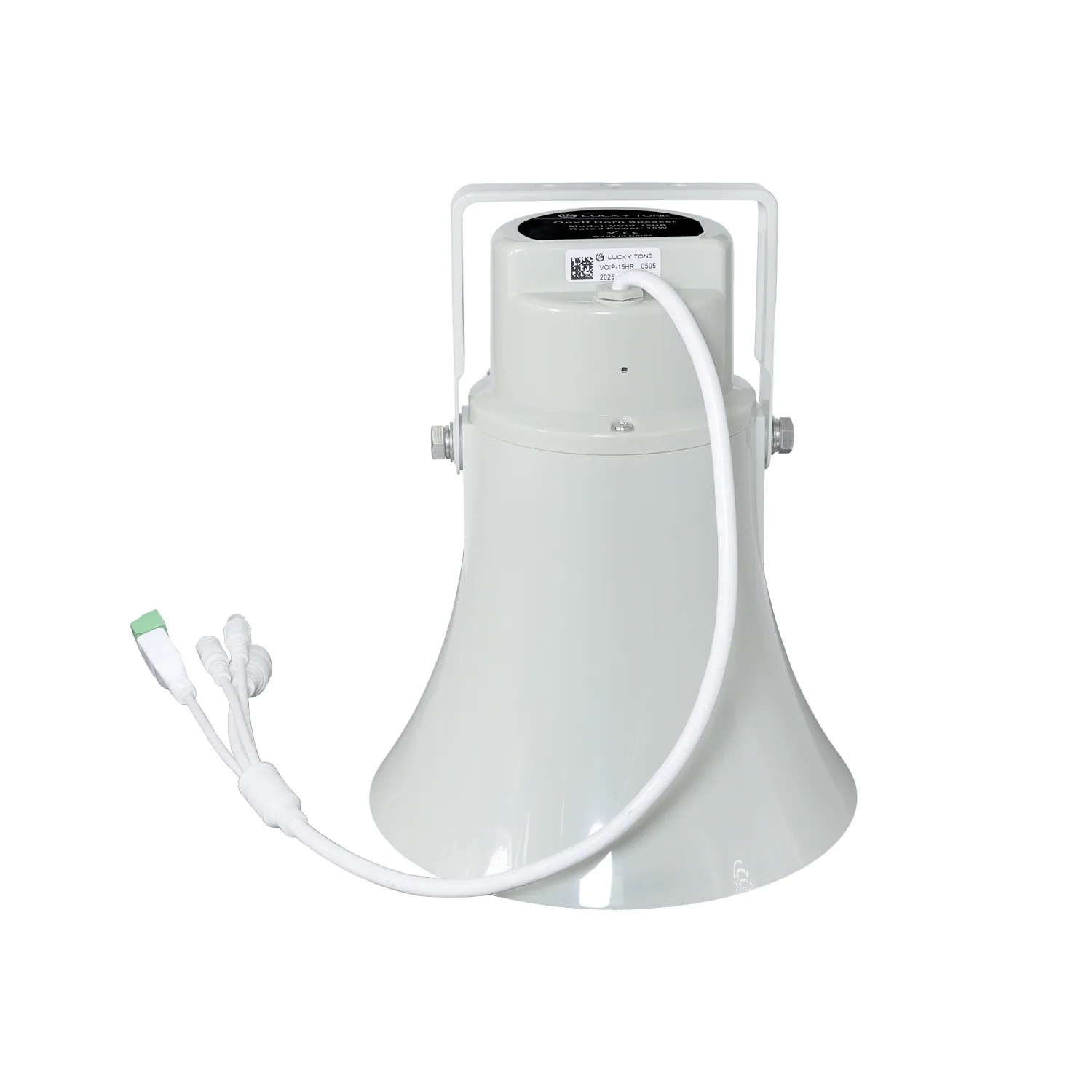

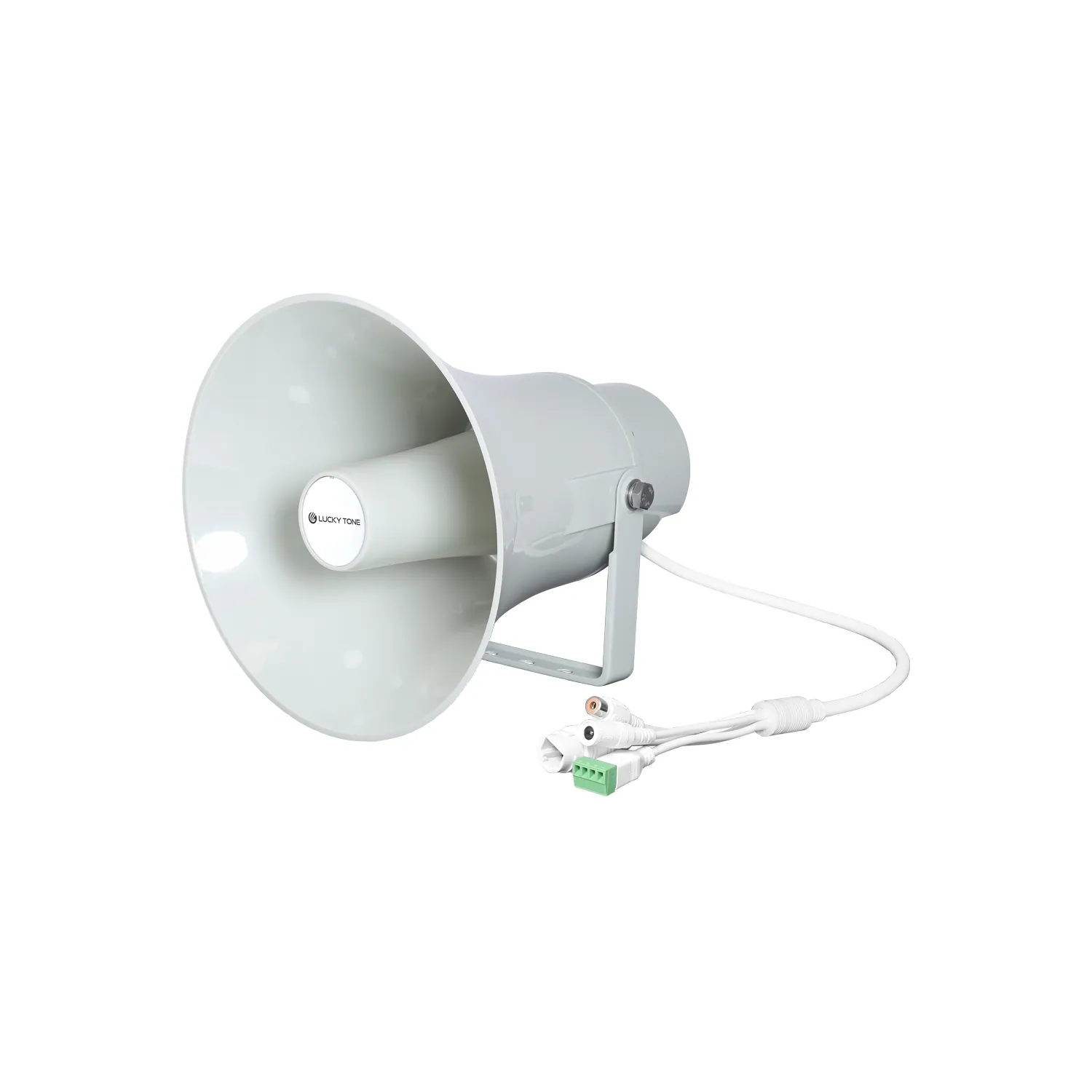

Lucky Tone ONVIF Network Horn Speaker VOIP-15HR/VOIP-15HRM(Mic Version)
ModelVOIP-15HR/VOIP-15HRM(Mic Version)
This series of ONVIF Network Horn Speaker is available at 15W and 30W, ideal for indoor andoutdoor use .
- Output power
- 15W
- Frequency response
- 300Hz-8kHz
- Power supply
- POE/DC12V
- Weight
- 1.8kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
ONVIF Network Horn SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 15 values
What this product is, in numbers.
PDFSpecifications977 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications15
- MODEL
- VOIP-15HR/VOIP-15HRM(Mic Version)
- Product Type
- Horn Speaker
- Rated Power
- 15W
- Network Protocol
- SIP, ONVIF
- Audio Decoding
- MP3, WMA, WAV
- Network Interface
- 10/100Base-TX, RJ45
- SPL(1M/1W)
- 101dB
- Max. SPL
- 113dB
- Frequency Response
- 300Hz-8kHz
- IP Rating
- IP66
- Power Supply
- POE/DC12V
- Installation
- Bracket Mount
- Material
- ABS
- Product Dimension
- Dia200*230mm
- Net Weight
- 1.8kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
This series of ONVIF Network Horn Speaker is available at 15W and 30W, ideal for indoor andoutdoor use . Built for durability and exceptional audio quality, they are ideal for public address,emergency alerts, and broadcasting in schools, hospitals, malls, and transportation hubs. SIP-enabledwith PoE and DC power, they integrate seamlessly with IP systems.
03Documents1 file · 977 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
