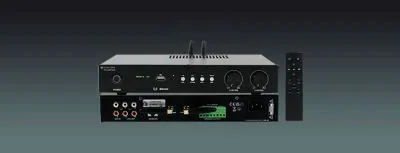

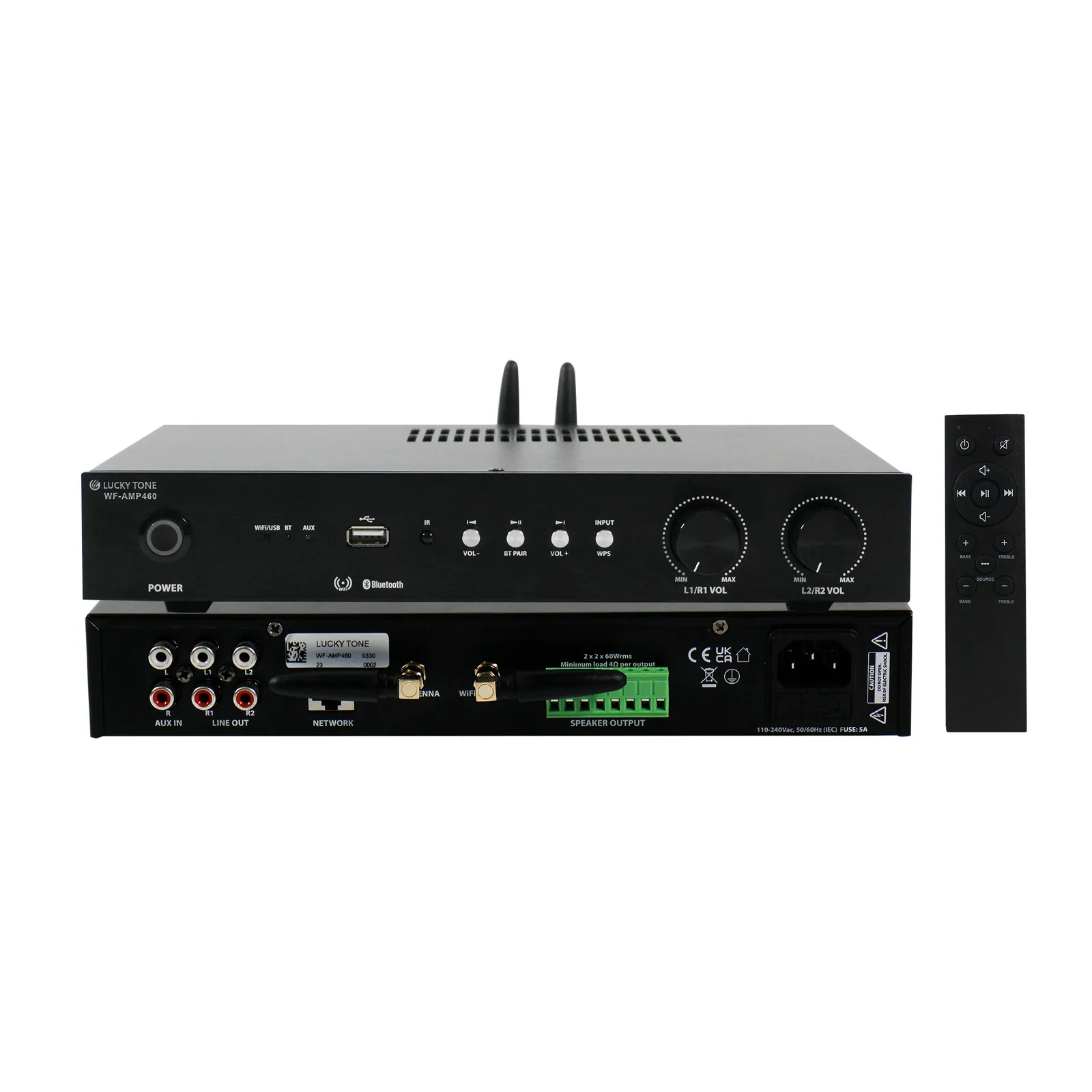

4-channel Wi-Fi Audio Amplifier
ModelWF-AMP460 / BT-AMP460
WF-AMP460 Series is a compact 4 x 60W amplifier with WiFi, Bluetooth, USB, and AUX inputs. It is designed to turn the traditional passive speakers into multi-functional wireless speakers.
- Output power
- 60Wx4 @4ohm; 30Wx4 @8ohm
- Frequency response
- 20-20KHz
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
4-channel Wi-Fi Audio AmplifierPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| Model | WF-AMP460 | BT-AMP460 |
|---|---|---|
| Output Power | 60Wx4 @4ohm; 30Wx4 @8ohm | 60Wx4 @4ohm; 30Wx4 @8ohm |
| Input voltage | 100-240VAC, 50/60Hz | 100-240VAC, 50/60Hz |
| Audio inputs | WiFi, Bluetooth, USB, AUX | Bluetooth, USB, AUX |
| Line input sensitivity | 500mV | 500mV |
| SNR | 94dB | 94dB |
| Frequency range | 20-20KHz | 20-20KHz |
| Impedance | 4-8 ohm | 4-8 ohm |
| Amplifier Class | Class D | Class D |
| Material | Aluminum alloy | Aluminum alloy |
| Color | Black | Black |
| Product dimensions (LxWxH) | 280x200x44mm | 280x200x44mm |
| Packing dimensions (LxWxH) | 425x285x375mm (5pcs per carton) | 425x285x375mm (5pcs per carton) |
02DescriptionManufacturer's description
What it is.
Features
- Allows wireless music streaming via WiFi or Bluetooth
- With 4 x 60W stereo speaker outputs
- With USB reader and AUX input for more audio sources
- Supports online music, Internet radio, Airplay, DLNA
- Convenient music management by WiiM APP

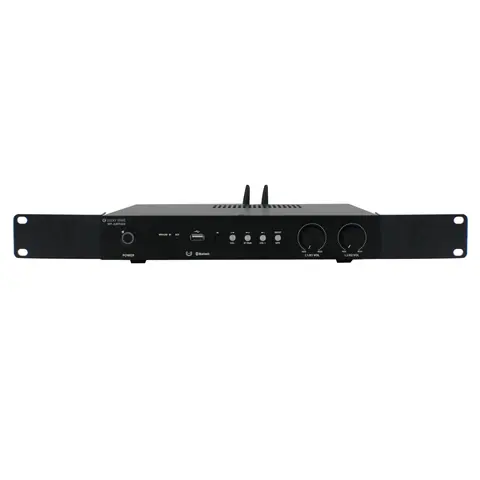

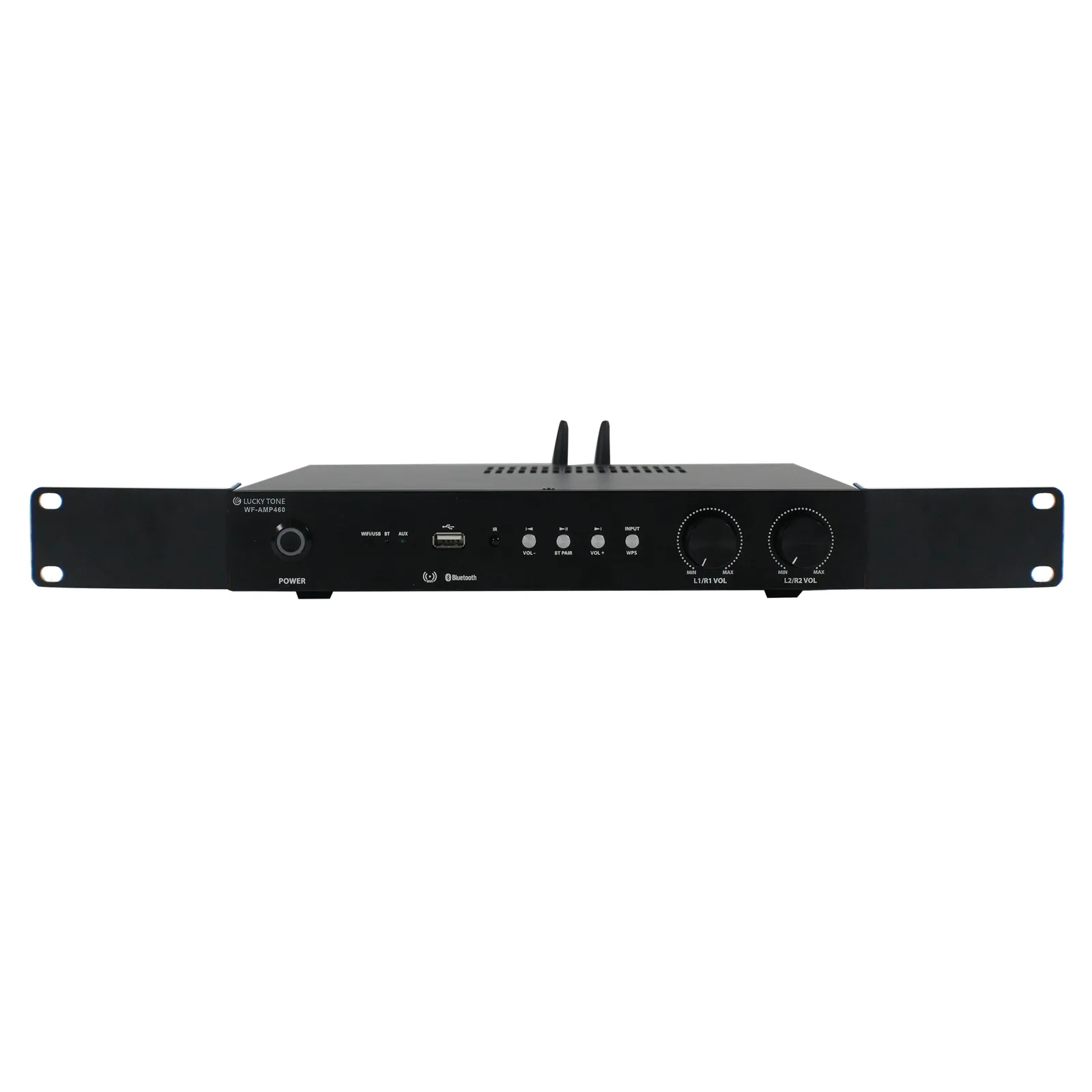

- Optional 1U rack mount ear
Ordering code
WF-AMP460
4-channel WiFi & Bluetooth Audio Amplifier 4*60W
BT-AMP460
4-channel Bluetooth Audio Amplifier 4*60W
RACK-460
Rack mount ears (pair) for WF-AMP460, BT-AMP460

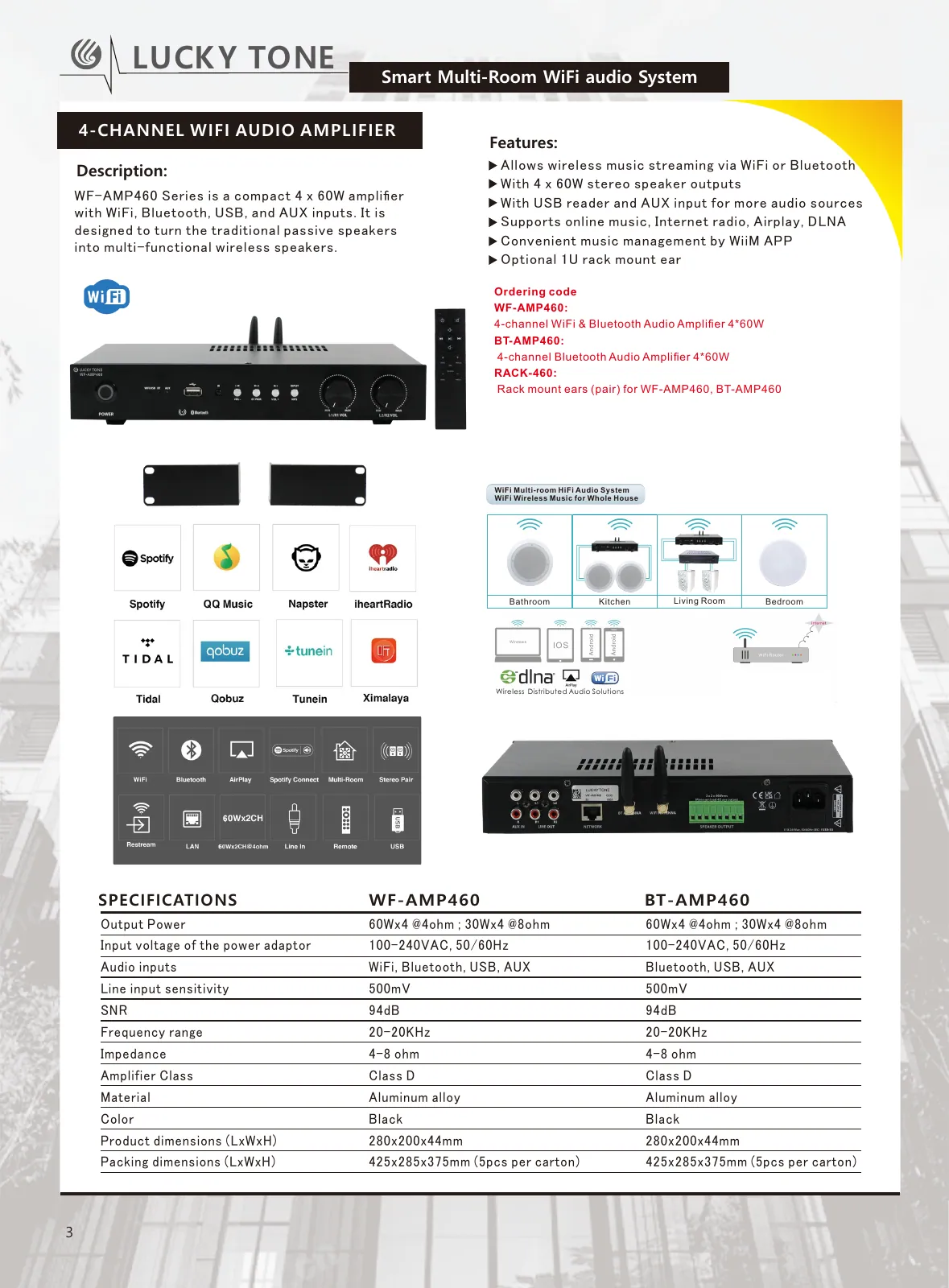

03Documents1 file · 2.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
