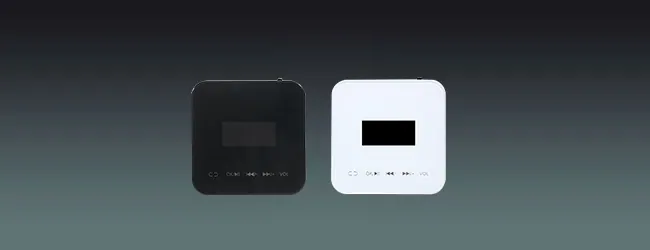

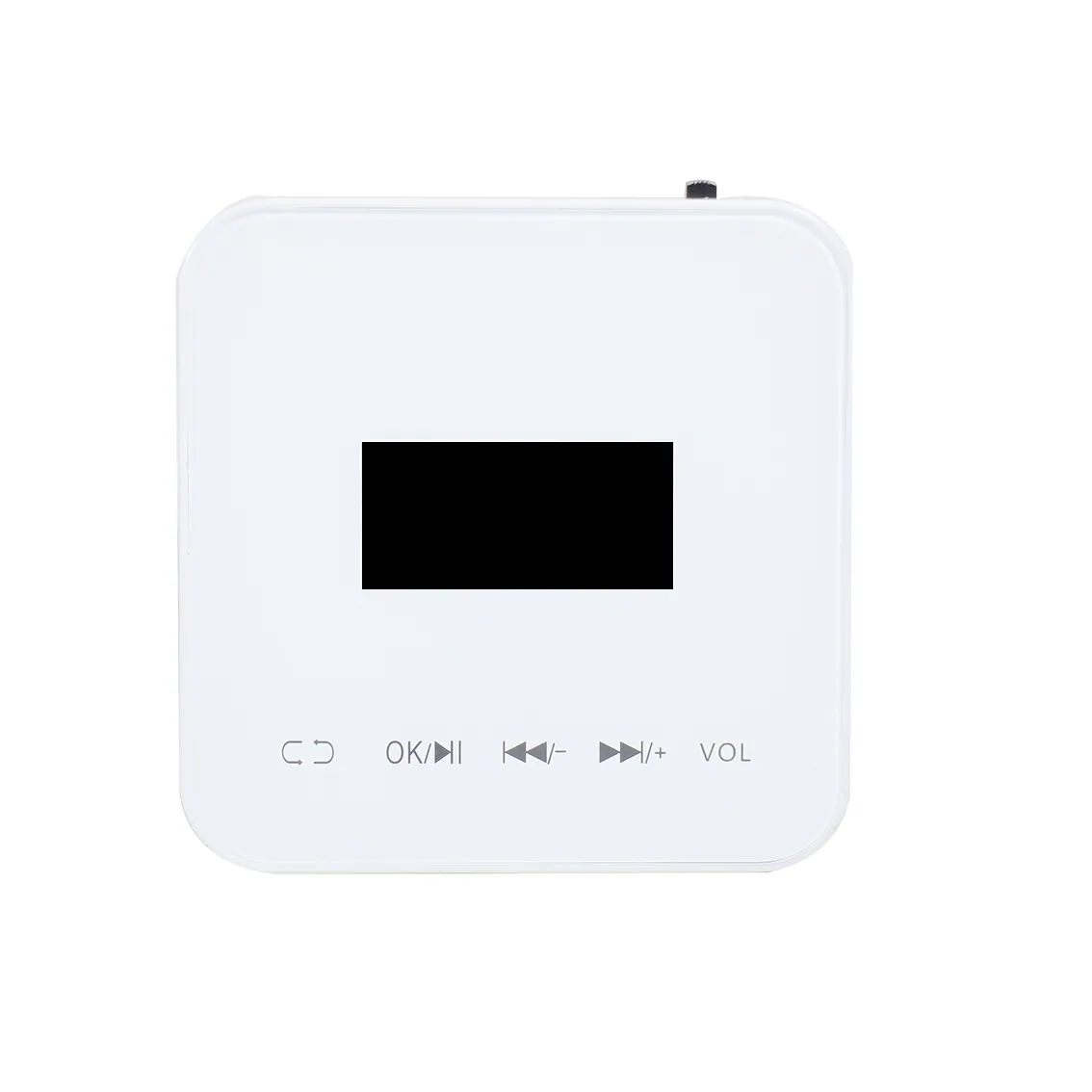

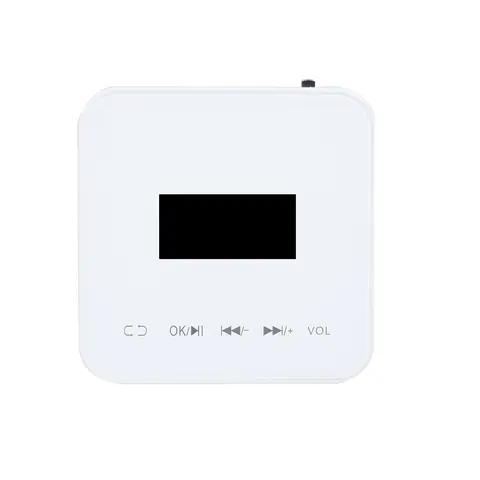

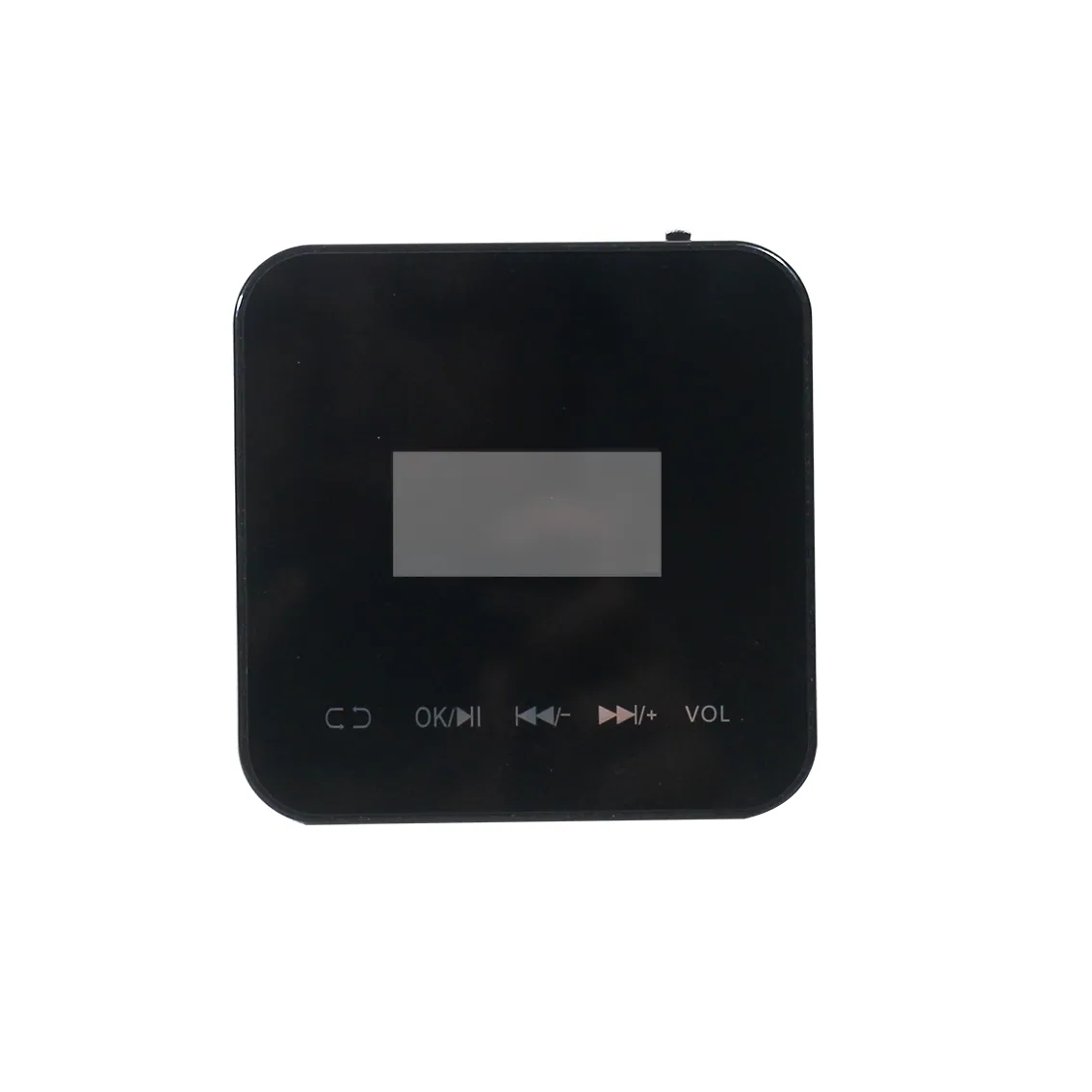

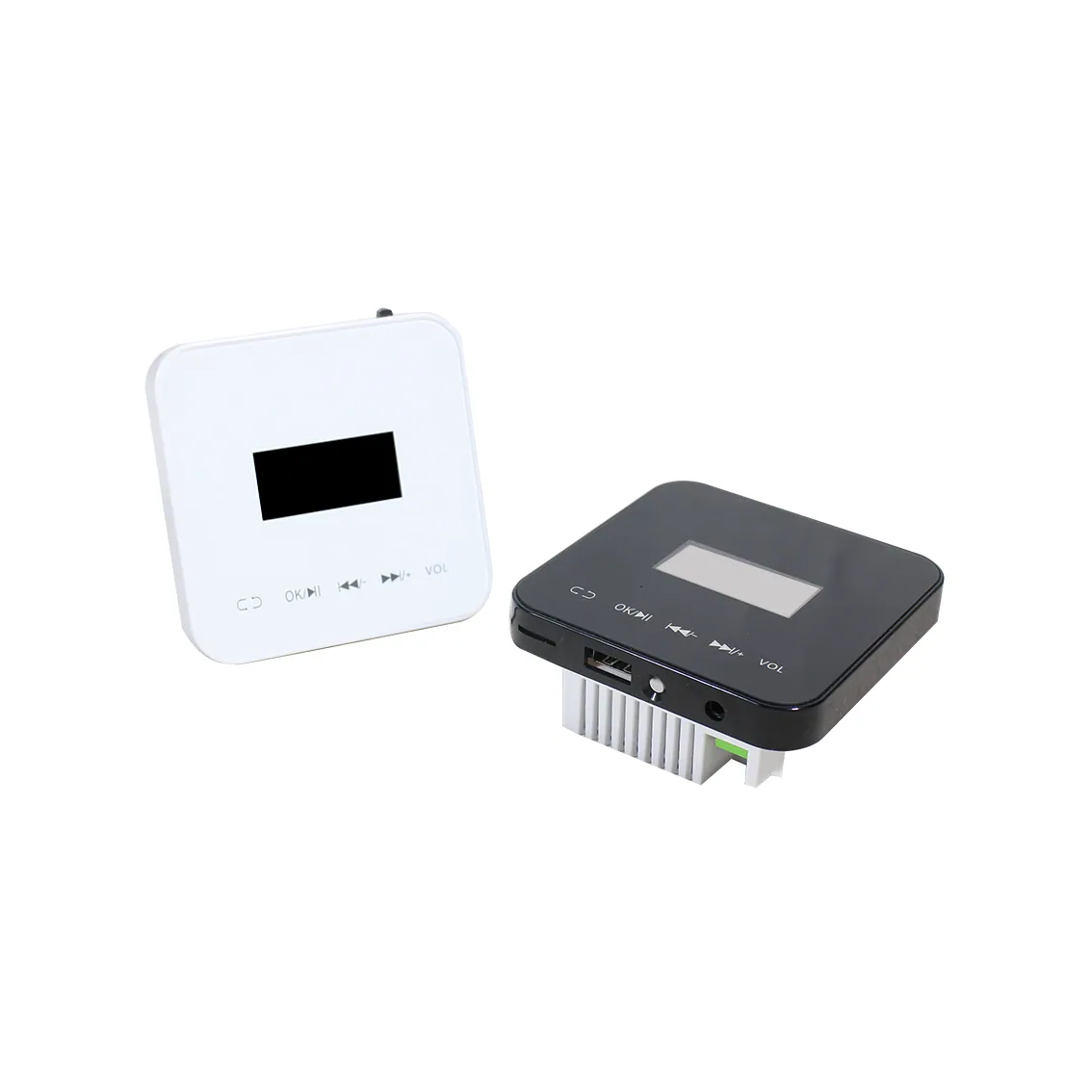

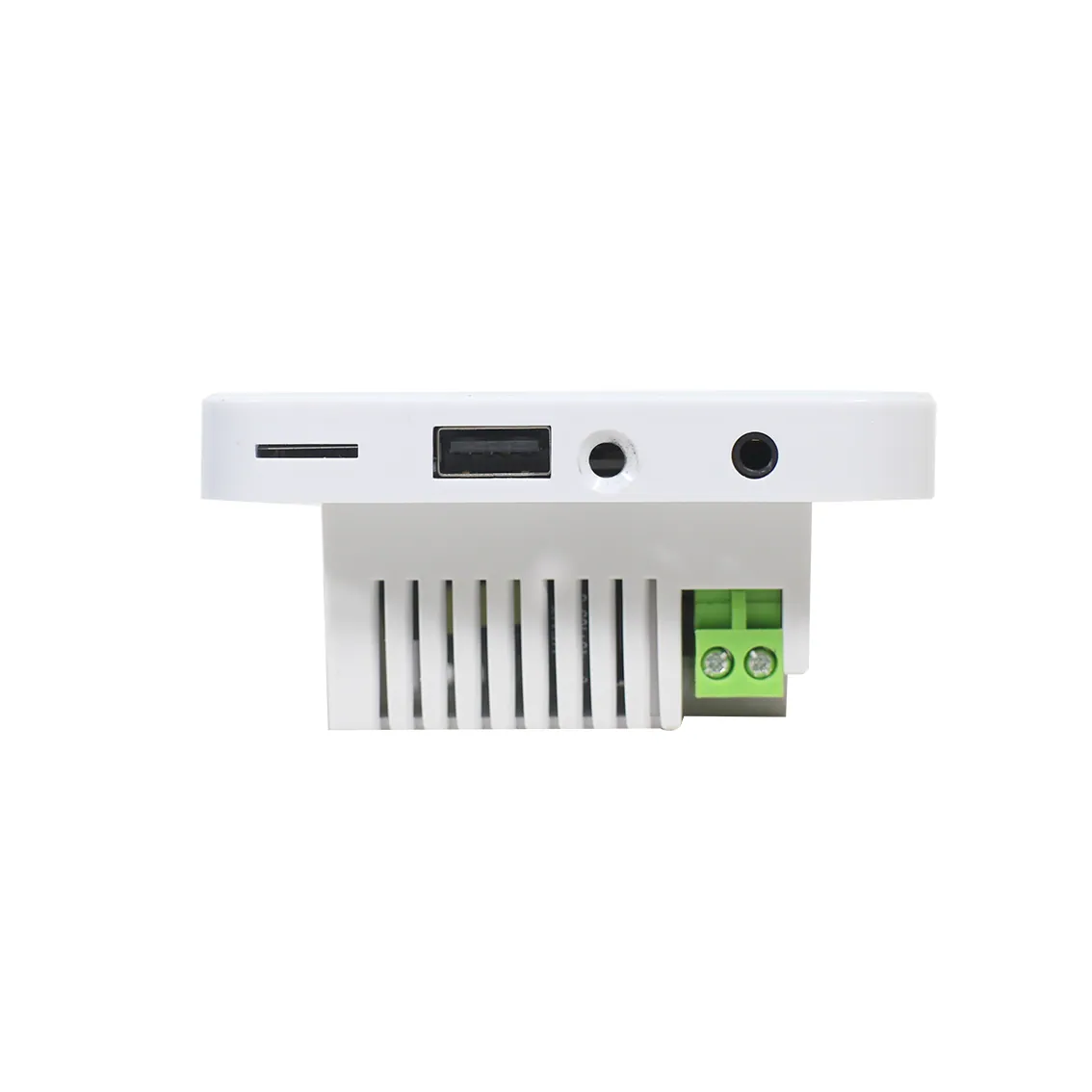

2/4-CH Bluetooth Wall Amplifier with LCD Display

ModelBA-220X/BA-420X

Adopt Bluetooth wireless connection technology

Output power: 2*20W/4*20W
Frequency response: 20 Hz-20 kHz (+/-2dB)
Dimensions: 86*86*12mm
Weight: 132g

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 16 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications16

Model: BA-220X/BA-420X
Output power: 2*20W/4*20W
Speaker Impedance: 4-8ohm
Expand TF card memory: 32GB
Display: 1.7inch LCD screen
Resolution: 480*480 IPS
Bluetooth wireless range: ≤10M

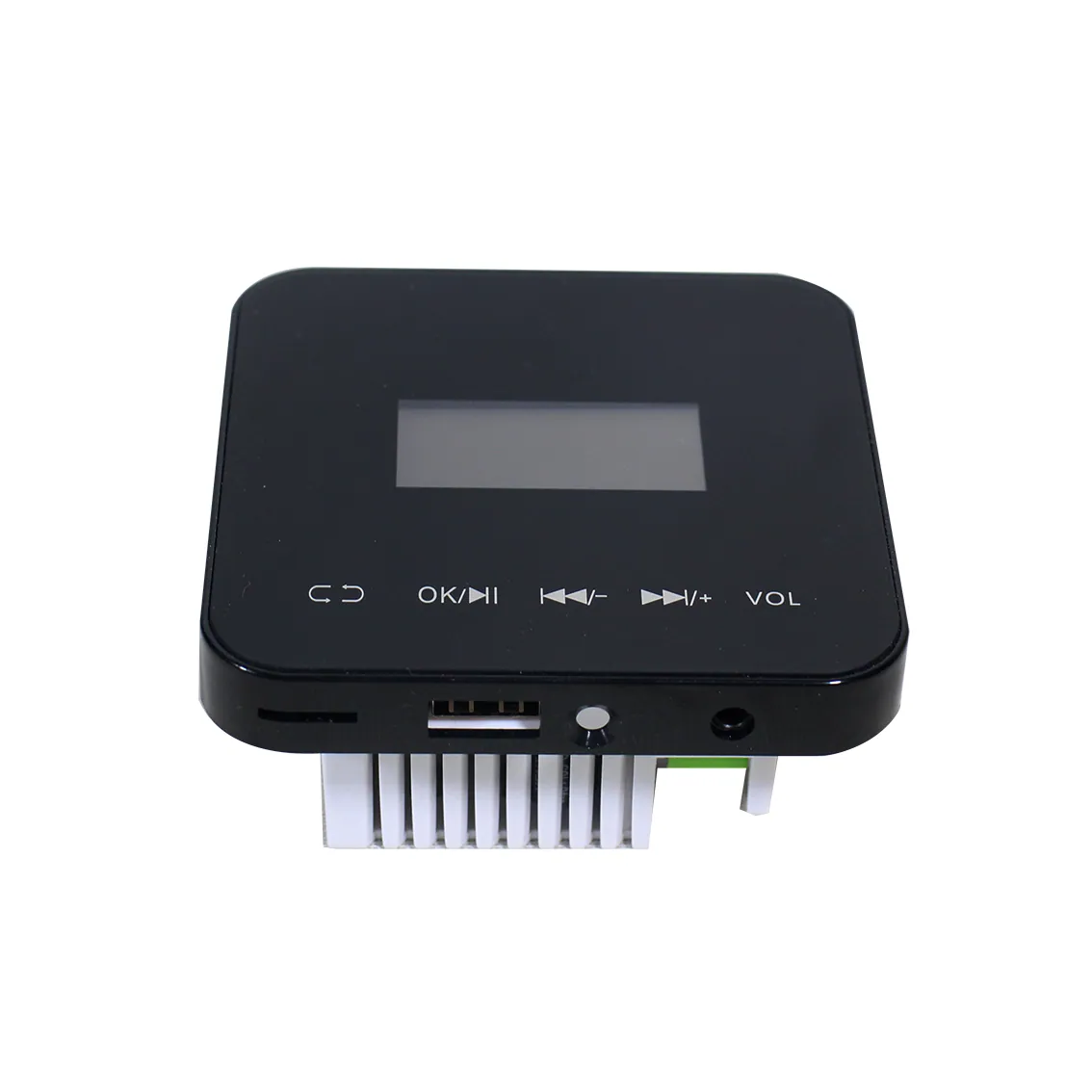

USB: Micro USB
THD: 0.03% (1W.1KHZ)
Frequency response: 20 Hz-20 kHz (+/-2dB)
SNR: 98db
Music format: Mp3, WMA, WAV, AAC, WAW, APE, etc
Video format: MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H, 264, etc.
Power Requirements: 110-250VAC
Dimension: 86*86*12mm
Weight: 132g

02DescriptionManufacturer's description

What it is.

Built-in all-digital auto-tuning radio, 30 radio stations
Standard 86 Mounted on the wall for easy control
With wireless remote control
Support linkage trigger doorbell input
High sensitivity touch buttons

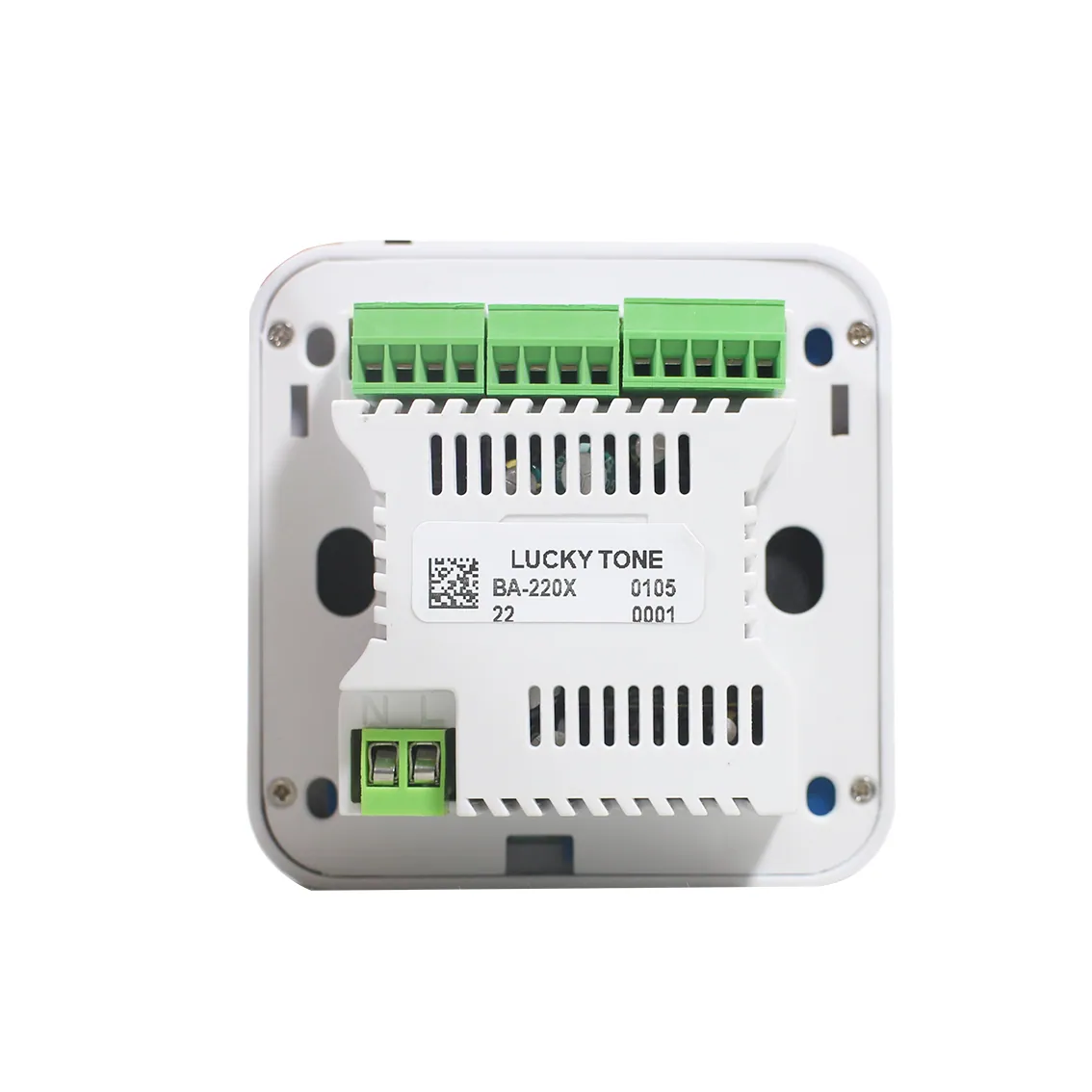

Support audio input and output function with secure and fast connect phoenix connectors
Suitable for homes, commercial areas, kid’s room, etc
