Sheet 05.226
Lucky Tone · Loudspeakers
Wall Mount Speakers
ModelWP-420F / WP-530F / WP-640F

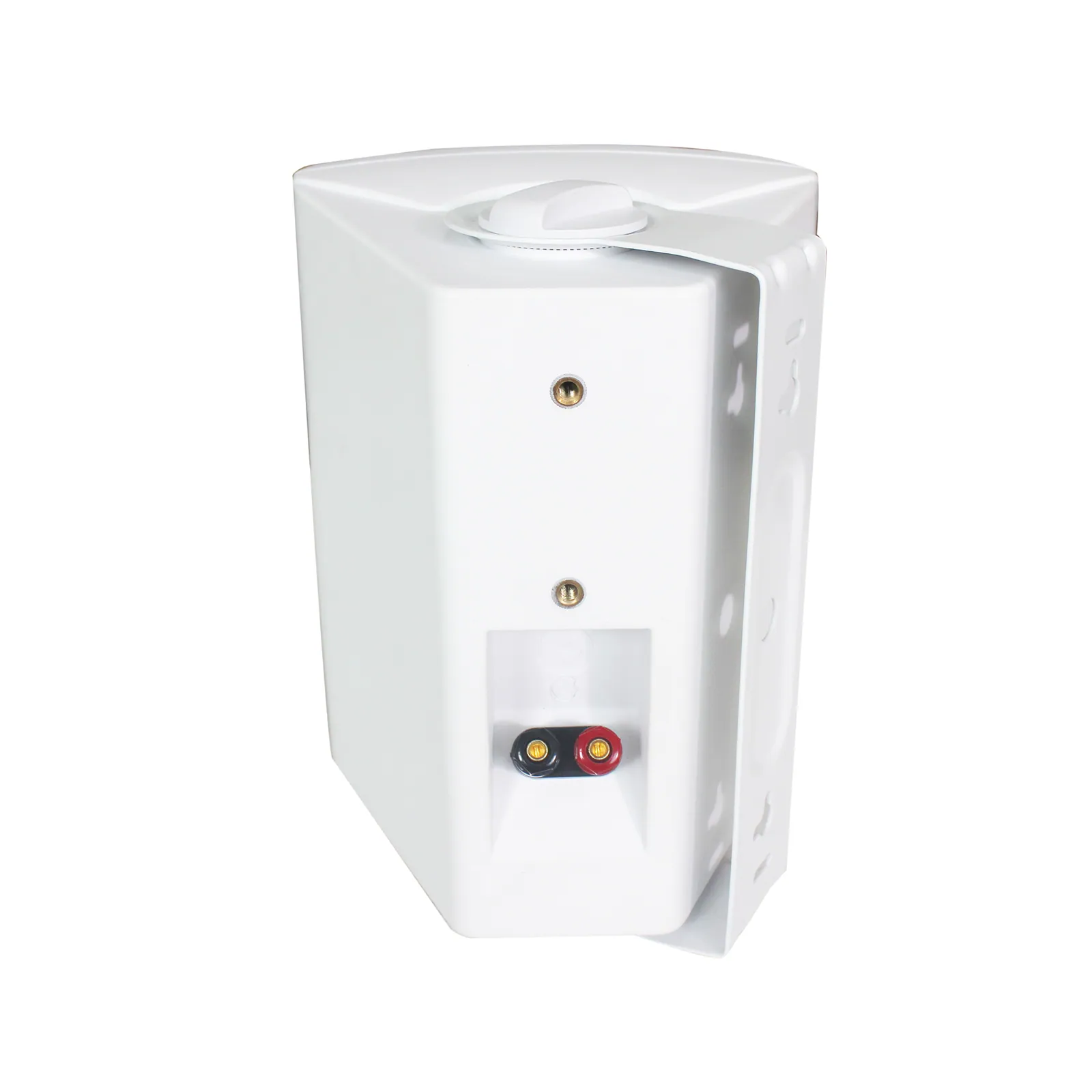

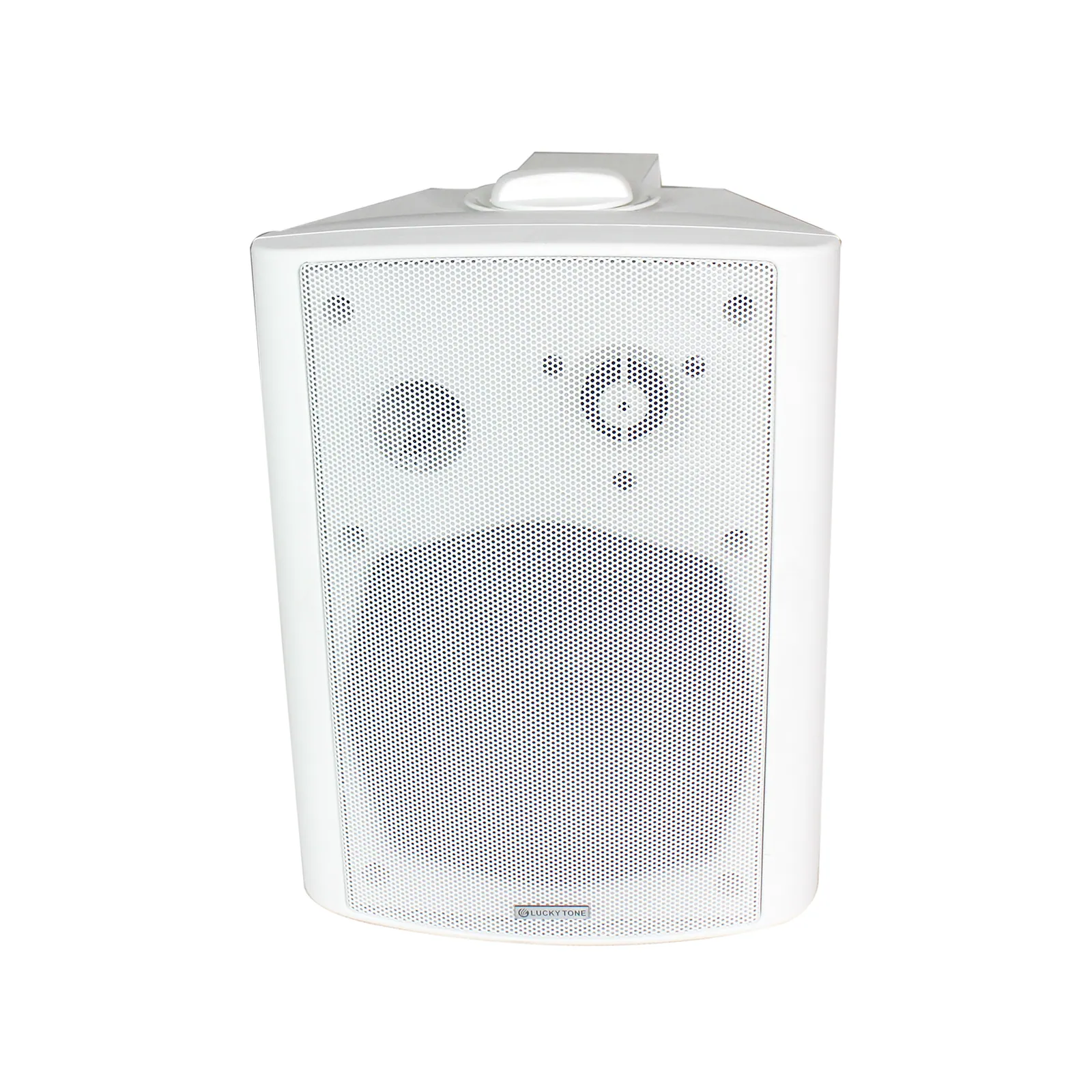

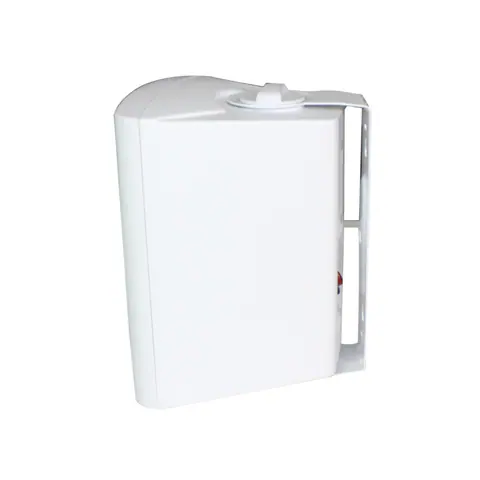

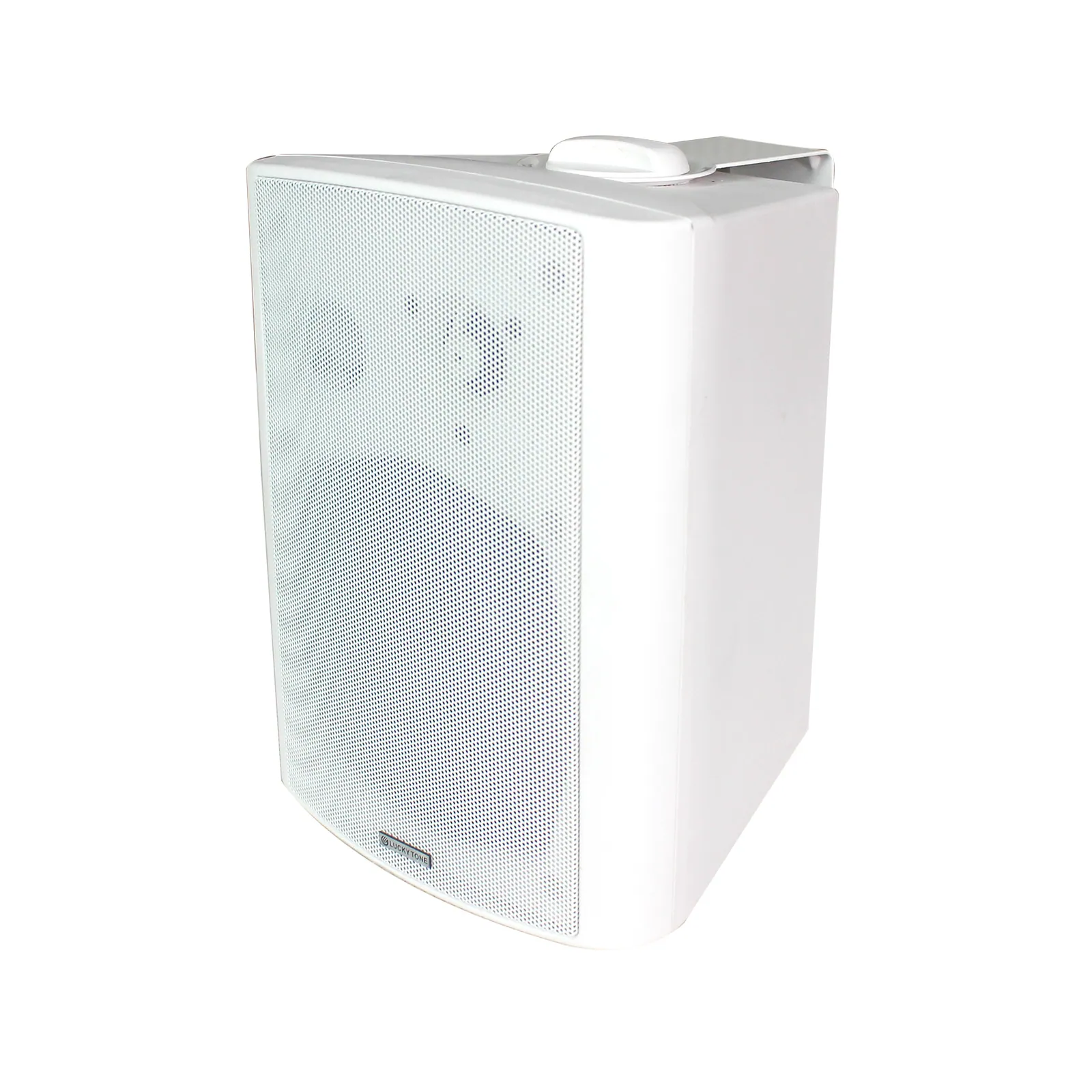

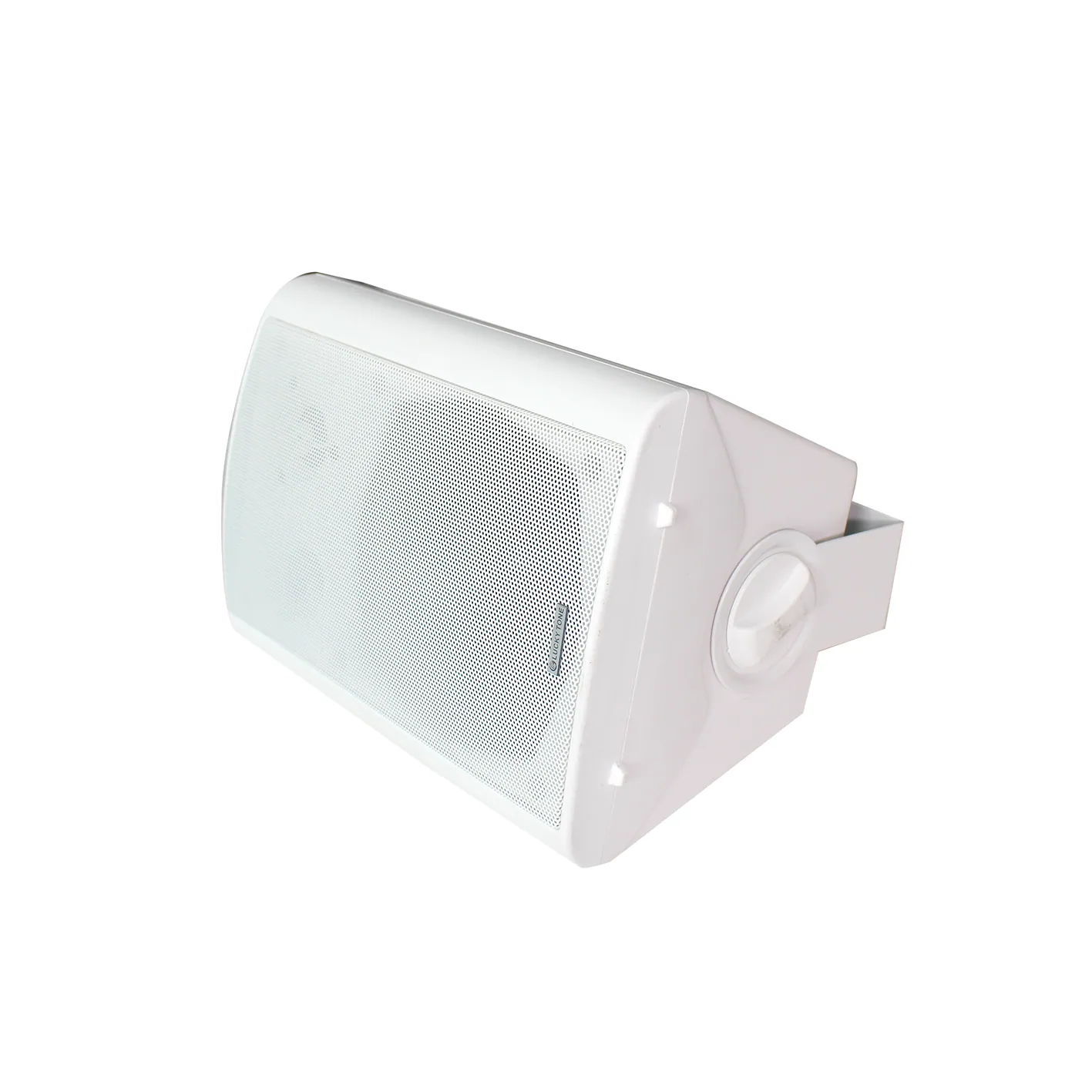

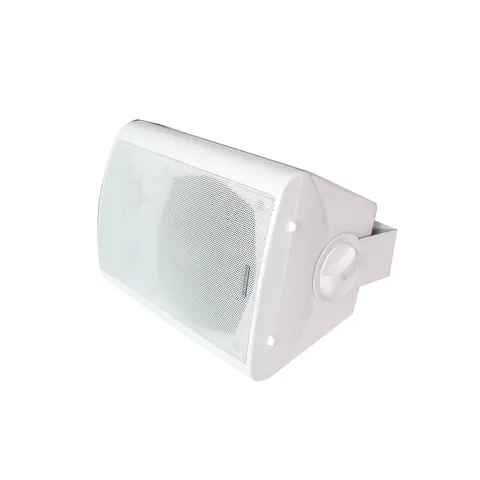

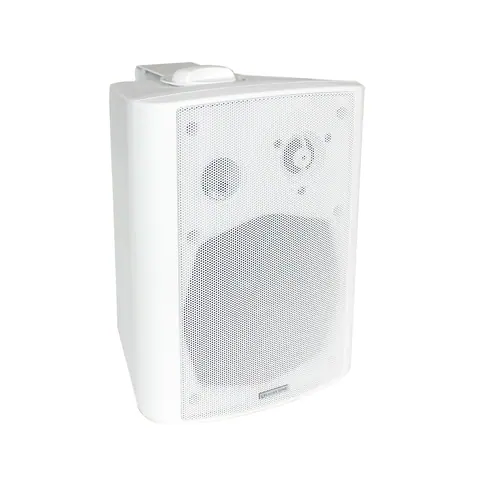

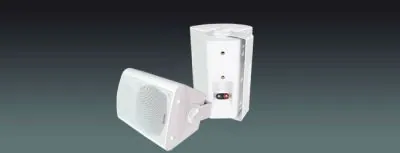

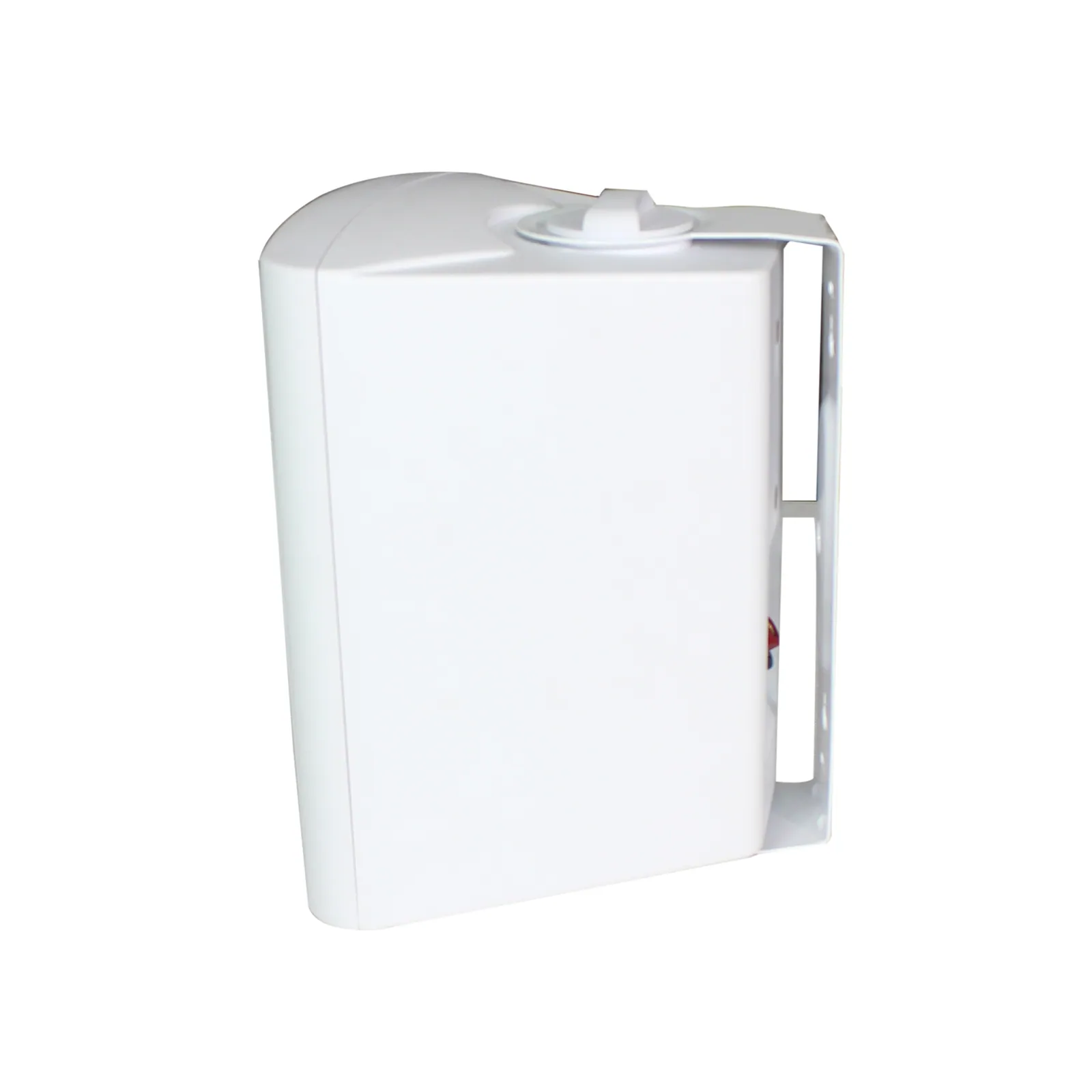

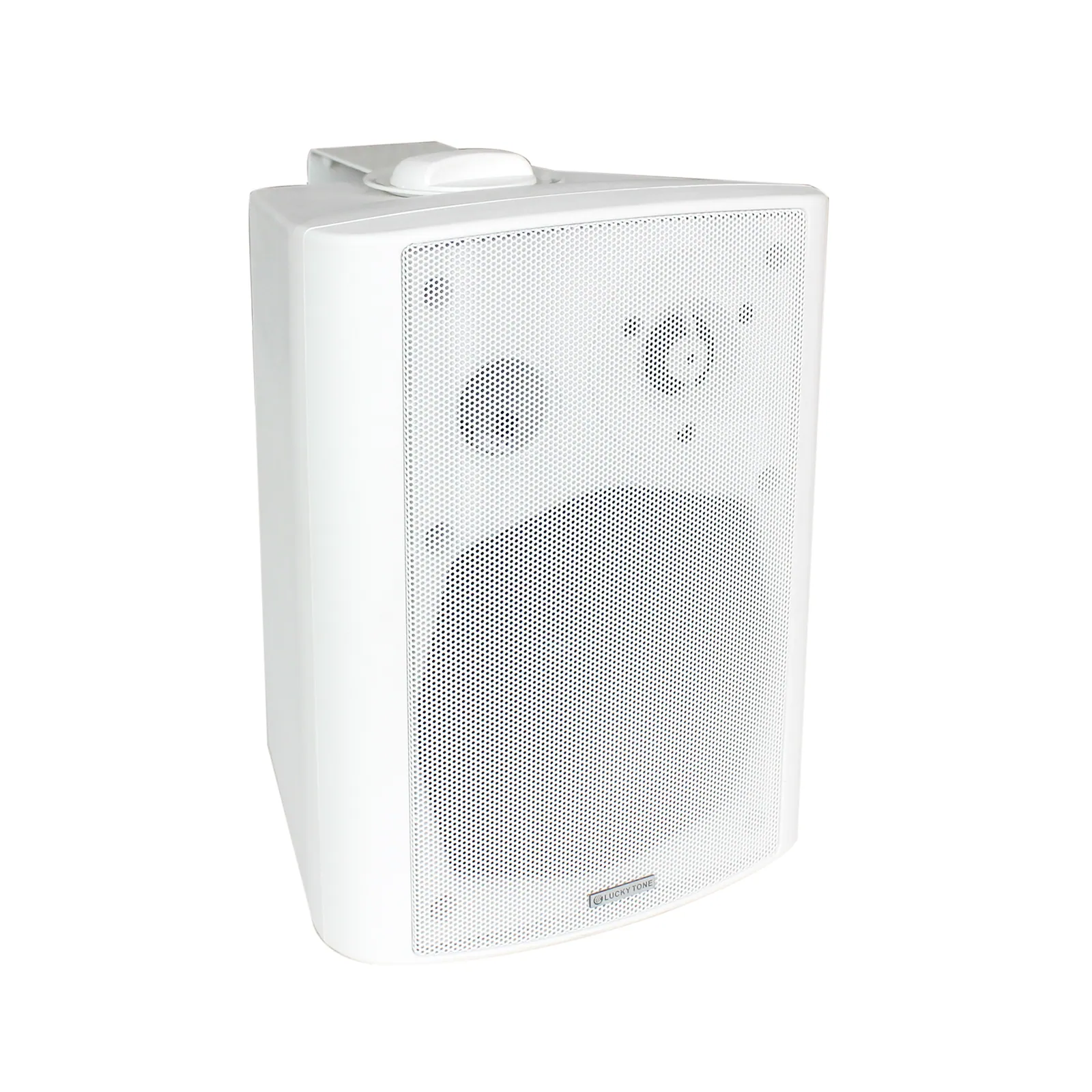

ABS wall mount speaker
- Weight
- WP-420F: 2Kg; WP-530F: 2.5Kg; WP-640F: 3.3Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Wall Mount SpeakersPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| MODEL | WP-420F | WP-530F | WP-640F |
|---|---|---|---|
| Power at 100V | 20W/10W/5W/OFF/8Ω | 30W/15W/7.5W/OFF/8Ω | 40W/20W/10W/OFF/8Ω |
| Power at 70V | 10W/5W/2.5W/OFF/8Ω | 15W/7.5W/3.75W/OFF/8Ω | 20W/10W/5W/OFF/8Ω |
| SPL( 1W/1M) | 88dB | 88dB | 88dB |
| Max. SPL@ 1M | 101dB | 103dB | 104dB |
| Freq. Response | 100Hz-20KHz | 70Hz-20KHz | 70Hz-20KHz |
| Product Size | 160x145x220mm | 185x167x250mm | 216x195x300mm |
| Installation | Wall mounted | Wall mounted | Wall mounted |
| Enclosure Material | ABS | ABS | ABS |
| Weight | 2Kg | 2.5Kg | 3.3Kg |
| Finish | White as standard, Black optional | White as standard, Black optional | White as standard, Black optional |
| Speakers | 1″ Treble x1, 4″ Bass x1 | 1″ Treble x1, 5″ Bass x1 | 1.5″ Treble x1, 6″ Bass x1 |
02DescriptionManufacturer's description
What it is.
Elegant outlook
- With 20W/30W/40W transformer
- Good for PA and BGM
- Black and white color available

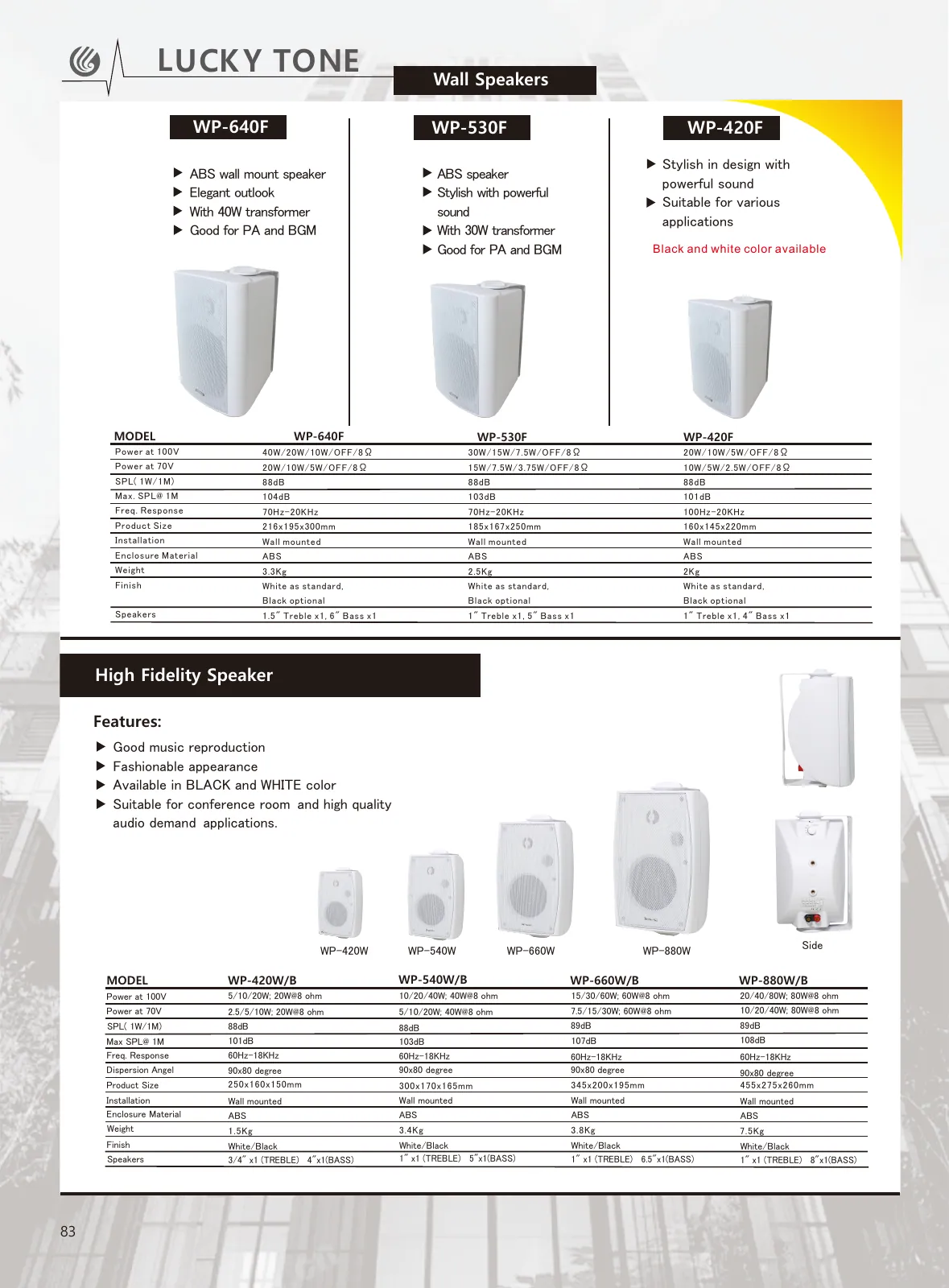

03Documents1 file · 2.6 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
