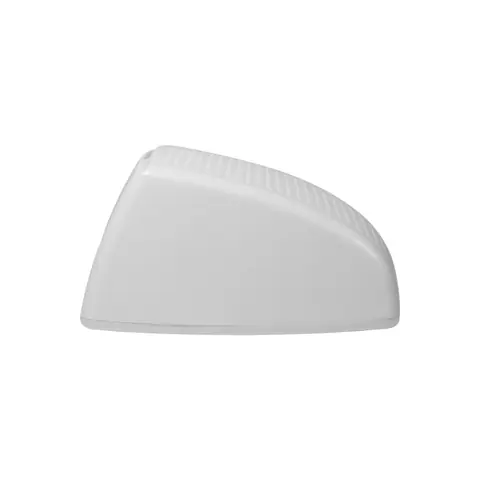

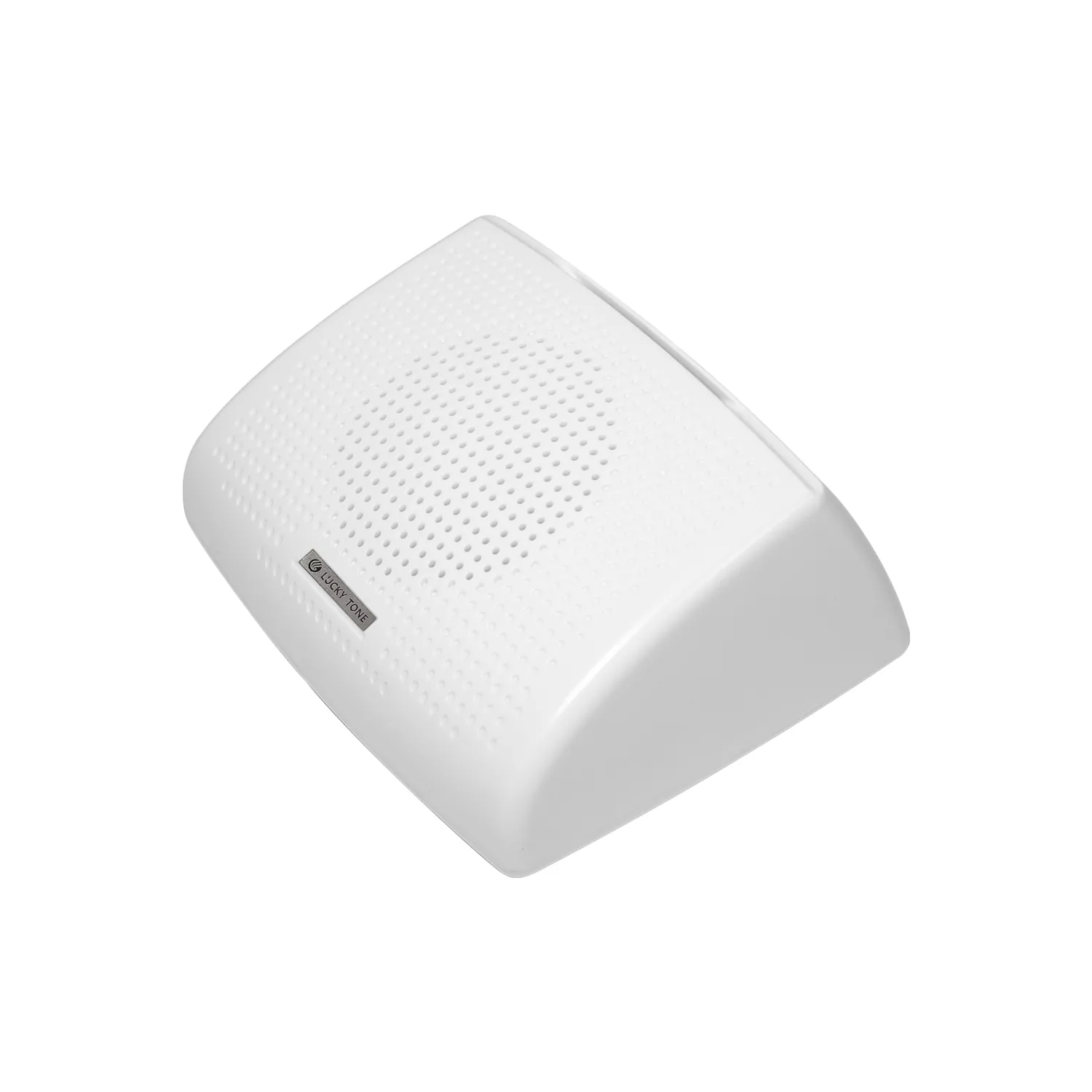

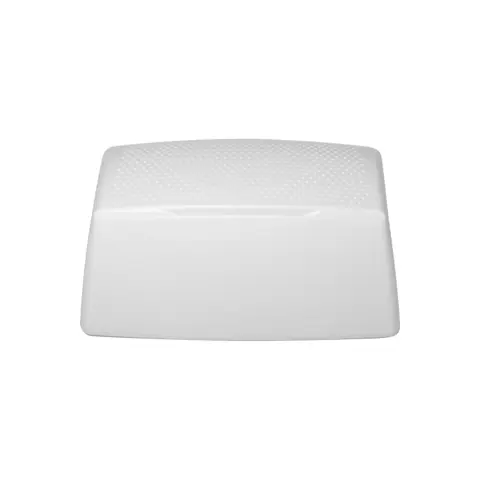

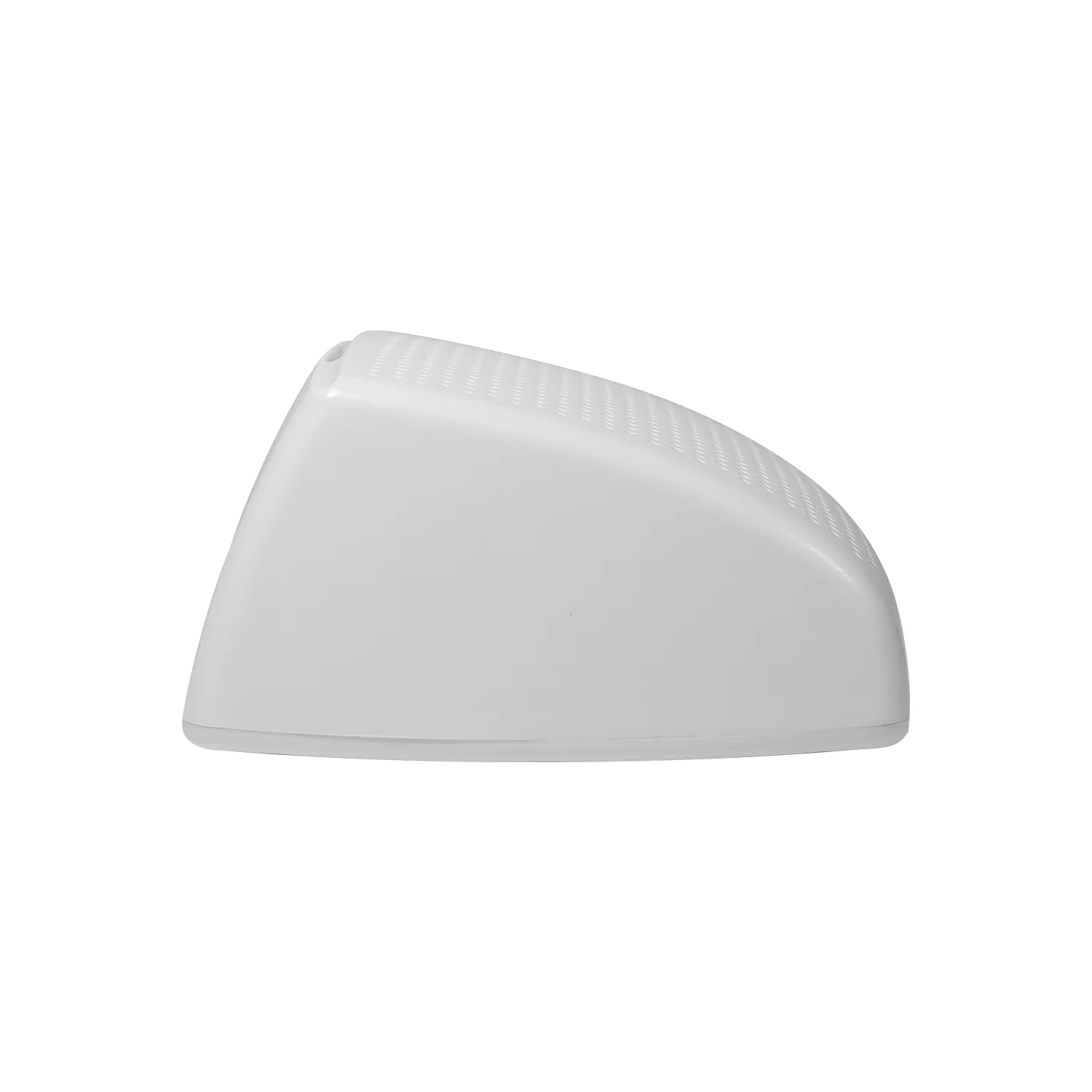

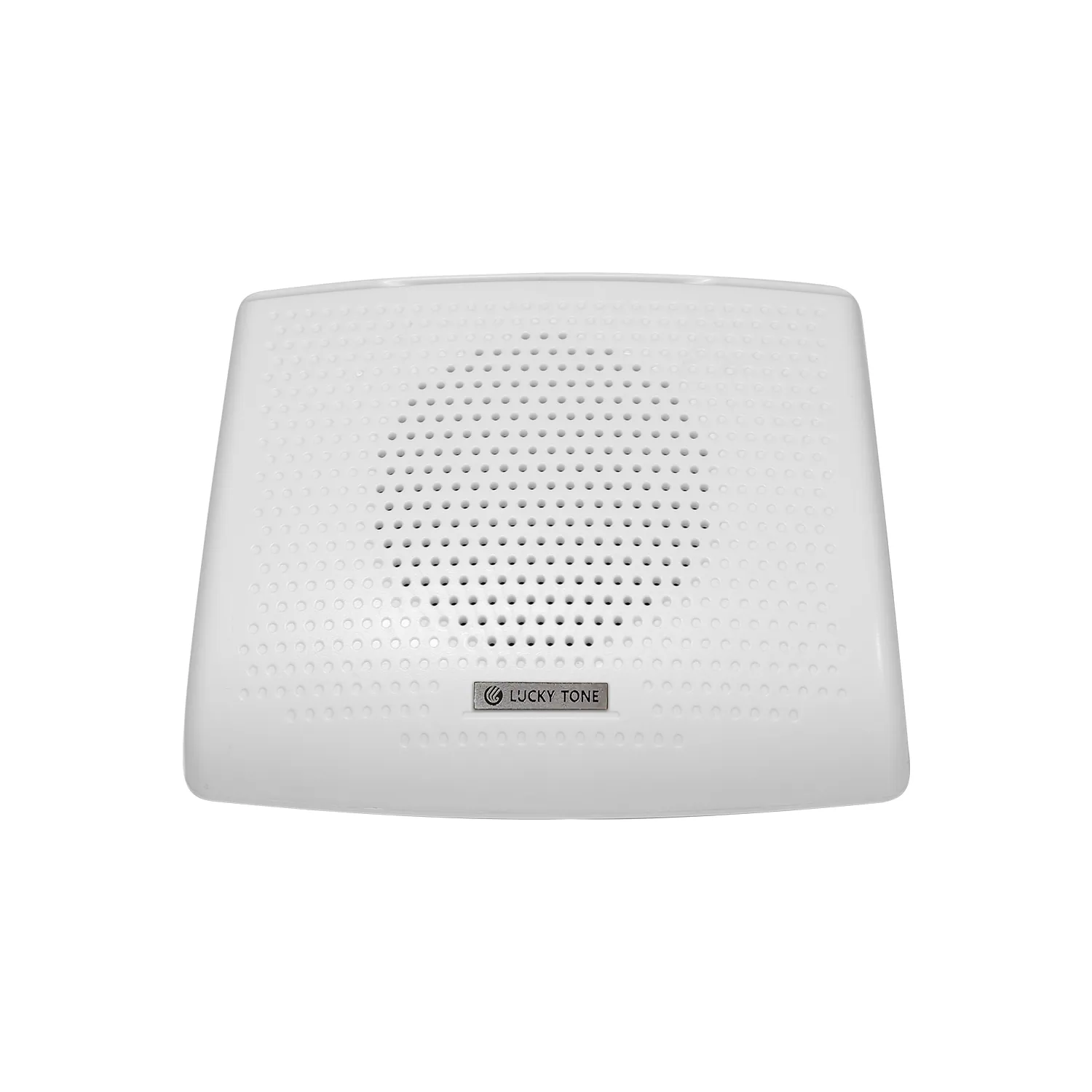

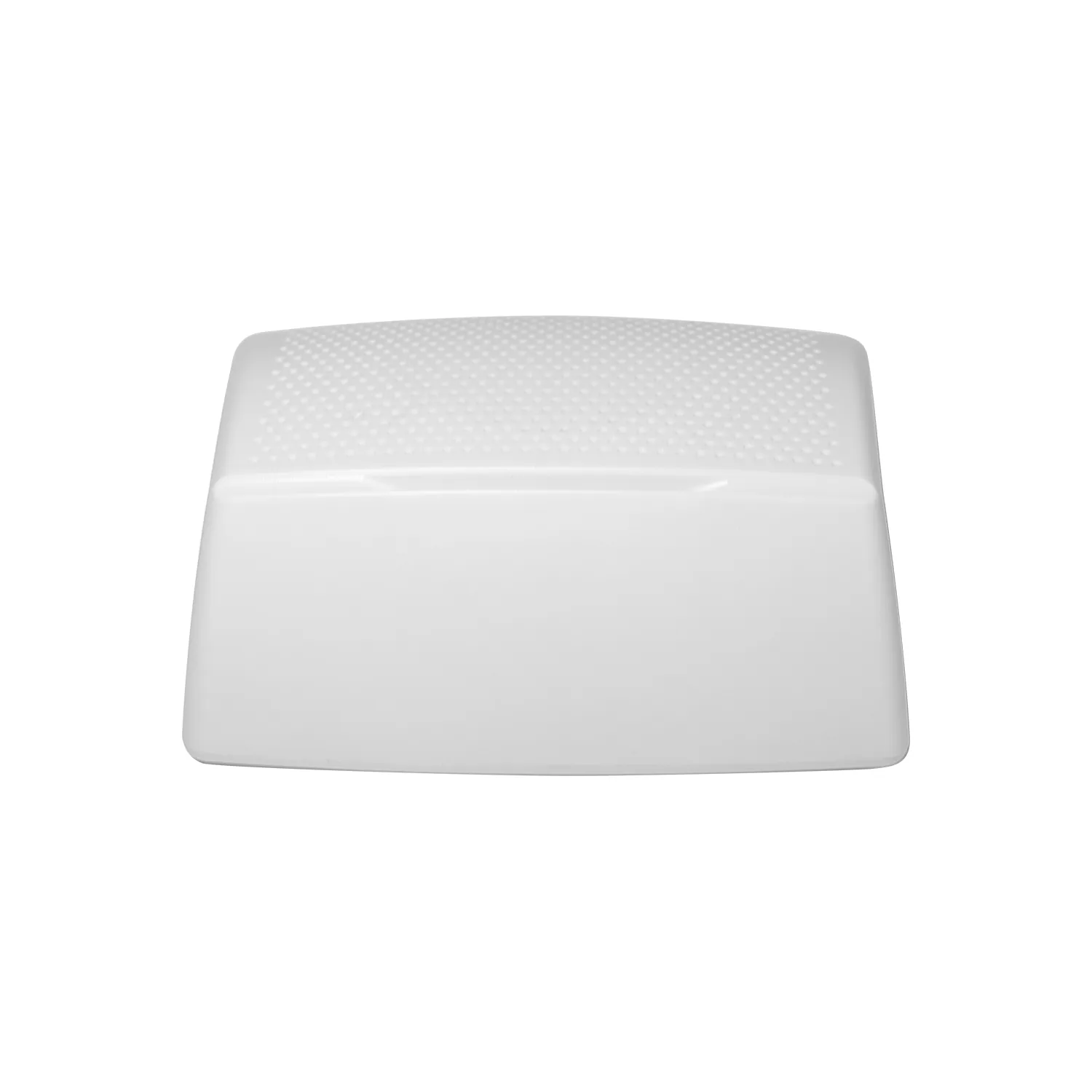

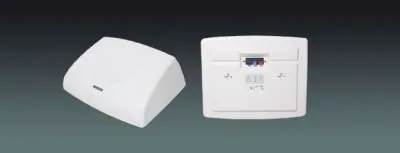

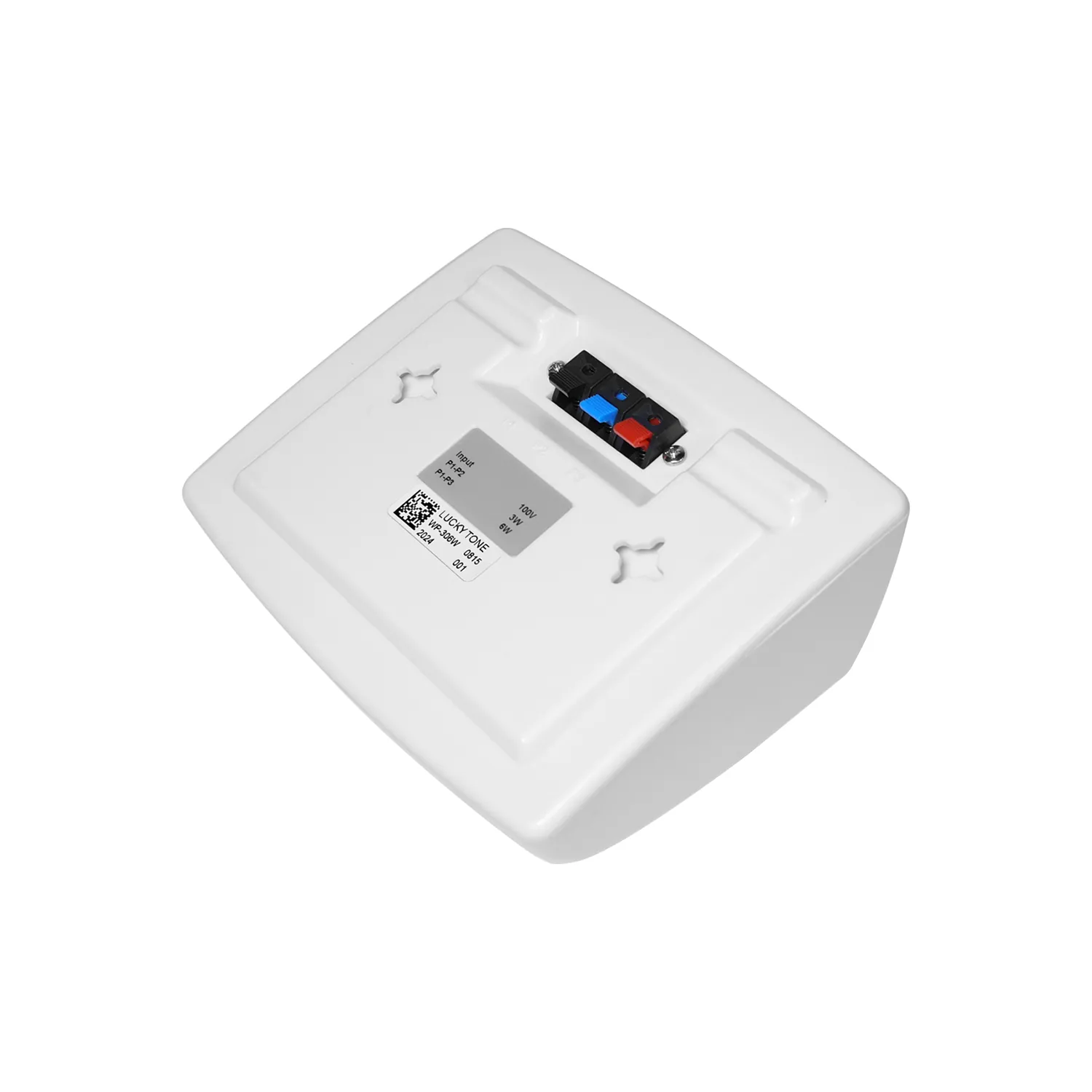

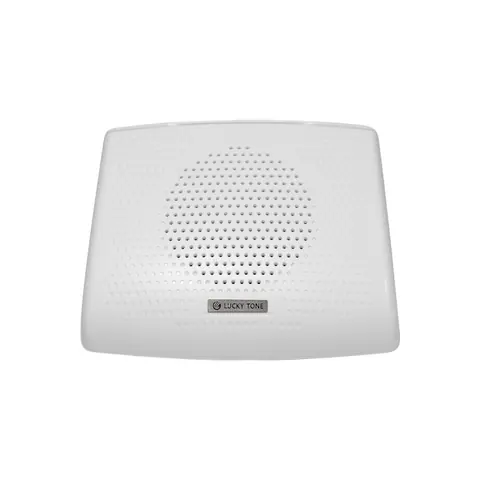

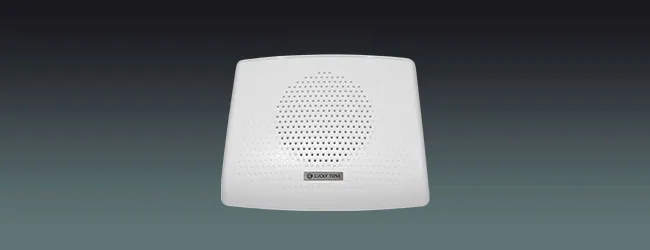

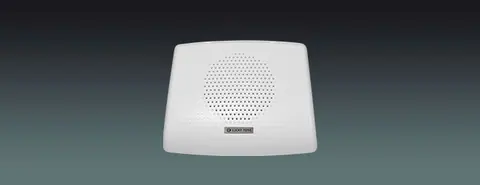

Lucky Tone Wall Mount Speaker WP-306W
ModelWP-306W
Waterproof for outdoor application (IP54)
- Weight
- 0.43kg
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- Model
- WP-306W
- Speaker unit
- 3”×1

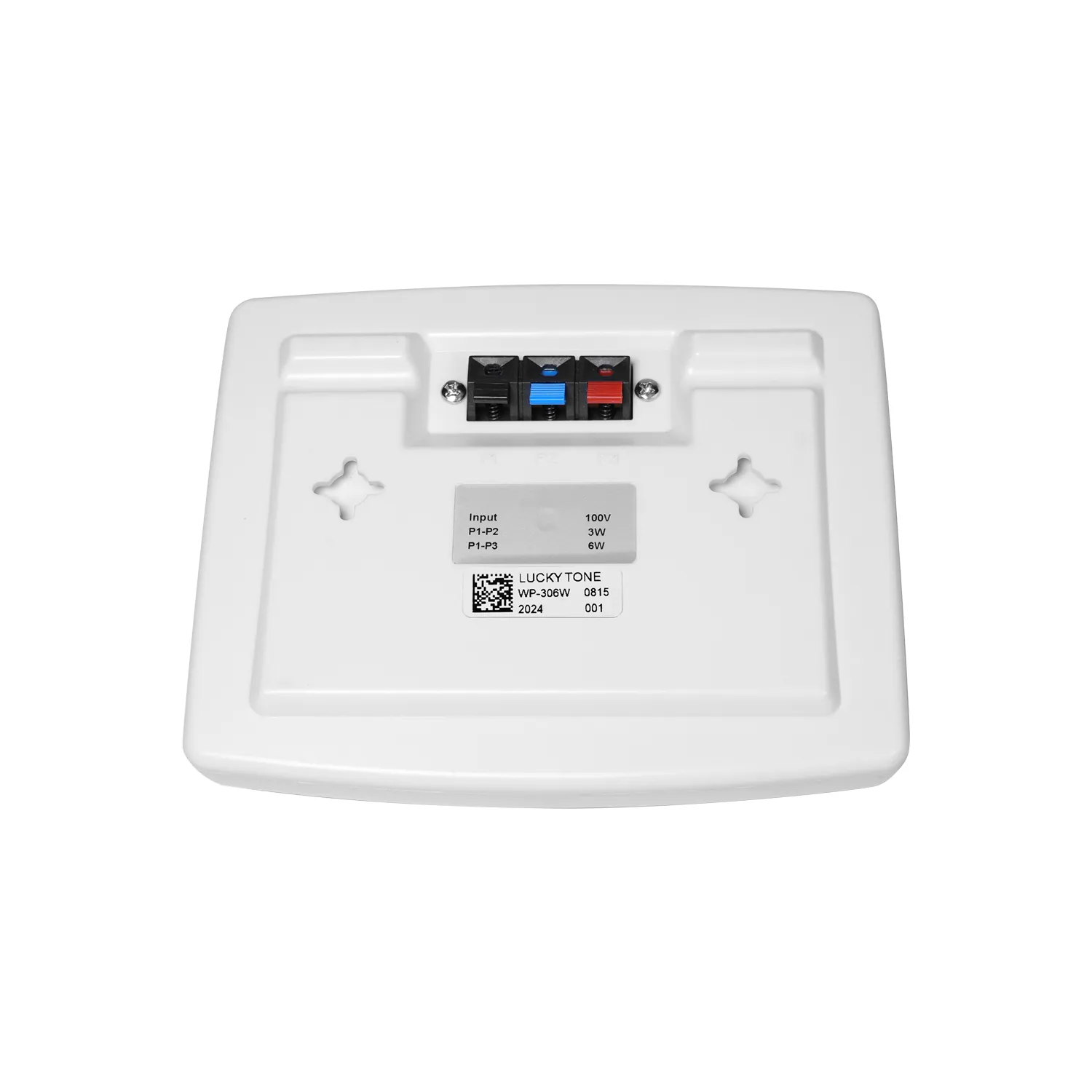

- Working voltage
- 100V/70V
- Power at 100V
- 3W/6W
- Power at 70V
- 1.5W/3W
- Sensitivity(1M/1W)
- 82dB±2dB
- Max SPL@ 1M
- 87dB±2dB
- Freq. Response
- 200Hz-12KHz
- Installation
- Wall mounted
- Enclosure Material
- ABS
- Size
- 126×154×69mm
- Weight
- 0.43kg
- Finish
- White
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
ABS wall mount speaker
Elegant outlook
With 6W transformer
Good for PA and BGM
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
