Sheet 05.144
Lucky Tone · Loudspeakers

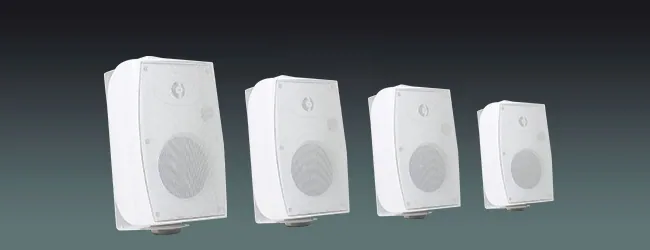

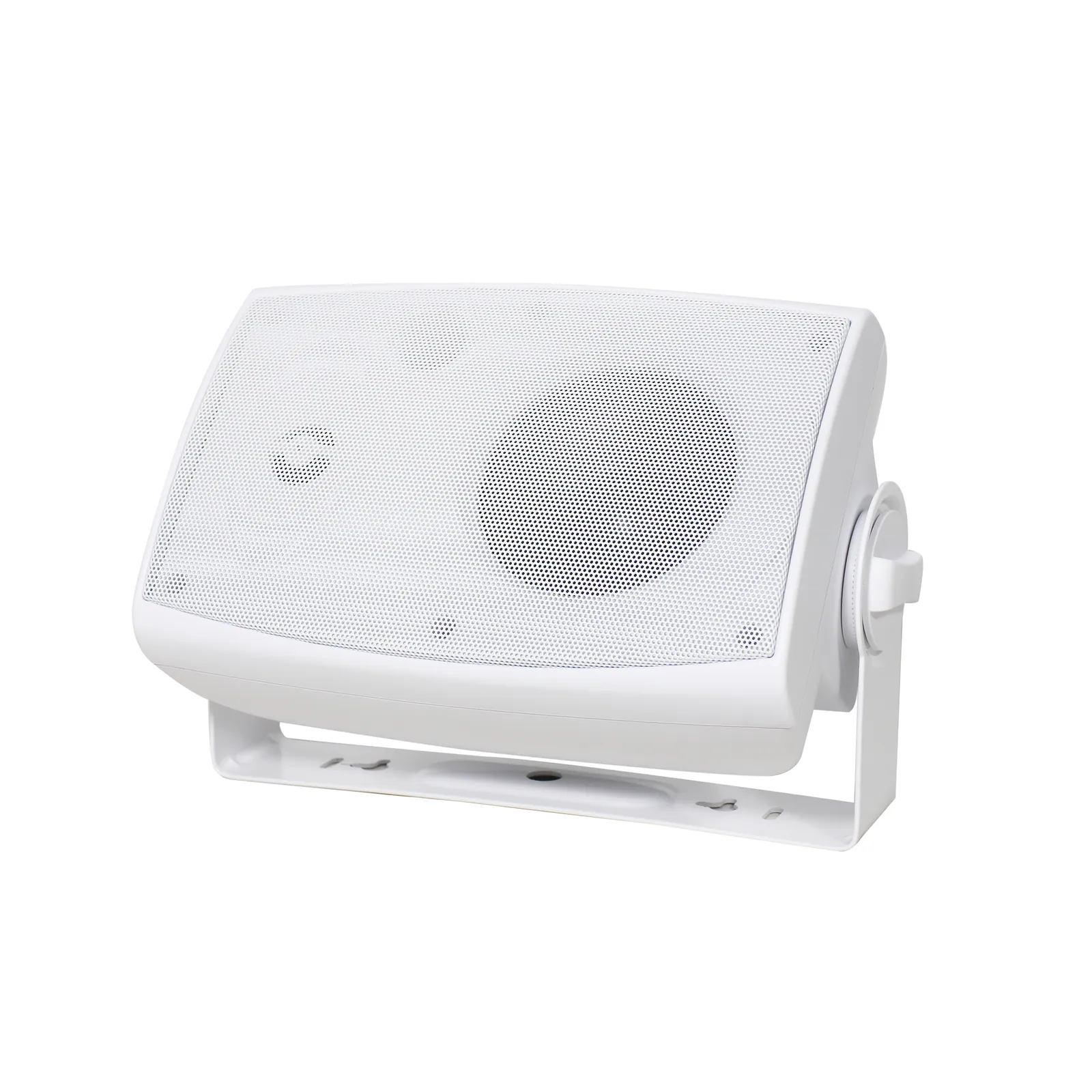

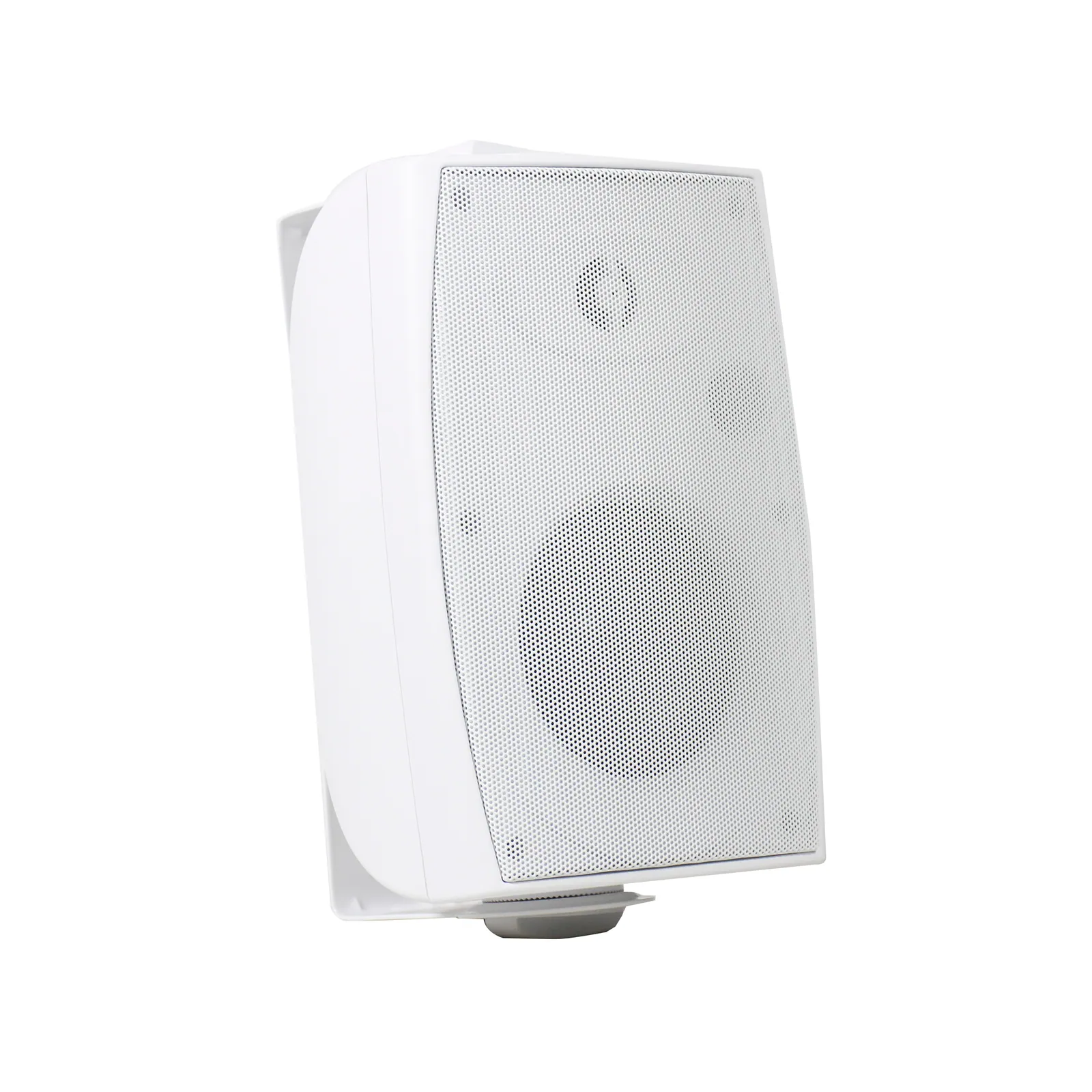

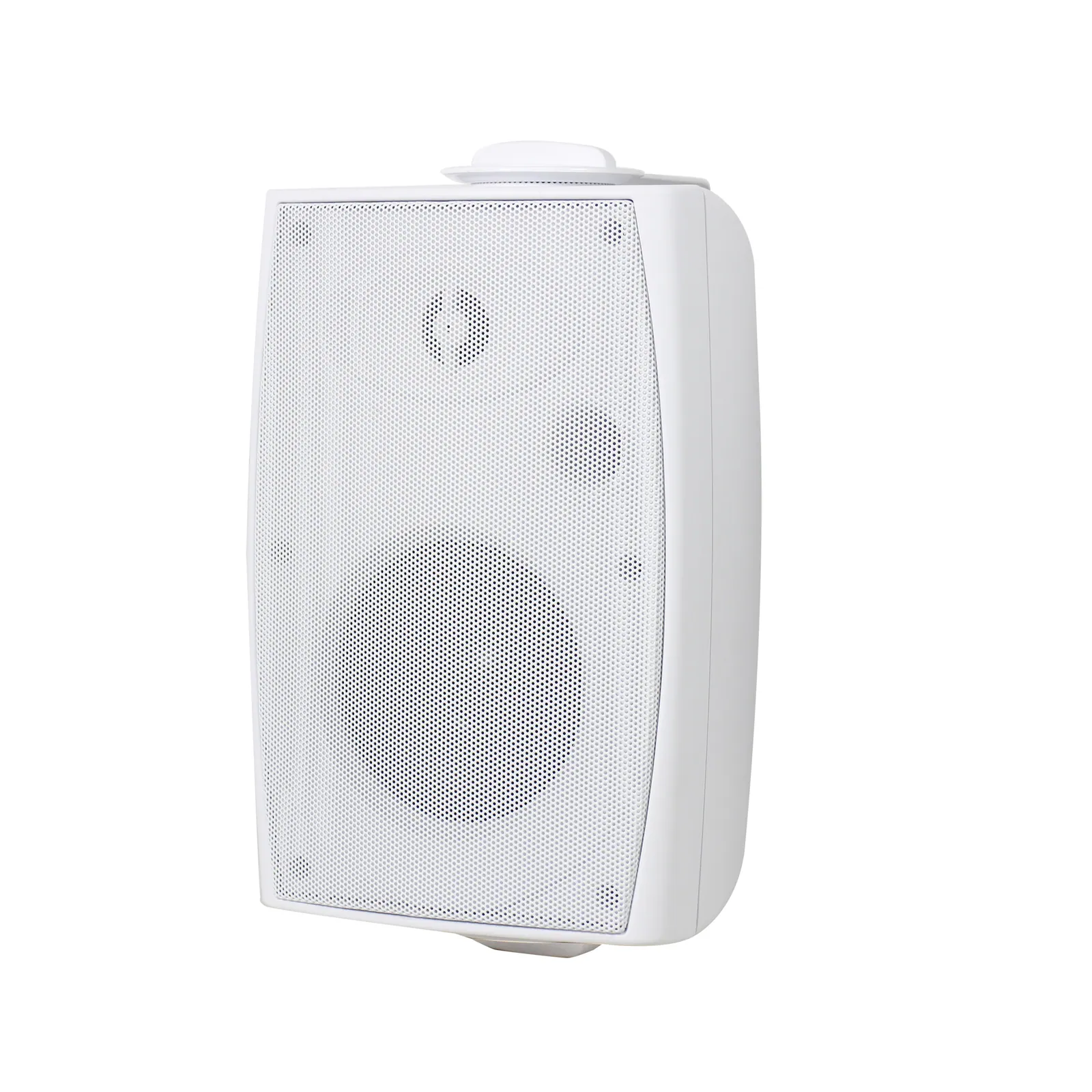

High Fidelity Wall-mounted Speakers
ModelWP-420W/B / WP-540W/B / WP-660W/B / WP-880W/B
● Suitable for conference room and high quality audio demand applications
- Weight
- WP-420W/B: 1.50Kg; WP-540W/B: 3.40Kg; WP-660W/B: 3.80Kg; WP-880W/B: 7.50kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
High Fidelity Wall-mounted SpeakersPrice on requestRequest a quotation
01Models4 models in the family
Models compared.
| MODEL | WP-420W/B | WP-540W/B | WP-660W/B | WP-880W/B |
|---|---|---|---|---|

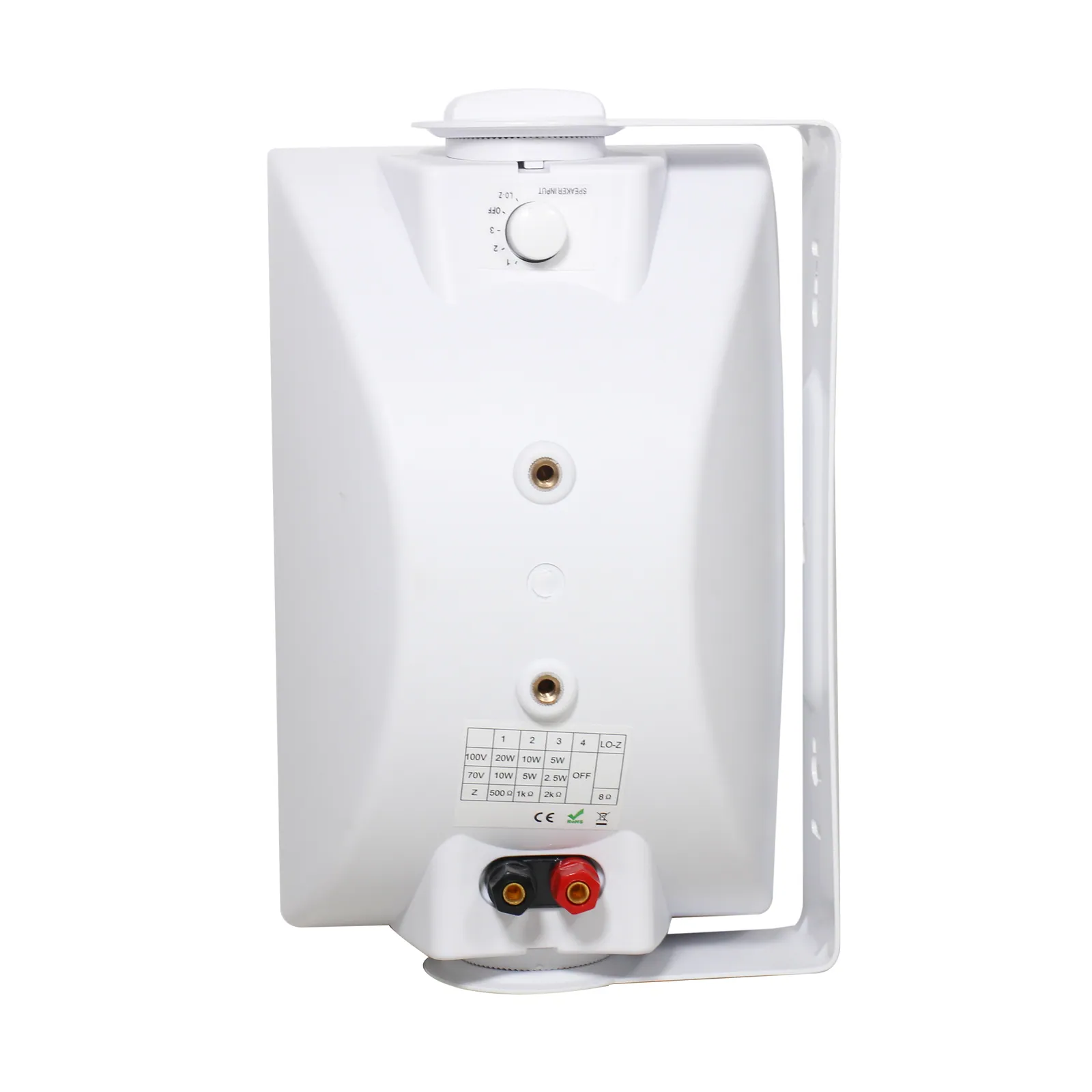

| Power at 100V | 5/10/20W; 20W@8 ohm | 10/20/40W; 40W@8 ohm | 15/30/60W; 60W@8 ohm | 20/40/80W; 80W@8 ohm |
| Power at 70V | 2.5/5/10W; 20W@8 ohm | 5/10/20W; 40W@8 ohm | 7.5/15/30W; 60W@8 ohm | 10/20/40W; 80W@8 ohm |
| SPL (1W/1M) | 90dB | 90dB | 91dB | 91dB |
| Max SPL@1M | 103dB | 105dB | 108dB | 110dB |
| Freq. Response | 60Hz-18KHz | 60Hz-18KHz | 60Hz-18KHz | 60Hz-18KHz |
| Dispersion Angel | 90×80 degree | 90×80 degree | 90×80 degree | 90×80 degree |
| Product Size | 250x160x150mm | 300x170x165mm | 345x200x195mm | 455x275x260mm |

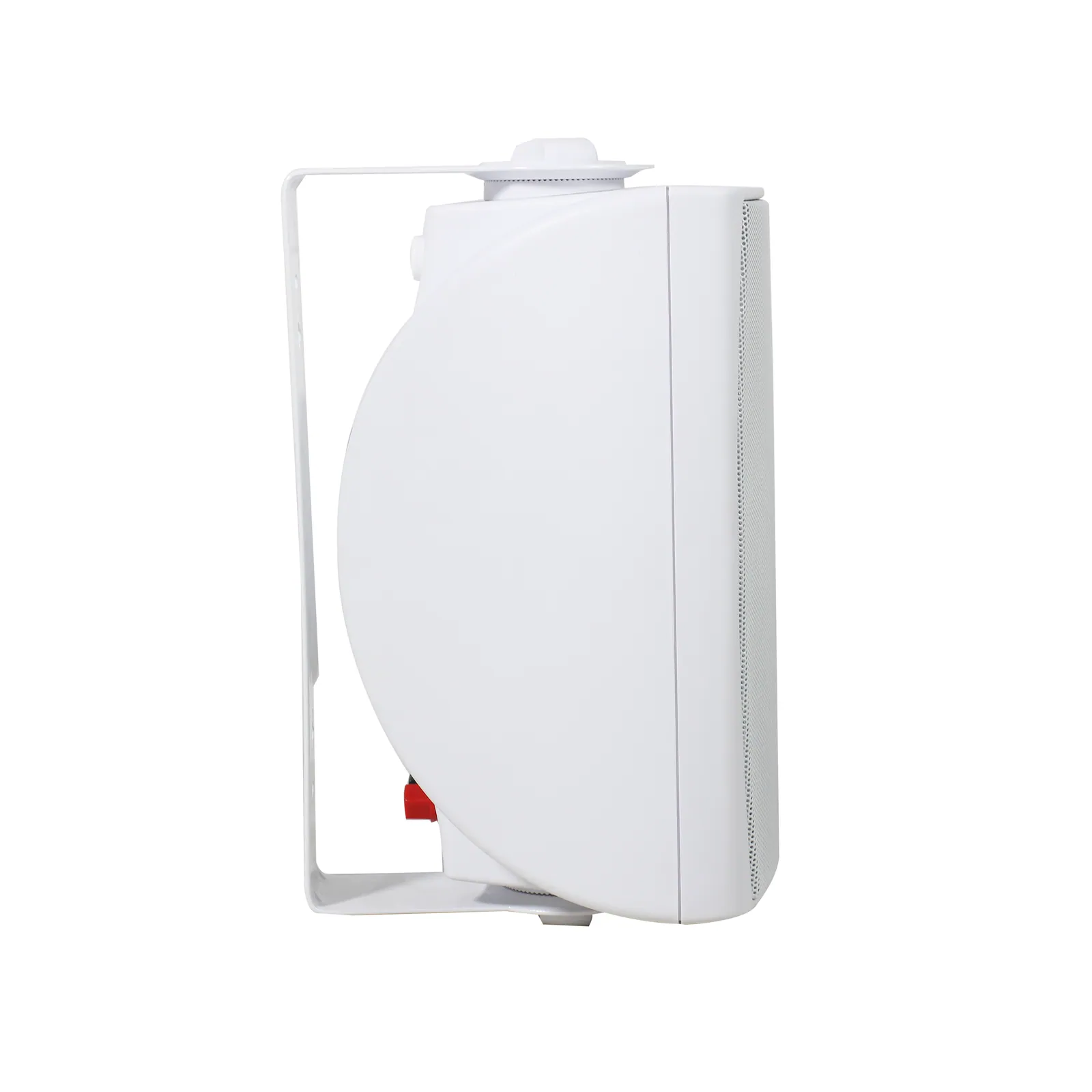

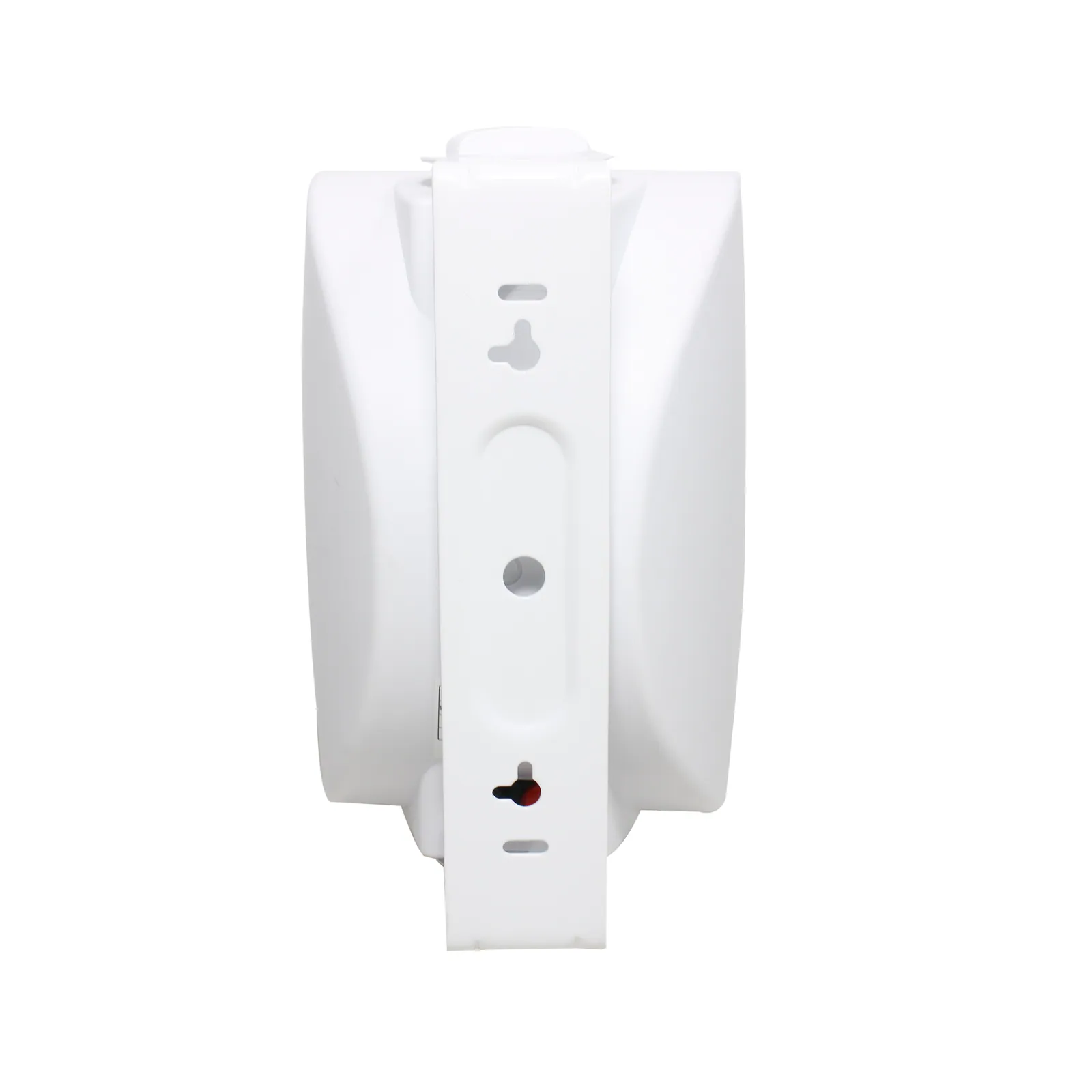

| Installation | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted |
| Enclosure Material | ABS | ABS | ABS | ABS |
| Weight | 1.50Kg | 3.40Kg | 3.80Kg | 7.50kg |
| Finish | White/Black | White/Black | White/Black | White/Black |

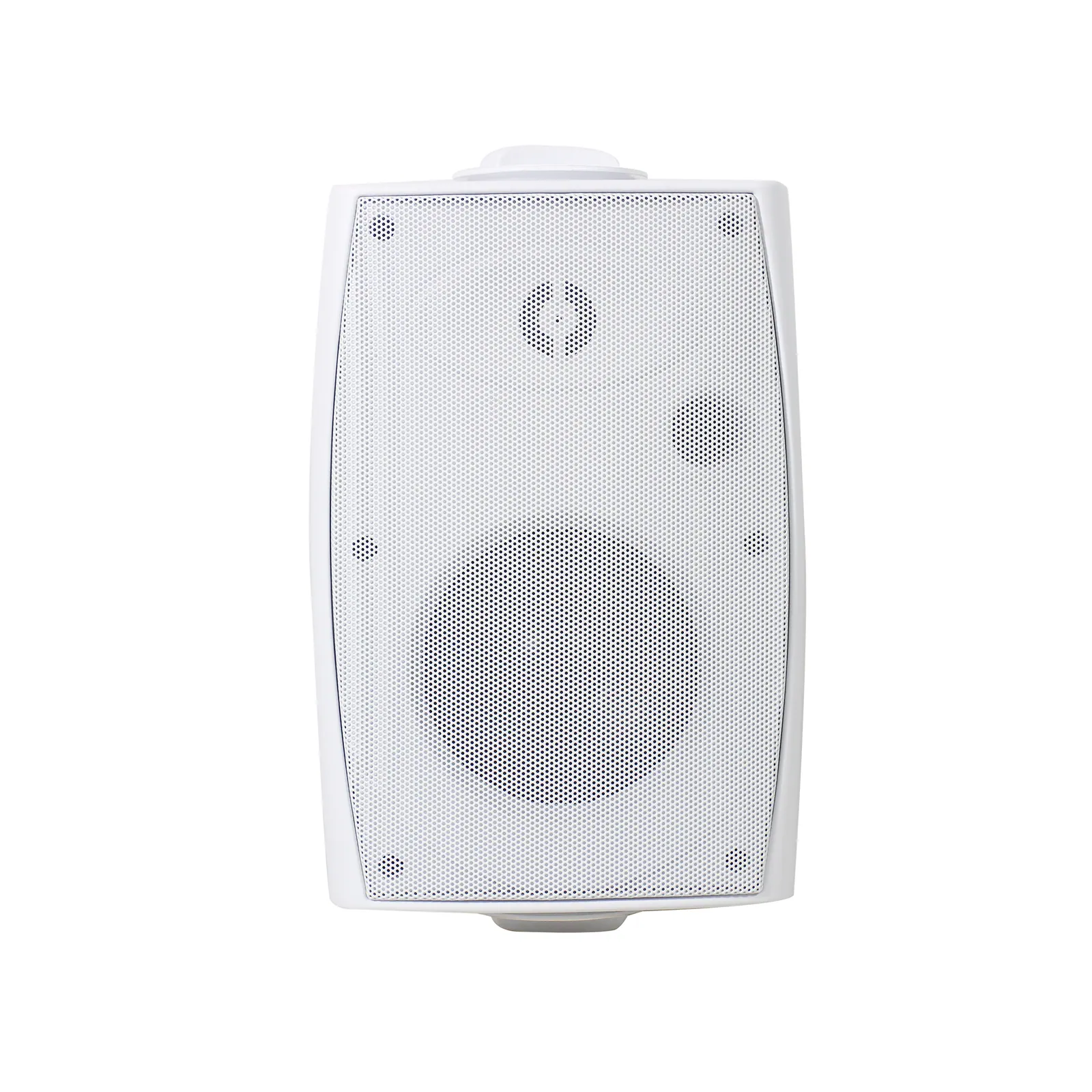

| Speakers | 3/4″ x1 (TREBLE) 4″x1(BASS) | 1″ x1 (TREBLE) 5″x1(BASS) | 1″ x1 (TREBLE) 6.5″x1(BASS) | 1″ x1 (TREBLE) 8″x1(BASS) |
02DescriptionManufacturer's description
What it is.
Features
● Good music reproduction
● Fashionable appearance
● Available in BLACK and WHITE color
03Documents1 file · 2.6 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
04Related products
In the same range.
EQ-143Lucky ToneHang & Wall SpeakerHW-540P / HW-660P · Loudspeakers
EQ-145Lucky ToneHigh Performance 2-way Ceiling SpeakerCR-620LT / CR-620L · Loudspeakers

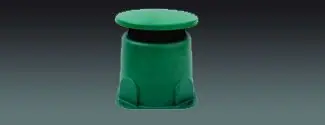

EQ-142Lucky ToneGarden SpeakerOD-515P · LoudspeakersWeight1.20kg
