Sheet 05.99
Lucky Tone · Loudspeakers

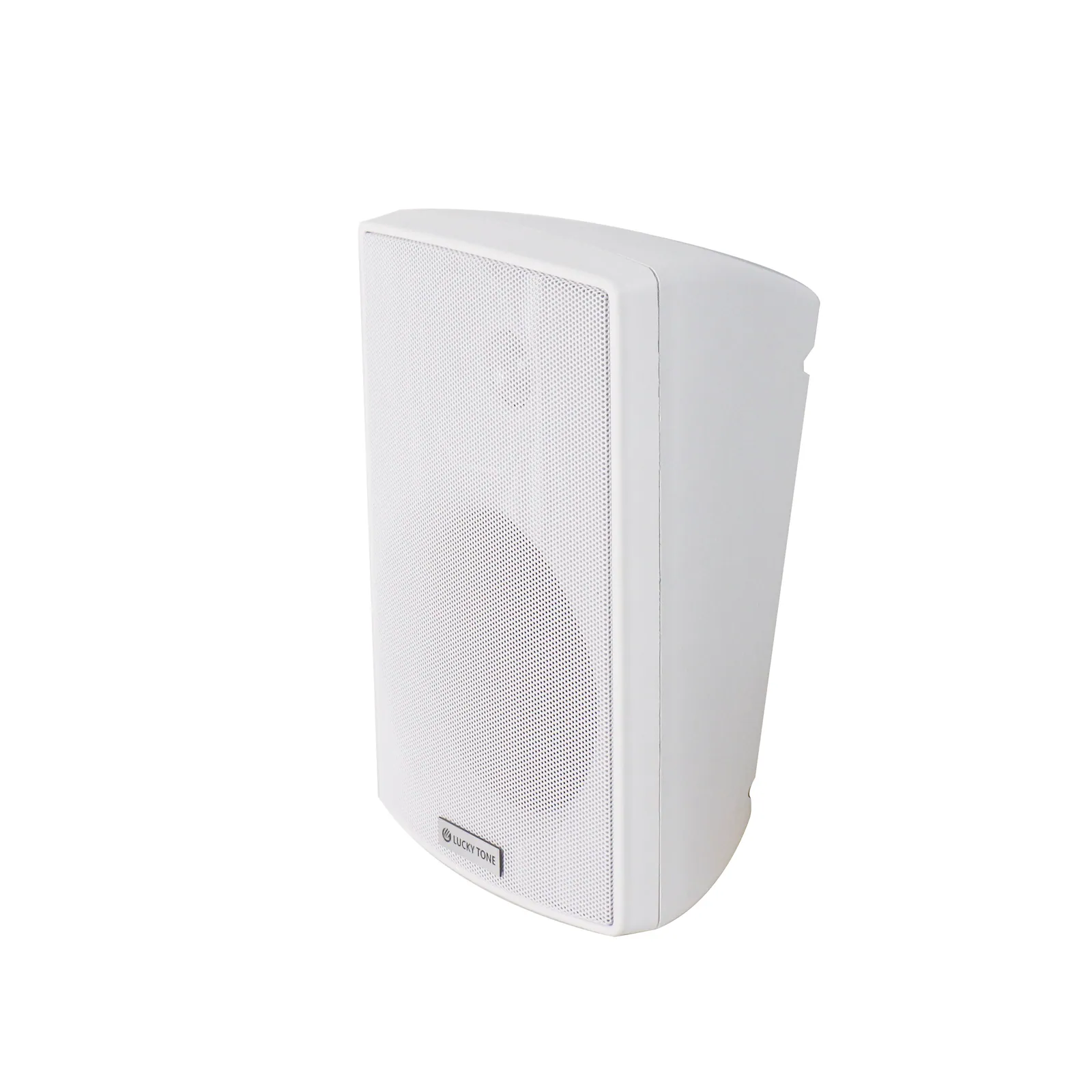

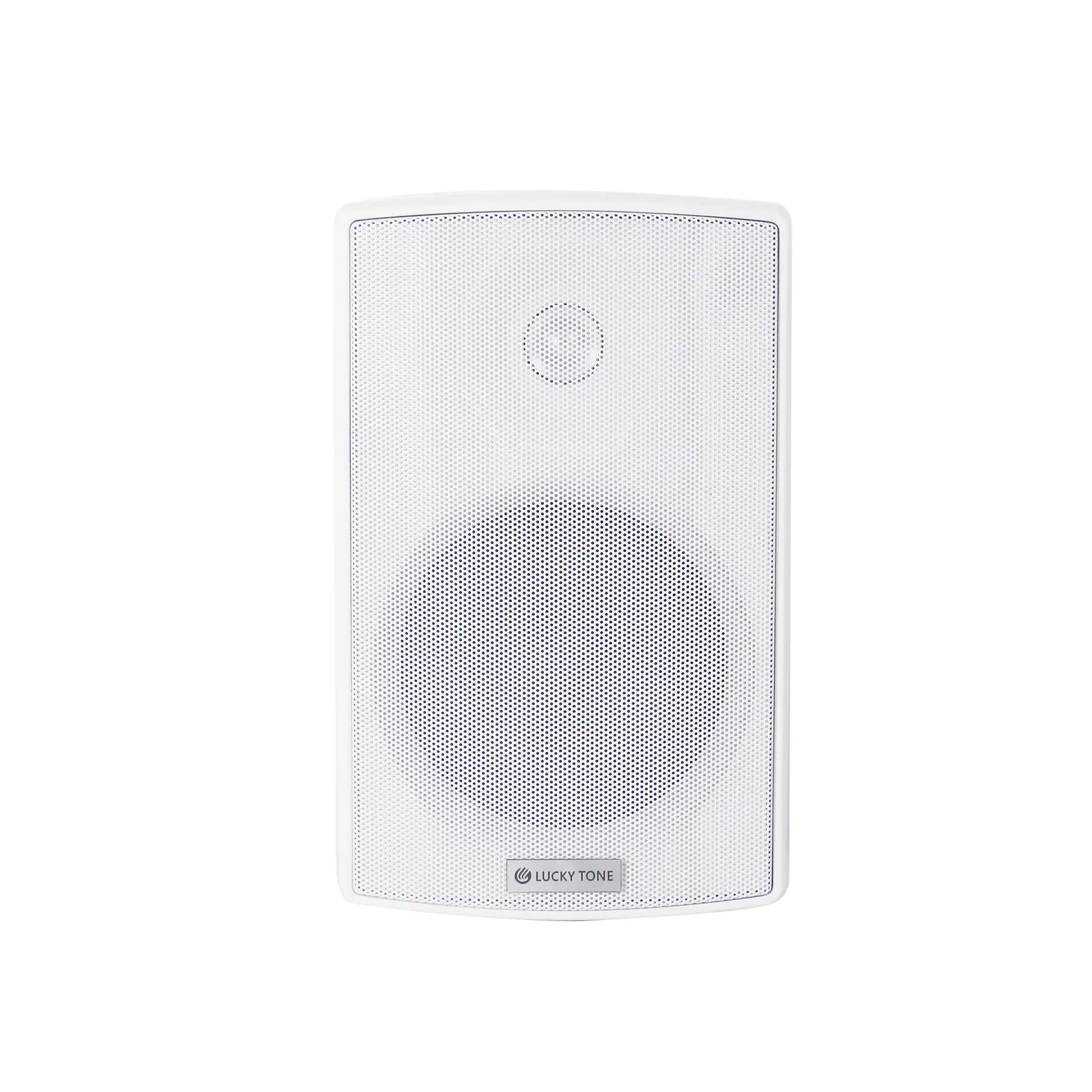

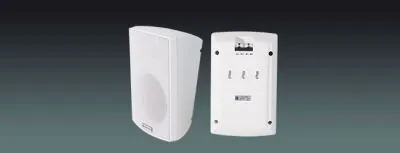

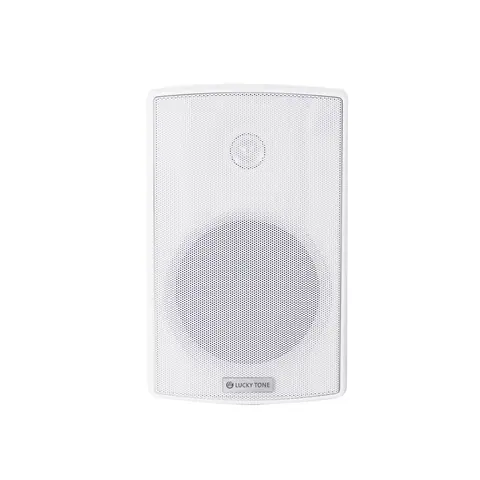

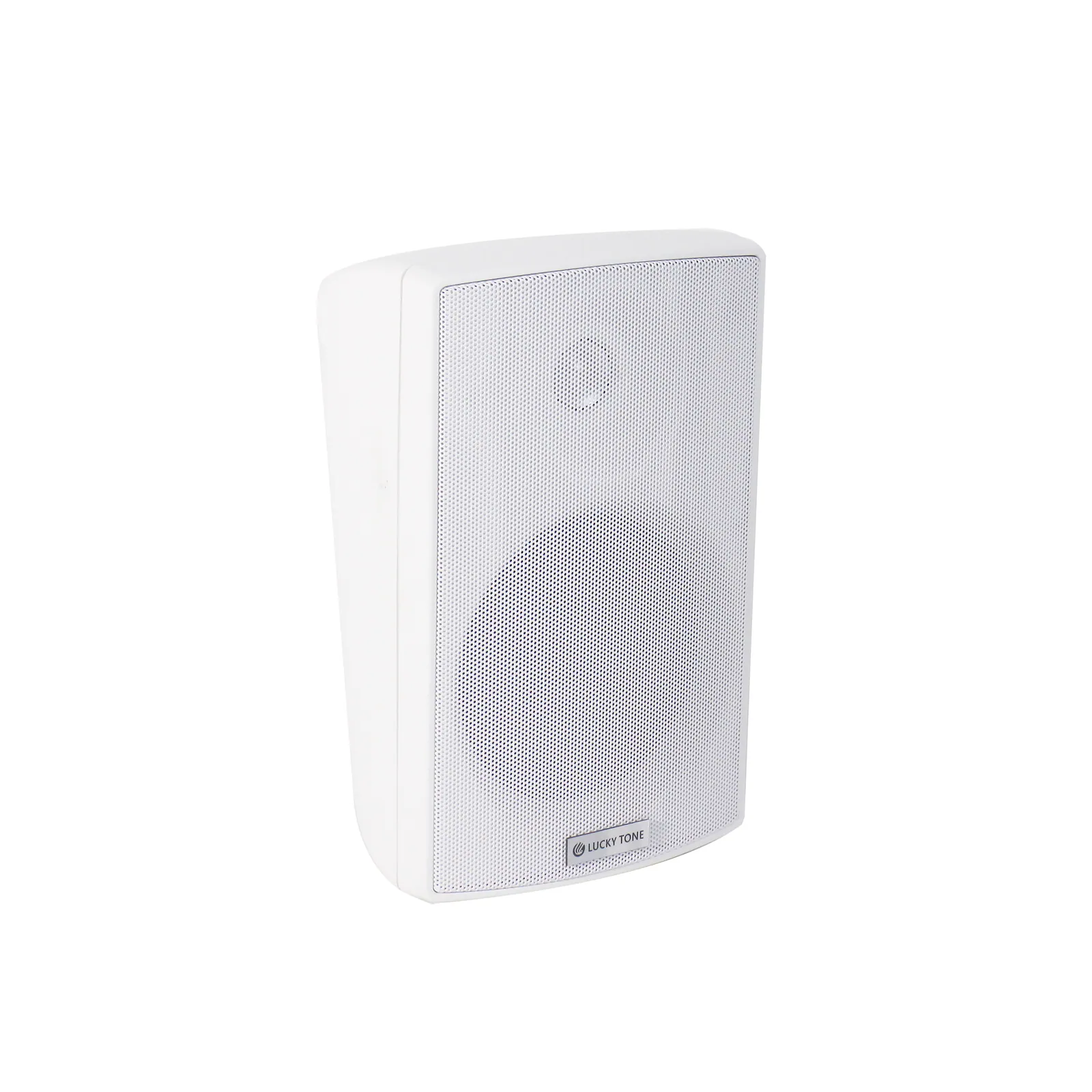

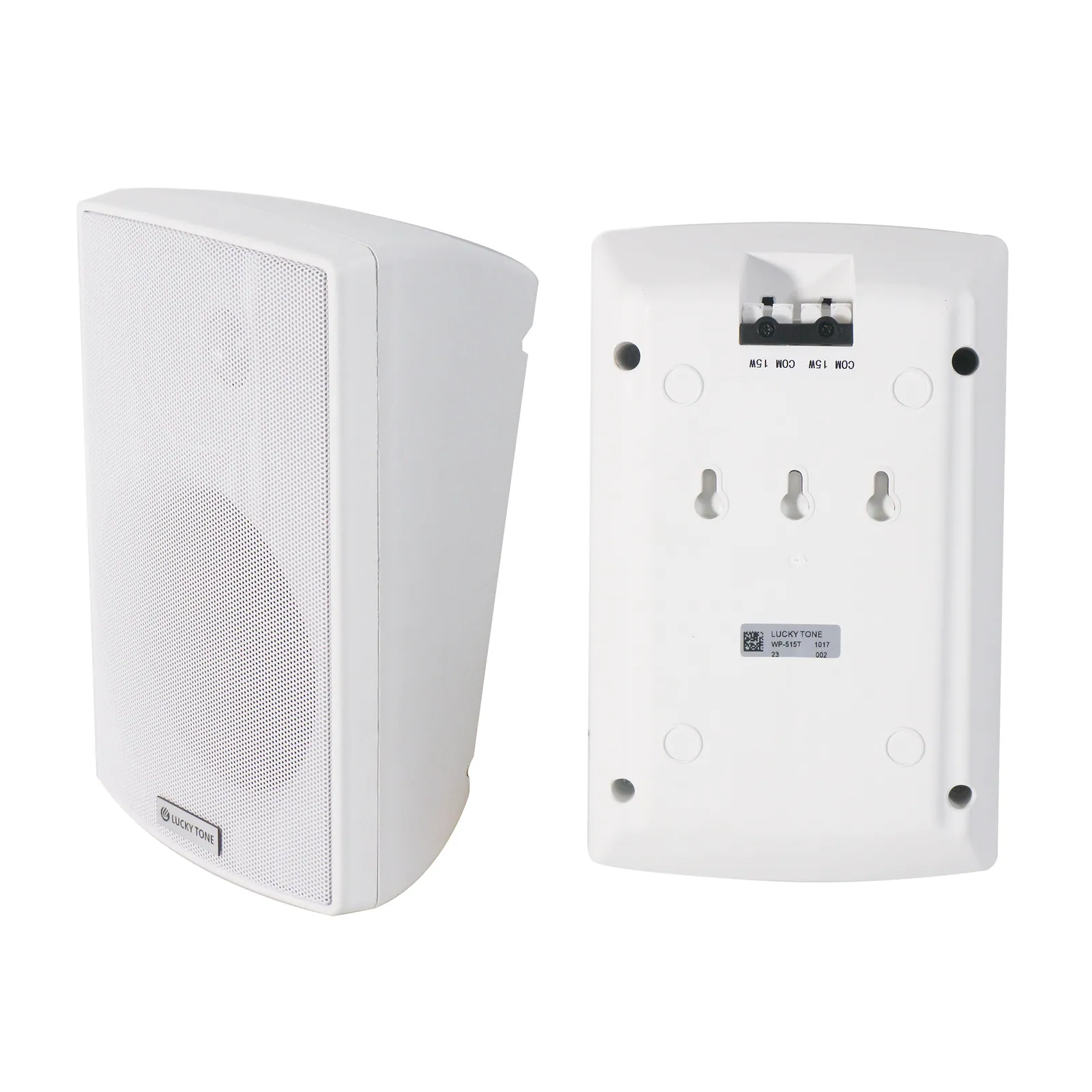

5 Inch Wall Mount Speaker with Tweeter
ModelWP-515T
Experience rich and crisp audio with our 5-inch wall mount speaker featuring a dedicated tweeter.
- Frequency response
- 80HZ±5 ~ 19K±1
- Weight
- 1.2kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
5 Inch Wall Mount Speaker with TweeterPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 14 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications14
- Model
- WP-515T
- Power at 100V
- 15W
- Power at 8ohm
- 15W
- Standard Input Voltage (100V)
- 15W/0.67KΩ
- Max. Power
- 20W
- Frequency Response
- 80HZ±5 ~ 19K±1
- Product Size
- 246*154*120mm
- Speaker Size
- 5” woofer+1” tweeter
- Sensitivity (1 meter)
- 92±1dB
- Installation
- Wall mounted
- Net Weight
- 1.2kg
- Color
- White
- Material
- ABS, metal mesh
- Package
- 20pcs per carton
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
100V or 8ohm switchable
High-Definition Audio

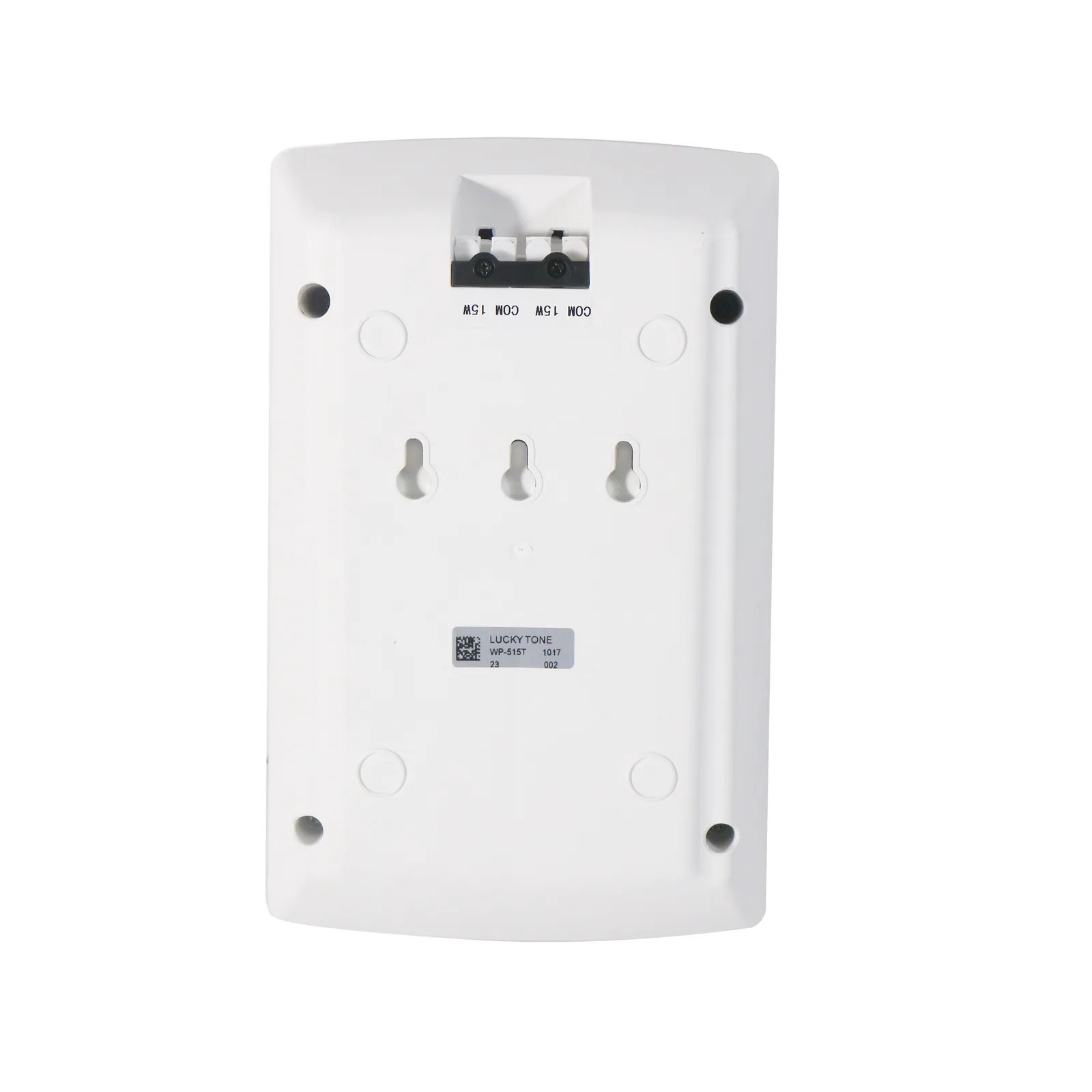

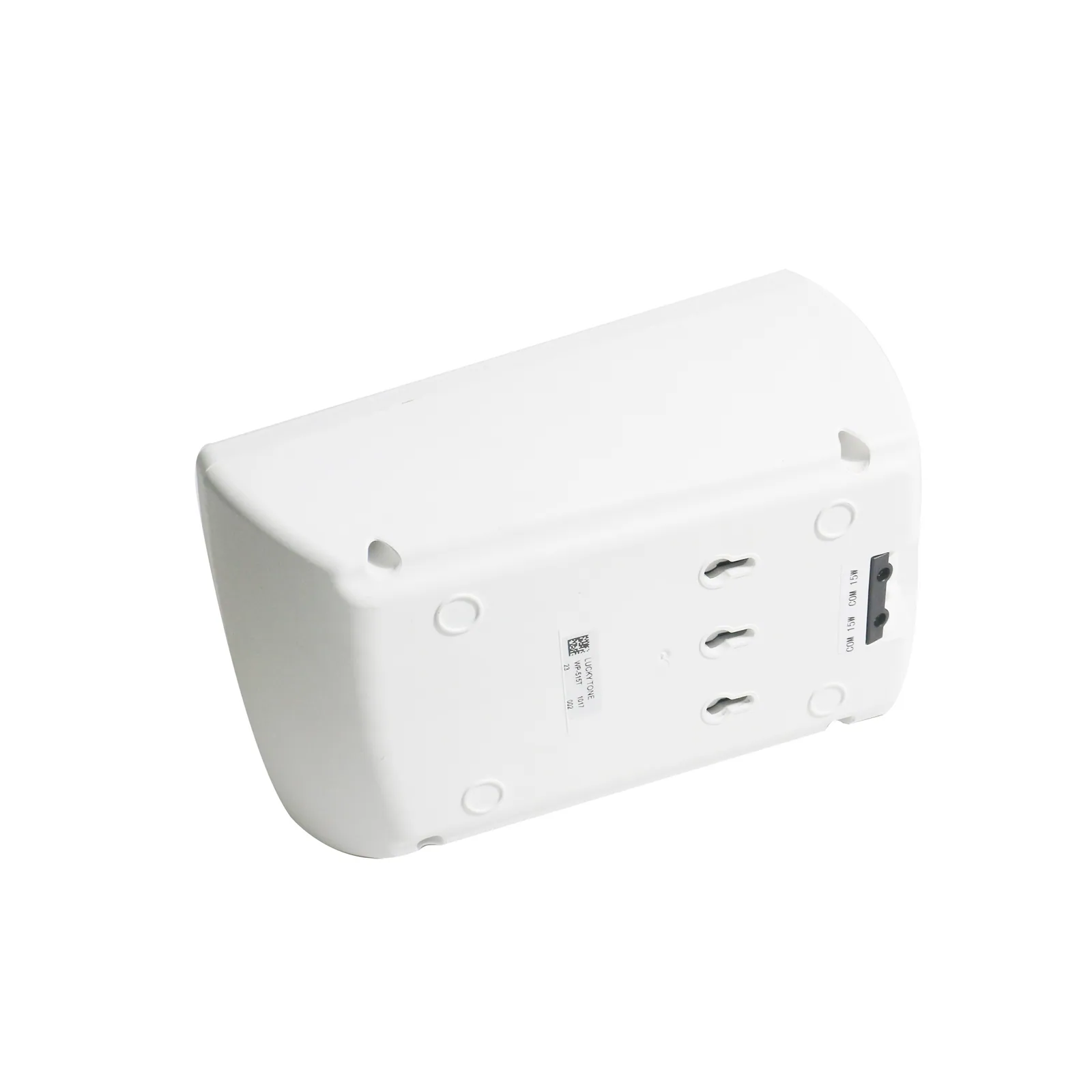

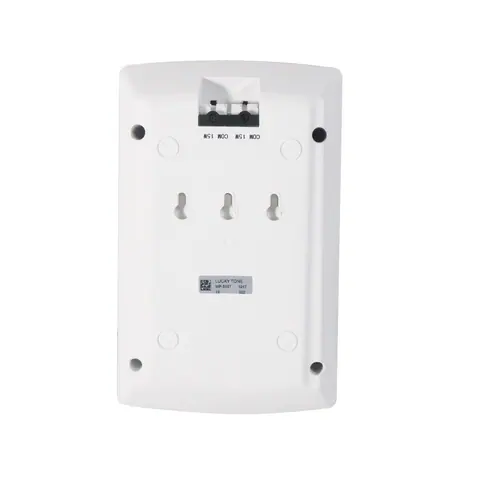

Effortless Installation
Mounting this speaker on your wall is a breeze, thanks to a user-friendly design.
Tweeter for Precise Highs
The integrated tweeter delivers exceptional high-frequency performance.
03Documents1 file · 1.2 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
