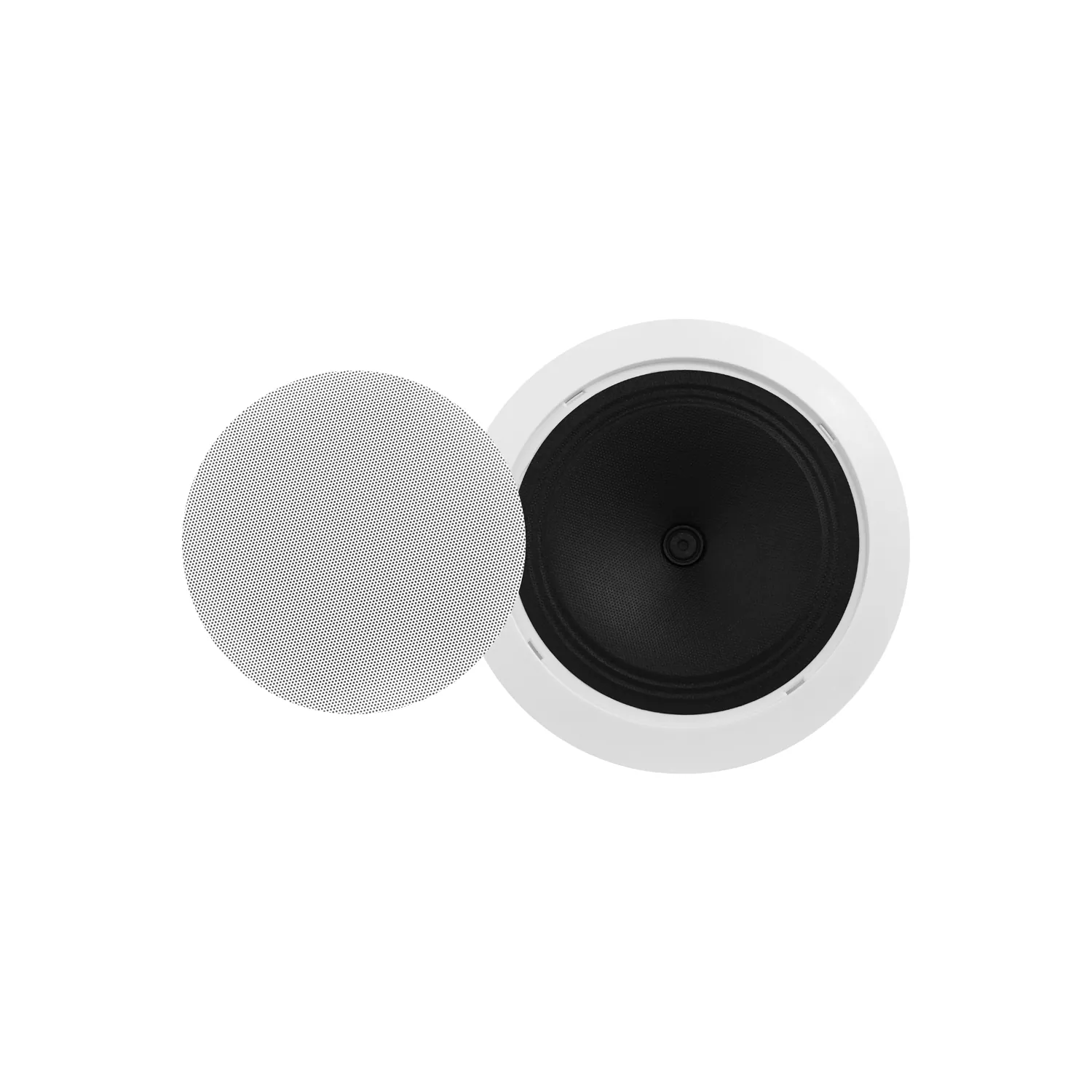

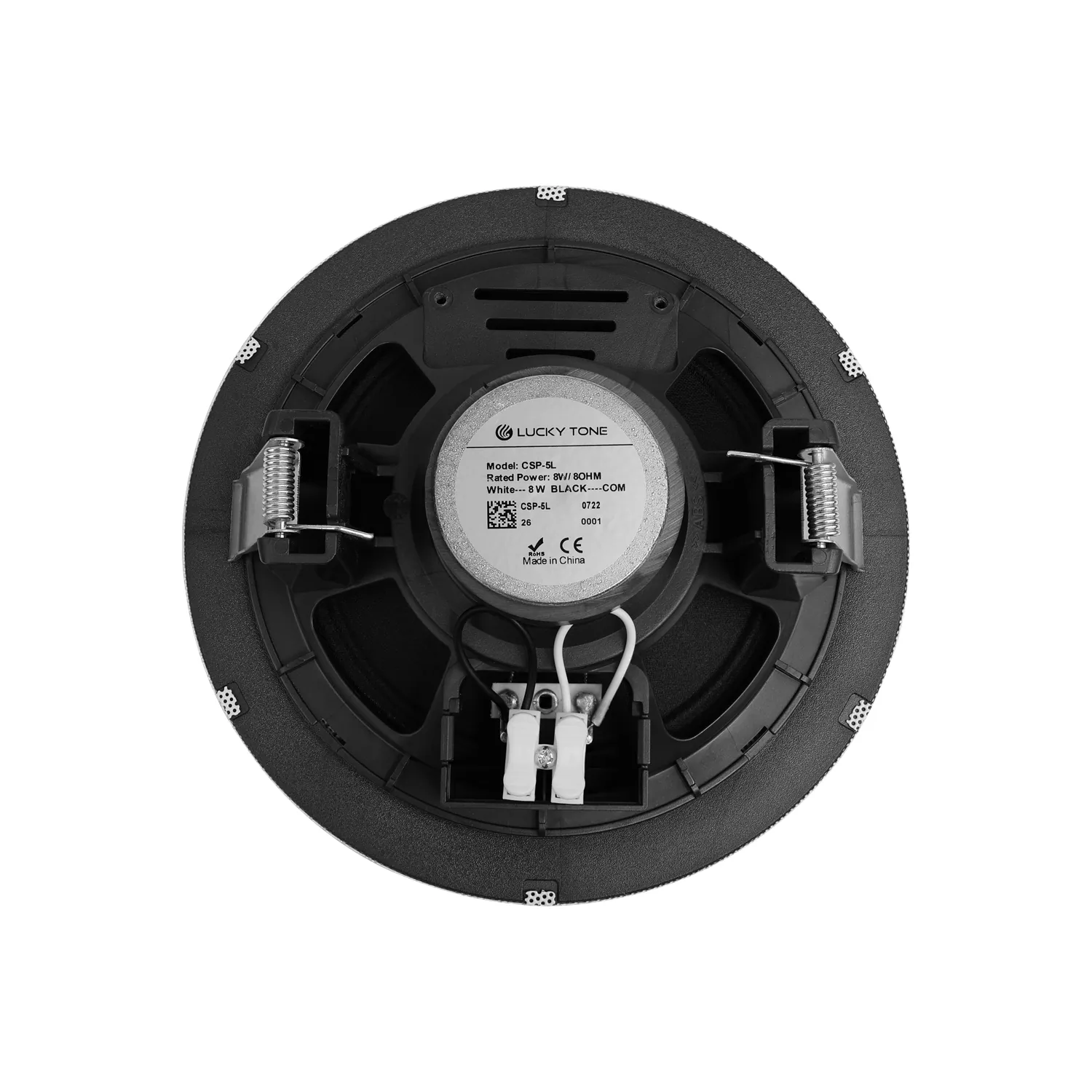

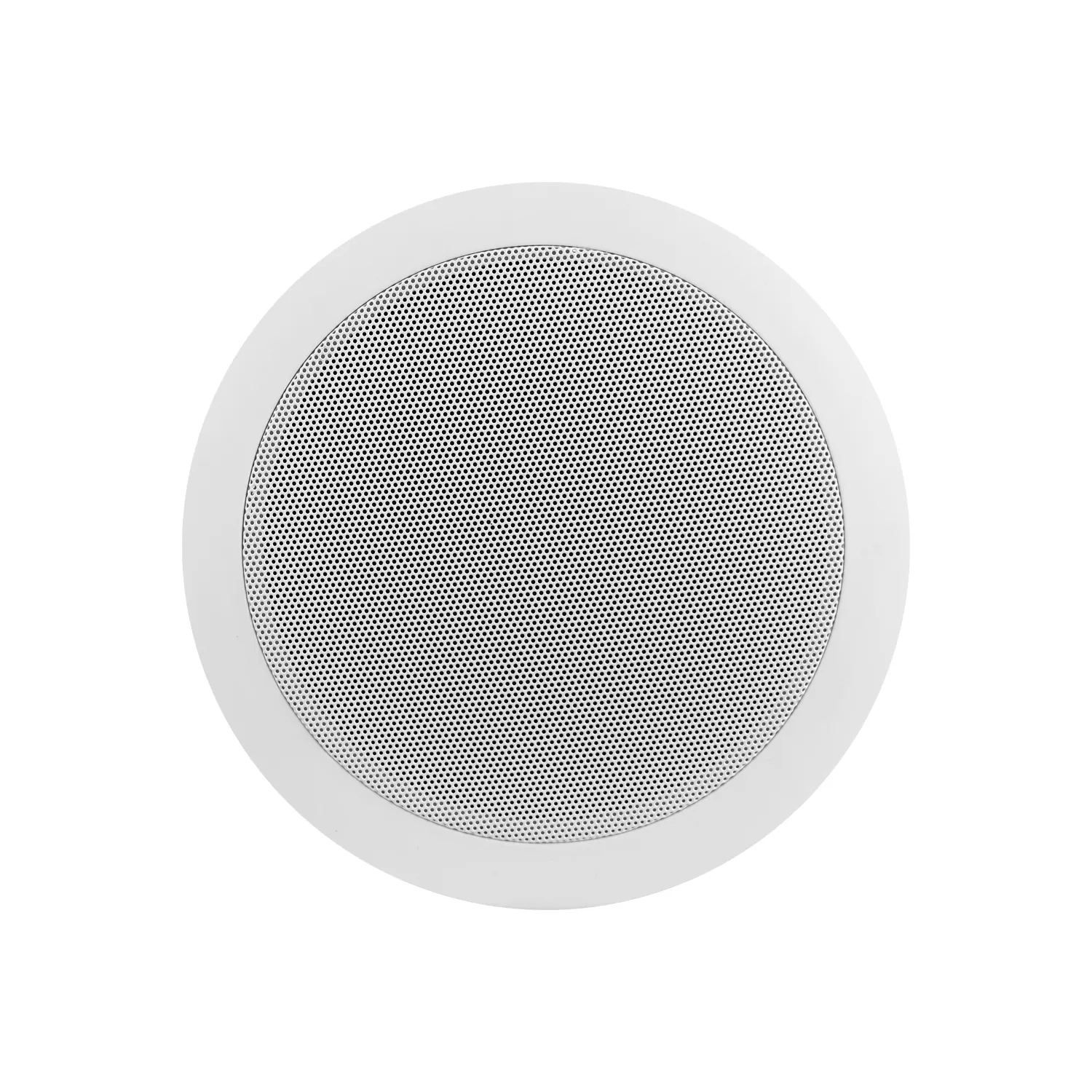

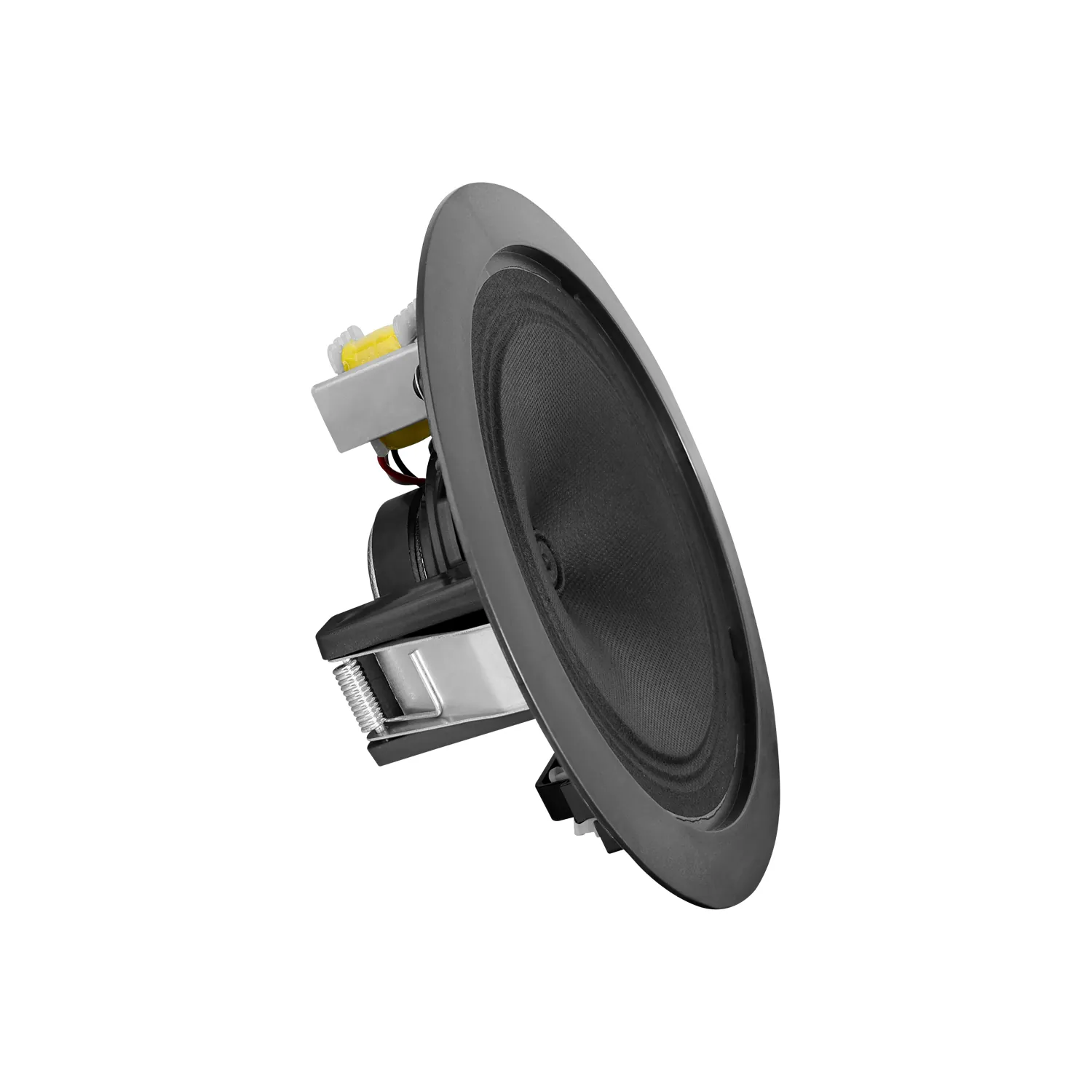

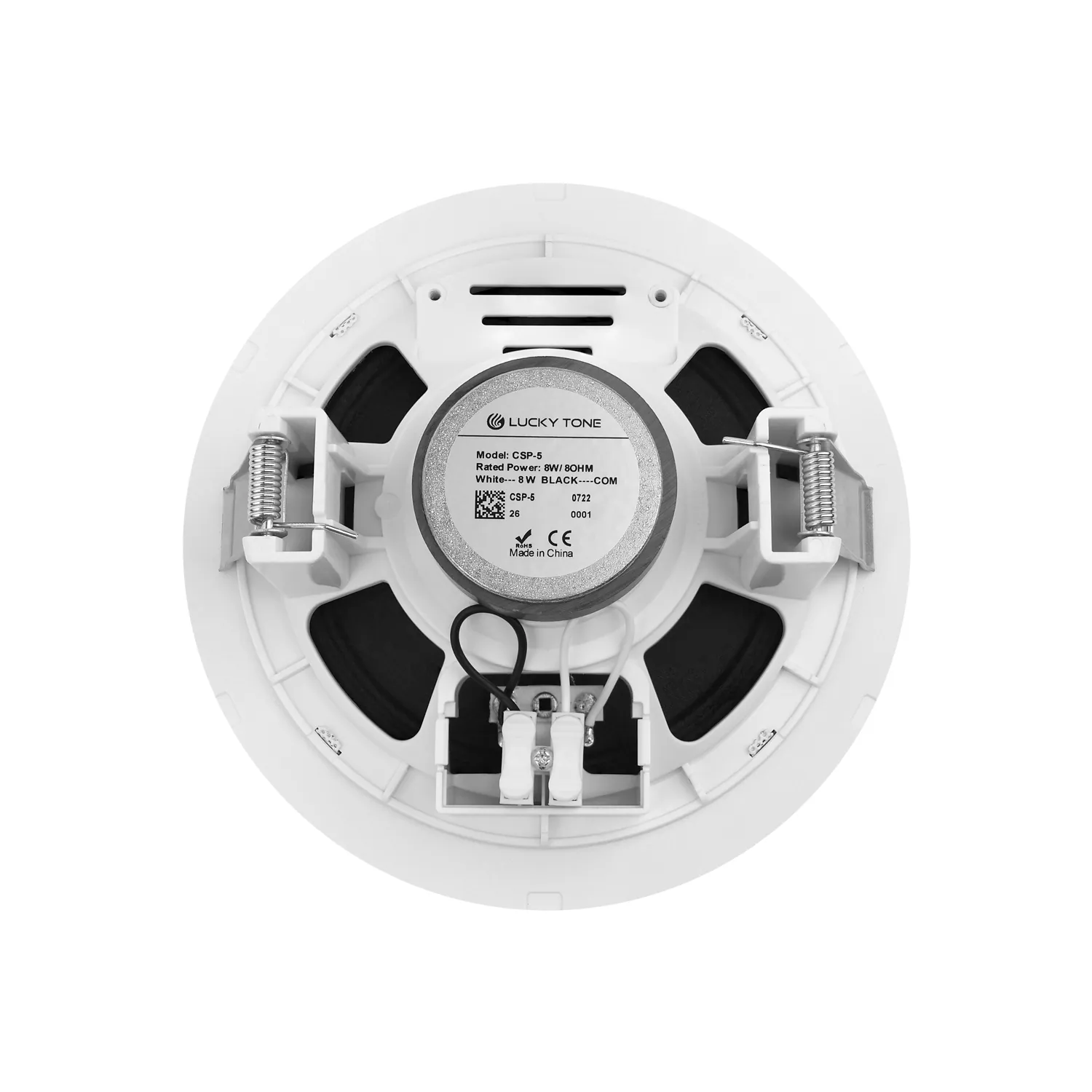

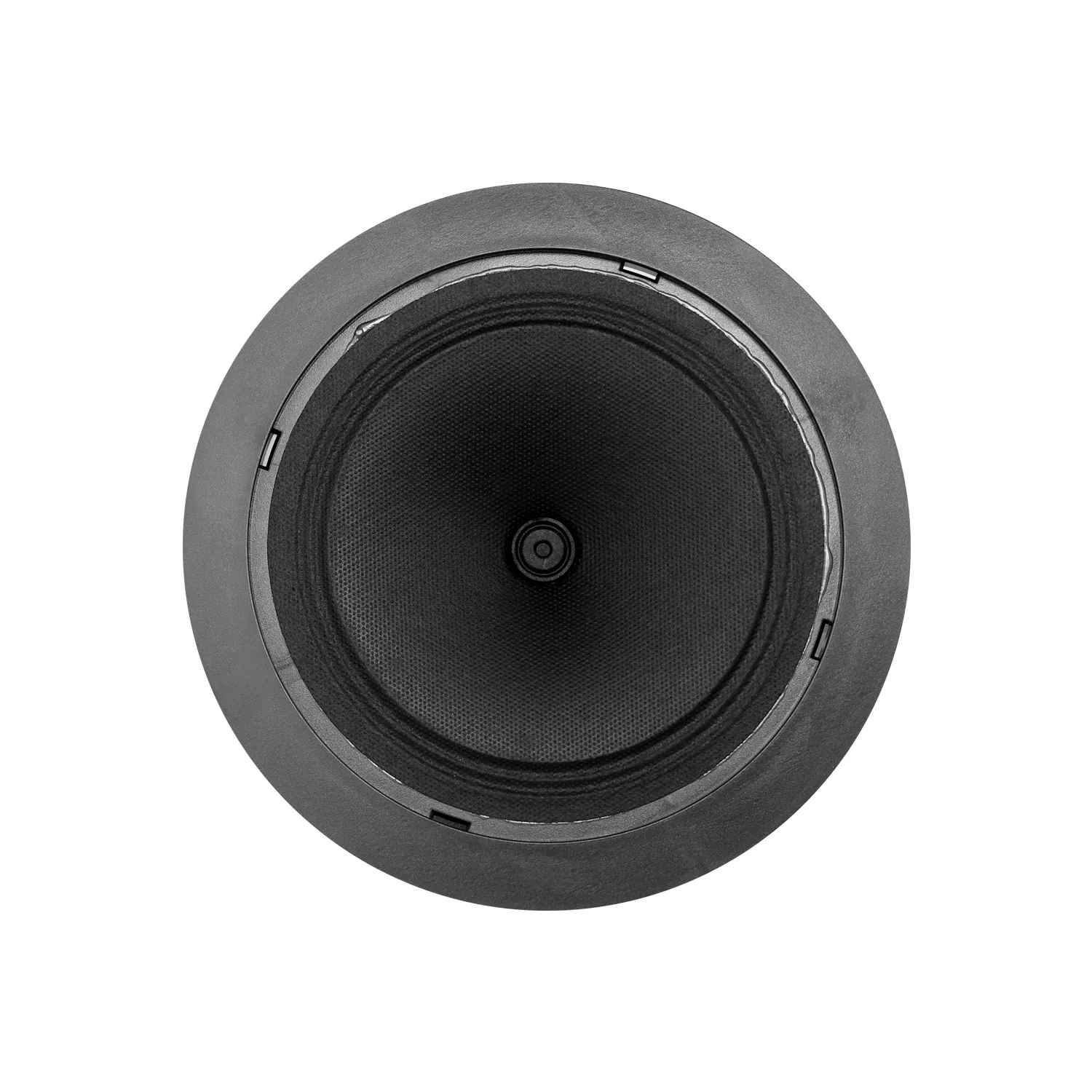

Lucky Tone 5.25-Inch Ceiling Speaker, product photo 1 of 10
Fig. 01 / 10 · manufacturer’s images
  • Lucky Tone 5.25-Inch Ceiling Speaker, product photo 1 of 10

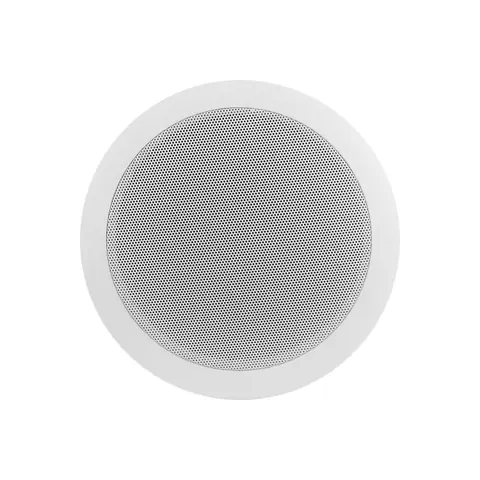

  • Lucky Tone 5.25-Inch Ceiling Speaker, product photo 2 of 10
  • Lucky Tone 5.25-Inch Ceiling Speaker, product photo 3 of 10
  • Lucky Tone 5.25-Inch Ceiling Speaker, product photo 4 of 10
  • Lucky Tone 5.25-Inch Ceiling Speaker, product photo 5 of 10
  • Lucky Tone 5.25-Inch Ceiling Speaker, product photo 6 of 10
  • Lucky Tone 5.25-Inch Ceiling Speaker, product photo 7 of 10
  • Lucky Tone 5.25-Inch Ceiling Speaker, product photo 8 of 10
  • Lucky Tone 5.25-Inch Ceiling Speaker, product photo 9 of 10
  • Lucky Tone 5.25-Inch Ceiling Speaker, product photo 10 of 10
Lucky Tone · Loudspeakers

5.25-Inch Ceiling Speaker

ModelCSP-5T / CSP-5TL / CSP-5 / CSP-5L

Flexible 100V/8Ω Ceiling Speaker Seriesfor PA systems and commercial audio applications.

Output power
CSP-5T: 3W/6W@100V; CSP-5TL: 3W/6W@100V; CSP-5: 8W@8ohm; CSP-5L: 8W@8ohm
Frequency response
100Hz-16.5KHz±1
Weight
CSP-5T: 456g; CSP-5TL: 470g; CSP-5: 342g; CSP-5L: 358g
PriceOn request
Request a quotationDiscuss your project

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models4 models in the family

Models compared.

ModelCSP-5TCSP-5TLCSP-5CSP-5L
Product TypeStandard DesignRimless DesignStandard DesignRimless Design
Rated Power3W/6W@100V3W/6W@100V8W@8ohm8W@8ohm
Frequency Response100Hz-16.5KHz±1100Hz-16.5KHz±1100Hz-16.5KHz±1100Hz-16.5KHz±1
Sensitivity(1M/1W)90dB ±1dB90dB ±1dB90dB ±1dB90dB ±1dB
Vertical Dispersion Angle120 degree120 degree120 degree120 degree
Product SizeDia 180*57mmDia 180*57mmDia 180*57mmDia 180*57mm
Cutout SizeDia 150-155mmDia 150-155mmDia 150-155mmDia 150-155mm
ColorWhiteWhiteWhiteWhite
Enclosure MaterialABSABSABSABS
Speaker Size5.25-Inch5.25-Inch5.25-Inch5.25-Inch
Net Weight456g470g342g358g
02DescriptionManufacturer's description

What it is.

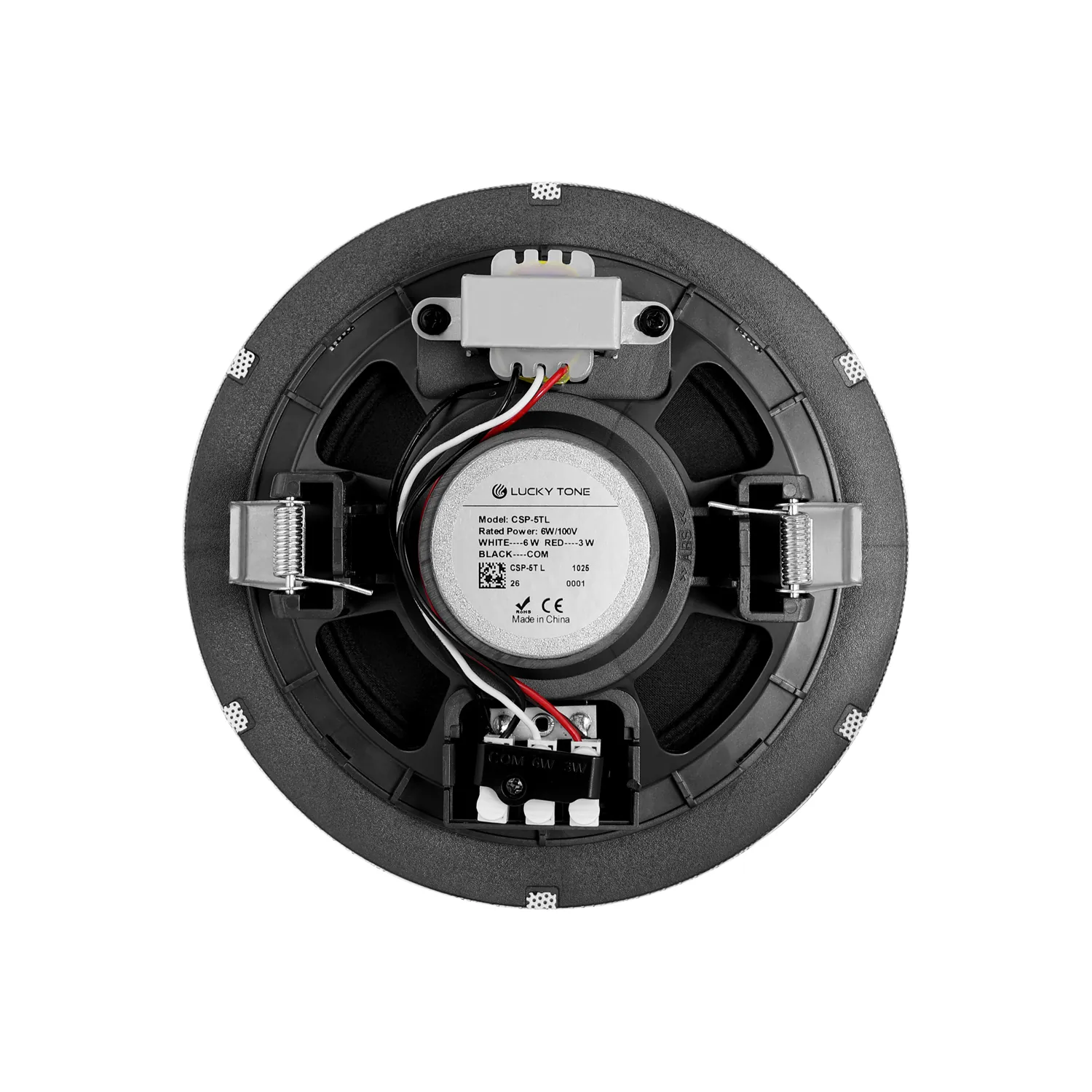

  • Dual Power Tapsfor flexible system configuration.
  • Wide Sound Dispersiondelivering clear and uniform audio coverage.

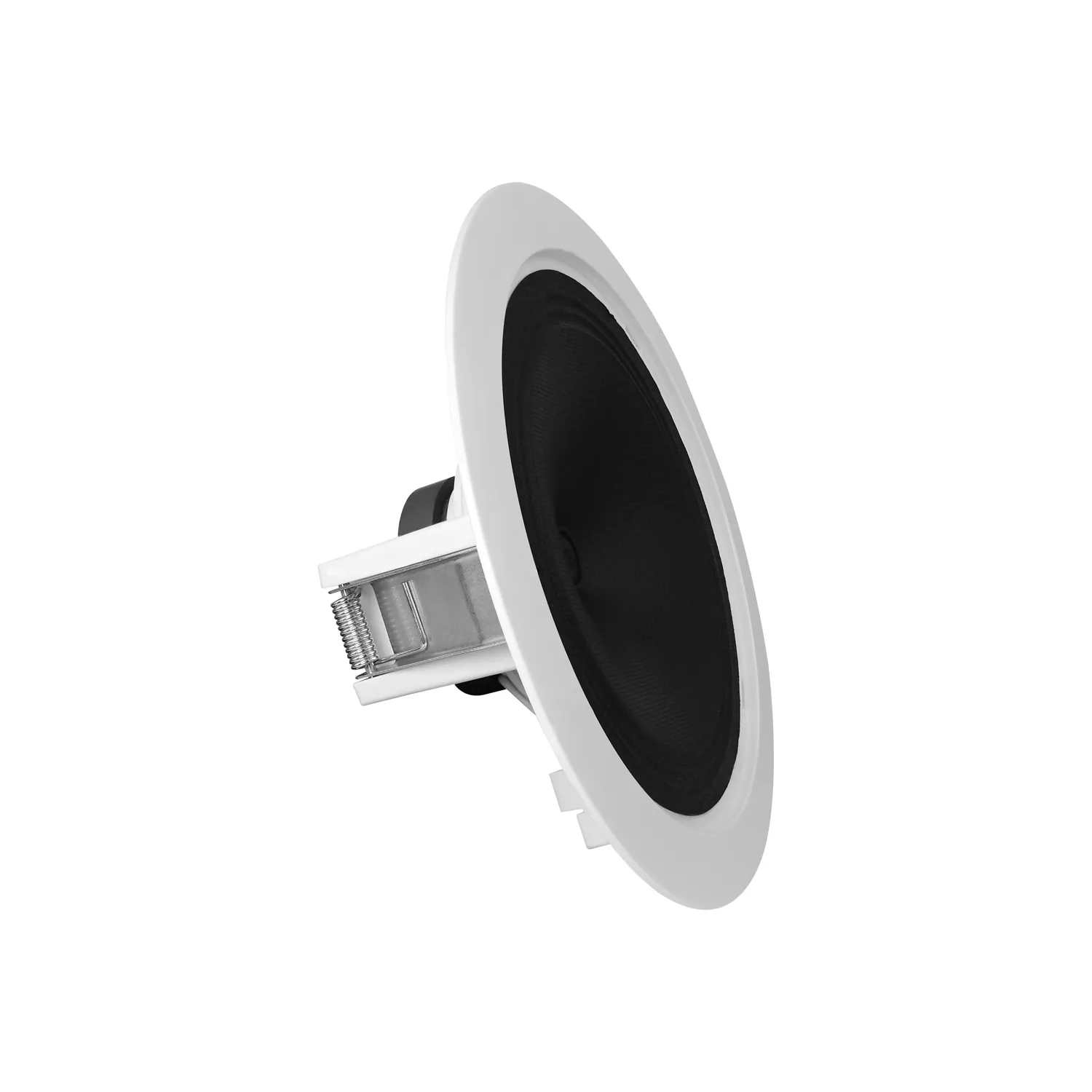

  • Spring-clamp mounting for fast and secure installation
  • Ultra-slim design for installations with limited ceiling space

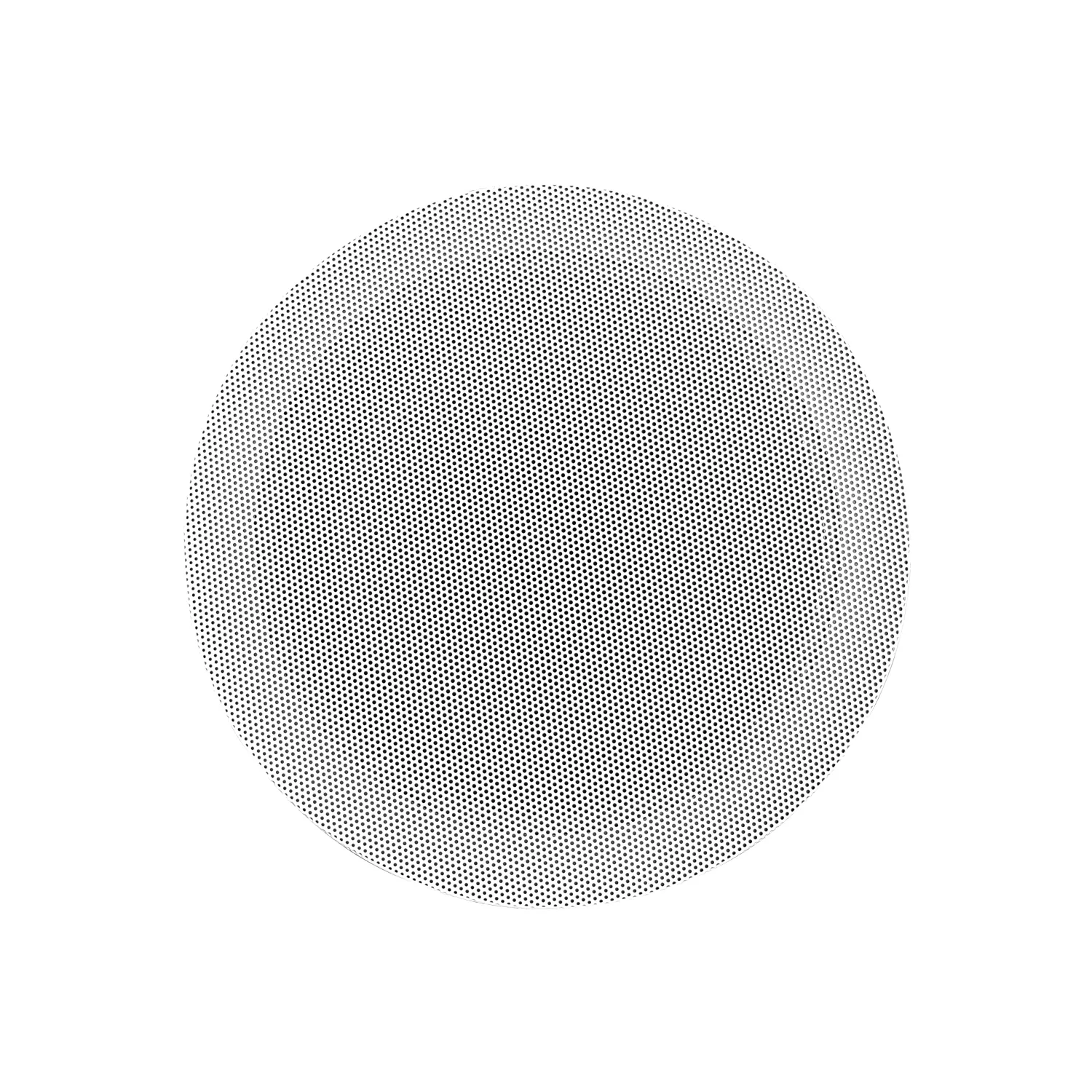

  • Durable ABS enclosure with metal grille

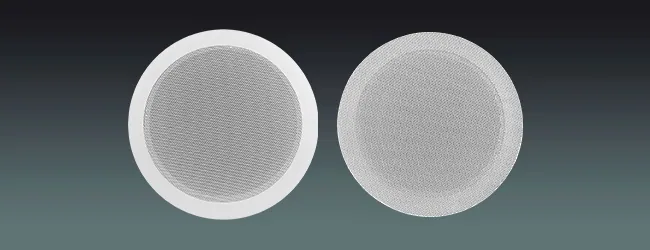

  • Standard and Rimless Designs Availablefor different architectural applications.
  • Suitable for background music and voice paging
03Documents1 file · 867 KB

Documents and files.

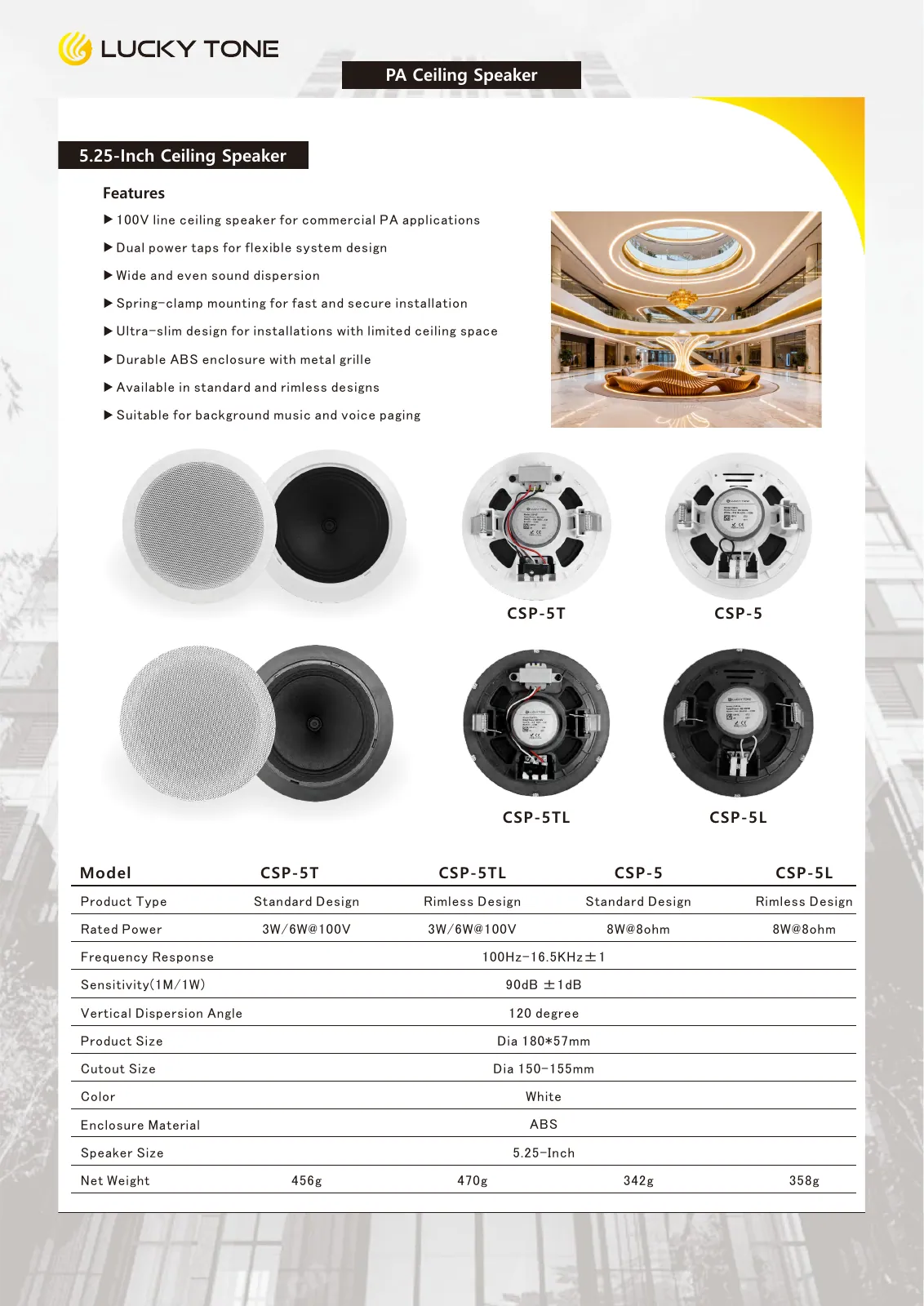

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
