Sheet 05.240
Lucky Tone · Loudspeakers
WTP Outdoor Wall Mount Speaker
ModelWTP-880W/WTP-880B / WTP-660W/WTP-660B / WTP-430W/WTP-430B
All weather loudspeakers for music and speech.
- Weight
- WTP-880W/WTP-880B: 4.9kg; WTP-660W/WTP-660B: 3.5kg; WTP-430W/WTP-430B: 1.6kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
WTP Outdoor Wall Mount SpeakerPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| Model | WTP-880W/WTP-880B | WTP-660W/WTP-660B | WTP-430W/WTP-430B |
|---|---|---|---|
| Power Taps | 20W/40W/80W/OFF-8ohm | 10W/20W/40W/OFF-8ohm | 5W/10W/20W/OFF-8ohm |
| Power at 8ohm | 100W | 60W | 30W |
| Peak Power | 160W | 80W | 60W |
| SPL@ 1M | 98±3dB | 94±3dB | 89±2dB |
| Max SPL@ 1M | 120dB | 112dB | 104dB |
| Freq. Response | 50-20KHz | 65-20KHz | 100-20KHz |
| Dispersion Angel | Vertical: 80° and Horizontal: 100° (1KHz) | Vertical: 80° and Horizontal: 100° (1KHz) | Vertical: 80° and Horizontal: 100° (1KHz) |
| Product Size | 395x260x230mm | 315x195x185mm | 240x150x140mm |
| Installation | Wall mount | Wall mount | Wall mount |
| Enclosure Material | PP Enclosure and 160-degree metal mounting bracket | PP Enclosure and 160-degree metal mounting bracket | PP Enclosure and 160-degree metal mounting bracket |
| Net Weight | 4.9kg | 3.5kg | 1.6kg |
| Color | White/black | White/black | White/black |
| Speaker | 8″ weatherproof woofer and 25VC transparent silk tweeter | 6.5″ weatherproof woofer and 25VC transparent silk tweeter | 4.25″ weatherproof woofer and 20VC transparent silk tweeter |
02DescriptionManufacturer's description
What it is.
- Stylish design with great sound
- PP enclosed, Stainless Steel grill and 160 degree aluminum mount brackets
- IP66 waterproof finish for all extreme weather applications
- 4.25″/6″/8″ weatherproof woofer and 1″silk tweeter
2-way speaker system
- PP Enclosure, and 160 degree aluminum mounting bracket
- 70V/100V speaker with power tapping or as a low-impedance 8 Ohm speaker

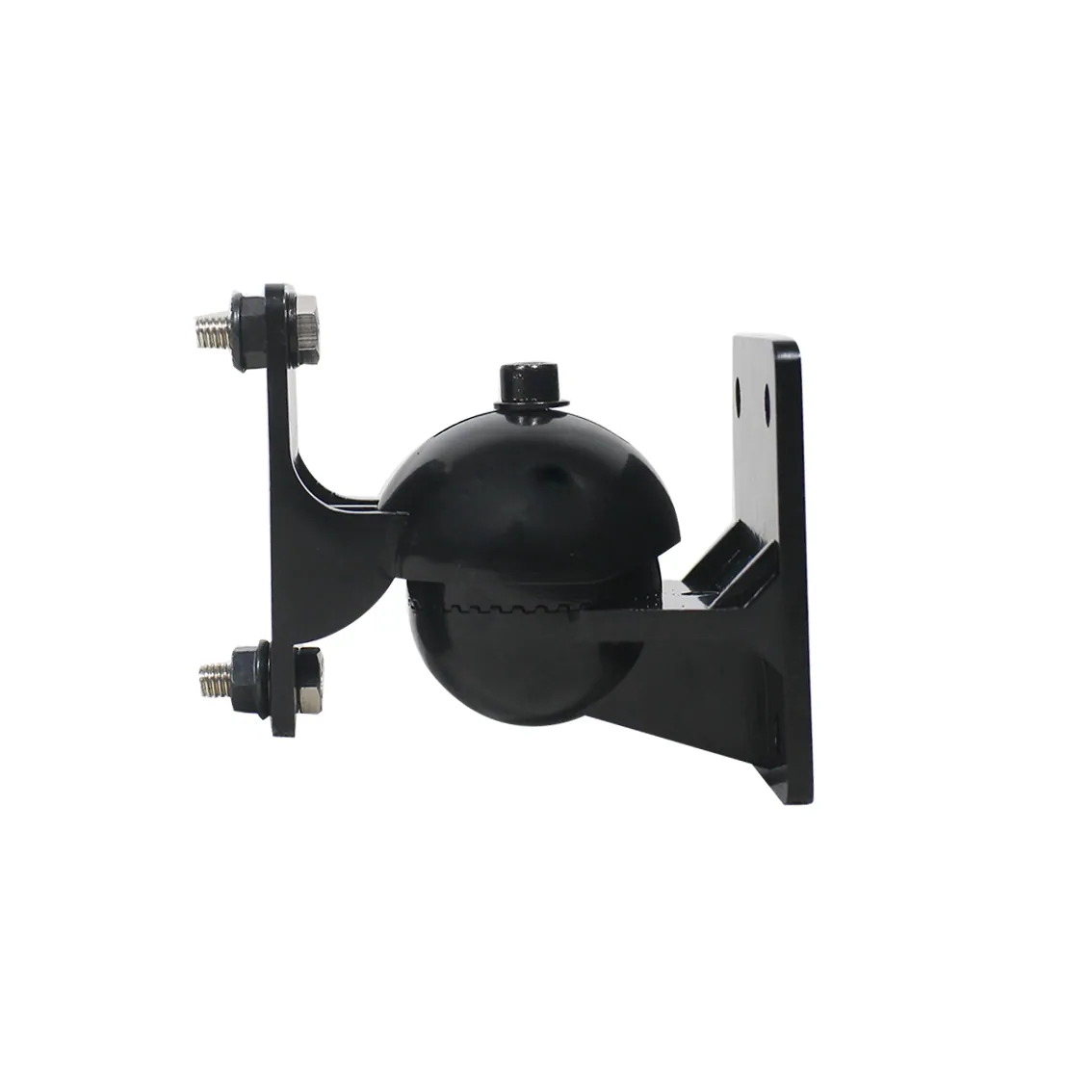

- Supplied with 160° rotatable bracket for horizontal and vertical installation angle adjustment
- Black and white color optional
