Sheet 05.242
Lucky Tone · Power amplifiers

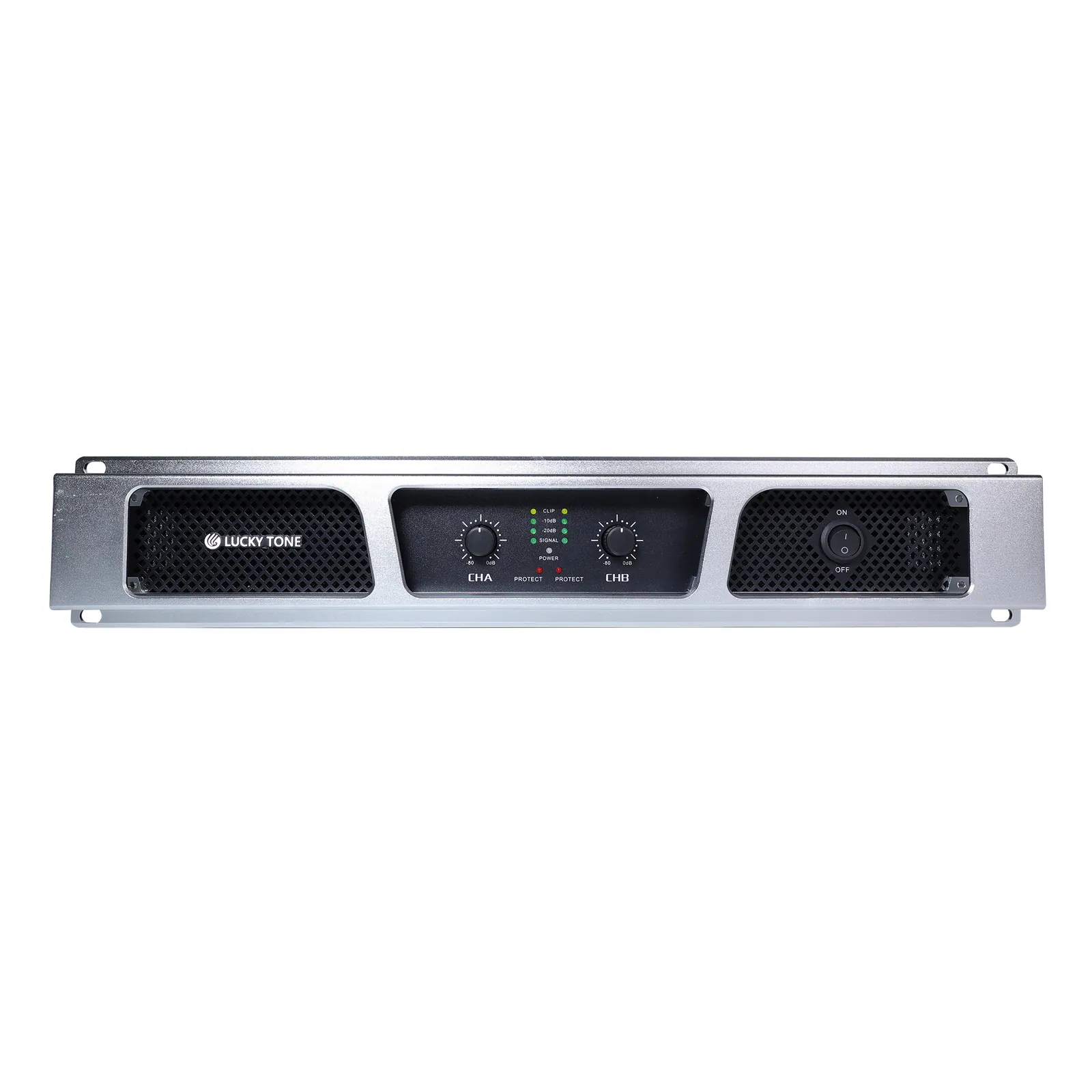

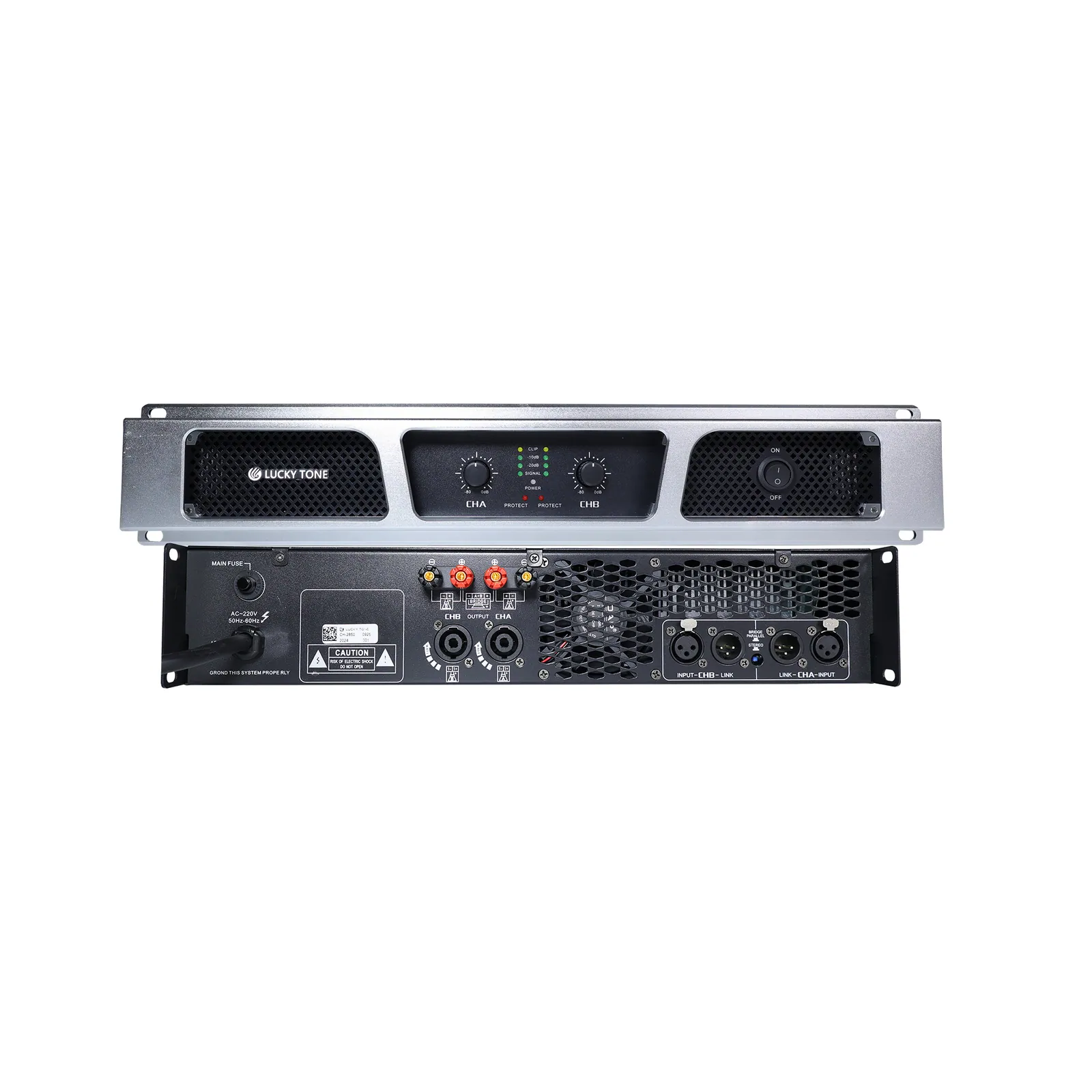

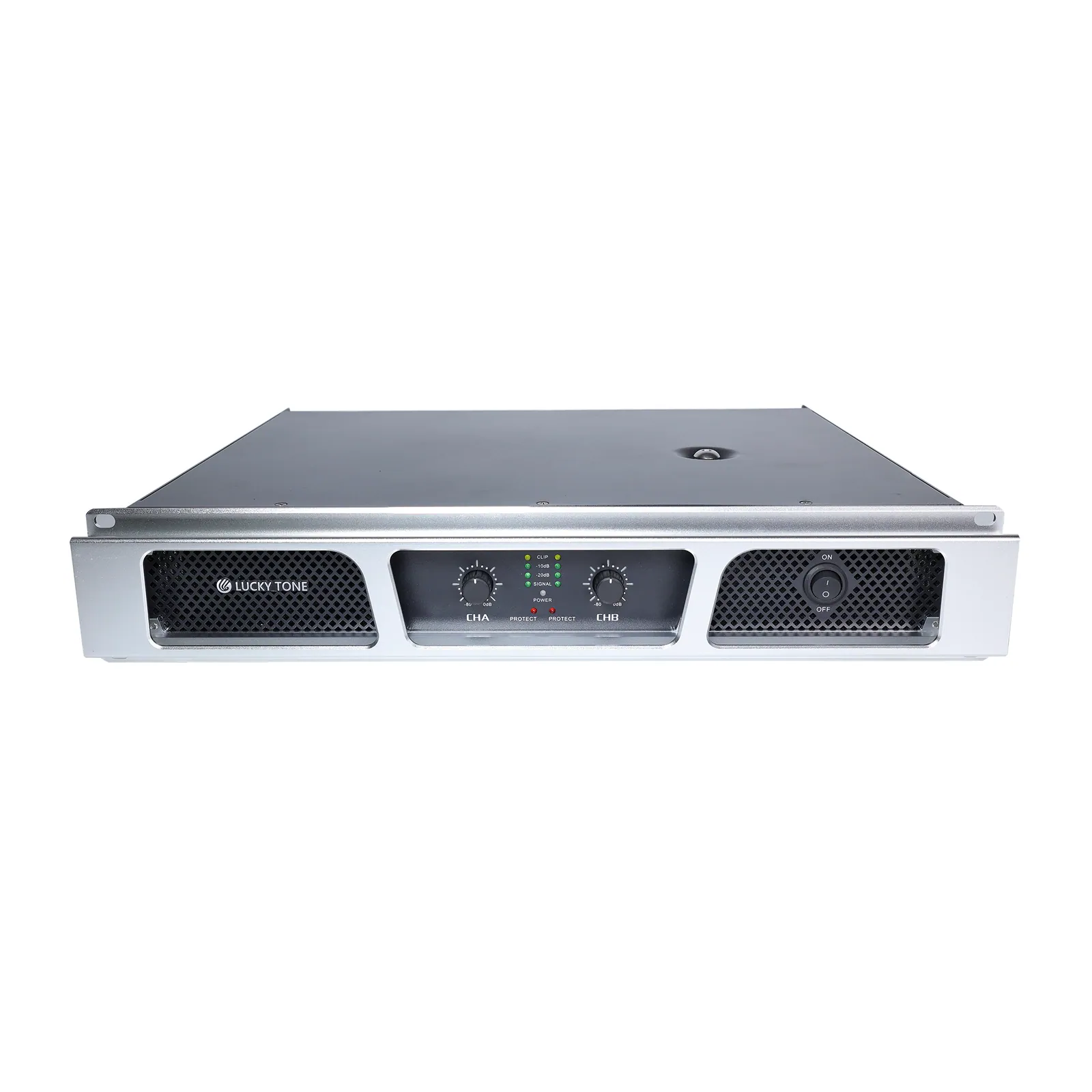

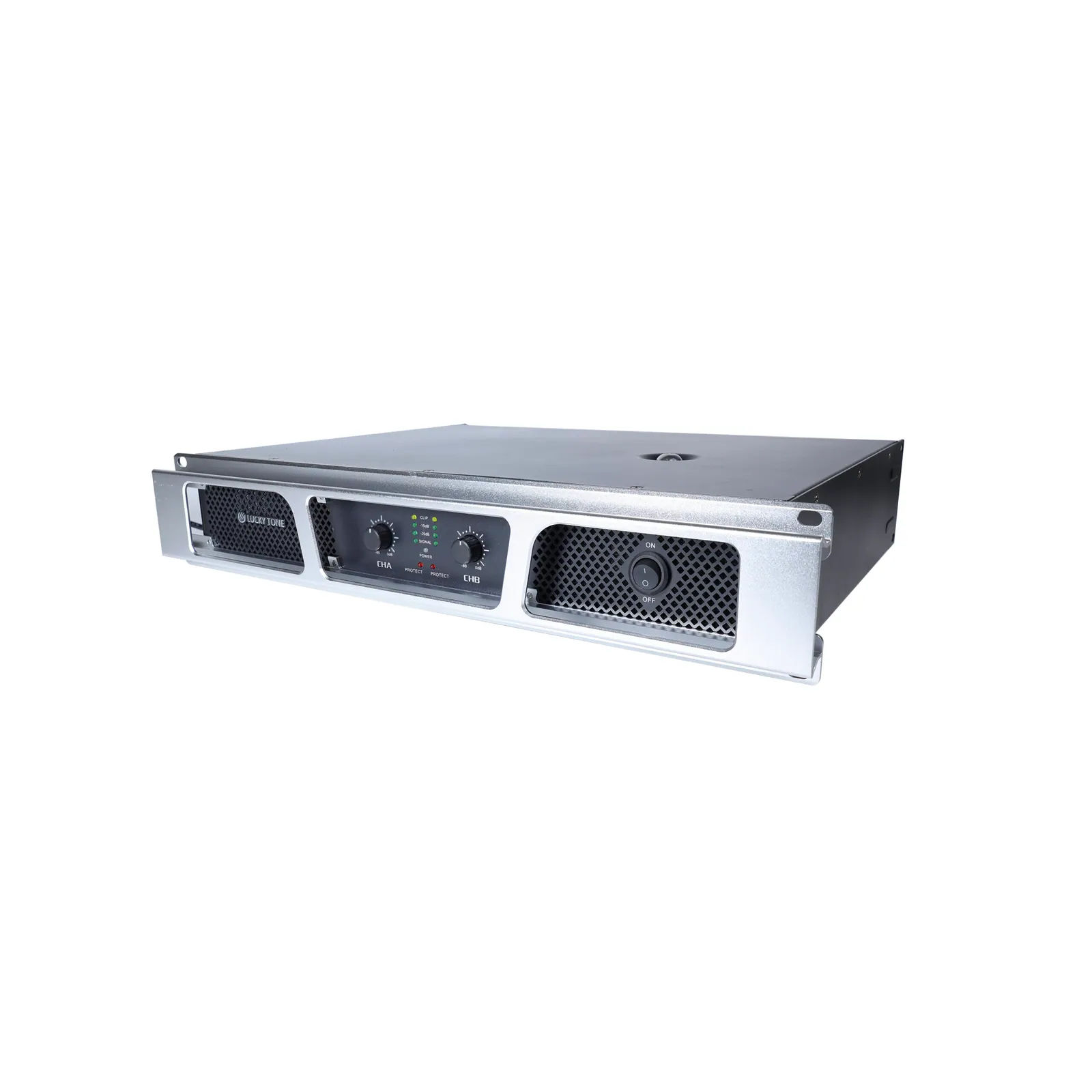

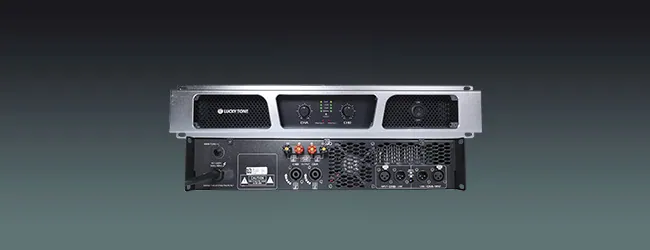

2-Channel Power Amplifier
ModelCH-2650 / CH-2850 / CH-21050 / CH-21250 / CH-21500
Large energy power supply , high-efficiency and super ring transformer
- Output power
- CH-2650: 2x650W@8ohm, 2x900W@4ohm; CH-2850: 2x850W@8ohm, 2x1200W@4ohm; CH-21050: 2x1050W@8ohm, 2x1500W@4ohm; CH-21250: 2x1250W@8ohm, 2x1800W@4ohm; CH-21500: 2x1500W@8ohm, 2x2150W@4ohm
- Frequency response
- CH-2650: 20Hz-20kHz(+/-1dB); CH-2850: 20Hz-20kHz: +/-1dB; CH-21050: 20Hz-20kHz: +/-1dB; CH-21250: 20Hz-20kHz: +/-1dB; CH-21500: 20Hz-20kHz: +/-1dB
- Power supply
- AC190V-250V 50/60HZ
- Weight
- CH-2650: 13.5Kg; CH-2850: 17.65Kg; CH-21050: 17.65Kg; CH-21250: 20.5Kg; CH-21500: 20.5Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
2-Channel Power AmplifierPrice on requestRequest a quotation
01Models5 models in the family
Models compared.
| Model | CH-2650 | CH-2850 | CH-21050 | CH-21250 | CH-21500 |
|---|---|---|---|---|---|
| Output Power | 2x650W@8ohm, 2x900W@4ohm | 2x850W@8ohm, 2x1200W@4ohm | 2x1050W@8ohm, 2x1500W@4ohm | 2x1250W@8ohm, 2x1800W@4ohm | 2x1500W@8ohm, 2x2150W@4ohm |
| Power Supply | AC190V-250V 50/60HZ | AC190V-250V 50/60HZ | AC190V-250V 50/60HZ | AC190V-250V 50/60HZ | AC190V-250V 50/60HZ |
| Harmonic Distortion (1kHz, 8 ohm) | <0.01% | <0.1% | <0.1% | <0.1% | <0.1% |
| Frequency Response | 20Hz-20kHz(+/-1dB) | 20Hz-20kHz: +/-1dB | 20Hz-20kHz: +/-1dB | 20Hz-20kHz: +/-1dB | 20Hz-20kHz: +/-1dB |
| Sensitivity | 0.775V*40 | 0.775V*40 | 0.775V*40 | 0.775V*40 | 0.775V*40 |
| SNR | ≥100dB(A-weighted) | ≥100dB(A-weighted) | ≥100dB(A-weighted) | ≥100dB(A-weighted) | ≥100dB(A-weighted) |
| Damping Factor | ≥300@8ohms | ≥300@8ohms | ≥300@8ohms | ≥300@8ohms | ≥300@8ohms |
| Slew Rate | 25V/US | 25V/US | 25V/US | 25V/US | 25V/US |
| Input Impedance | Balanced: 20K Unbalanced: 10K | Balanced: 20K Unbalanced: 10K | Balanced: 20K Unbalanced: 10K | Balanced: 20K Unbalanced: 10K | Balanced: 20K Unbalanced: 10K |
| Channel Isolation | 60dB@8ohms 1Khz | 60dB@8ohms 1Khz | 60dB@8ohms 1Khz | 60dB@8ohms 1Khz | 60dB@8ohms 1Khz |
| Output Type | Class-2H | Class-2H | Class-2H | Class-TD | Class-TD |
| LED Indicators | Power/Signal/Distortion/Clipping | Power/Signal/Distortion/Clipping | Power/Signal/Distortion/Clipping | Power/Signal/Distortion/Clipping | Power/Signal/Distortion/Clipping |
| Input Connectors | Balanced XLR (Male/Female) | Balanced XLR (Male/Female) | Balanced XLR (Male/Female) | Balanced XLR (Male/Female) | Balanced XLR (Male/Female) |
| Output Connectors | SPEAKON, Binding Posts | SPEAKON, Binding Posts | SPEAKON, Binding Posts | SPEAKON, Binding Posts | SPEAKON, Binding Posts |
| Cooling System | Overheat, Overload, Short Circuit, DC Output Protection, Soft Start, Surge Limiting | Overheat, Overload, Short Circuit, DC Output Protection, Soft Start, Surge Limiting | Overheat, Overload, Short Circuit, DC Output Protection, Soft Start, Surge Limiting | Overheat, Overload, Short Circuit, DC Output Protection, Soft Start, Surge Limiting | Overheat, Overload, Short Circuit, DC Output Protection, Soft Start, Surge Limiting |
| Product Size(WxDxH) | 482x378x88mm | 482x378x88mm | 482x378x88mm | 482x440x88mm | 482x440x88mm |
| Net Weight | 13.5Kg | 17.65Kg | 17.65Kg | 20.5Kg | 20.5Kg |
02DescriptionManufacturer's description
What it is.
2U standard
- With protection, signal, clip, bridge and power LED
- Lift and right channel with dual polar cooling fan, high- efficiency air cooling channel
- With a power star soft, DC protection, short protection, thermal protection, overload protection

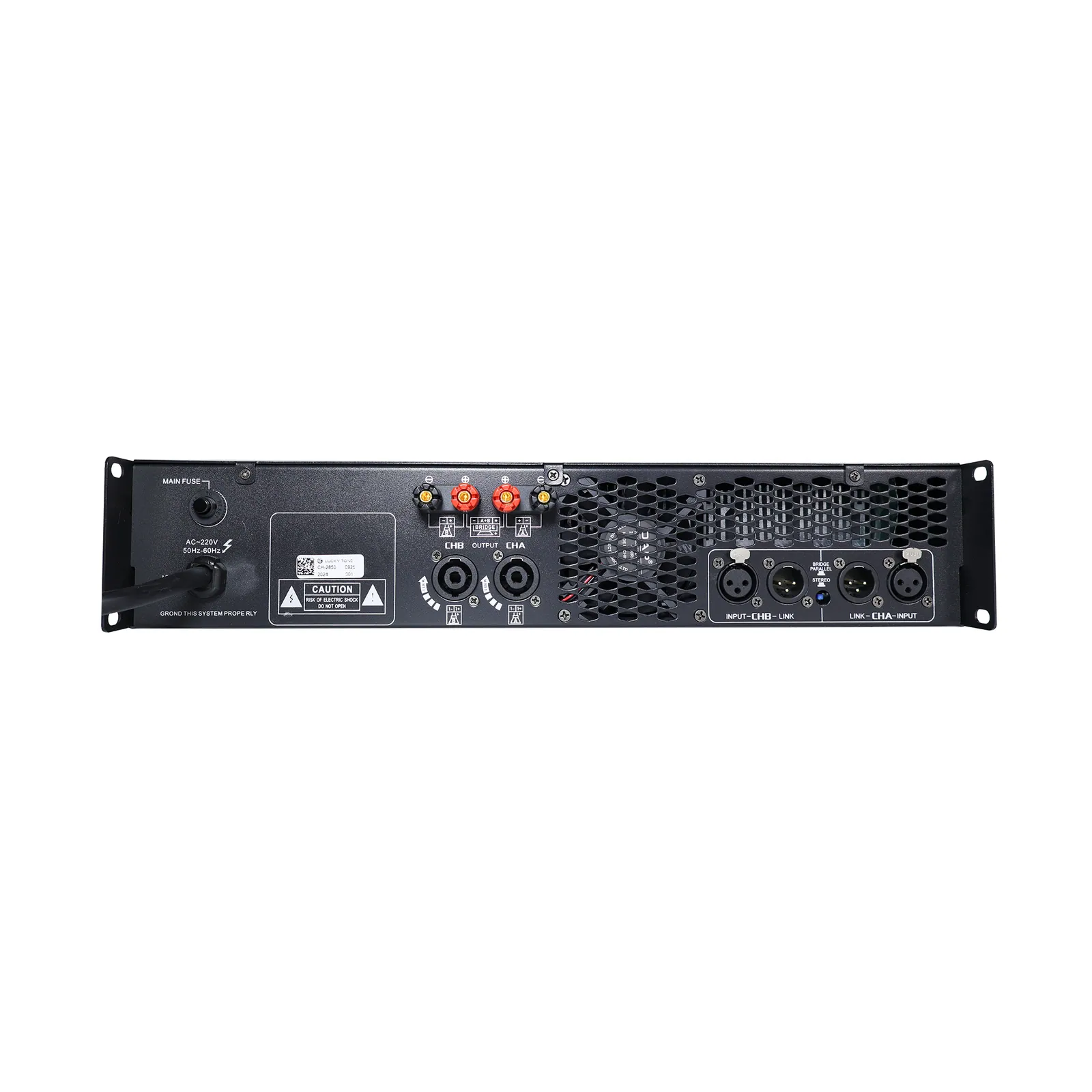

Equipped with dual input options (XLR male and XLR female) and dual output options (SpeakON), this professional amplifier series is designed to adapt to various system installation requirements.
This device features three operating modes: STEREO (A and B work independently), PARALLEL (for easy wiring), and BRIDGE (for high-power amplification).
03Documents1 file · 1.5 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
04Related products
In the same range.
EQ-241Lucky Tone2-channel Class D Power AmplifierPD-260 V2 / PD-2120 V2 / PD-2240 V2 / PD-2350V2 / PD-2500V2 · Power amplifiersOutput powerPD-260 V2: 2x60W; PD-2120 V2: 2x120W; PD-2240 V2: 2x240W; PD-2350V2: 2x350W; PD-2500V2: 2x500WFrequency responseL/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB)Dimensions484x420x44 mm
EQ-243Lucky Tone2/4-Channel 1U Rack-Mount Digital Power AmplifierD-2200 / D-2300 / D-2500 / D-4200 / D-4300 / D-4500 · Power amplifiersFrequency responseModel: Frequency Response; D-2200: 20HZ-20KHZ +1/-1dB; D-2300: 20HZ-20KHZ +1/-1dB; D-2500: 20HZ-20KHZ +1/-1dB; D-4200: 20HZ-20KHZ +1/-1dB; D-4300: 20HZ-20KHZ +1/-1dB; D-4500: 20HZ-20KHZ +1/-1dBDimensionsModel: Dimensions (WxDxH); D-2200: 482x330x44mm; D-2300: 482x330x44mm; D-2500: 482x330x44mm; D-4200: 482x330x44mm; D-4300: 482x330x44mm; D-4500: 482x330x44mmWeightModel: Net Weight; D-2200: 4.2KG; D-2300: 4.3KG; D-2500: 4.5KG; D-4200: 5.2KG; D-4300: 5.3KG; D-4500: 5.5KG

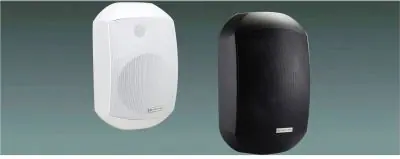

EQ-240Lucky ToneWTP Outdoor Wall Mount SpeakerWTP-880W/WTP-880B / WTP-660W/WTP-660B / WTP-430W/WTP-430B · LoudspeakersWeightWTP-880W/WTP-880B: 4.9kg; WTP-660W/WTP-660B: 3.5kg; WTP-430W/WTP-430B: 1.6kg
