Sheet 05.1129
NovaStar · Controllers and accessories

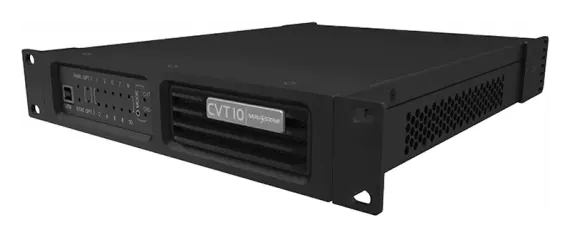

CVT10 Pro
Fiber Converter.
- I/O
- .2xOPT(Single/Multi mode) / .10xEtherCon / .1xUSB
- Ports
- 10xNeutrik
- Ac Input
- 100-240V~, 50/60Hz, 1.5A
- Power Socket
- 1xPovvercon
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
CVT10 ProPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- I/O
- .2xOPT(Single/Multi mode) / .10xEtherCon / .1xUSB
- Ports
- 10xNeutrik
- Ac Input
- 100-240V~, 50/60Hz, 1.5A
- Power Socket
- 1xPovvercon
- Power Consumption
- 22W
- Working Temp
- -4'F~+158°F
- Working Humidity
- 10%RH~95%RH / IP65
- Size
- 2U/(482.6x881x280.0mm)
- Weight
- 5.9kg
- Water Resistance
- IP65
- Installation
- .Installedin rack / .Eagle Claw Hook hang on truss
- Compliance
- RoHS/FCC/CE/CBIC/RCM/KC/UL
Show the full specificationHide the rest of the specification0 more groups · 0 values
