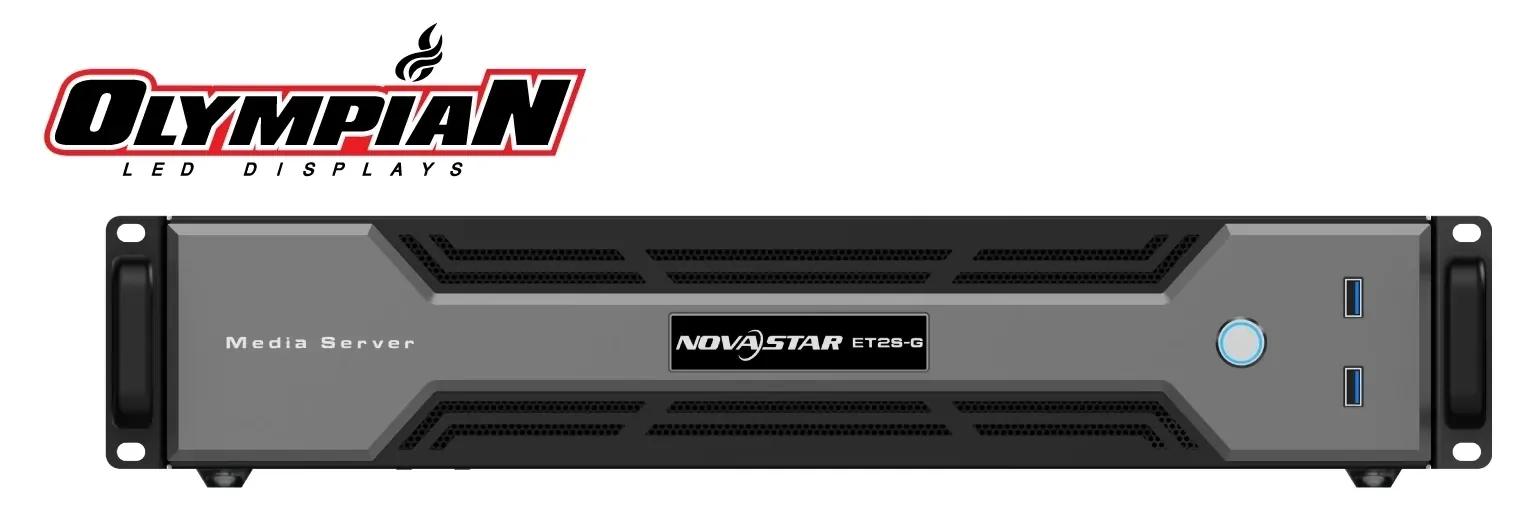

ET2S-G

Media Server.

Chassis: 2U
RAM: 16G (DDR4)
CPU: 12th Gen Intel Core Processor (i5-12400)
Storage: 500GB M.2 high-speed SSD

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 16 values

What this product is, in numbers.

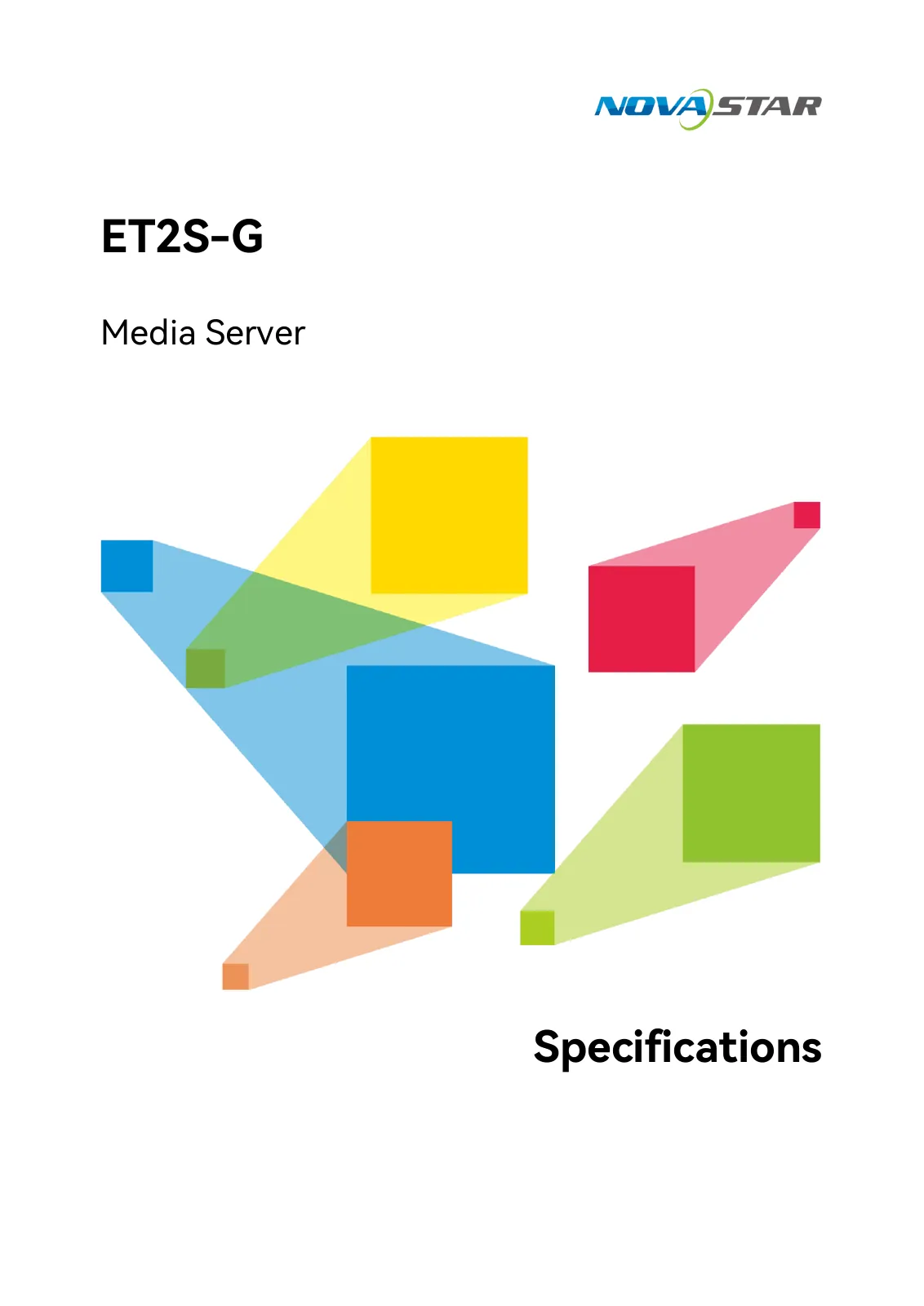

PDFSpecificationsEN · 11 pages · 817 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications16

Chassis: 2U
RAM: 16G (DDR4)
CPU: 12th Gen Intel Core Processor (i5-12400)
Storage: 500GB M.2 high-speed SSD
Graphics Card: HPGT400
Loading Capacity: 2x 4096*2160@60Hz
Decoding Capability: 1x 8K2K@60fps or 2x 4K2K@60fps
Programs: Unlimited
Layers: 8 mixing layers, 1 audio layer, limit: 40
EDID Lock: √
Device Link: √
Frame Sync Mosaic: /
Device Backup: /
IPAD Control: √
Protocol Control: √
OS: Windows 10 Enterprise LTSC

02Documents1 file · 817 KB

Documents and files.

Main document

Specifications

EN · PDF · 11 pages · 817 KB

Download specifications
