Sheet 05.643
PR Lighting · Beam

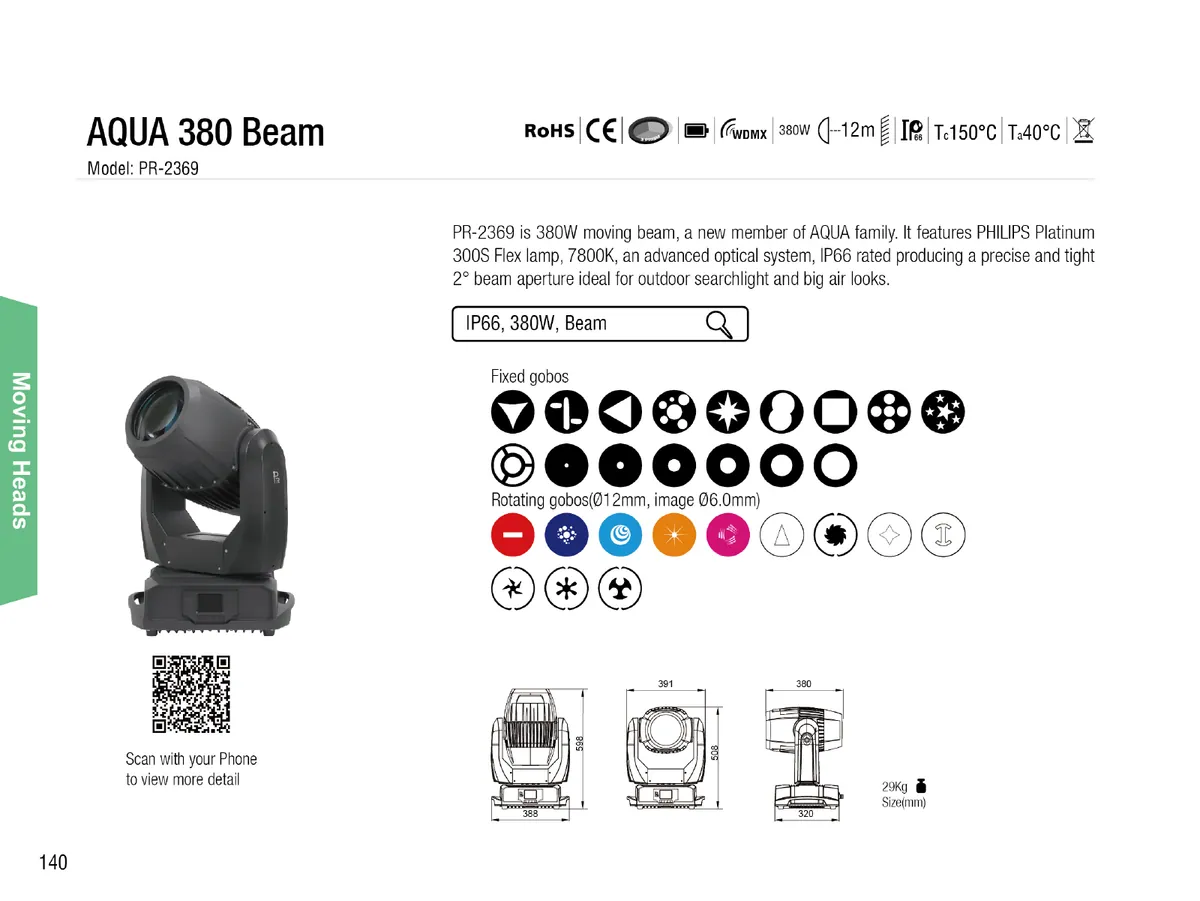

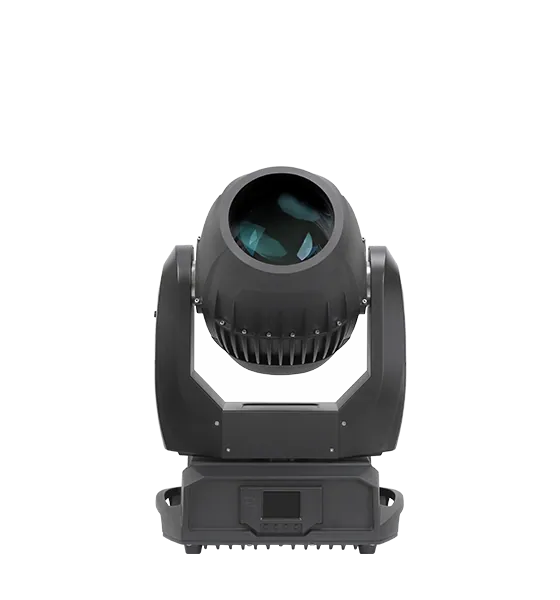

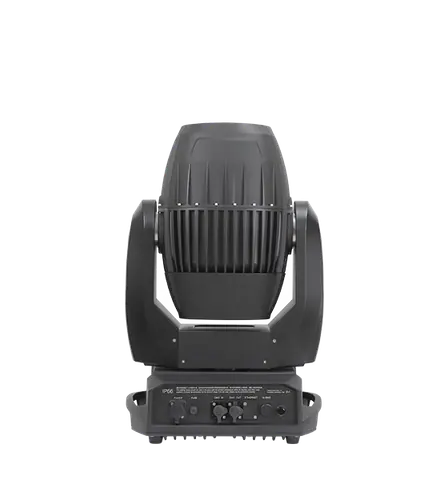

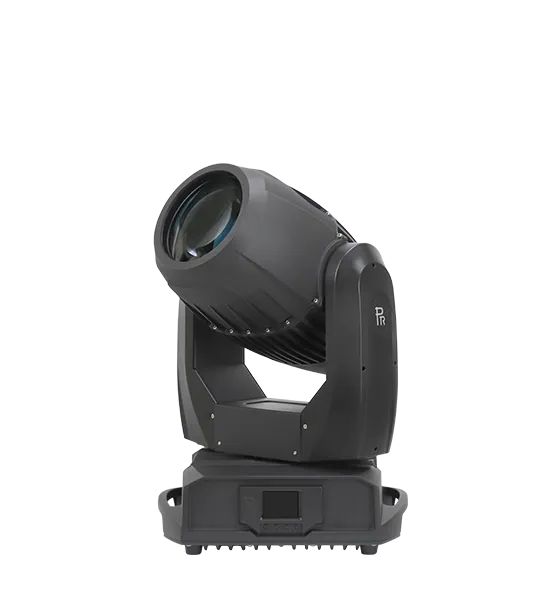

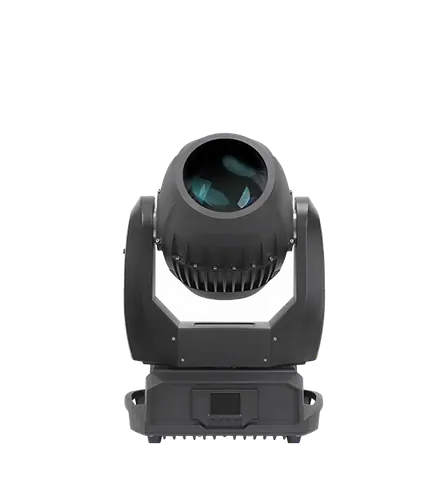

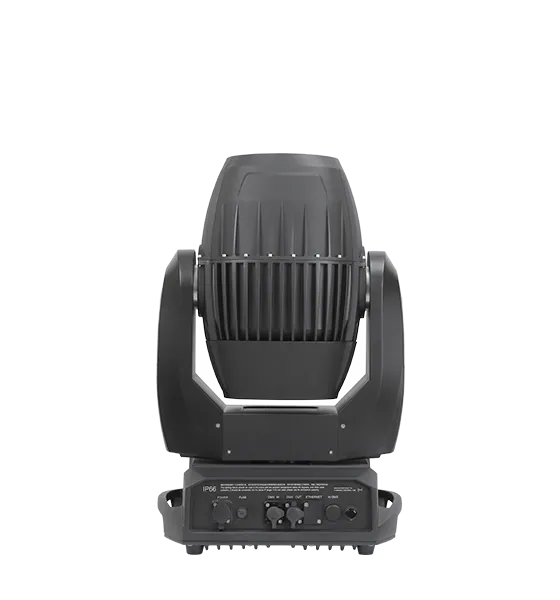

AQUA 380 Beam
ModelPR-2369
PR-2369 is 380W moving beam, a new member of AQUA family. It features PHILIPS Platinum 300S Flex lamp, 7800K, an advanced optical system, IP66 rated producing a precise and tight 2° beam aperture ideal for outdoor searchlight and big air looks.
- Power consumption
- 600W @ 100V
- Power supply
- 100V-240VAC,50/60Hz
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
AQUA 380 BeamPrice on requestRequest a quotation
01SpecificationManufacturer's data · 12 groups · 33 values
What this product is, in numbers.
PDFDatasheetEN · 2 pages · 2.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01ELECTRICALPARAMETERS4
- Input voltage
- 100V-240VAC,50/60Hz
- Input power
- 600W @ 100V
- 570W @ 220V
- Powerfactor
- PF>0.9
02SPECIFICATIONS OFLIGHTSOURCE3
- PHILIPS
- MSD Platinum 300S Flex (380W)
- ColourTemperature
- 7800K +/-300K
- ManufacturersRatedLampLife
- 6000hrs (Reference the spec of MSD Platinum Flex 300S)
03PRISM/EFFECTWHEEL2
- 3Prisms(standard 8facet prism+16facet prism+linear prism)(bi-directionalrotationwith variable speeds) + Frost+ Open
- (Optional 3-16 facet prismor gradient prism)
04FOCUS1
- 0-100% linearly adjustable by DMX
05STROBE1
- Double shutter blades, 0.3~20 F.P.S
06HEADMOVEMENT1
- Pan 540º,Tilt 270º with auto position correction
07BEAMANGLE1
- Beamangle 2°
08CONTROL3
- InternationalstandardDMX512 signal and 5 pin interfaces
- 16channelsin shortmode, 20channelsin standardmode,21channel in extendedmode
- Adjustablemode
09OTHER FUNCTIONS5
- AdjustablePan&Tiltspeed
- Fixture and lamp hours’display
- Modular construction for easymaintenance
- DMX512wirelessreceiver
- DMX512wirelesstransmitter(optional)
10HOUSING1
- CastAluminum, high temperature resistant/anti-UVABS,IP66
11WEIGHT2
- 29 Kg
- 【Version
- 20231110】
12General9
- 1 Color Wheel
- 12Dichroic colour filters +Diffuser+ Open
- Variable speed and bi-directional rainbow effect
- Linear colour changing is available
- 1 Fixed gobo wheel
- 16 static gobos+ white
- Shaking and bi-directional wheel scrolling at variable speeds
- 1Rotating gobo wheel
- 12 gobos+ White
- Shaking and bi-directional wheel scrolling at variable speeds
- Gobo changeable
Show the full specificationHide the rest of the specification0 more groups · 0 values
