Sheet 05.644
PR Lighting · Beam

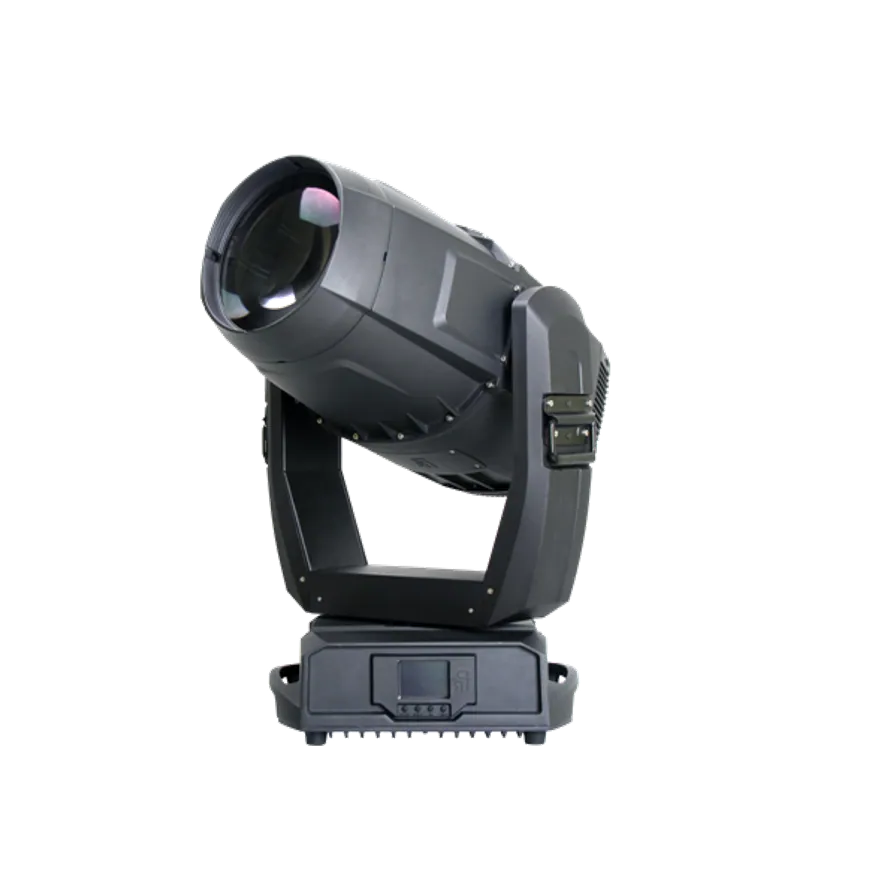

AQUA 480 Beam
ModelPR-2469
AQUA 480 Beam is a waterproof and IP66 rated fixture. It has beam angle of 2° with sharp edges. It can produce a number of effects via CMY system, 18 fixed gobos ,7 rotating gobos and etc.. It is ideal for outdoor entertainment, concerts and etc..
- Beam angle / zoom
- 2°
- Net weight
- 37.6Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
AQUA 480 BeamPrice on requestRequest a quotation
01Video2 manufacturer's videos · 2:24
PR Lighting AQUA 480 Beam: the manufacturer's videos
02SpecificationManufacturer's data · 19 groups · 39 values
What this product is, in numbers.

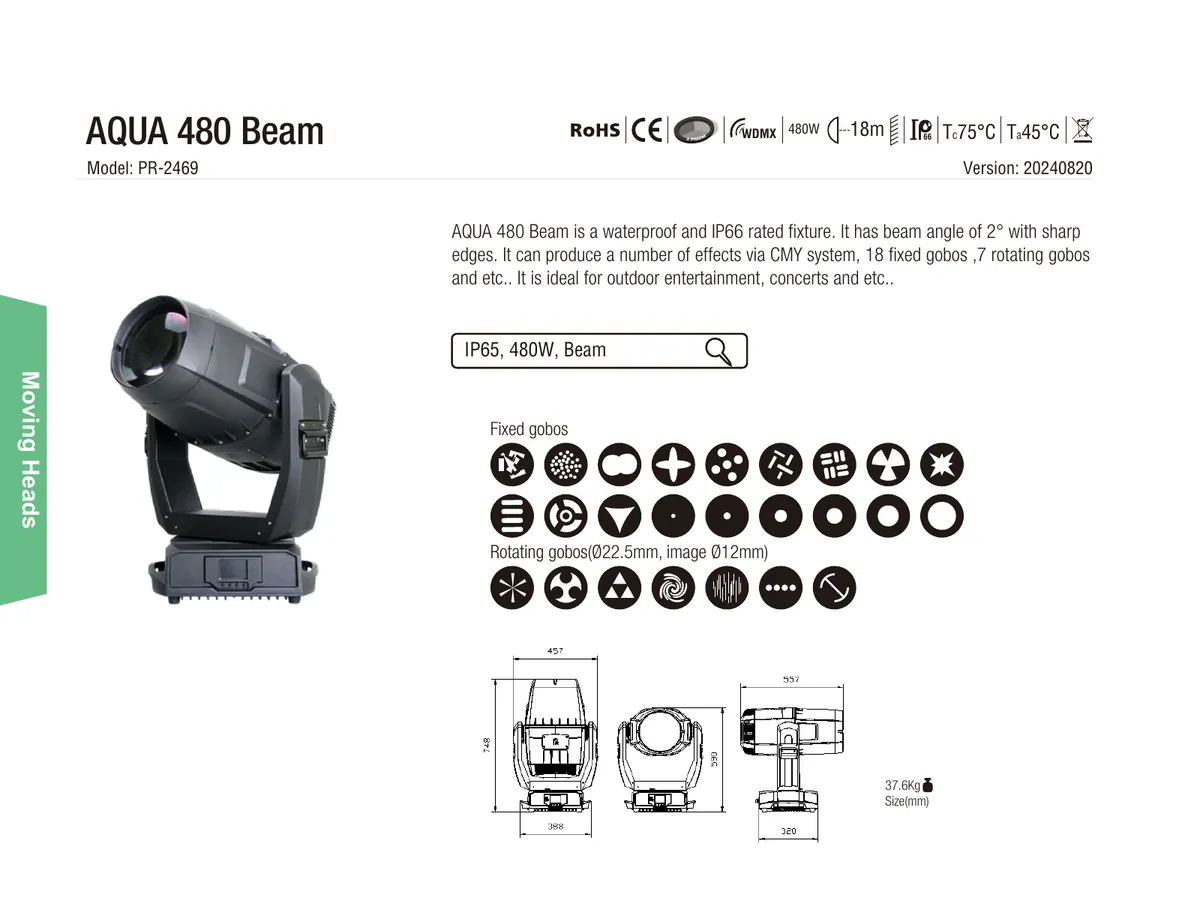

PDFDatasheetEN · 2 pages · 2.8 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100-240V AC, 50/60Hz
02Power Consumption1
- 650W@220V
03Light Source1
- PR 480L, (6,900K, 1,500 hrs)
04CTO1
- 0-100% linear CTO
05Dimmer/Strobe1
- 0-100% linearly adjustable/ Double shutter blades, 0.3~25 F.P.S
06Prism / Frost3
- 3Pcs of independent prisms which can be overlapped
- (8-facet circular prisms and 4-facet linear Prism) (16- facet circular + frost)
- or other prism options
Show the full specificationHide the rest of the specification13 more groups · 31 values
07Focus1
- DMX linear focus
08Head Movement1
- Pan 540°, tilt 270° with auto position correction
09Control4
- DMX512, 5-pin interfaces(Optional 3-pin)
- Short mode 22 channels, standard mode 26 channels and extended mode 30 channels
- Self-test mode
- 【Version
- 20240820】
10Light Angle1
- Beam angle
- 2°
11Other Functions6
- Adjustable pan & tilt speed
- Lamp’s and fixture’s hours displayed
- Modular structure for easy maintenance
- DMX512 wireless receiver
- DMX512 wireless transmitter(optional)
- ArtNet function(optional)
12Physical2
- Housing
- cast aluminum and high temperature UV resistant ABS, IP66
- Ambient temperature
- maximum 45°C
13ht1
- Net weight
- 37.6Kg
14Packaging2
- Standard
- carton 745x665x600(mm)
- Optional
- flight case 620x570x780(mm)
15Accessories5
- G clamp, 2 pcs
- 5 Pins XLR connector, 1 set
- Safety cord, 1 pc
- Power cord, 1 pc
- Optional
- Ω clamp, 2 pcs
16CMY1
- CMY color mixing system with macros
17Color Wheel3
- 1 Color wheel
- 12colors+ Open
- Rainbow effect with bi-directional and variable speeds
- Stepping/linear color changing
18Fixed Gobo2
- 1 Fixed gobo wheel
- 18 gobos +Open
- Bi-directionally rotatable, and shakable effect at variable speeds
19Rotating Gobo2
- 1 Rotating gobo wheel
- 7 interchangeable gobos+1white
- Bi-directionally rotatable, and shakable at variable speeds
03Documents4 files · 8.0 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
Software and data files01
Certificates01
