Sheet 05.820
PR Lighting · Effects and lasers

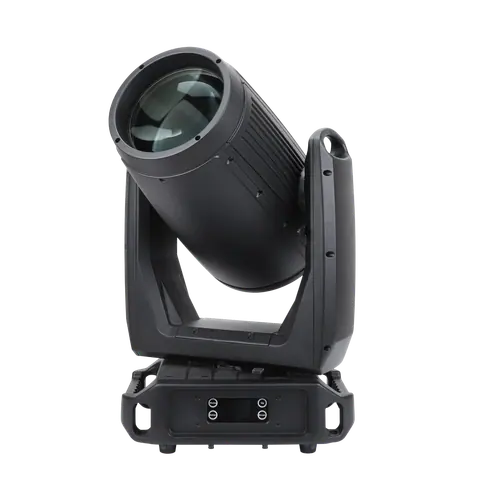

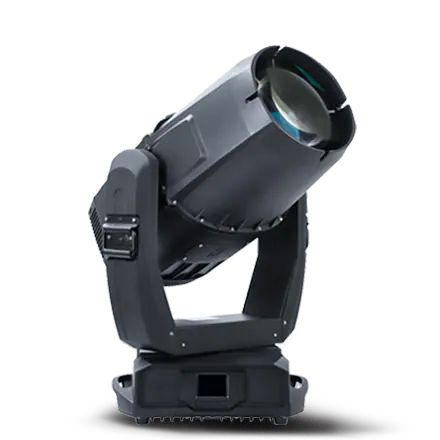

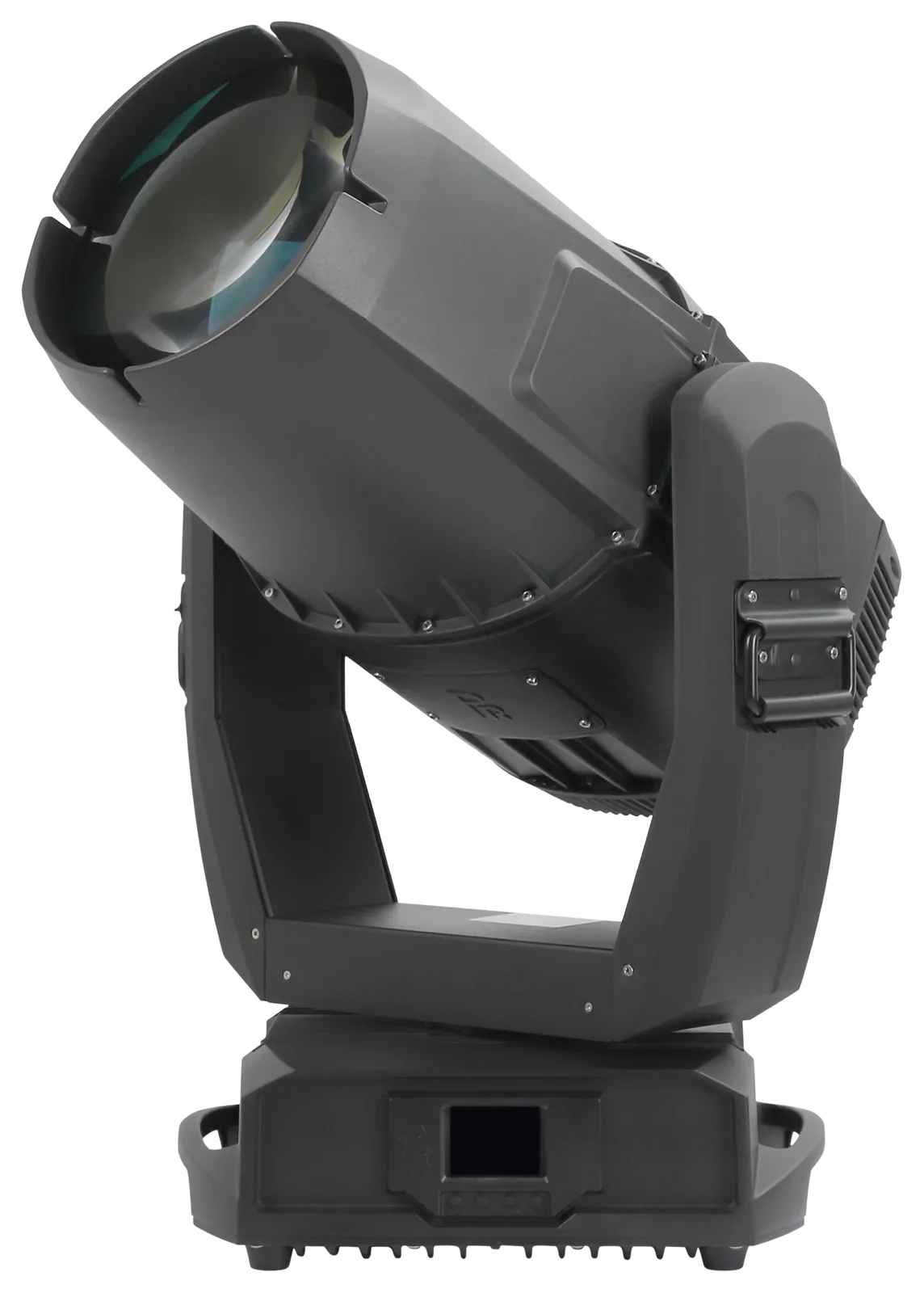

AQUA LASER 260 BEAM
ModelPR-8329
- Light source
- Lightsources 260Wlasermodule
- Power consumption
- 390W@ 220V
- Power supply
- 100V~240VAC,50/60Hz
- Beam angle / zoom
- 0.8°
- Net weight
- 37.6Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
AQUA LASER 260 BEAMPrice on requestRequest a quotation
01VideoManufacturer's video · 1:52
PR Lighting AQUA LASER 260 BEAM: the manufacturer's video
02SpecificationManufacturer's data · 13 groups · 32 values
What this product is, in numbers.

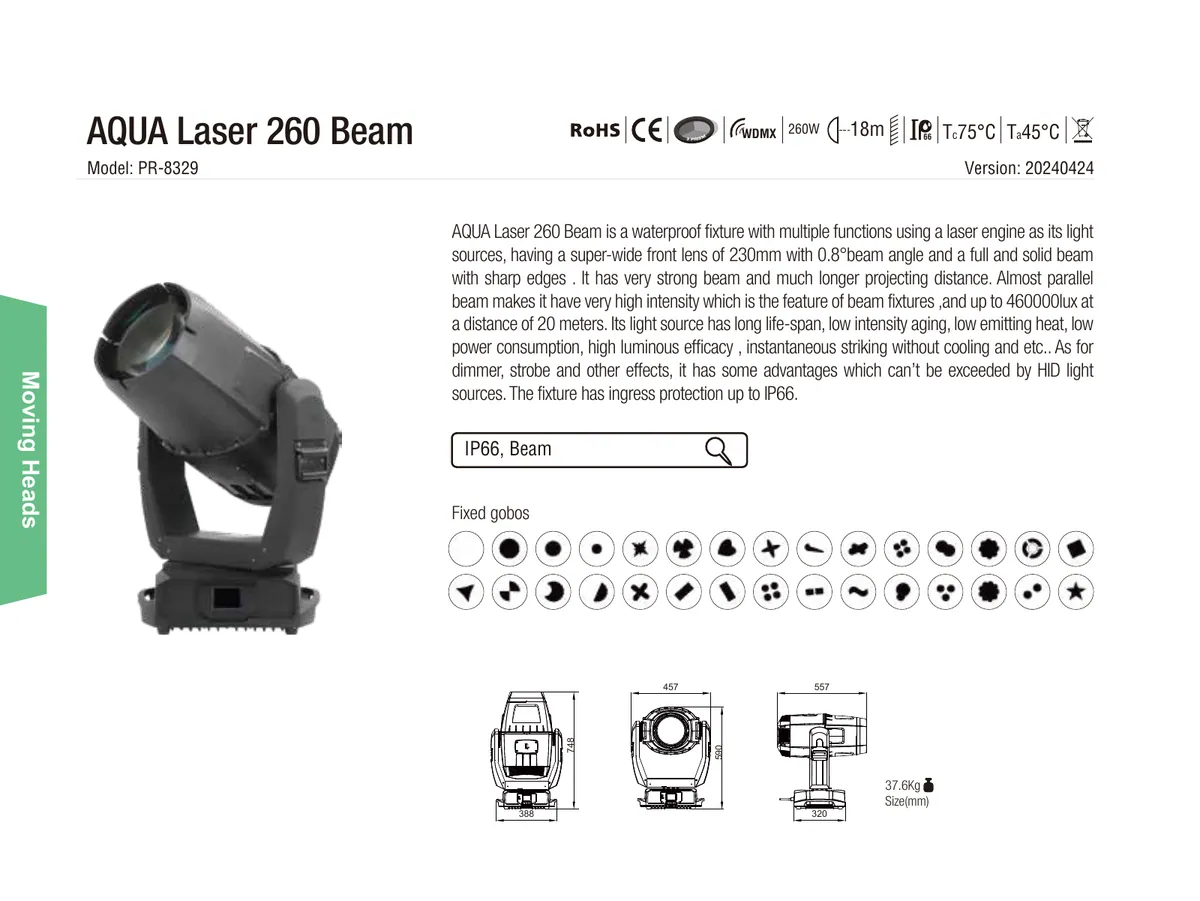

PDFDatasheetEN · 2 pages · 1.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Electric parameters4
- Input voltage
- 100V~240VAC,50/60Hz
- Power consumption
- 390W@ 220V
- Rated current
- 1.8A @ 220V
- Powerfactor
- PF>0.9
02Lightsources3
- Lightsources 260Wlasermodule
- Colortemperature 9000K
- Rated life 12000hrs
03Prism/frost2
- :
- 3 prism wheels
- (a 8-facet circular prism+ a 4-facet linear prism )+ (a 16-facet circular prism + a frost filter), Other prism options available.
04Focus1
- DMX linearfocus
05Strobe/dimmer1
- Double flag strobe,0.3-25 F.P.S. / linear dimmer
06Movements1
- Pan (0°-540°),Tilt( 0°-270°) with auto positioning correction function
07Beam angle1
- Beamangle
- 0.8°
08Control3
- Internationalstandard DMX 512 signal,5-pin XLRconnectors
- ShortMode 15 channels,standard Mode 17channels,extendedmode 18channels
- Selftest mode
09Other functions6
- Pan andTiltspeeds adjustable
- Lamp hours and fixture hours displayed
- Modular construction easy for maintenance
- 17Wirelessreceiver
- Wirelesstransmitter ( Optional)
- ArtNet and sACN ( Optional)
10Housing and ingress protection1
- Cast aluminumand high temperature andUVresistantABS with IP66
11Weight1
- Net weight
- 37.6Kg
12e4
- -20 °C ~ 45 °C
- Note
- If a fixture runs with the ambient temperature below 0 Celsius, it should be heated for some time(less than 20 minutes
- based on actual conditions) before turning on the lasermodule.
- 【Version
- 20240424】
13General4
- 1 color wheel
- 19 colors + open
- Macros and bi-directionalrainbow effects with variable speeds
- Fixed gobo wheel
- 1 fixed gobo wheel
- 30 gobos+ openShakable at variable speeds and bi-directionalrotation at variable speeds
Show the full specificationHide the rest of the specification0 more groups · 0 values
03Documents2 files · 5.1 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
