Sheet 05.821
PR Lighting · Effects and lasers

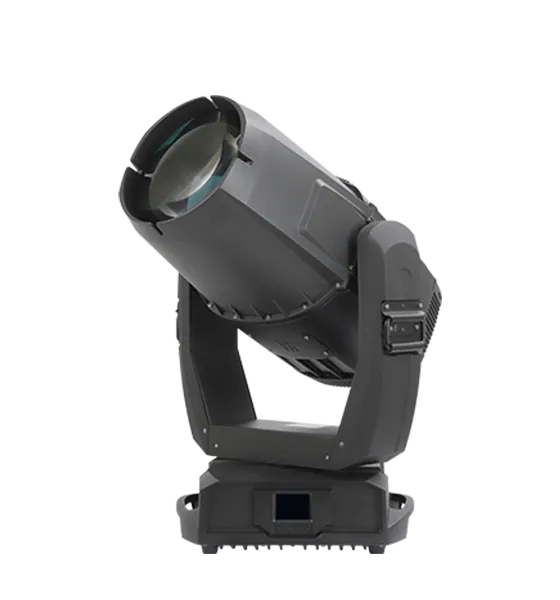

AQUA Laser 260 Beam
ModelPR-8339
Aqua Laser 260 Beam (PR-8339)is a trendy,energy-saving, evironmentally friendly and water-proof beam fixture with a laser engine as its light source, having a super-wide front lens of 230mm, a full and saturated beam with sharp edges and the angle of 0.8°.
- Beam angle / zoom
- 0.8°
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
AQUA Laser 260 BeamPrice on requestRequest a quotation
01SpecificationManufacturer's data · 3 groups · 45 values
What this product is, in numbers.

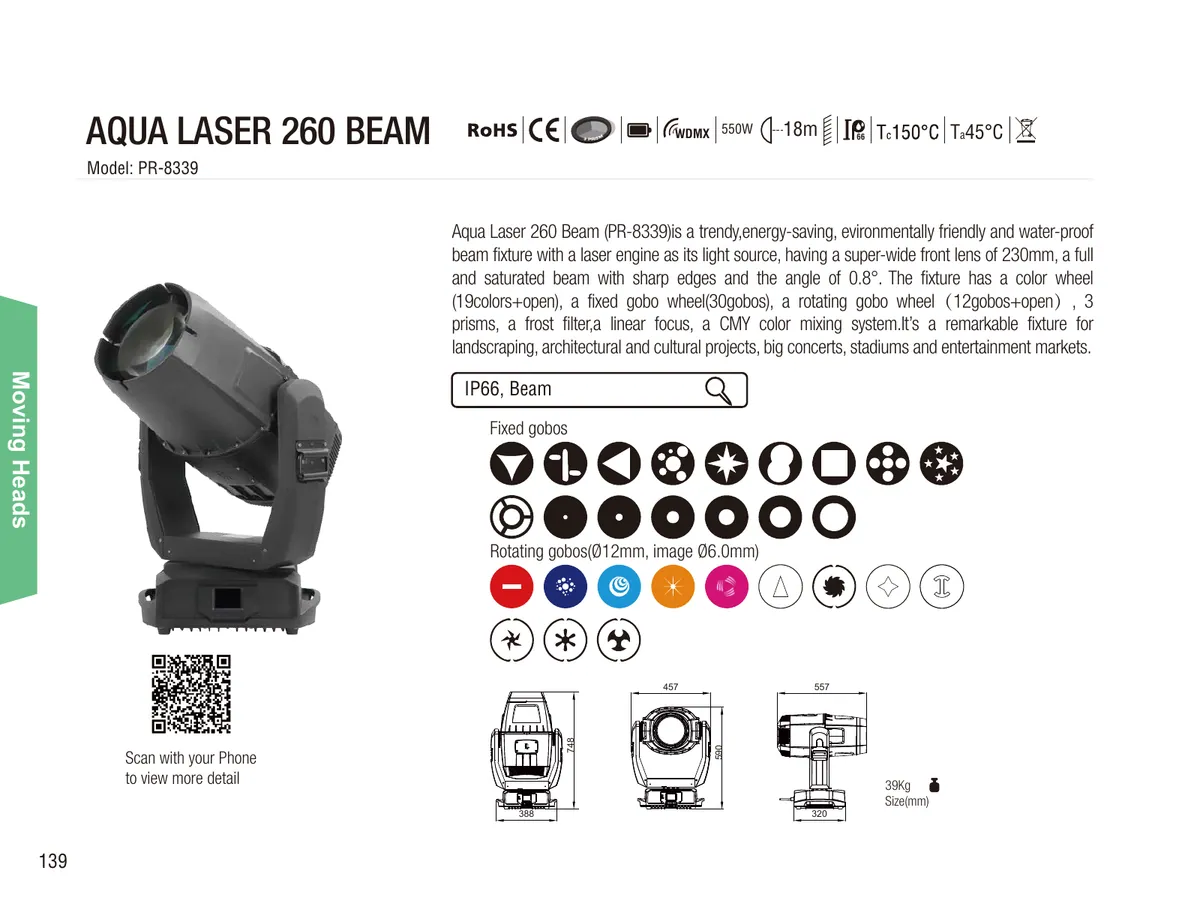

PDFDatasheetEN · 2 pages · 596 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01General38
- Input Voltage
- 100V~240V AC,50/60Hz
- Power Consumption
- 420W @ 220V
- Light Sources
- 260W laser module (9000K,12000hrs)
- Prism/Frost
- 2 prism wheels
- 1 wheel (an 8-facet circular prism+ a 4-facet linear prism )
- 1 wheel (a 16-facet circular prism + a frost filter)
- prisms overlapped. Other prism options available
- Focus
- DMX linear focus
- Strobe/Dimmer
- Double flag strobe,0.3-25 F.P.S. / linear dimmer
- Movements
- Pan (0°-540°),Tilt( 0°-270°) with auto positioning correction function
- Ambient Temperature
- 45°C at maximum for ambient temperature
- Beam Angle
- Beam angle
- 0.8°
- Control
- International standard DMX 512 signal,5-pin XLR connectors
- Short Mode 21 channels,standard Mode 25 channels,extended mode 28 channels
- Self test mode
- Other Functions
- Pan and Tilt speeds adjustable
- Lamp hours and fixture hours displayed
- Modular construction easy for maintenance
- Wireless receiver
- Optional wireless transmitter
- Optional Art-Net function
- Housing
- Cast aluminum and high temperature and UV resistant ABS with IP66
- Net Weight
- 39Kgs
- Accessories
- Safety cord 1 Pc
- User manual 1 Pc
02Color Wheel3
- 1 color wheel
- 19 colors+open
- Macros and bi-directional rainbow effects with variable speeds
- a linear CYM color mixing system
03Fixed Gobo4
- 1 fixed gobo wheel
- 30 gobos
- Shakable at variable speeds and bi-directional rotation at variable speeds
- 1Rotating gobo wheel
- 12 gobos+ Open
- Shaking and bi-directional wheel scrolling at variable speeds
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Aqua Laser 260 Beam (PR-8339)is a trendy,energy-saving, evironmentally friendly and water-proof beam fixture with a laser engine as its light source, having a super-wide front lens of 230mm, a full and saturated beam with sharp edges and the angle of 0.8°. The fixture has a color wheel(19colors+open), a fixed gobo wheel(30gobos), a rotating gobo wheel(12gobos+open), 3 prisms, a frost filter,a linear focus, a CMY color mixing system.It’s a remarkable fixture for landscraping, architectural and cultural projects, big concerts, stadiums and entertainment markets.
03Documents2 files · 3.1 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
